Description

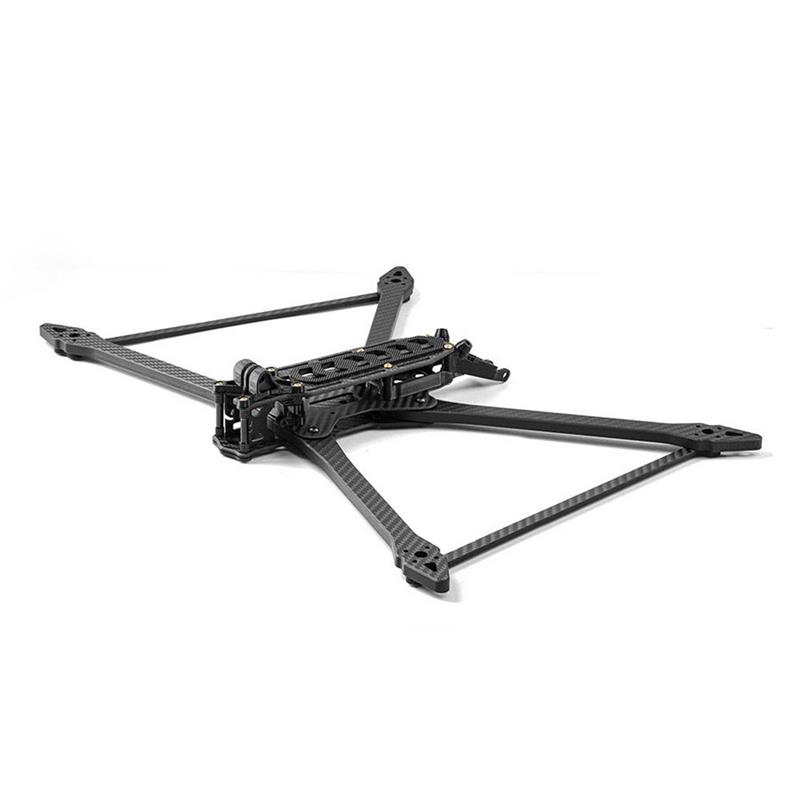

HGLRC Rekon10 PRO 455mm Wheelbase 3K Carbon Fiber 10 Inch Long Range Frame Kit for RC FPV Racing Drone
The HGLRC Rekon10 PRO is engineered for demanding long-range FPV drone missions. With a robust 455mm wheelbase and 10-inch size, this frame kit delivers exceptional cruising speeds and wind resistance, ideal for high-altitude flights. Constructed from durable 3K carbon fiber, it features reinforced 8mm arms and 3mm thick top and bottom plates for enhanced stability. The frame’s spacious design accommodates dual battery mounts, optimizing range. Compatible with various components, including 30.5×30.5mm flight controllers and 10-inch propellers, the Rekon10 PRO is a versatile choice for advanced drone enthusiasts seeking performance and reliability.
Introduction:
The Rekon 10 Pro is an absolute beast designed for the most challenging long-range missions! The weight and momentum of a 10§ quad gives it stunningly high cruising speeds and wind resistance for high altitude mountain dives. While it looks similar to the Rekon 7 Pro, they actually not share any identical carbon parts:
– The Arms are considerably beefed-up and cut out of 8mm carbon plates.
– Top and bottom plate are 3mm thick.
– The main body is wider and slightly longer to fit larger batteries.
– For maximum range dual batteries (top and bottom mount) are recommended.
Specification:
Brand: HGLRC
Model:Rekon10 Pro
Item Name: 455mm Wheelbase 10 Inch Long Range Frame Kit
Material:3K Carbon fiber
Type:10 inch
Wheelbase: 455mm
Size: 476x298mm
Top plate thickness: 3mm
Bottom plate thickness: 3mm
Middle plate thickness: 2mm
Front arm: 8mm
Rear arm: 8mm
Frame protection bar: 2mm
Camera side plate: 2mm
Top and middle plate space: 20mm
Flight controller mounting hole: 30.5×30.5mm
Camera mount: 20*20mm
Motor mounting hole: 19*19mm
Weight: 396.7g
Recommend Parts: ( Not Included)
Flight control: 30.5×30.5mm F7 / F4 FC
Motor: 31xx/32xx
ESC: 60A ESC
Camera: 20X20mm
Propeller: 10 inches
Battery: 6S 2000-5100mAh
The fllowing Parts are Compatible: ( Not Included)
FC & ESC Stack: 30.5×30.5mm SpeedyBee F405 V4 BLS 60A 4In1 ESC Stack
30.5×30.5mm Flashhobby F405 F4 OSD Blackbox FC & 60A BL_S 4in1 ESC
Brushless Motor: Flashhobby M3115 3115 900KV 3-6S Brushless Motor
Propeller: HQProp MQ10x5x3 1050 10 Inch Carbon Nylon 3-Blade Propeller
VTX & Camera: DJI O3 Air Unit
Lipo Battery: ZOP Power 6S 22.2V 5000mAh 100C

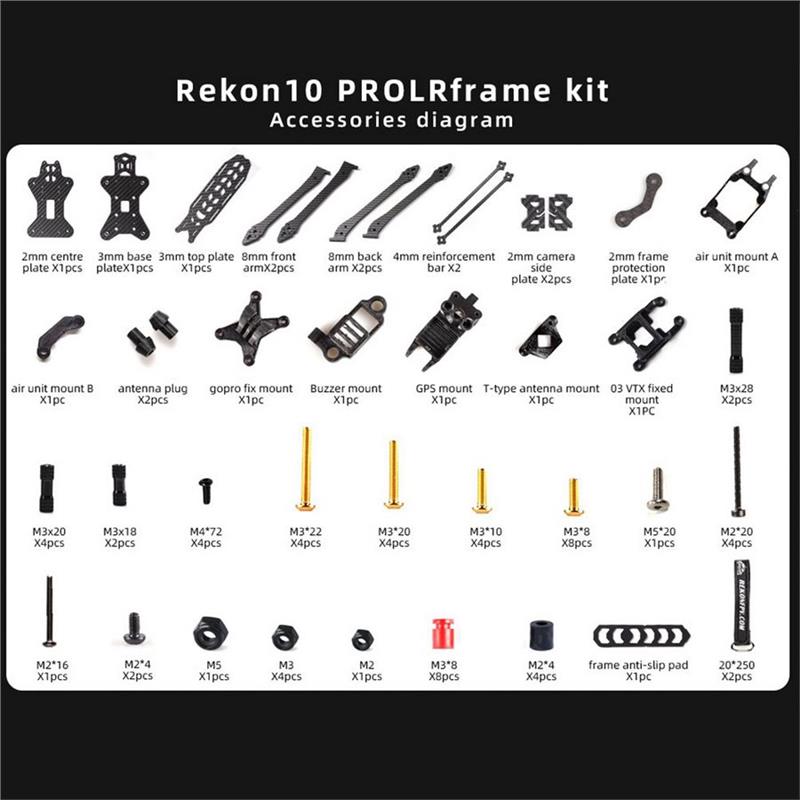

Package Included:
1 x Rekon10 Pro Empty Frame Kit
2 x Battery Straps 20x250mm
1 x Battery Anti-slip Pad
1 x Down Battery Anti-slip Pad
1 x TPU Black Holder Mount for GoPro
1 x TPU Black GPS Mount
2 x TPU Black Antenna Mount
1 x TPU Black T-antenna Mount
1 x TPU Black Buzzer Mount
1 x TPU Black DJI Air Unit Block A
1 x TPU Black DJI Air Unit Block B
1 x TPU Black DJI O3 Holder Mount
