HAKRC 35A Mini F7 DJI Stack F7220V2 Flight Controller & 8B35A 4in1 ESC for RC FPV Racing Drone, 20x20mm, 2-6S

-19%

HAKRC 35A Mini F7 DJI Stack F7220V2 Flight Controller & 8B35A 4in1 ESC for RC FPV Racing Drone, 20x20mm, 2-6S

Original price was: 98.07$.Current price is: 79.09$.

High-speed STM32F722RET6 processor for precise control
ICM42688 dual gyroscope for enhanced flight stability
35A 4in1 ESC with 40A peak current for powerful drones
Supports multiple signal modes and 2S-6S input voltage
Telemetry data transmission for performance optimization

SKU: RC1992323 Category: Multi Rotor Parts Tags: 35A 4in1 ESC, dual gyroscope drone, ESC telemetry data, HAKRC flight controller, mini F7 DJI stack, PWM Dshot600 support, RC FPV racing drone, STM32F722RET6 processor Brand: HAKRC

Description

20x20mm HAKRC 35A Mini F7 DJI Stack F7220V2 F7 2-6S Flight Controller & 8B35A 35A BL_S 4in1 ESC for RC FPV Racing Drone

The HAKRC 35A Mini F7 DJI Stack F7220V2 is a compact and efficient flight controller and ESC combination designed for RC FPV racing drones. Featuring the powerful STM32F722RET6 processor, it ensures precise and responsive control. The ICM42688 dual gyroscope enhances stability, enabling high-performance flight maneuvers. The 35A 4in1 ESC supports a peak current of 40A for up to 10 seconds, making it suitable for high-powered drones. With compatibility for signal modes such as PWM, Oneshot125, and Dshot600, and input voltages from 2S to 6S, this stack is versatile for various drone configurations. It also supports telemetry data transmission for optimal flight performance tuning.

Specifications:
Brand: HAKRC
Model: 35A Mini F7 DJI Stack
Net Weight: 13.2g
Package Weight: 56g
Package Size: 鏈?4*64*35mm
Mounting Hole Spacing: 20*20mm
Hole Diameter: M4

F4 Flight Controller

Mounting Hole Spacing: 20*20mm 鑰?mm
Processor: STM32F722RET6
Gyroscope: ICM42688 Dual Gyroscope
BEC: 5V/2A ; 10V/2A
Storage: 16MB
Input Voltage: 2S銆?S
Firmware: HAKRCF722V2
Uart Ports: 6
Supports external programmable LEDs
Comes with a 6P sky socket

35A 4in1 ESC

Mounting Hole Spacing: 20mm*20mm 鑰?mm
Continuous Current: 35A
Peak Current: 40A (10s)
Input Voltage: 2S-6S
Current Ratio: 300
Supports ESC telemetry data transmission
Configuration Software: BLHeliSuite16.7.14.9.0.3
Supports signal modes: PWM, Oneshot125, Oneshot42, Multishot, Dshot150, Dshot300, Dshot600

Features:
High-Speed Processor: With an STM32F722RET6 processor, enjoy precise, responsive drone control for an improved flight experience.
Dual Gyroscope: The ICM42688 dual gyroscope offers enhanced stability for high-performance flight maneuvers.
Efficient ESC: Our kit includes a 35A ESC that supports a peak current of 40A for up to 10 seconds, suitable for high-powered drones.
Telemetry Data Transmission: Our ESC supports telemetry data transmission, providing vital feedback for fine-tuning your flight performance.
Broad Compatibility: Supports signal modes like PWM, Oneshot125, Oneshot42, Multishot, Dshot150, Dshot300, Dshot600, and input voltages from 2S to 6S, making it a versatile choice for different drones.

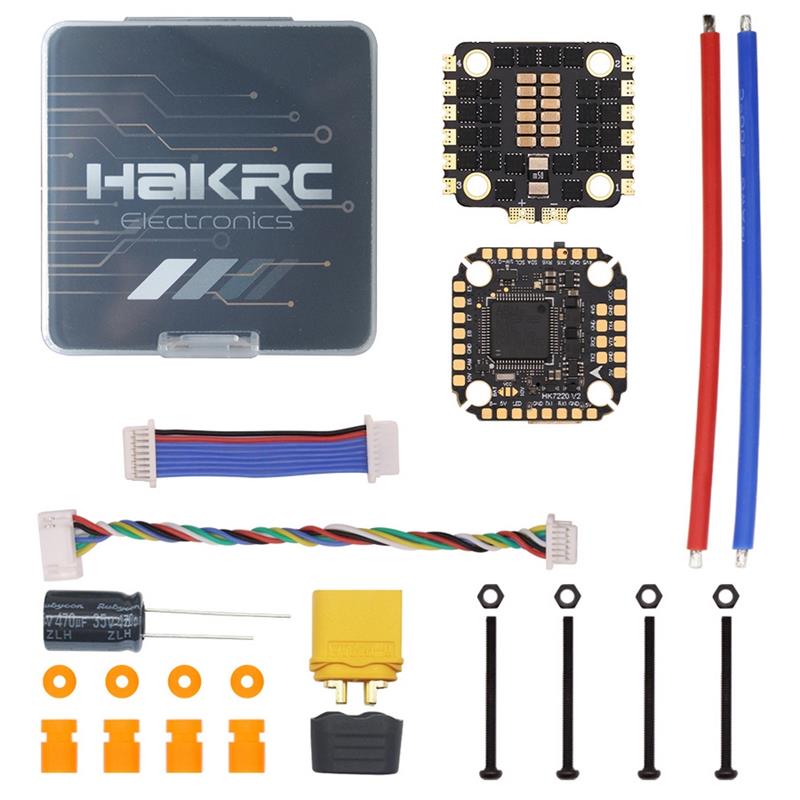

Package Included:
1 x HAKRC 35A Mini F7 Stack
8 x M2 Orange Shock Absorption
1 x 8P Cable
1 x DJI 6P Connection Cable
1 x 35v270uf Capacitor
1 x XT60 Power Plug
1 x Red and Blue Power Cable
4 x M2x25mm Screws
4 x Black Nuts
