RUSHFPV 3.3GHz 2W 8CH VTX Video FPV Transmitter with LHCP/RHCP Antenna for Long-Range Drone Flights

Description

RUSHFPV 3.3GHz 2W 8CH VTX Video FPV Transmitter with Circular Polarized LHCP/ RHCP FPV Antenna for Long-Range Flights RC Drone

The RUSHFPV 3.3GHz 2W Video FPV Transmitter is designed for long-range drone flights, ensuring reliable video transmission with its compact and durable design. Equipped with a customized digital PLL circuit, it maintains stable performance without frequency drift, eliminating the need for fan cooling. This transmitter offers high transmission efficiency, achieving up to 2.5W output power in airflow conditions, making it ideal for long-distance video transmission. It features a wide frequency range with 8 channels in both BAND-A and BAND-B, and comes with a circular polarized LHCP/RHCP antenna for optimal performance. The RUSHFPV VTX is constructed with quality control in mind, ensuring top-notch quality and durability.

The RUSHFPV 3.3GHz 2W Video Transmitter is engineered for long-range FPV flights, offering compact size, durability, and reliable performance. Featuring a customized digital PLL circuit and high transmission efficiency, this VTX ensures no frequency drift and eliminates the need for fan cooling. With a maximum output power of up to 2.5W in environments with airflow, it is perfect for long-distance video transmission.
Specifications:

Video Input:

CVBS NTSC/PAL

Frequency:

BAND-A: 3330-3470MHz (8 channels)
BAND-B: 3170-3310MHz (8 channels)

RF Power:

>2W

Protocol:

IRC Tramp

DC Input:

7-30V

Connector:

SMA

Dimensions:

40.5 x 26 x 8.5 mm

Weight:

16.5g

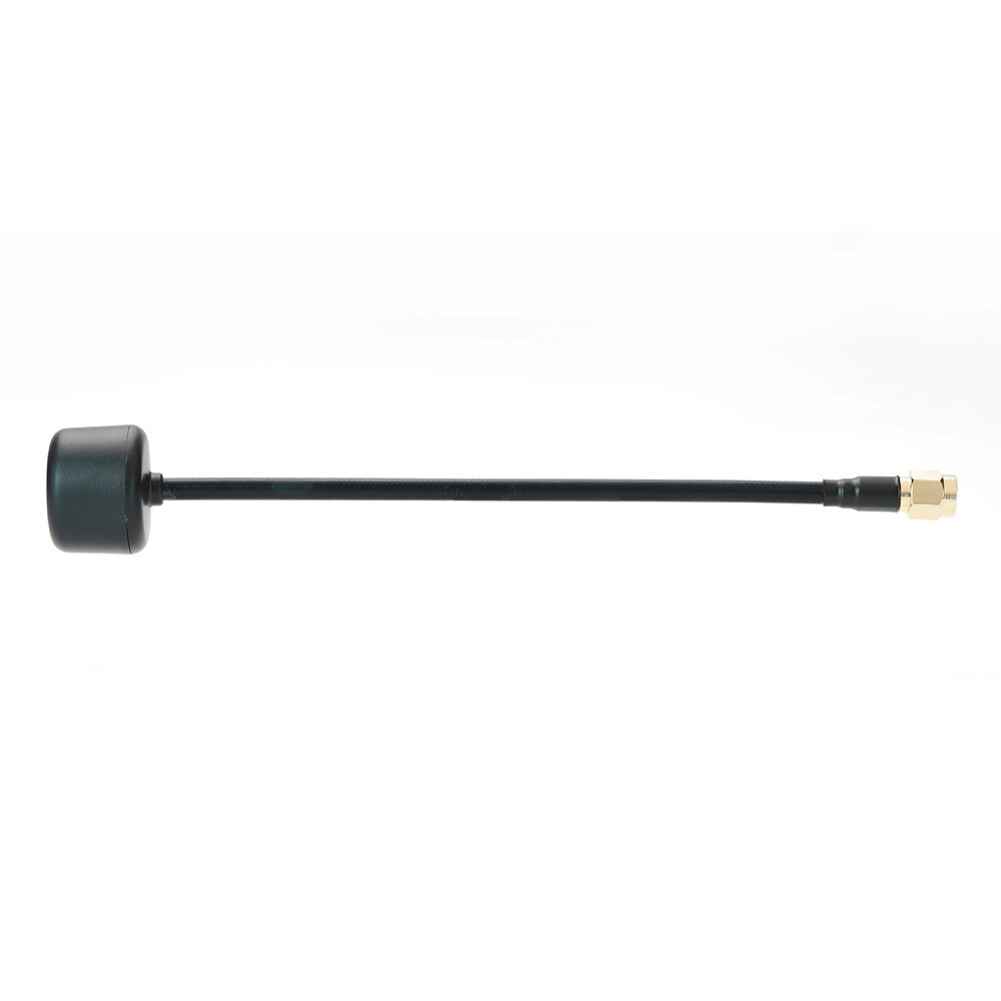

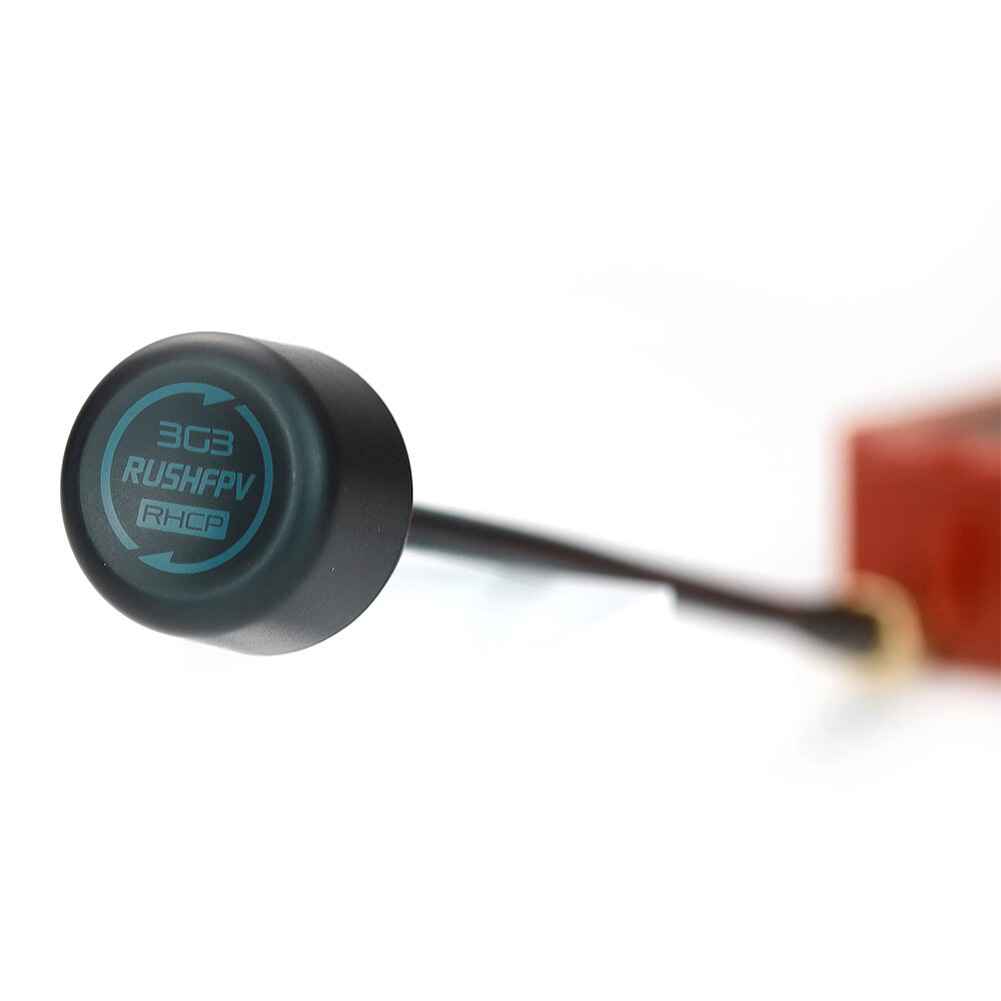

Antenna Specifications:

Brandㄩ

RUSHFPV

Polarization:

LHCP / RHCP

Bandwidth:

A-Band: 3330-3470MHz
B-Band: 3170-3310MHz

Gain:

2dBi

V.S.W.R:

<1.5

Cable:

RG402 Heavy Duty

Connector:

SMA

Dimensions:

23.6 x 165 mm

Weight:

13g

Key Features:
1.Long-Range Capability: Ideal for extended flights, providing reliable video transmission over long distances.
2.Digital PLL Circuit: Customized integration at the chip level ensures stable performance without frequency drift.
3.High Transmission Efficiency: No fan cooling required, with a maximum output power of up to 2.5W.
4.Customized Circular Polarized Antennas: Designed for optimal performance with LHCP/RHCP polarization and high durability.
5.Quality Control: Comprehensive QC processes for both VTX and antenna production guarantee top-notch quality.

Package Included:

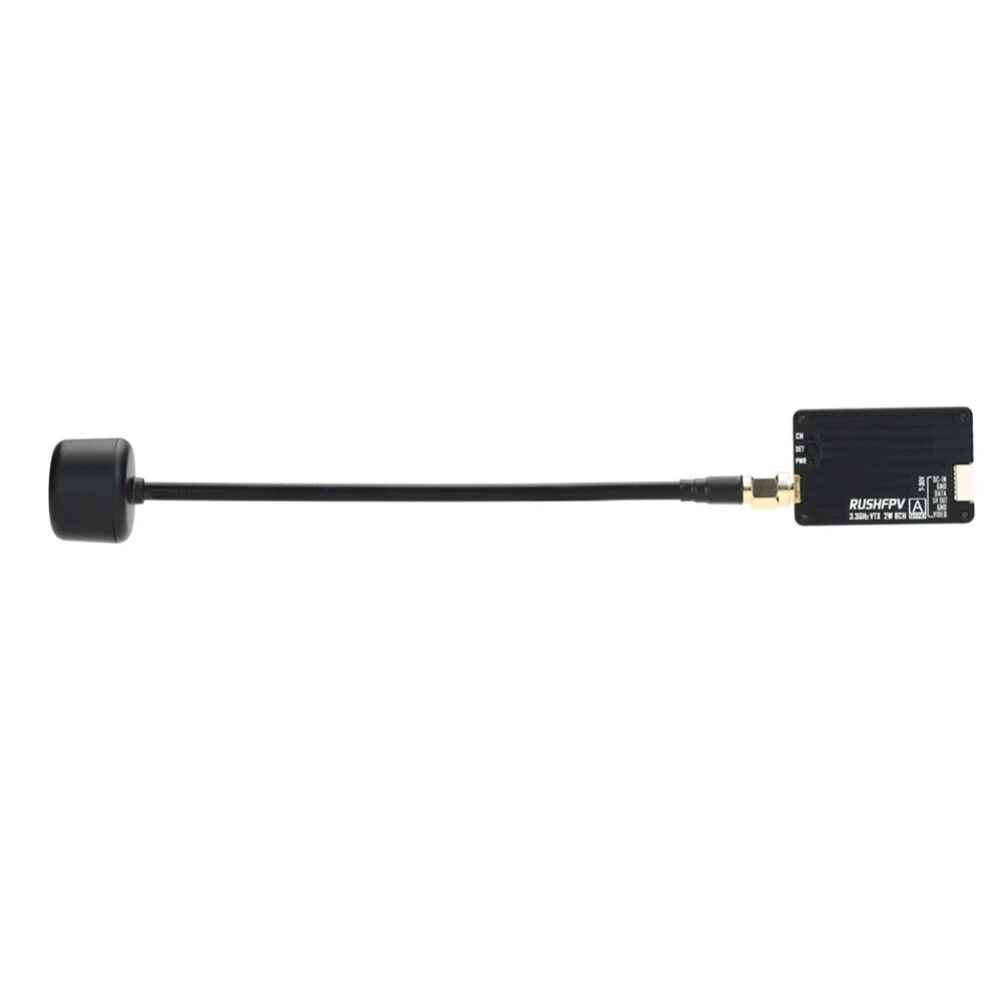

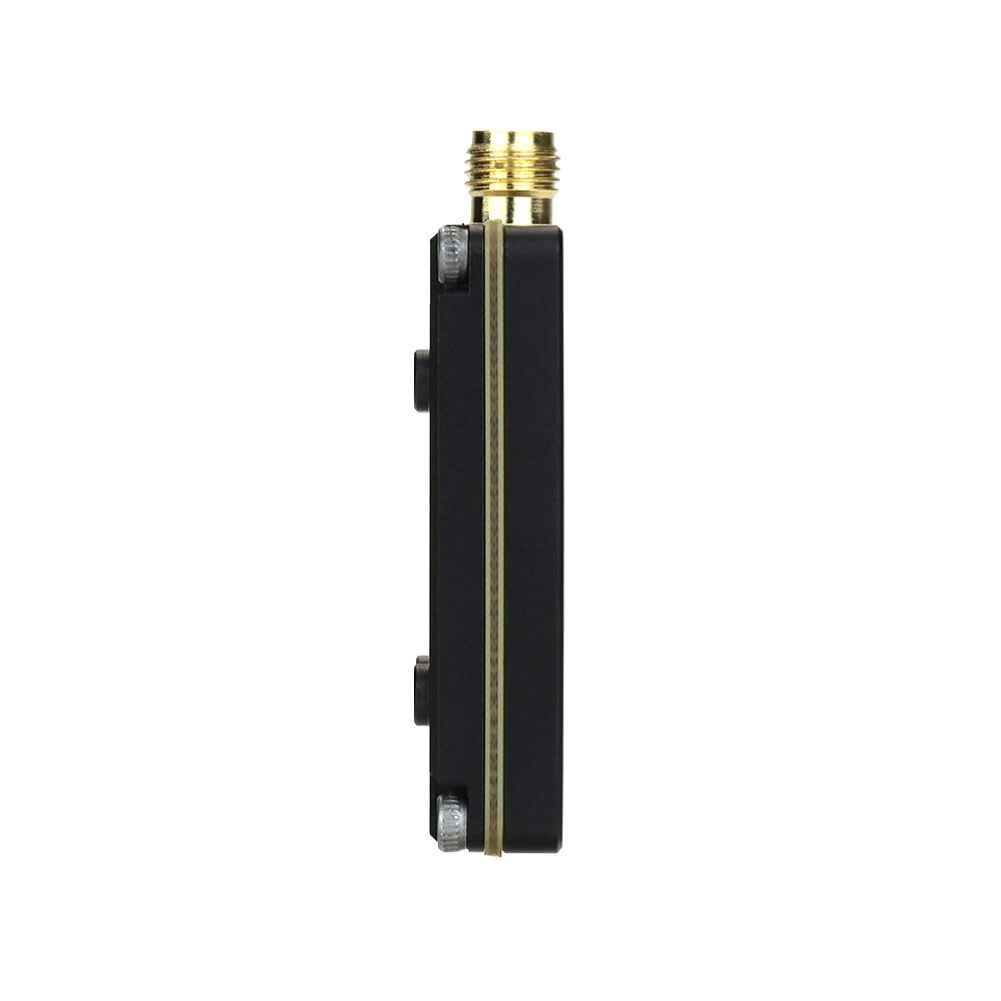

1 x 3.3G 2W Video Transmitter
1 x Circular Polarized Antenna
