Description
25.5×25.5mm HGLRC SPECTER F411 12A AIO F4 Flight Controlle 4In1 ESC UART ELRS 2.4G Receiver for Whoop Toothpick FPV Racing Drone
The HGLRC SPECTER F411 12A AIO Flight Controller is engineered for superior performance in FPV racing drones. Featuring an STM32F411 MCU and ICM42688P MPU, it ensures stable and smooth flight control. This controller supports a 5V1.5A BEC, 16MB Black Box, OSD, LED, and buzzer functions. Equipped with a UART ExpressLRS 2.4G receiver and adjustable RCE-25-100-400mW image transmission, it provides reliable long-range communication. The flight control firmware is HGLRCF411SX1280_15A, and the ESC firmware is Z-H-30 (Blheli_S), supporting Dshot150/300/600 protocols. With an input voltage of 25-45 (Lipo) and a compact size of 32x32mm, it is perfect for Whoop and Toothpick drones.
Specifications:
Brand: HGLRC
Model: SPECTER F411 12A AIO
Product name:HGLRC F411 12A AlO Flight controller
MCU:STM32F411
MPU:ICM42688P
BEC:5V1.5A
Black box:16MB
OSD:support
LED:support
Buzzer:support
UARTS:1 image transmission OSD assistant /2 CRSF protocol receiver
Built-in receiver:UART ExpressLRS 2.4G
Built-in receiver frequency:2.4GHZ
Built-in image transmission:RCE-25-100-400mW (adjustable)
Built-in image transmission frequency:48CH-5.8ghz
Continuous current:12APeak current:15A(5s)
ESC protocol:Dshot150/300/600
Flight control firmware:HGLRCF411SX1280_15A
ESC firmware:Z-H-30(Blheli_S)
Input voltage:25-45 (Lipo)
Size:32℅32mm
Mounting hole:25.5℅25.5mm.M2

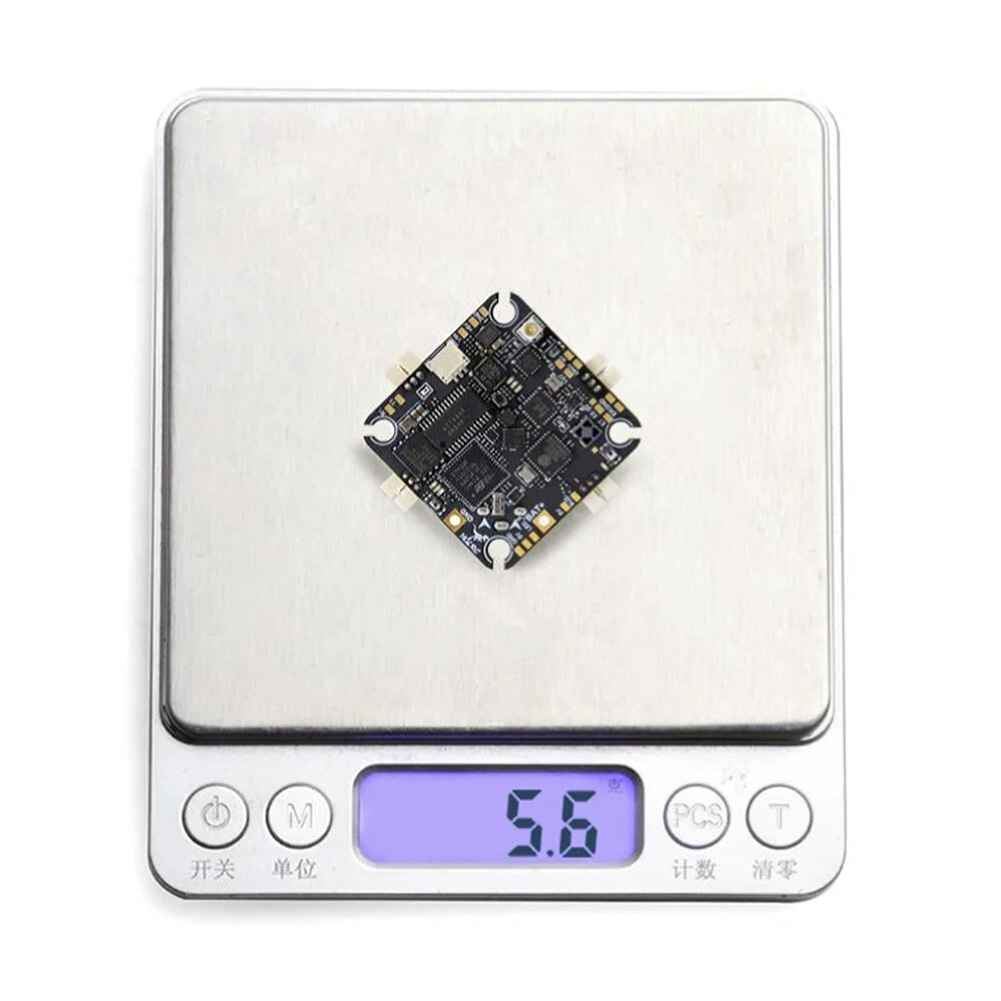

Weight:5.6g
Features:
-High Performance: The HGLRC SPECTER F411 is designed for optimal performance, providing stable and smooth flight control.
-Extended Long Range System: Equipped with ELRS, this flight controller ensures long-range communication and reliable signal transmission.
-Easy Setup: With a user-friendly interface, this flight controller can be easily set up and configured to suit your needs.
-Versatile: Suitable for both children and toy enthusiasts, this flight controller is great for hobbyists and beginners alike.

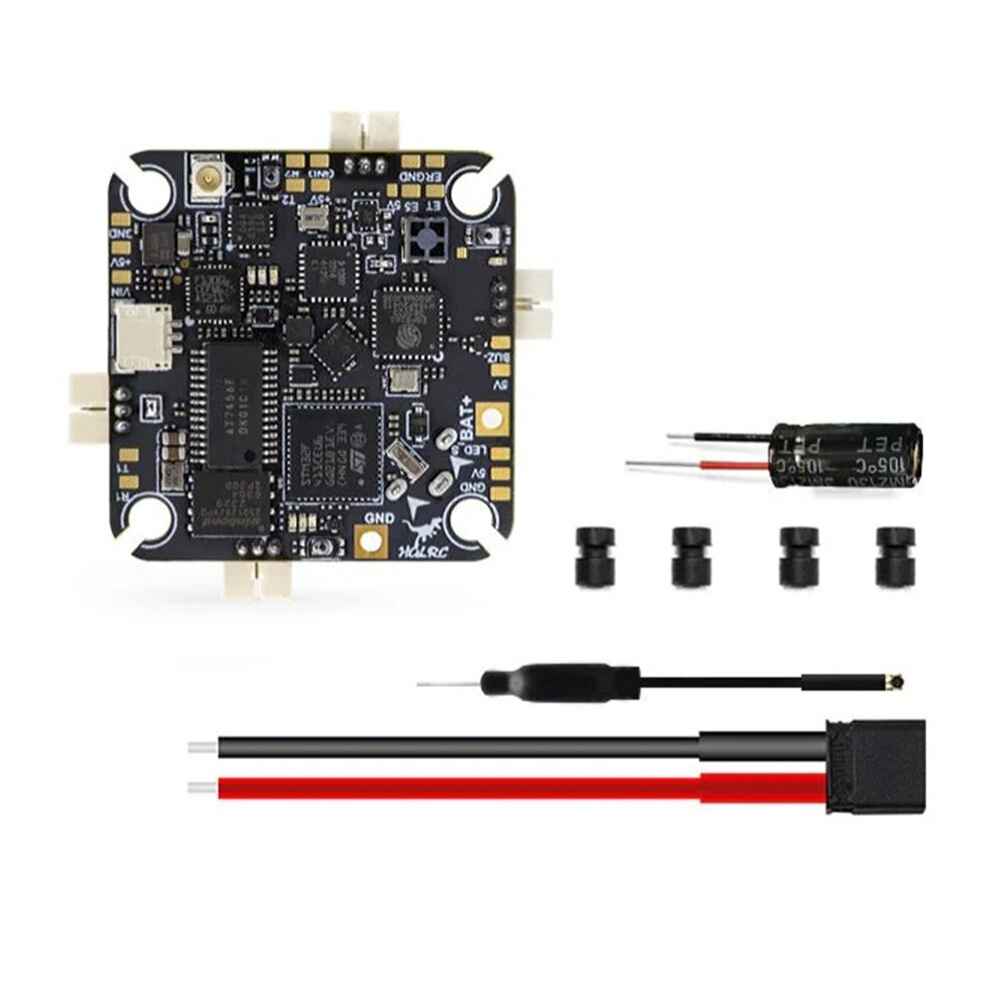

Package Included:
1 x HGLRC SPECTER F411 12A ELRS AIO Flight Controller
