Description

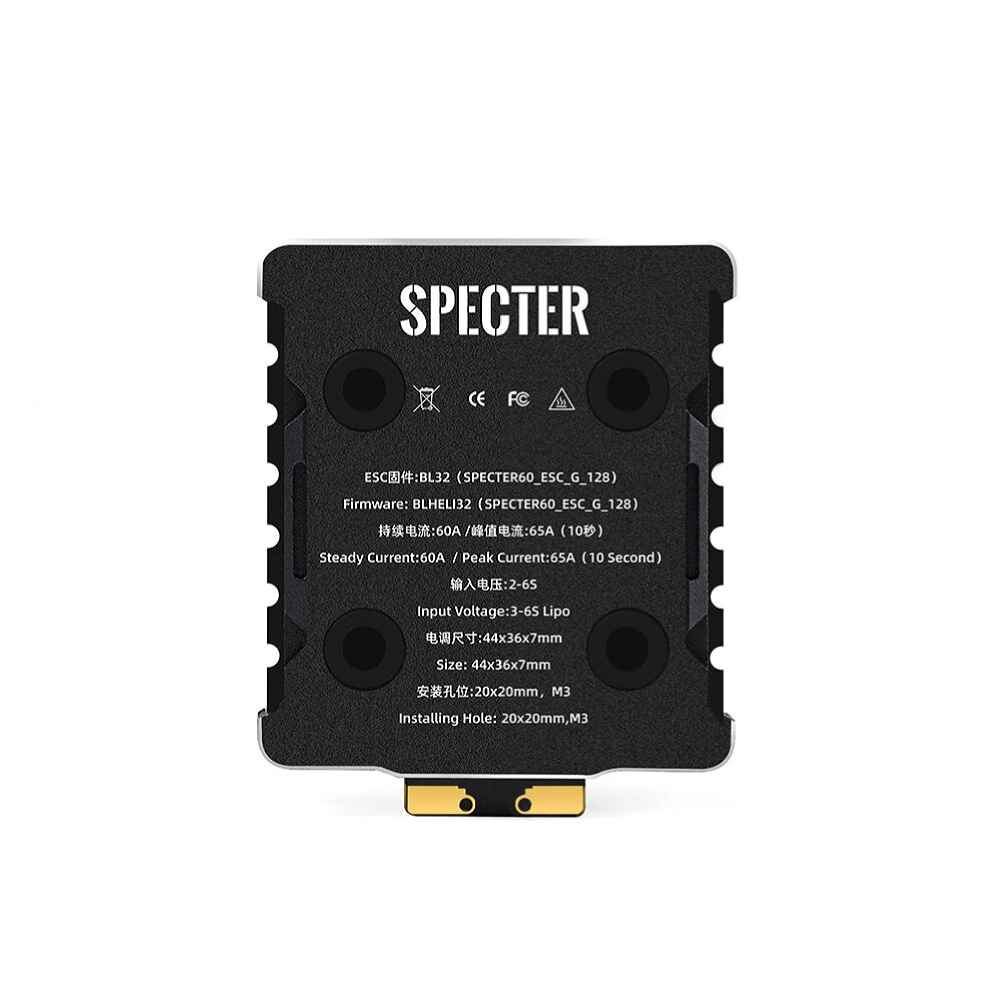

20x20mm HGLRC SPECTER 60A 3-6S BLheli_32 128K 4in1 Brushless ESC with Heat Sink for Freestyle RC FPV Racing Drone
The HGLRC SPECTER 60A 4-in-1 Brushless ESC is designed for freestyle RC FPV racing drones, offering a high-performance solution with its STM32G071 processor. It supports a 3-6S Lipo input voltage and features a constant current of 60A with a peak of 65A for 10 seconds. The ESC utilizes BL32 firmware with a 128K PWM frequency for smoother control and faster response. It includes a CNC heat sink for enhanced heat dissipation and stability. Gold pads and a 6-layer board ensure durability, while a nano-scale coating provides waterproof, moisture-proof, and anti-corrosion protection. The ESC supports DShot600/300/150 and is compatible with Oneshot125/24 and MultiShot protocols.
Specifications:
Brand: HGLRC
Model: SPECTER 60A
Item Name: 60A 3-6S BLheli_32 128K 4in1 Brushless ESC
Input Voltage:3-6S Lipo
Constant Current:60A
Peak Current:65Aㄗ10sㄘ
CPU:STM32G071(128K)
ESC firmware:BL32 (SPECTER60_G_128)
Size(L*W*H):44mmx36mmx7mm
Installing Hole:20x20mm, M3
Support Protocols:DShot600/300/150/Oneshot125/42,MultiShot
Weight:19.5g
ESC Features:
1. The high-performance hardware adopts STM32G071 BL32 processor, which has fast computing speed, smoother control, better hand feel, and faster response speed.
2. The ESC uses BL32 firmware, and the PWM frequency supports 128K.
3. Immersed gold pads to prevent the pads from falling off during use. The 6-layer board is designed to withstand high temperatures.
4. Integrated CNC heat sink, stronger heat dissipation, more stable operation, and improved usage efficiency.
5. Integrated built-in ammeter,BL32 support for returning data such as motor speed, current, temperature, etc.
6. Supports digital protocol DShot600/300/150 and is compatible with Oneshot125/24/MultiShot protocol.
7. Nano-scale coating is added to both sides of the board, and its main functions are waterproof, moisture-proof, and anti-corrosion.

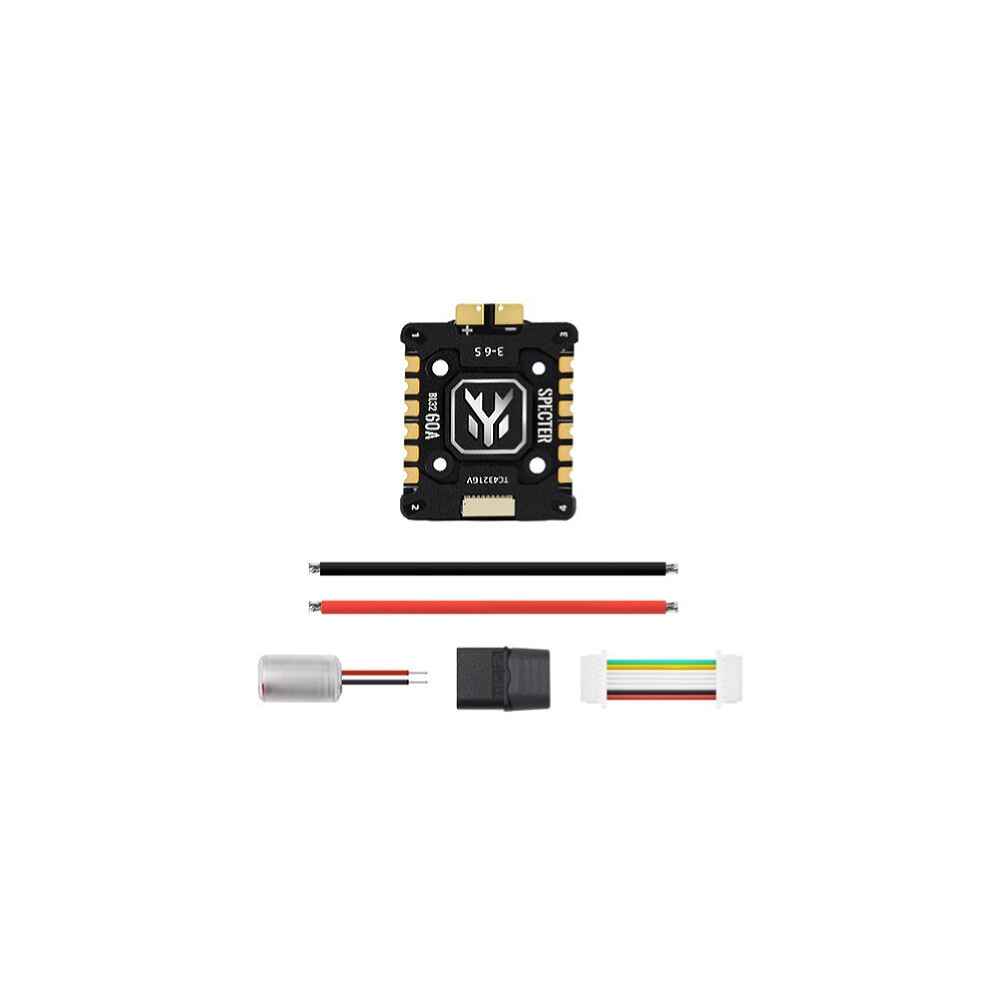

Package Included:
1x HGLRC SPECTER 60A 4-in-1 ESC
1x 30AWG 25mm double-ended SH1.0-8P cable
1x 12AWG 100 power cord (black/red)
1x XT60H-M black male connector
1x 50v 470UF solid capacitor
