Description

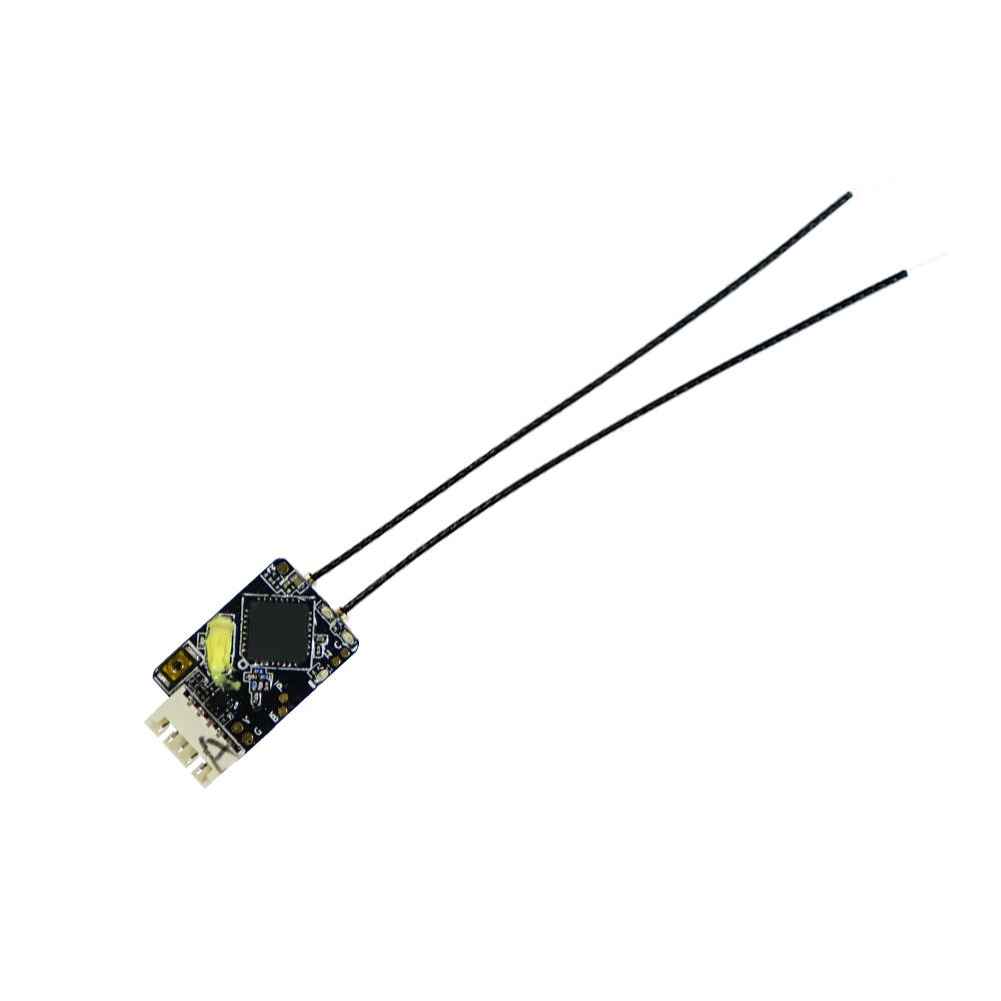

FrSky R-XSR Ultra SBUS/CPPM D16 16CH Mini Redundancy Receiver 1.5g for RC Multirotor FPV Racing Drone
The FrSky R-XSR Ultra Mini Receiver is an evolution of the full-range XSR receiver, offering the same functionality in a compact design. At just 1.5g, it is almost a third of the size and weight of its predecessor. This receiver includes a redundancy function for enhanced security and features an IPEX connector for easy antenna replacement. Compatible with FrSky X Series modules and radios in D16 mode, it supports telemetry and Smart Port. The R-XSR can be easily bound using the ACCESS protocol firmware without needing to access the F/S button once registered.
FrSky R-XSR Ultra Mini Redundancy Receiver
You can click Here to buy the originals connection cable altogether.
ACCESS protocol firmware: Here
OVERVIEW:
FrSky ultra mini receiver R-XSR is the evolutions of FrSky full range XSR receiver. The R-XSR is a standalone receiver with all the functions of XSR, in addition, it’s almost 1/3 size and 1/3 weight of XSR receiver. Moreover, there redundancy function is integrated into this tiny receiver ensures the security, and the IPEX connector makes it more convenient to replace antennas.
The R-XSR is an ACCESS compatible receiver, by flashing the ACCESS firmware it can be re-bound at any time without accessing the F/S button once it is registered to an ACCESS radio.
SPECIFICATION (USER MANUAL):
Dimension: 16*11*5.4mm (L*W*H)
Weight: 1.5g
Number of channels: 16CH (1-16CH from SBUS channel, 1~8CH from CPPM channel)
Operating Voltage Range: 4~10V
Firmware Upgradable
Compatibility: FrSky X Series modules and radios in D16 mode
FEATURES:
Ultra mini size and light weight
Support telemetry and Smart Port enabled
Full range
Switchable SBUS/ CPPM signal output
Supports redundancy function
IPEX connector, replaceable antennas
Package Included:
1 x FrSky R-XSR Receiver
