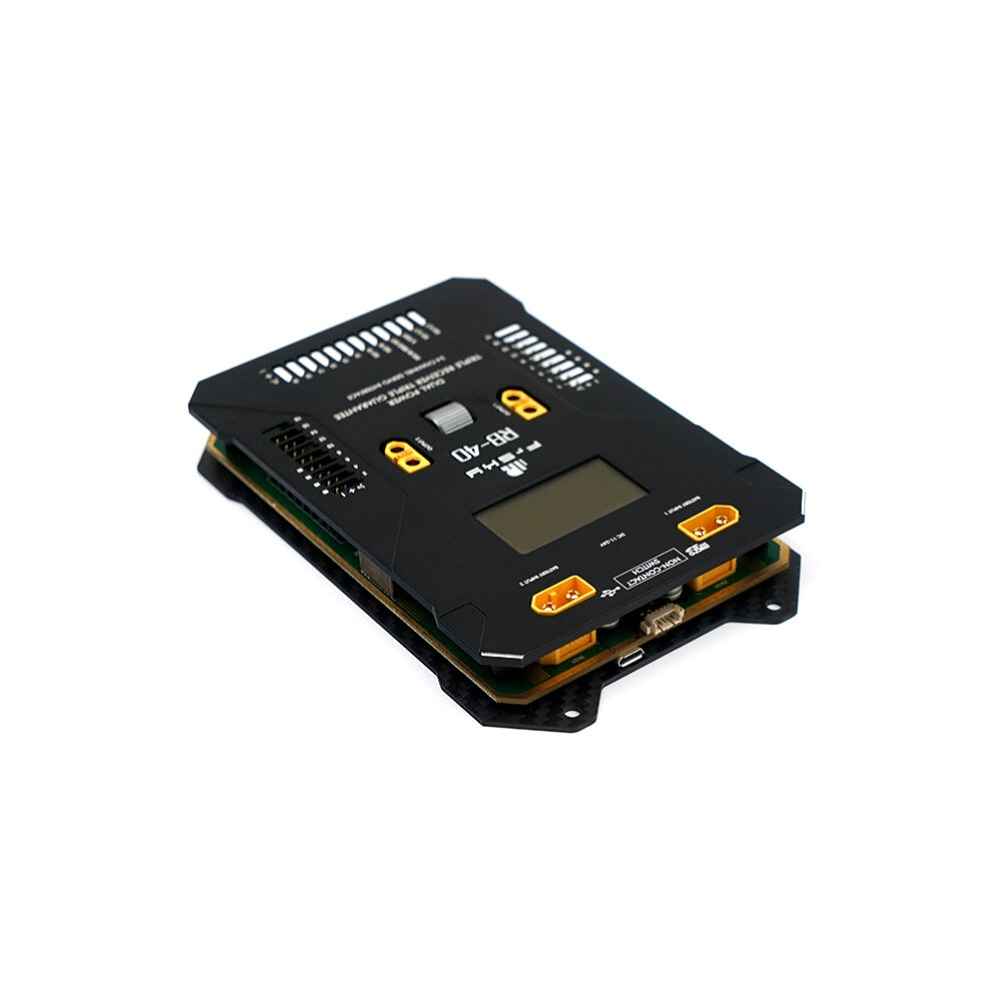

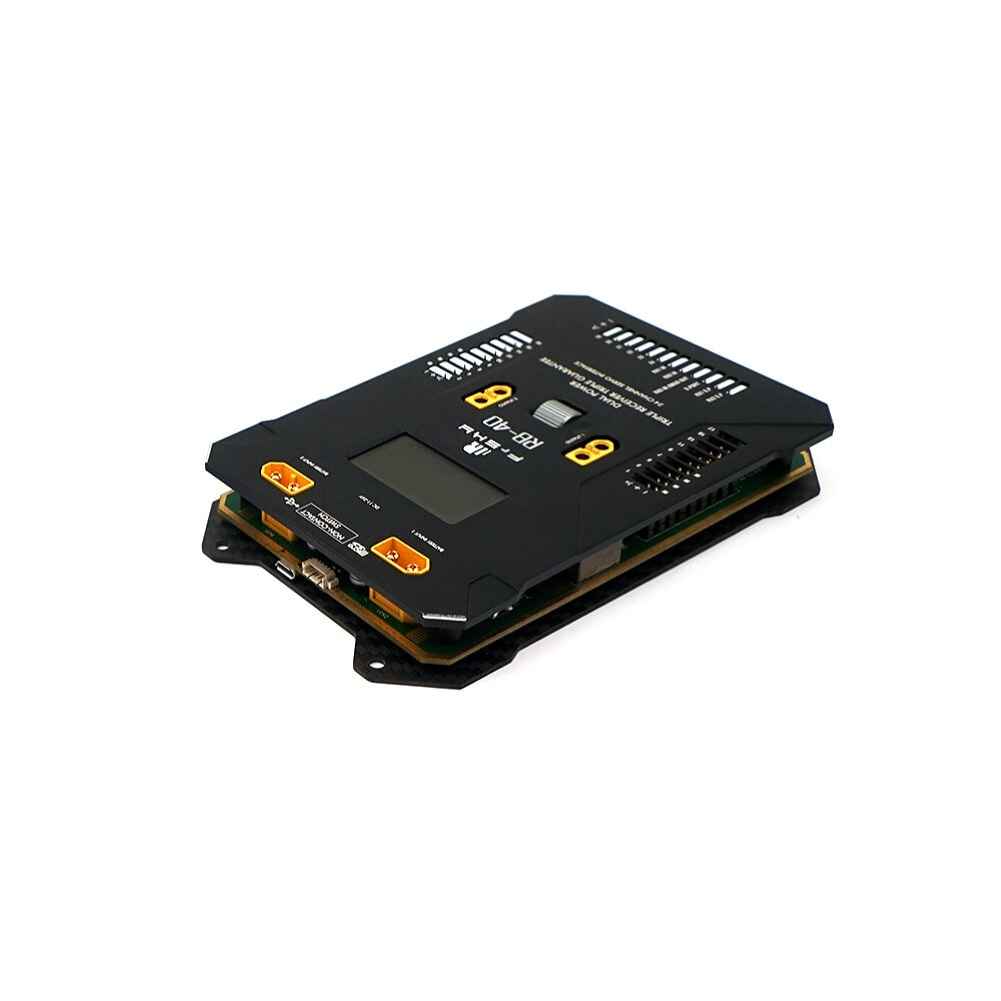

FrSky RB40 24CH Dual Power Redundancy Module with LCD & Gyroscope for RC Drones

Description

FrSky RB40 24CH Dual Power Triple Receive Signal Redundancy Module with Menu Scroll Button & LCD Screen Built-in Gyroscope Sensor Non-contact NFC Switch for RC Drone

The FrSky RB40 Module is designed for RC drone enthusiasts seeking advanced signal redundancy and power management. This module boasts 24-channel dual power with triple receive signal redundancy, ensuring reliable performance. Its built-in gyroscope enhances stabilization, while the non-contact NFC switch offers convenient power management. The module supports up to 24 high-voltage PWM servos with overload protection, and provides various telemetry feedbacks such as voltage and current. Featuring a CNC aluminum and carbon fiber case, the RB40 is both durable and lightweight. The LCD screen and menu scroll button simplify navigation and configuration, making it a versatile choice for RC hobbyists.

FrSky RB40 24CH Dual Power Triple Receive Signal Redundancy Module with Menu Scroll Button & LCD Screen Built-in Gyroscope Sensor Non-contact NFC Switch for RC Drone
OVERVIEW:
The RB40 utilizes all the trusted attributes of the previous Redundancy Bus series along with adding new features to meet the needs of an ever-growing range of users.
SPECIFICATIONS:
Brand Name: FrSky
Item Name: RB40 Module
Weight: 260g
Dimension: 163.2*100*23.5mm
Number of Servo Connector: up to 24
Operating temperature:-20⊥~75⊥
Recommended input voltage range : DC 11~26V
OUTPUT1&OUTPUT2ㄩSBEC OUTPUT, Continuous Current: 2*30A@5~8.4V
FEATURES:
Dual Power & Triple Receiver Guarantee
High-voltage Servo Supported (Up to 24 PWM servos)
Overload Protection on Each Channel
Channel 1 每 8 with Current Detection
Supports Stabilization Function with Built-in Gyroscope Sensor
Multiple configuration methods (Lua script and FreeLink)
Compatible with FrSky S.Port products
Various S.Port Telemetry Feedbacks (Voltage, Current, Power Consumption, etc.)
Black Box Data Record Function
Non-contact NFC Switch Function
LCD Screen with Menu Scroll Button
CNC Aluminum & Carbon Fiber Case
The upgraded redundancy hub:
Previous redundancy bus models offered a dual-power with a dual-receiver design, the RB40 allows the user to use a triple redundancy by adding a multiplex port (RX3 IN / SBUS Out) and uses a set of standard XT60 plugs which provides a safe and efficient way to provide power.
Up to 24 PWM channels with overload protection:
The RB40 supports connecting up to 24 high-voltage servos with overload protection added to each output channel. Eight of the channels (CH1-8) are equipped with current sensors.
The diversified sensors:
The RB40 is an extensive sensor module with a built-in gyroscope that supports model stabilizing functions and includes other diversified telemetry feedback like the voltage, power consumption, altitude, and a lot more. It can be used as an alternative to using a GR or S series receiver.
NFC Switch & Automatic data logging functions:
The non-contact NFC switch is an external device that enables the power to be switched on/off on command without the need to plug/unplug the battery connections. Once power is connected, the black-box function is automatically activated and immediately starts recording the data.
Menu scroll button, LCD screen & CNC case:
The RB40 features a display screen that is comparable in size to one found on the X-Lite series radio. Navigating and configuring telemetry data is even more convenient thanks to the scroll button. Even considering all these features while maintaining durability, the RB40 weighs only 260 grams thanks to the mixing design of carbon fiber and aluminum materials.

Package Included:
1 x RB40 Module
