Description
HGLRC Drashark 75mm Wheelbase 1.6 Inch Frame Kit for FPV Racing Drone
The HGLRC Drashark Frame Kit is designed for FPV racing drones, featuring a 75mm wheelbase and constructed from durable carbon fiber. This kit is an empty frame and does not include essential components such as the flight controller, ESC, motor, propeller, VTX, camera, or battery. It requires assembly by the buyer. The frame supports SPECTER 1002 motor mounting holes and is compatible with the Caddx Little Bee Camera. The frame can securely hold the battery with printed parts. With a lightweight design, the single frame weighs just 3g, and the frame plus hood weighs 6g. This kit is suitable for HGLRC Drashark drone accessories.
Notice:1. It is Empty Frame Kit, not include FC,ESC, Motor, Propeller, VTX, Camera, Battery, etc.2. It Comes unassembled. Need build by buyers.

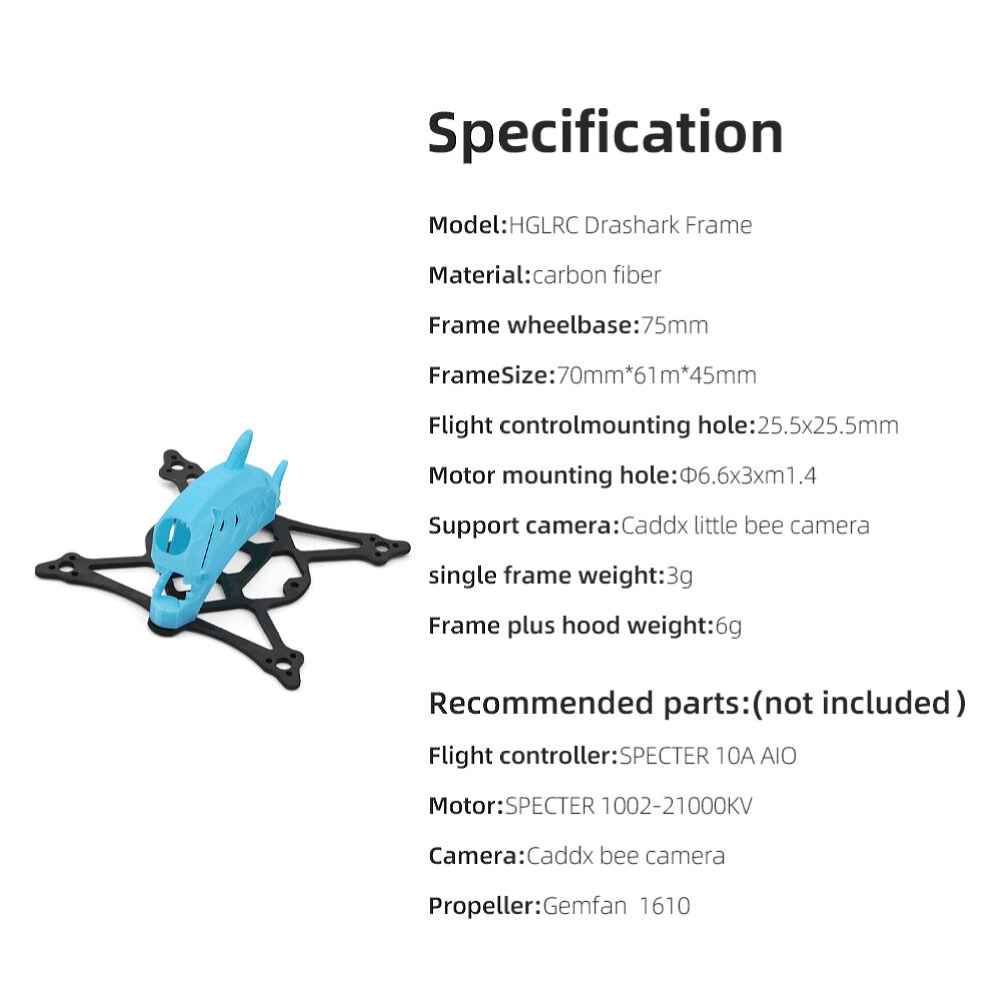

Specifications:
Brand: HGLRC
Model: Drashark Frame
Material: Carbon Fiber
Frame Wheelbase: 75mm
Frame Size: 70mm*61m*45mm
Flight Control Mounting Hole: 25.5沁25.5mm
VTX Mounting Hole: 25.5mm x 25.5mm
Motor Mounting Hole: ?06.6 x (3 x M1.4)
Support Camera: Caddx Little Bee Camera

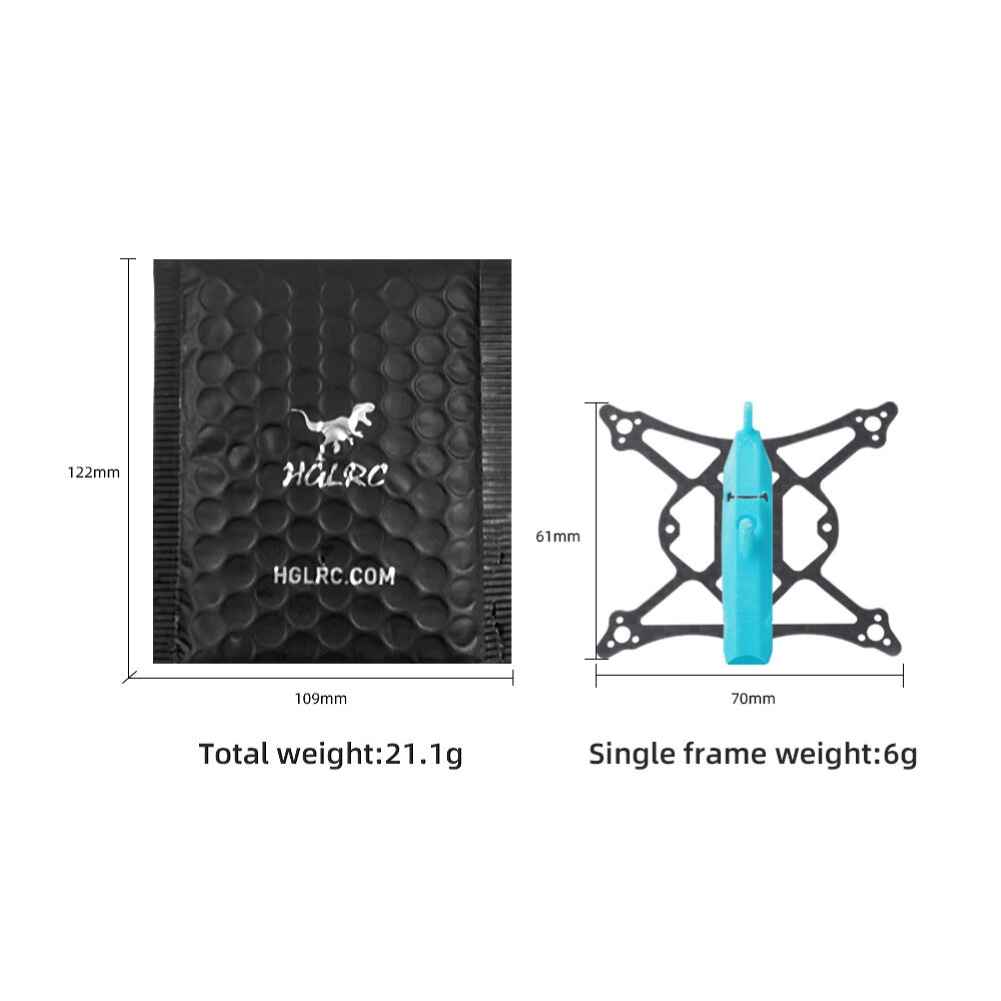

Single Frame Weight: 3g
Frame Plus Hood Weight: 6g
Features:
1. Suitable for HGLRC Drashark drone accessories
2. The frame supports SPECTER 1002 motor mounting holes.
3. The frame-fixed battery can be fixed with printed parts.
Recommended Parts: (Not Included)
Flight Controller: 25.5×25.5mm HGLRC SPECTER 15A ELRS AIO Flight Controller
Motor: HGLRC SPECTER 1002 21000KV 1S Brushless Motor
Camera: Caddx Ant Lite 1/3” CMOS 1.8mm 1200TVL
Propeller: 4 Pairs Gemfan 40mm 1610 1.6×1.0 1.6 Inch 2-Blade Propeller
VXT: iFlight BLITZ 4.9G PIT/25mW/400mW/1000mW/2500mW High Power VXT
Lipo Battery: 6PCS GAONENG GNB LiHV 1S 3.8V 660mAh 90C LiPo Battery

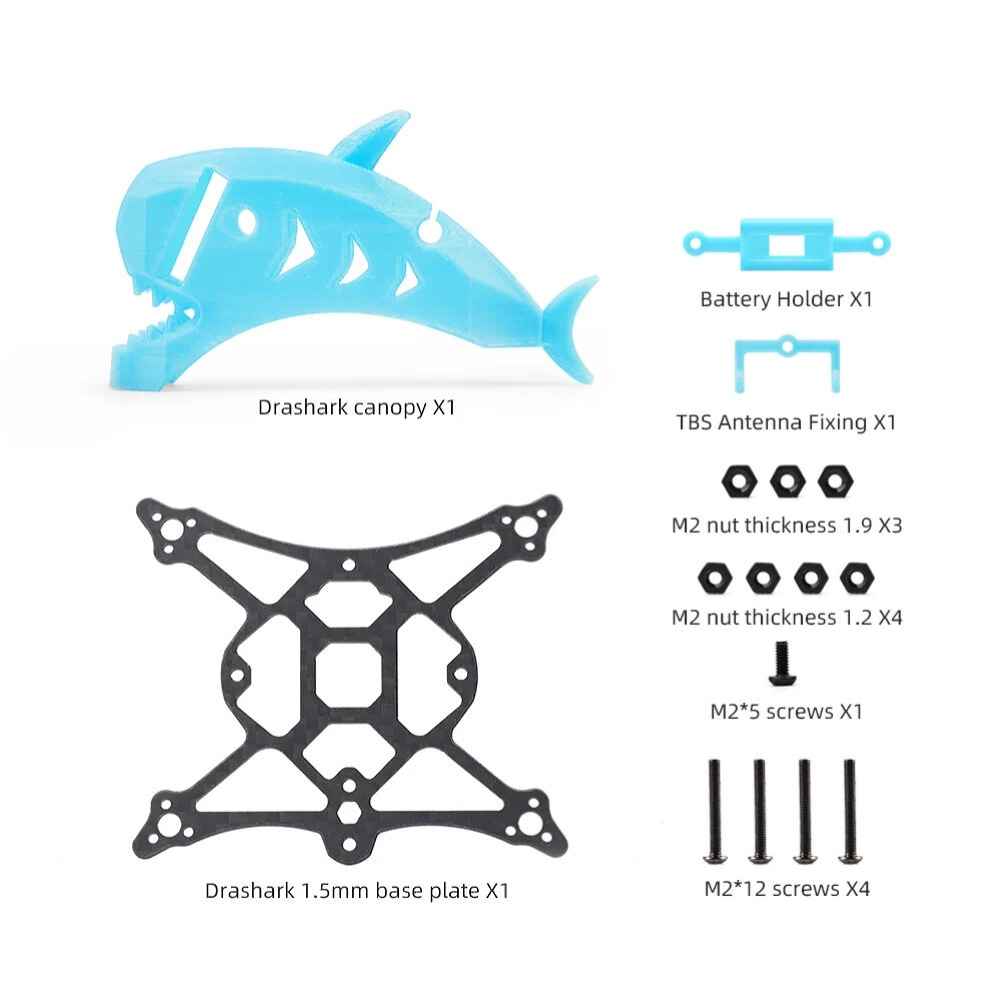

Package Included:

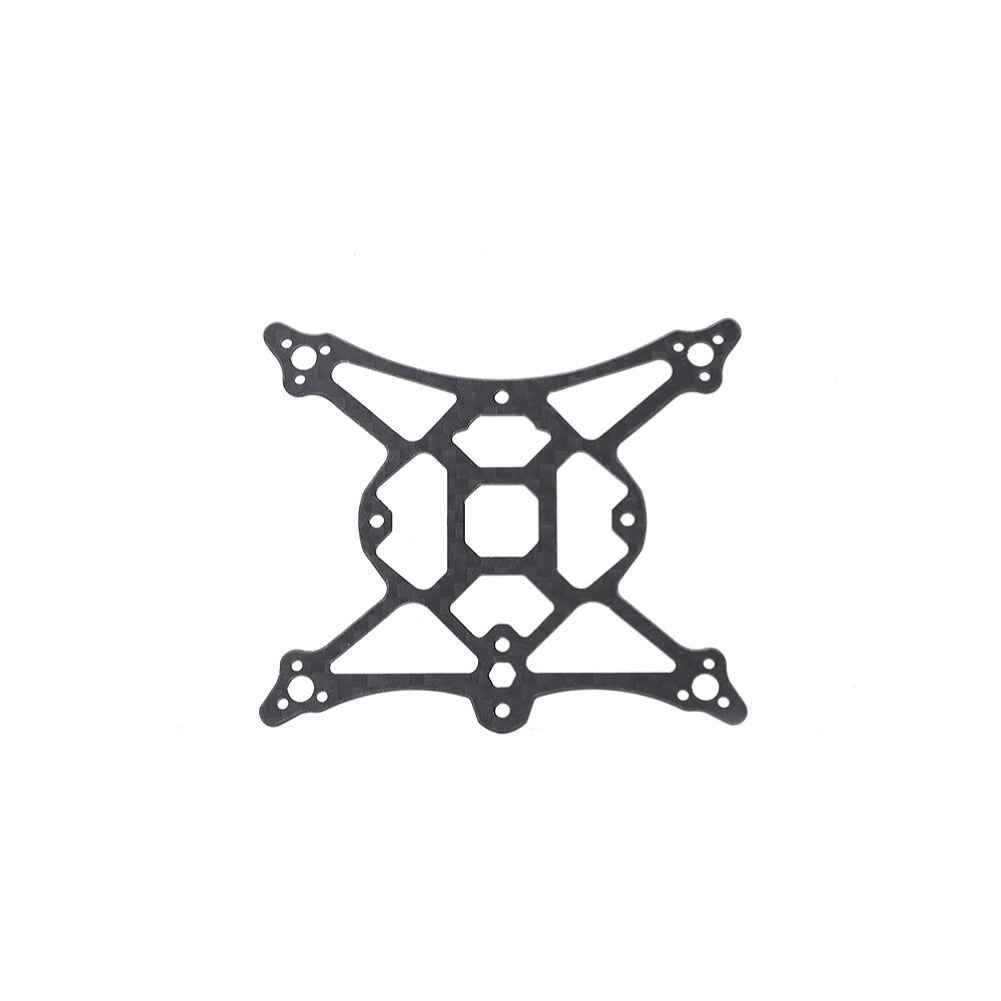

1x Drashark 1.5mm Base Plate

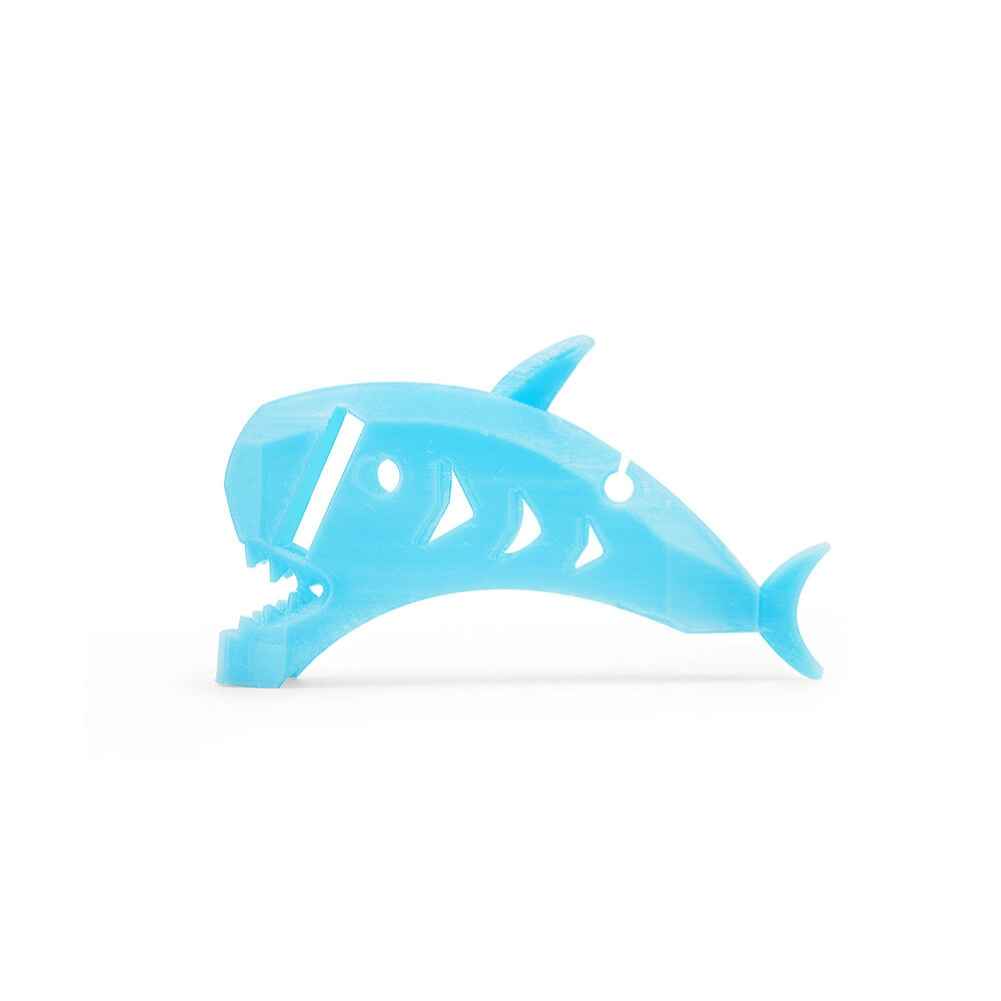

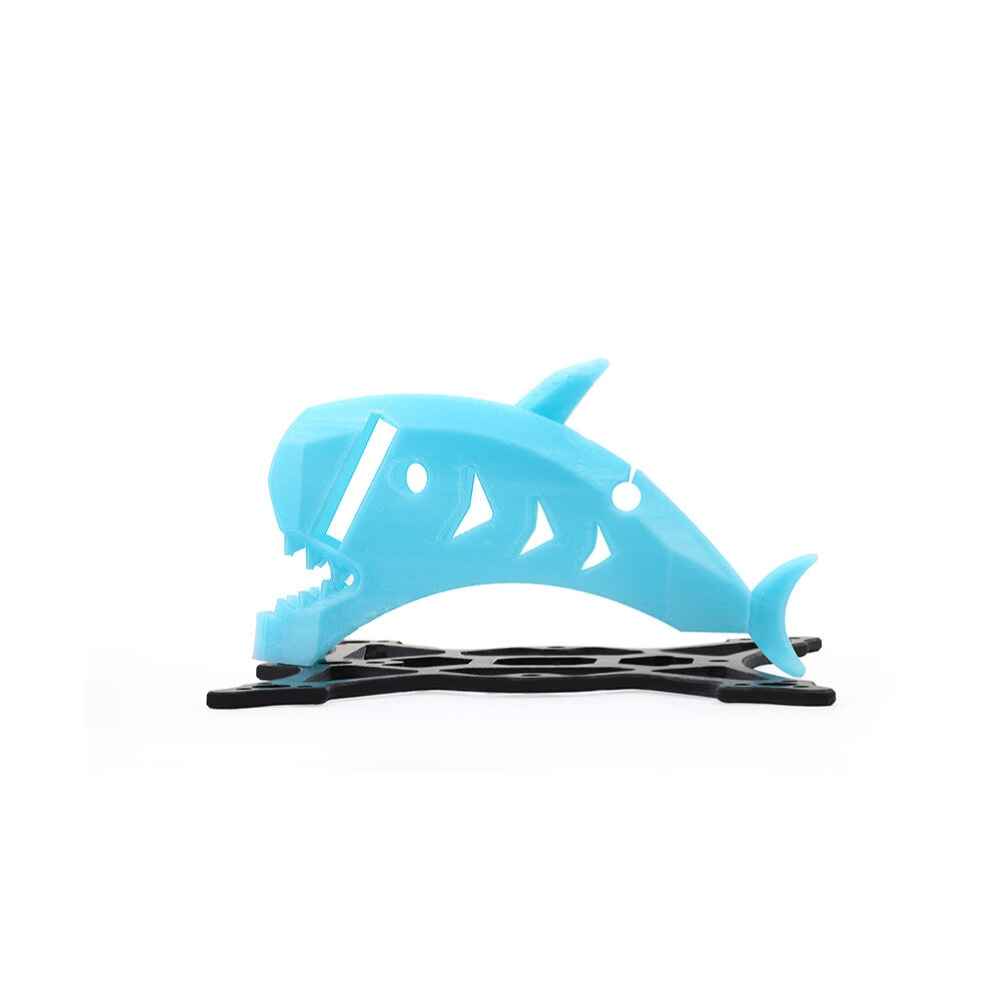

1x Drashark Tpu Canopy
1x Drashark Tpu Battery Compartment V2
1x Drashark Tbs Antenna Fixing Piece Tpu
3x M2 1.9 Nylon Nut
4x M2 1.2 Nylon Nut
1x M2 5 Half Round Head Hexagonal M2 5 Black Nickel Plated Screw
4x Semi-Round Head Hexagonal M2 12 Black Nickel Plated Screws
