Description
30.5*30.5mm SEQURE Blueson A2 6S 65A 8S 70A 128KHz 4in1 ESC with AM32 / BLHeli_32 for Racing Freestyle RC FPV Drones
The SEQURE Blueson A2 4in1 ESC is engineered for high-performance racing and freestyle RC FPV drones. Featuring a high-quality PCB with ultra-thick copper, it enhances current capacity and heat dissipation. The advanced 32-bit processor supports an 8KHz-128KHz PWM refresh rate, providing precise speed response and smoother throttle control. Compatible with 6S and 8S voltage inputs, it accommodates various power batteries, increasing its versatility. The 30.5mm mounting hole spacing is ideal for large load-type flight vehicles, ensuring easy installation. Its angled, extended pad design refines motor circuit layout and simplifies the welding process.
Note: 20*20mm SEQURE Blueson A1 Clink Here.
Product Description:
– High-quality ultra-high copper thickness PCB ensures the current carrying capacity while improving heat dissipation. Equipped with top-level MOSFET, it enhances flight performance and makes you enjoy the fun of flying in the air.
– Equipped with a high-speed 32-bit processor, it supports full-segment dynamic PWM variable refresh rate of 8KHz-128KHz, with more precise speed response and smoother throttle control.
– Supports 6S/8S wide range voltage input, allowing your aircraft to adapt to power batteries of different specifications, improving the versatility of the device.
– 30.5mm installation hole spacing is more suitable for large-sized load-type flight vehicles and is easy to install.
– The angled extended large-area pad design not only makes the motor circuit layout more refined, but also effectively simplifies the welding process.
Specification:
Brand: SEQURE
Model: Blueson A2
Item Name: 6S 65A ESC / 8S 70A ESC

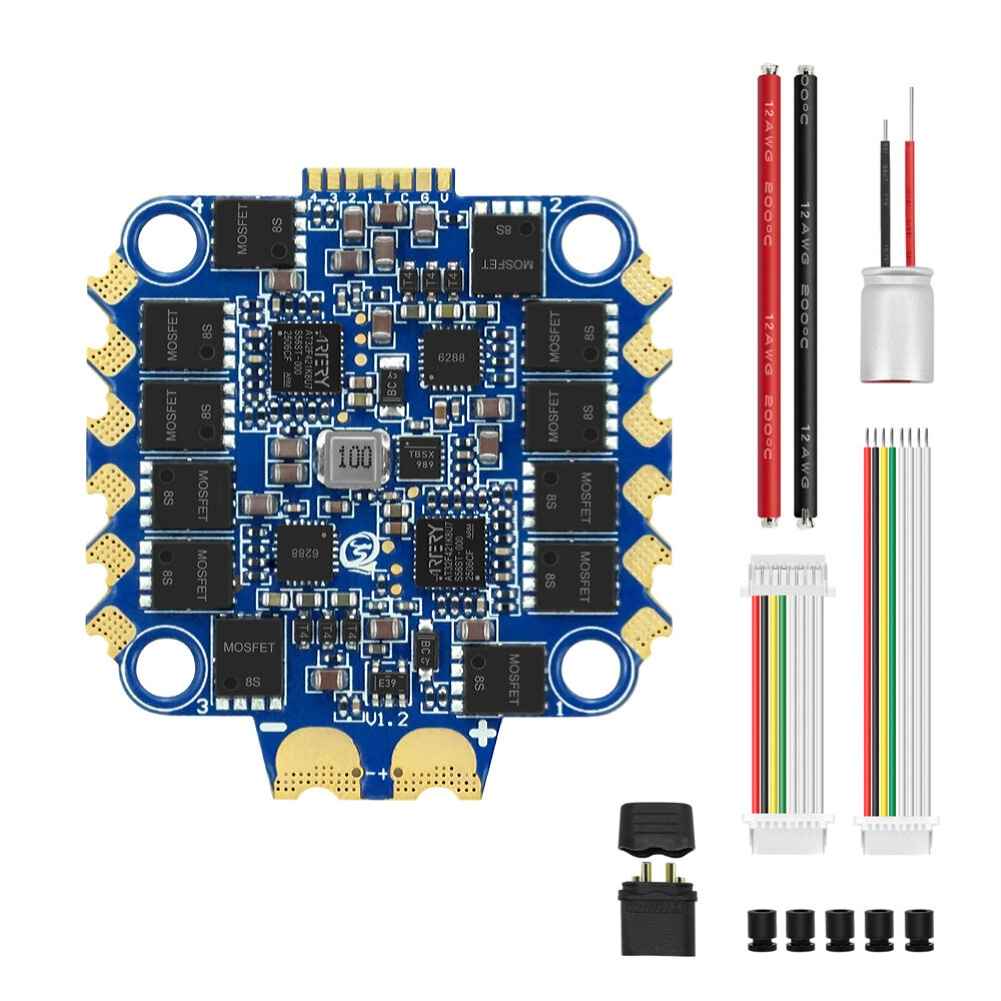

Package Included:
1 x SEQURE Blueson A2 4IN1 ESC
1 x 30AWG 40mm reverse double plug SH1.0-8P cable
1 x 30AWG 60mm single plug SH1.0-8P cable
2 x 12AWG 100mm power cable (black/red)
1 x XT60H-M black male connector
1 x 35V 680UF solid capacitor
4 x M3 8mm shock absorbing washer (black)
