Description

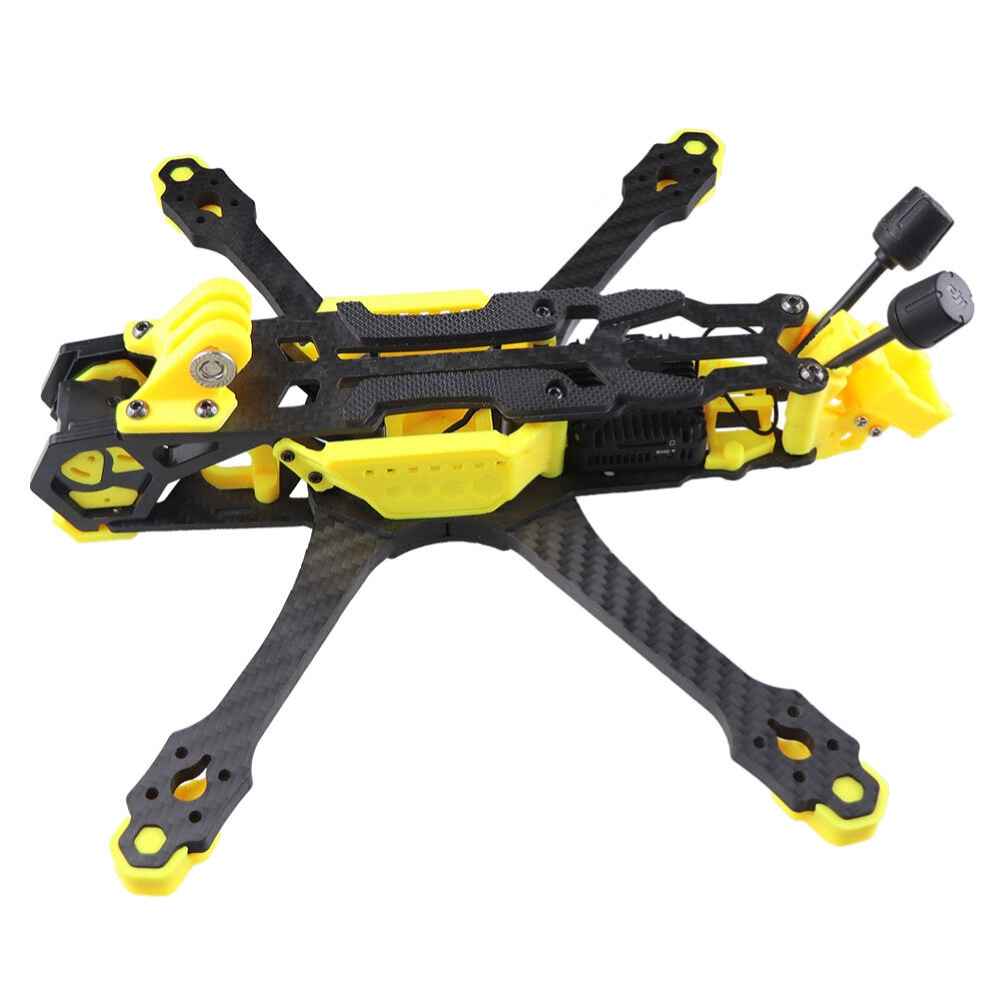

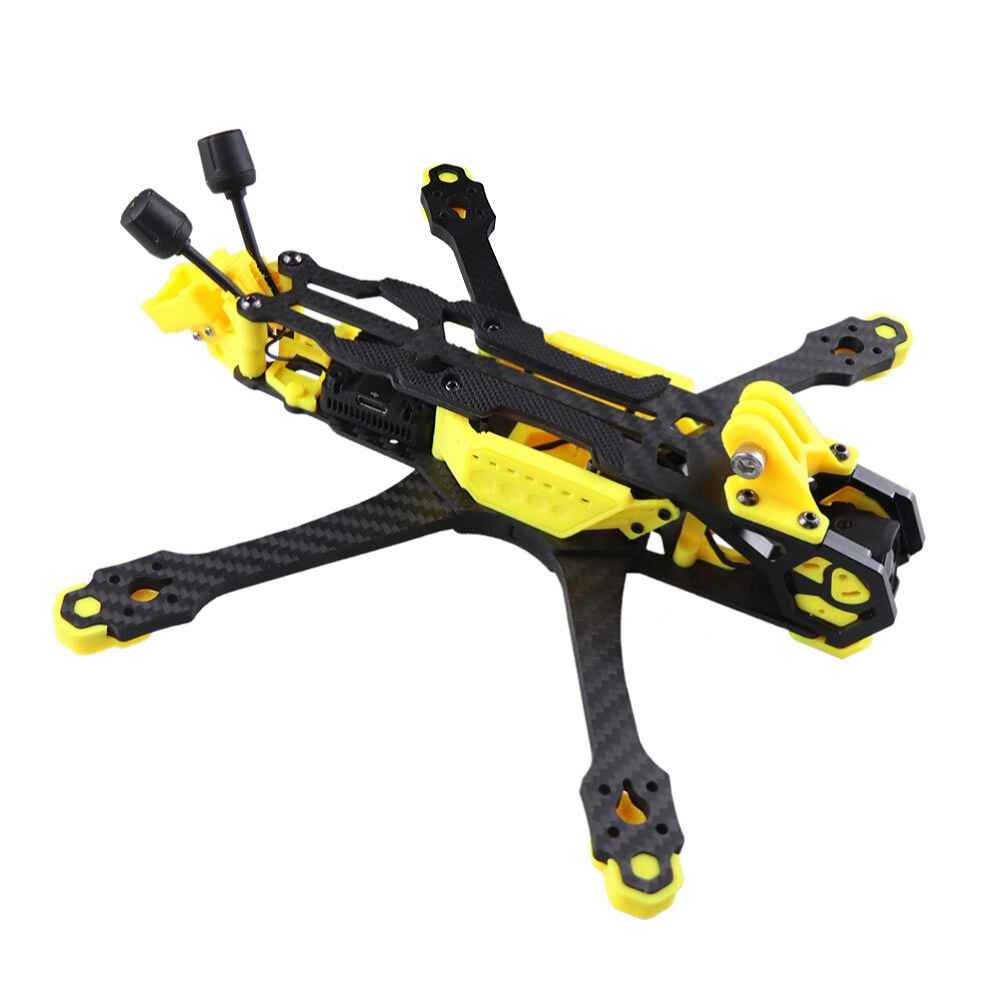

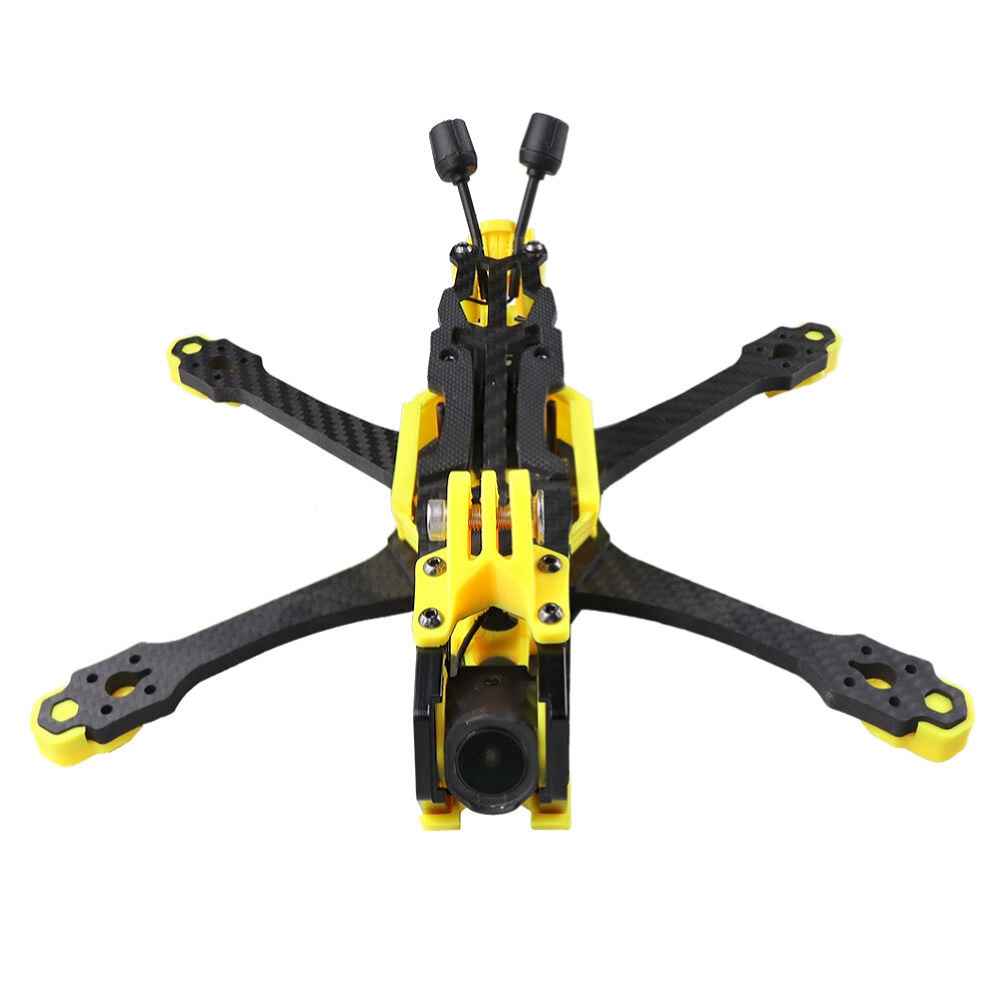

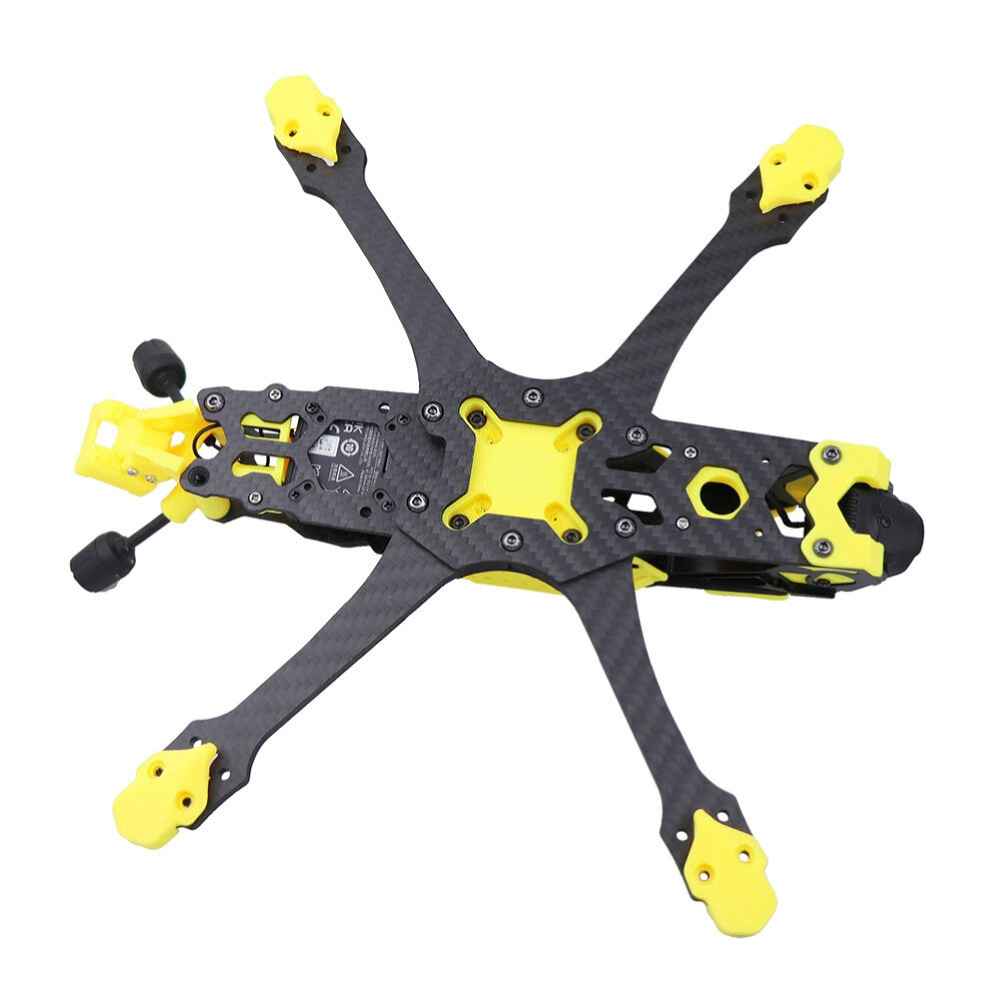

HSKRC S5 V2 227mm Wheelbase 5 Inch Carbon Fiber Frame Kit Compatible with DJI O4 / DJI O3 / Analog DIY RC FPV Racing Drones
The HSKRC S5 V2 Frame Kit is a high-quality 5-inch frame designed for RC FPV racing drones. Made from durable carbon fiber, this frame offers a 227mm wheelbase and is compatible with DJI O4, DJI O3, and analog systems. The frame comes in an H-type design and includes print parts available in blue or yellow. It features a robust construction with a 2.5mm bottom plate and 5.0mm arms, ensuring stability and performance. Please note, this kit requires assembly and does not include cameras, electronic components, or propellers. It supports various mount hole distances for flight controllers and camera installations, offering flexibility for drone enthusiasts.
1. Pictures are for display only. The product comes with Frame Kit only. Cameras, electronic components, and propellers are not included.
2. Comes unassembled. Need build by buyers.
Specification:
Brand: HSKRC
Model: S5 V2
Item Name: 5 Inch Frame Kit
Material: Carbon Fiber
Print Parts Color: Blue/Yellow(Optional)
Frame Type: H Type
Wheelbase: 227mm
Dimensions: 184.43mm*132.16mm
Weight: 181.17G (Including Print Parts)
Bottom Plate Thickness: 2.5mm
Middle Plate Thickness: 2.0mm
Top Plate Thickness: 2.0mm
Arm Thickness: 5.0mm
Camera Mount Hole Distance: 19mm & 20mm
Image Transmission Mount Hole Compatibility: 20*20mm & 25.5*25.5mm & 30.5*30.5mm
Flight Controller Mount Hole Compatibility: 20*20mm & 30.5*30.5mm
Inner Height: 21mm
Motor Mount Position: 16*16mm
GPS Mount Dimensions: 18*18mm (Compatible With BZ 181GPS)
Recommend Parts: ( NOT Included)FC & ESC: 20x20mm SpeedyBee F405 Mini StackBrushless Motor: iFlight XING2 2306 1755KV 6S Brushless MotorPropeller: Gemfan 51366 MCK V3 5 Inch Tri-blade PC Props PropellerVTX & Camera: DJI O4 Pro / DJI O3 / 19mm & 20mm
Package Included:
1 x 5 Inch Frame Kit
