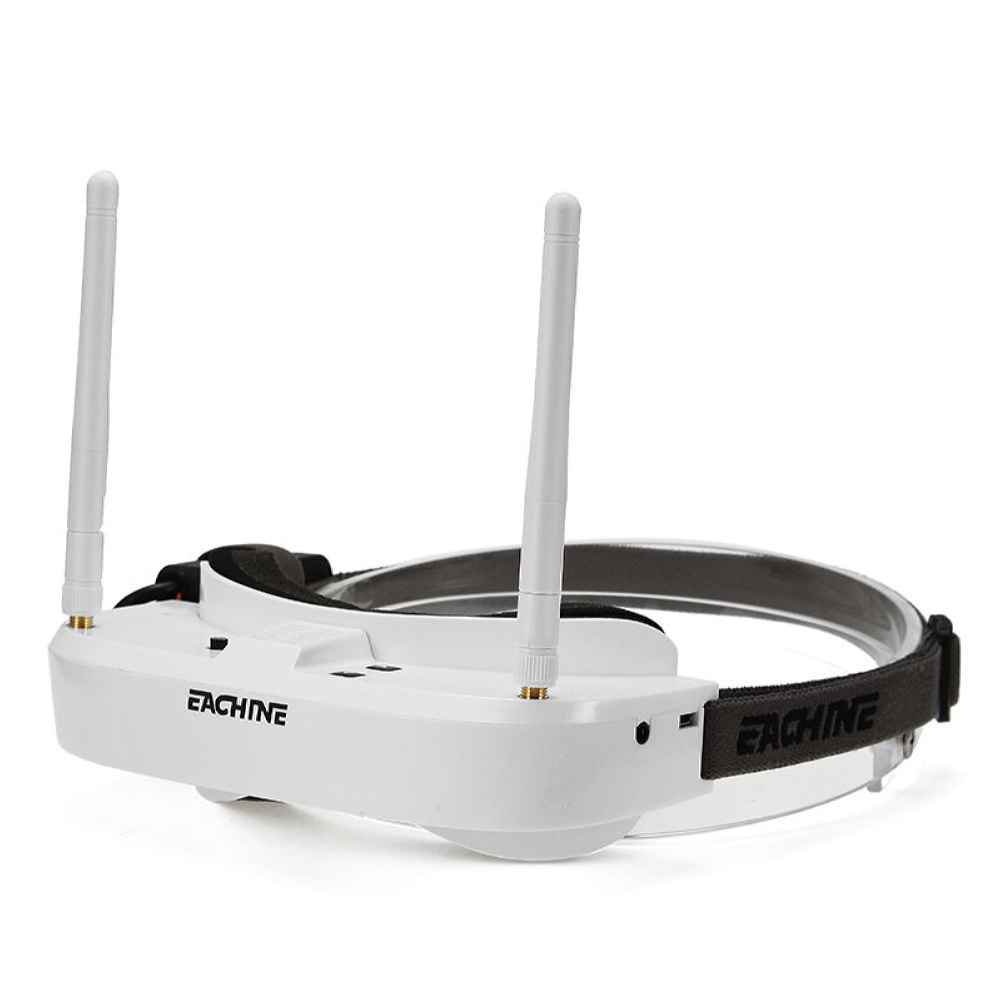

Eachine EV100 5.8G 72CH FPV Goggles with Dual Antennas, 720*540 Display, 18650 Battery Case for RC Drone

Description

Eachine EV100 5.8G 72CH 720*540 FPV Goggles with Dual Antennas& Fan 18650 Battery Case For RC Drone

The Eachine EV100 FPV Goggles are designed for budget-conscious beginners in the RC drone community. Featuring a 720*540 resolution on dual 0.5″ LCD displays, these goggles offer a 28-degree field of view. They come equipped with dual antennas for reliable reception, although they do not support audio reception. The goggles include a case for 18650 batteries, allowing for easy transport, but please note that a USB cable for charging is not included. The EV100 model supports AV input/output and allows for adjustments in focal length, brightness, and contrast. It＊s compatible with a variety of FPV systems, making it a versatile choice for drone enthusiasts.

Note:
The battery will be changed to 18650 battery case in order to facilitate transport, and it doesn’t have balance plug for DVR module, the DVR module should use another power supply, thank you for your understanding!
The receiver on EV100 Goggles doesn’t receive audio. But the goggles support audio input, that you can hear the audio if inputs the video to goggles.

Eachine FPV Goggles Comparison: *EV100 vs EV200D vs EV300D

Display Technology

Dual 0.5′ LCD

Dual 1.44′ LCD

Dual 2.0′ High-Brightness LCD

Field of View (FOV)

28‵

30‵

34‵

Receiver System

Dual Antennas

Dual-Antenna Diversity

Quad-Antenna True Diversity

Channel Support

40CH

48CH (incl. RaceBand)

48CH (incl. RaceBand)

DVR Functionality

With DVR

Basic Recording

720p Recording

IPD Adjustment

Mechanical Slider

Mechanical Slider

Mechanical Slider

Power Solution

2S 18650 (User Provided)

Built-in 1800mAh LiPo

Built-in 3000mAh LiPo

Weight

(without battery)
221g(with battery 57g and antenna 13g)

380g

450g

Best For

Budget Beginners

Intermediate Pilots

Advanced Enthusiasts

model	* EV100	EV200D	EV300D

Eachine EV100 FPV Goggles

Description

Brand Name :

Eachine

Item Name :

EV100

Size :

165mm*76mm*30mm

Weight :

221g(with battery 57g and antenna 13g)

Package Weight :

400g

Display

Resolution :

720*540

FOV :

28‵ diagonal

IPD :

58-68mm

Ratio :

4:3

Focal length adjusting:

under 400 degree of myopia and hyporopia 150 degree

Specification

Frequency :

5.8G 5333Mhz-5945Mhz

Sensitivity :

<=-93dB

Antenna Impedance :

50棒

Antenna Gain :

3dBi

Antenna Connector :

RP-SMA

Video Formate :

NTSC/PAL

Support AV IN/OUT

YES

Support Focal Length/Brightness/Contrast Adjustment

YES

Suport Firmware Upgrading

YES

Power Input :

7.4V

Low Voltag :

6.8V

Battery :

18650 battery case

Charging :

USB Cable(not included)

Working Temp. :

-10﹠-+40﹠

Recommanded Parts

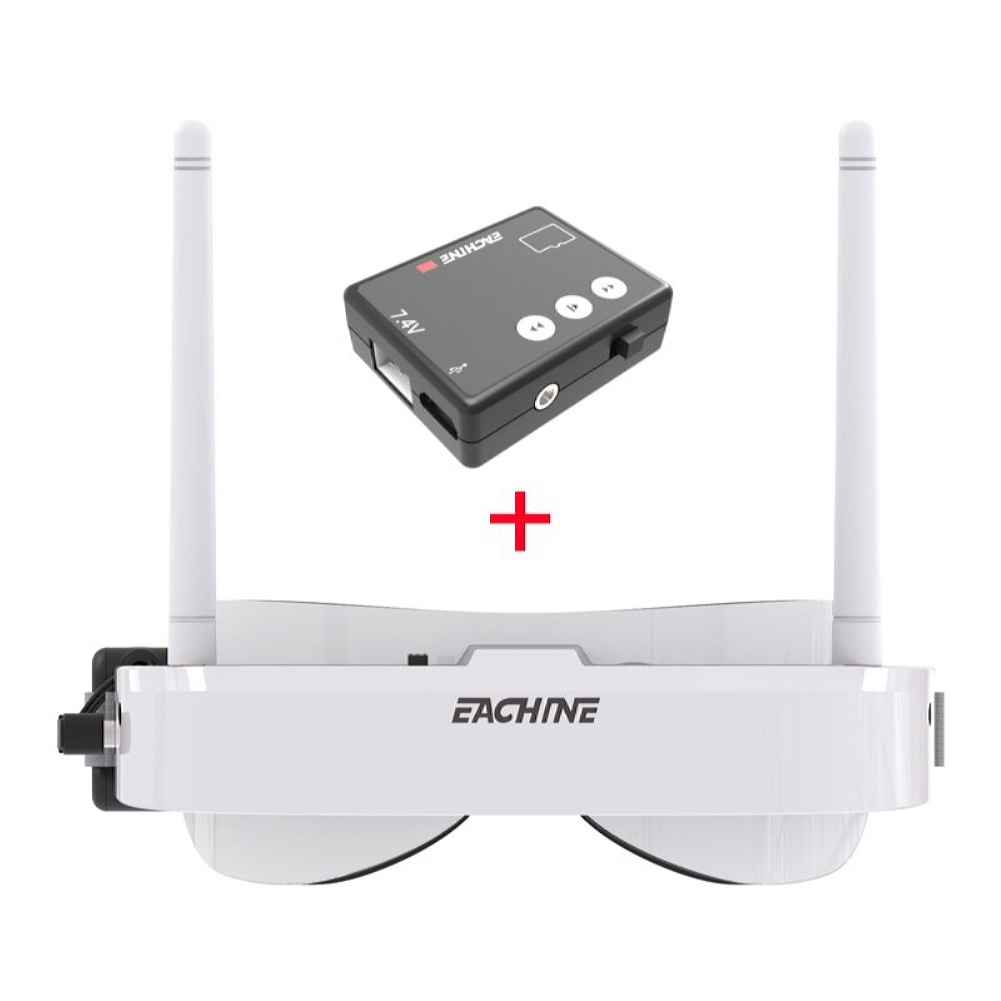

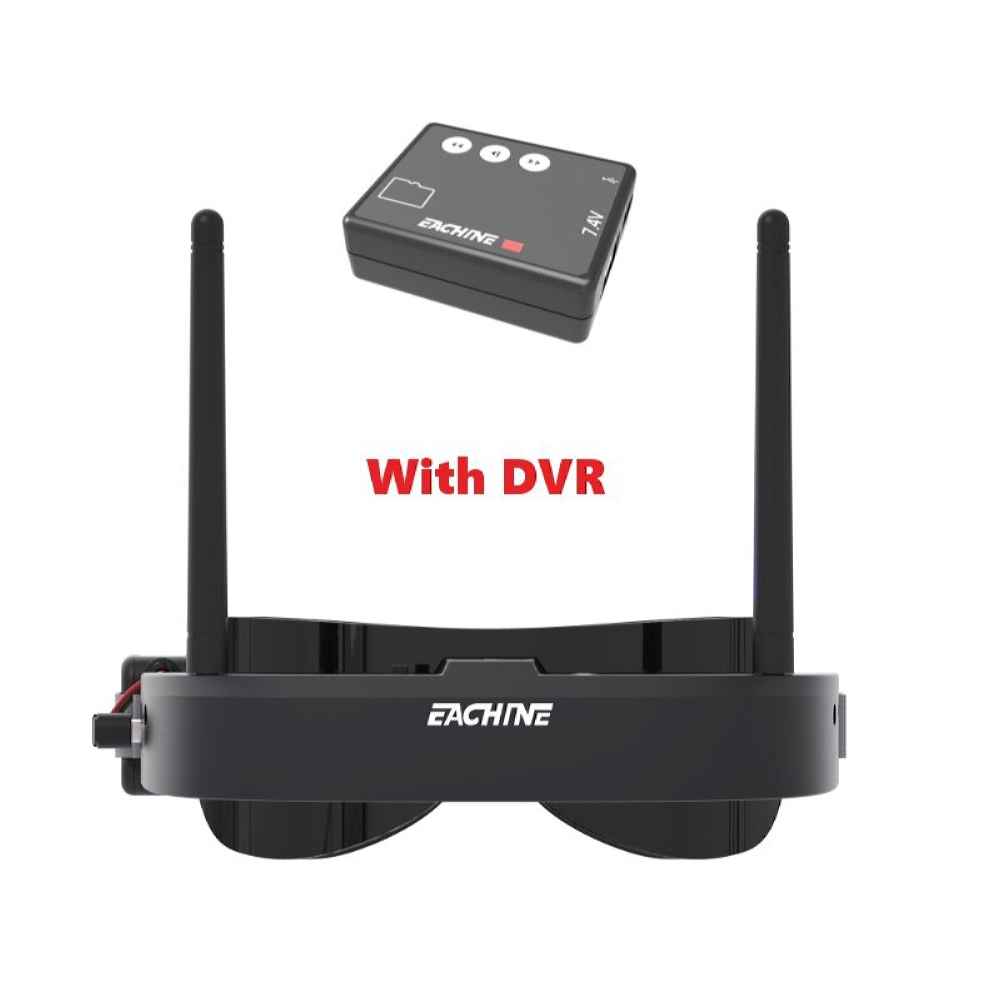

RecorderEachine EV100 Micro AV Recorder 1280*480 Mini DVR Module Support 32G TF, Click Here

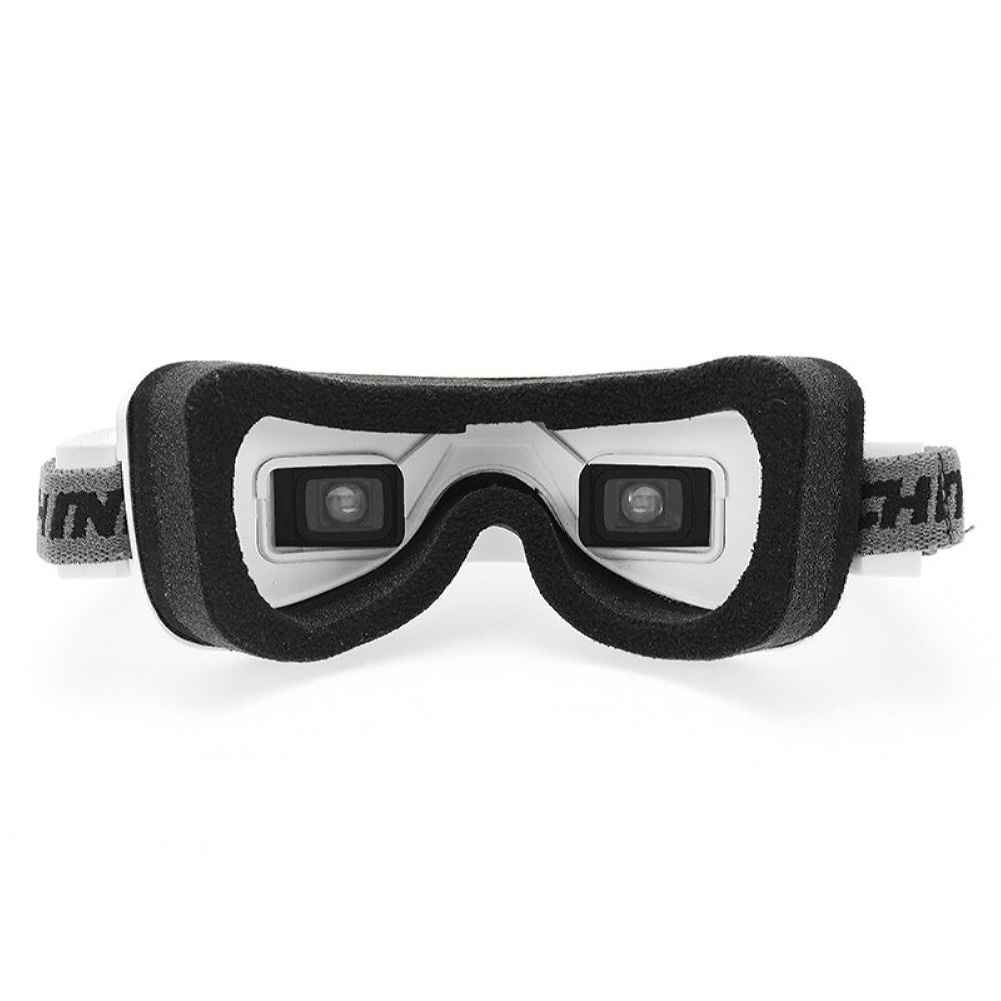

Goggles’ Sponges
Eachine EV100 Upgraded Soft Thin Sponge Click Here
Magic Double-sided Adhesive Tape Click Here
Eachine EV100 FPV Goggles Headband Elastic Band Spare, Click Here
FPV VTX :
Eachine TX805 VTX 5.8G 40CH 25-200-600-800mW FPV Transmitter Click Here
EWRF 5.8G 48CH 100/200/400/1000mW Switchable VTX Transmitte with Small Camera Click Here
Tiny FPV Camera :
Eachine TX06 700TVL FOV 120‵ 5.8Ghz 48CH 25mW Smart Audio Mini FPV Camera Click Here
Battery
Spare Battery Box : Click Here
Eachine EV100 2S 7.4V 1000mah LiPo Battery, Click HereFPV Cable
Eachine USB Type A 80cm to USB Mini-B 5 Pins Adatper Cable, Click Here
Eachine EV100 HD Port to AV Convertor Transfer Module Only, Click Here
Eachine EV100 HD Port to AV Convertor Module Whole Set with Cable, Click Here
Eachine DC 3.5mm Jack Plug Male 1 to 3 Head RCA AV Input Output Video Cable, Click Here

Package Included:
1 x Eachine EV100 5.8G 72CH FPV Goggles
1 x 18650 Battery Case (Battery not included)
2 x RP-SMA 3dBi Antenna
1 x User Manual
