Description
DarwinFPV 2812 1100KV 6S BLDC Motor for 7-10 Inch Long Range FPV Drone 7-8 Inch X8 Models
The DarwinFPV 2812 1100KV 6S BLDC Motor is engineered for optimal performance in 7-10 inch long-range FPV drones and 7-8 inch X8 models. It features a robust magnetic circuit design inspired by DJI, ensuring superior energy efficiency and reliability. With a high power output of 1339W and efficient multi-strand winding, this motor offers dependable performance. Weighing only 79.5g, including the wire, it aids in streamlined drone operation. The motor’s split rotor design and powerful N52H magnet enhance durability, making it a top choice for drone enthusiasts seeking quality and efficiency.
Specifications:
Brand: DarwinFPV
Model: 2812 BLDC
KV: 1100KV
Stator Dimension: 嫉28 沁 12mm

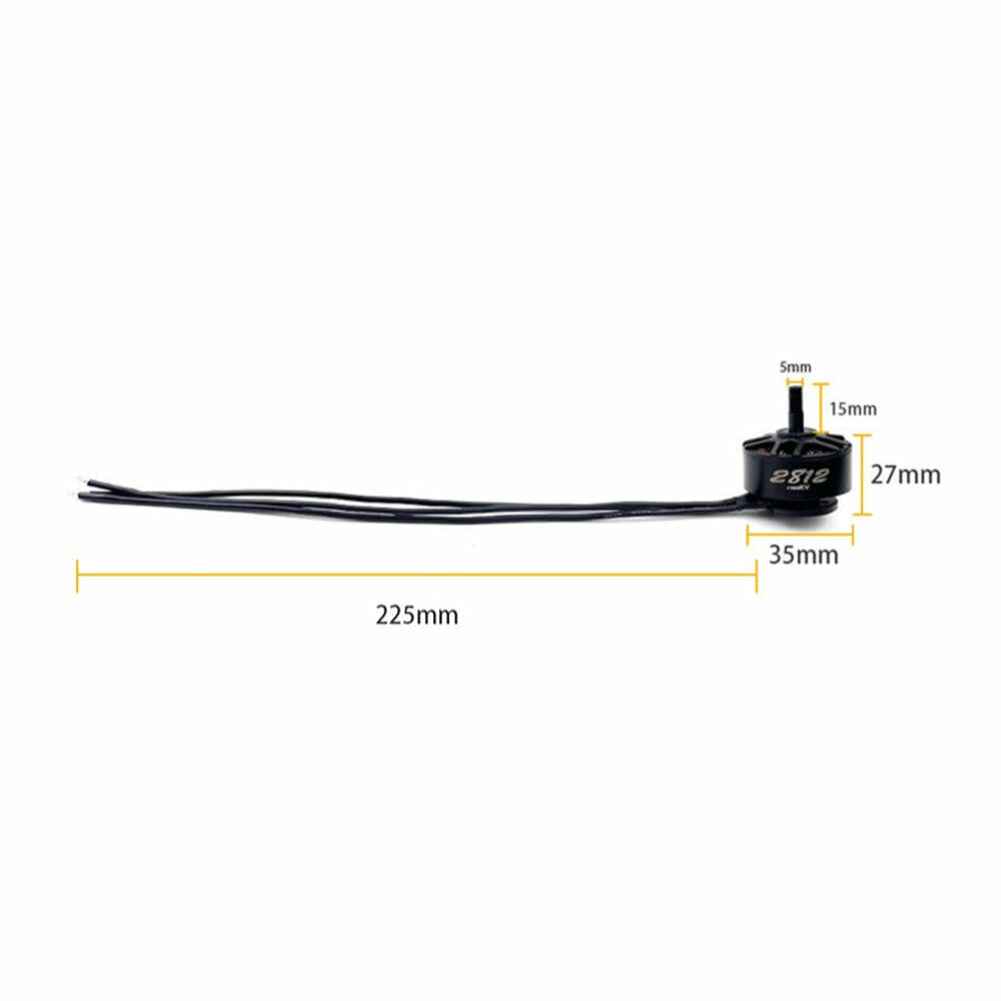

Dimensions: 嫉35沁42mm
Rated Voltage: 24V (6S LiPo)
Idle Current: 1.12A/24V
Maximum Current: 55.8A
Maximum Power: 1339W
Framework: 12N14P
Prop Shaft: 嫉5 沁 15mm
Interphase Resistance: 68m棒
Bearing Specification: 嫉5.0沁 嫉11 沁4.0mm
Rotor Specifications: Split
Magnet: N52H
Winding: Multi-strand winding
Lead Wire Size: 18AWG 沁 225mm
Mounting Holes: 19沁19mm (M3)

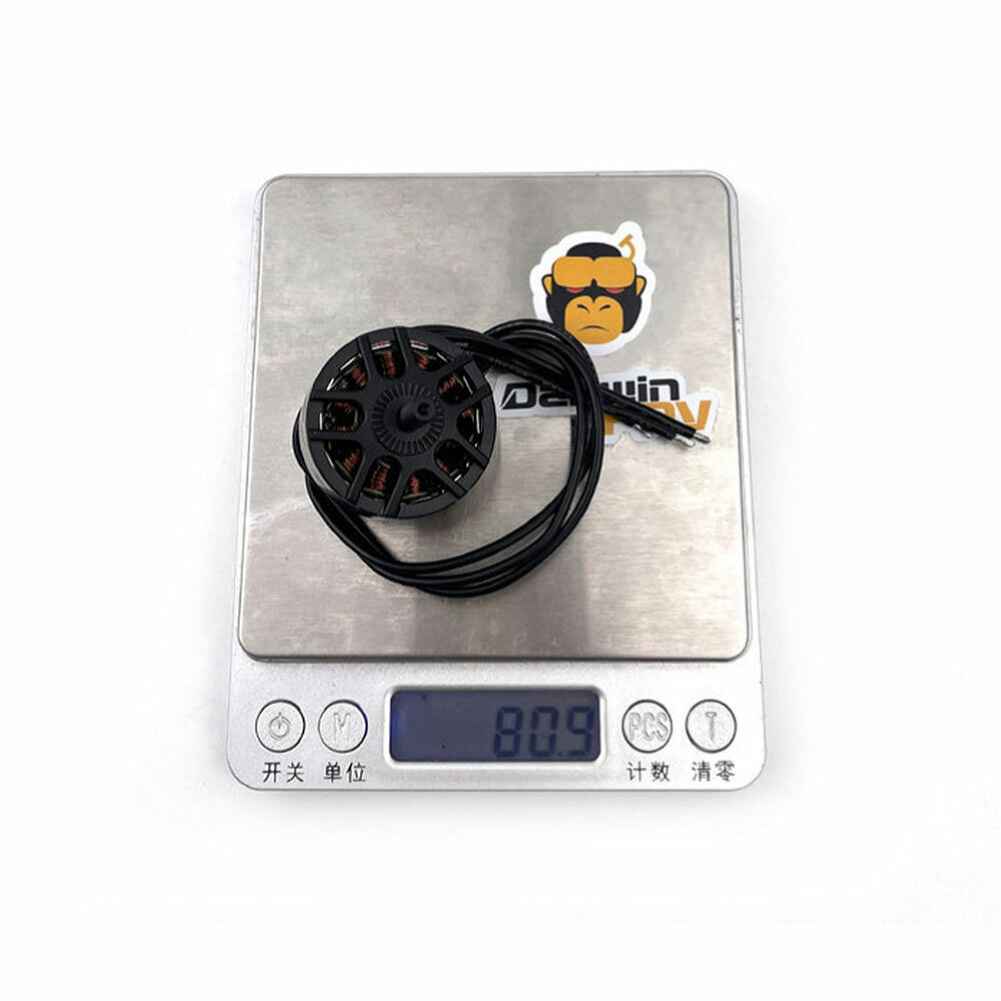

Weight (including wire): 79.5g
Applicable Models: 7-10 inch long range FPV drones / 7-8 inch X8 models
Features:
Engineered with a magnetic circuit design mirroring DJI’s structures and high-quality materials, ensuring unmatched energy efficiency.
Suitable for a range of drone models, ideal for both 7-10 inch long range and 7-8 inch X8 variants.
High power output of 1339W coupled with efficient multi-strand winding ensures performance reliability.
Lightweight at just 79.5g including the wire, aiding in streamlined drone operation.
Enhanced durability and functionality with a split rotor design and powerful N52H magnet.
Package Included:
1 x 2812 motor
1 x M5 anti-slip nut (thickness 4.8mm)
4 x M3 10 black hexagon socket head round head screws
