Description
1.46g Super Light Happymodel SE0702 0702 23000KV 26000KV 28000KV 1S Brushless Motor for Mobula6 ELRS DIY 65mm / 75mm Whoop RC Drone FPV Racing
The Happymodel SE0702 brushless motor is renowned for being the lightest in the world, weighing just 1.46 grams. It represents the latest innovation in the Happymodel SE series, offering high quality and cost-effectiveness. This motor features tile magnets, a high-precision CNC shell, high efficiency, and an integrated rotor for enhanced durability. It’s specifically designed for extremely lightweight 65mm or 75mm 1S power Tiny Whoop drones. The SE0702 motor is available in three KV options: 23000KV, 26000KV, and 28000KV, making it a versatile choice for FPV racing enthusiasts.
Features:
The lightest brushless motors all over the world , the weight is only 1.46gram.
You can build an extreme weight tiny whoop with this amazing motors.
Introduction:
The SE0702 brushless motor is the latest product of the Happymodel SE series. The weight of this brushless motor is only 1.46 grams. It should be the lightest brushless motor in the world so far. This motor inherits the consistent style of high quality and cost-effective motors of this series. , Use tile magnets, high-precision CNC shell, high efficiency, good dynamic balance, and use an integrated rotor, more durabl, very suitable for assembly of extremely light 65mm or 75mm 1S power Tiny whoop.Great thanks to ↗Angry Don FPV∫ for the great job on this light weight 0702 motor.
Description:
Brand: Happymodel
Mode: SE0702
Item Name: 1S Brushless Motor
KV: 23000KV / 26000KV / 28000KV ( Optional)
Quantity: 1 PC / 4 PCS ( Optional)
Configu-ration: 9N12P
Stator Diamter: 7mm
Stator Length: 2mm
Shaft Diameter: ?1mm

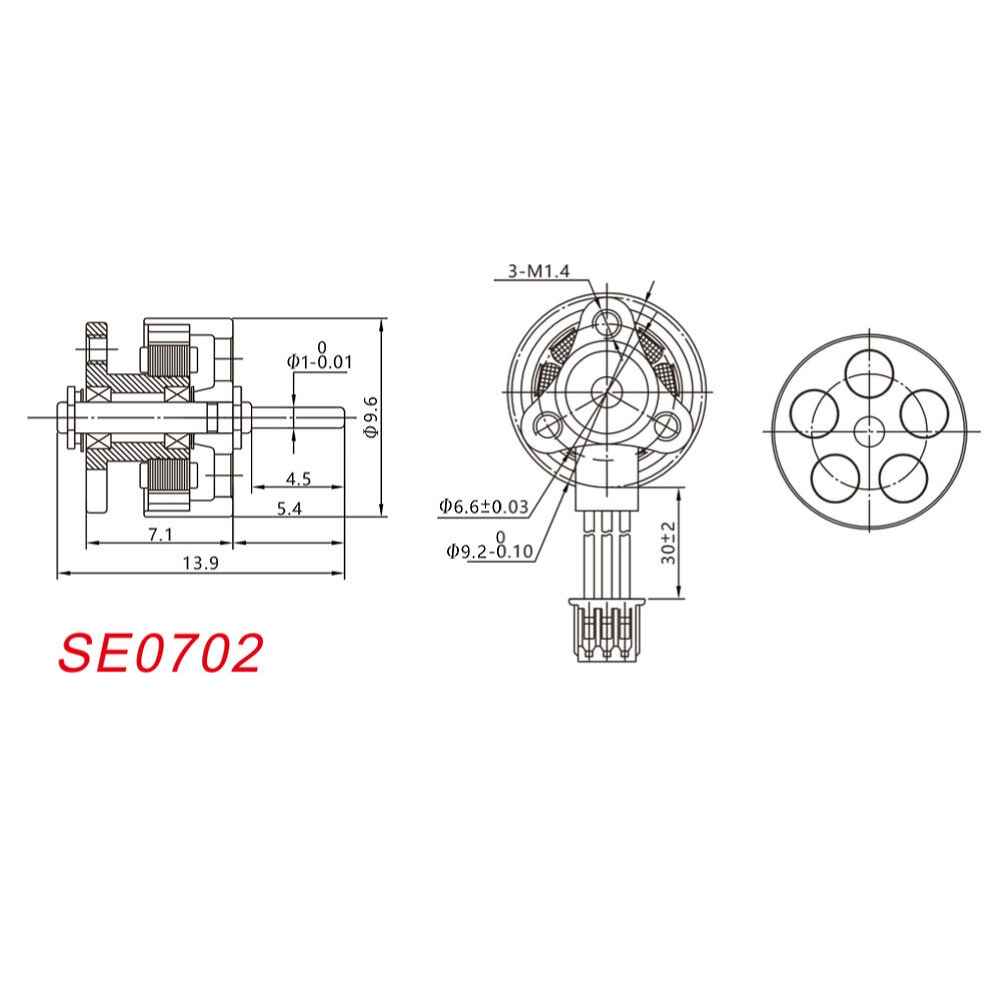

Motor Dimension(Dia.*Len): ?9.5mm*14mm
Weight(g): 1.46g
No.of Cells(Lipo): 1S only
Terminal: JST 1.25mm Crazybee series flight control in-line
Outgoing wire length: 35mm (including terminal)
Package Included:
1 x SE0702 brushless motor OR 4 x SE0702 brushless motor
