T-Motor F50 2207 2150KV/2200KV 6S Brushless Motor for 5 Inch FPV Racing Drone, 5mm Shaft

Price range: 59.15$ through 222.21$

  • 2207 stator for balanced power and efficiency
  • Titanium alloy shaft for durability
  • Endorsed by FPV racing champions
  • Optimized for racing and freestyle
  • Includes EZO bearings for smooth operation

Description

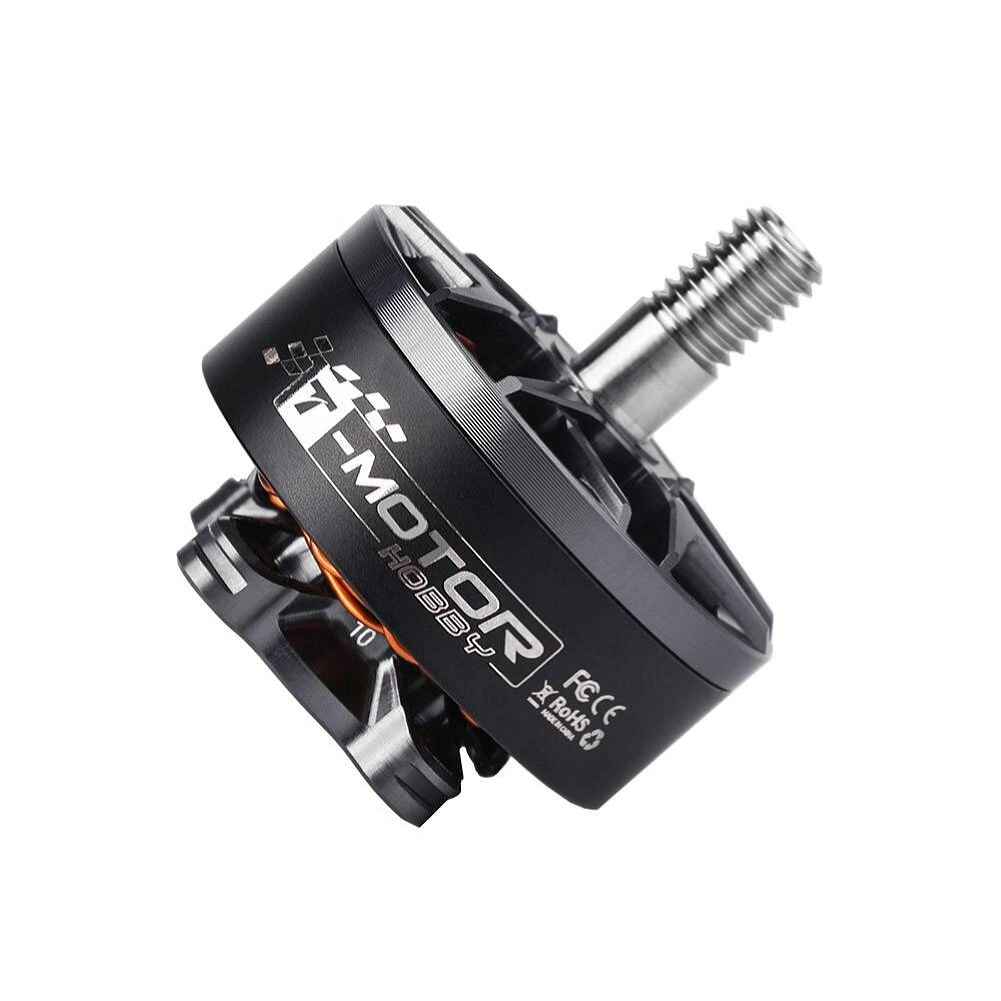

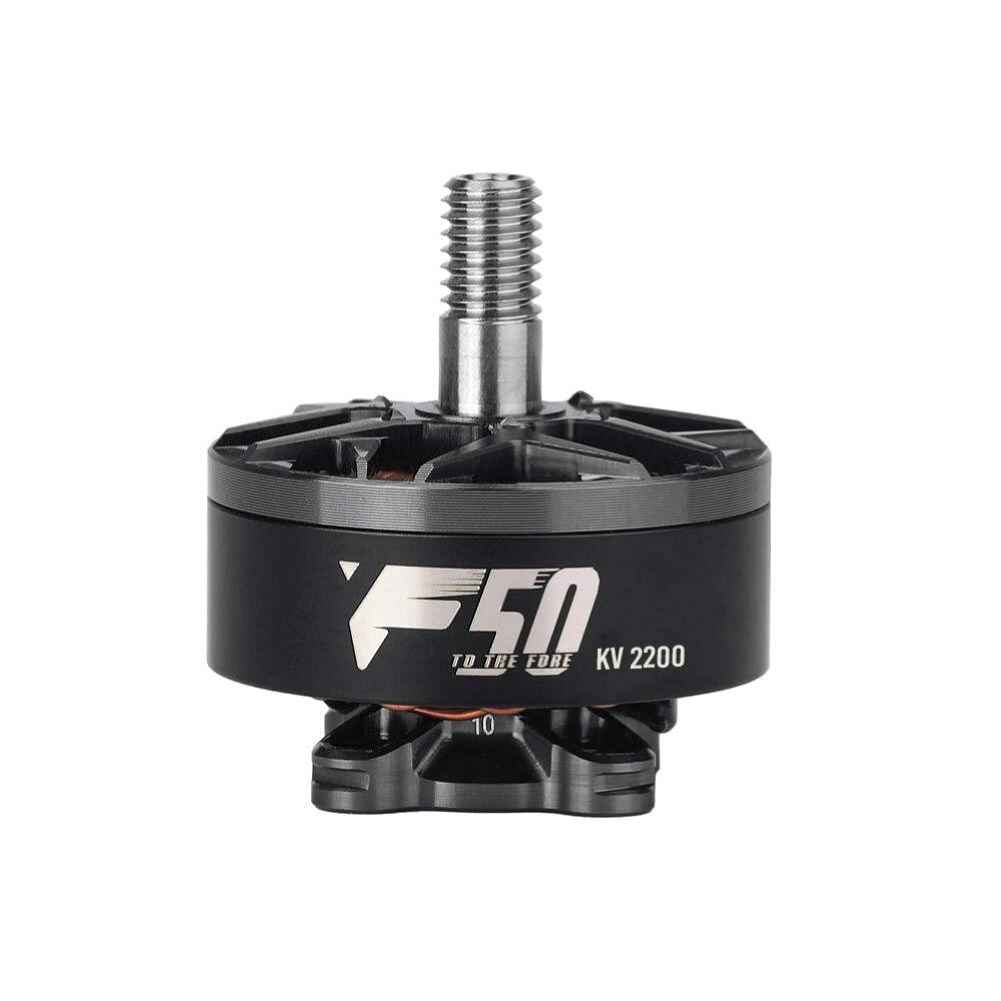

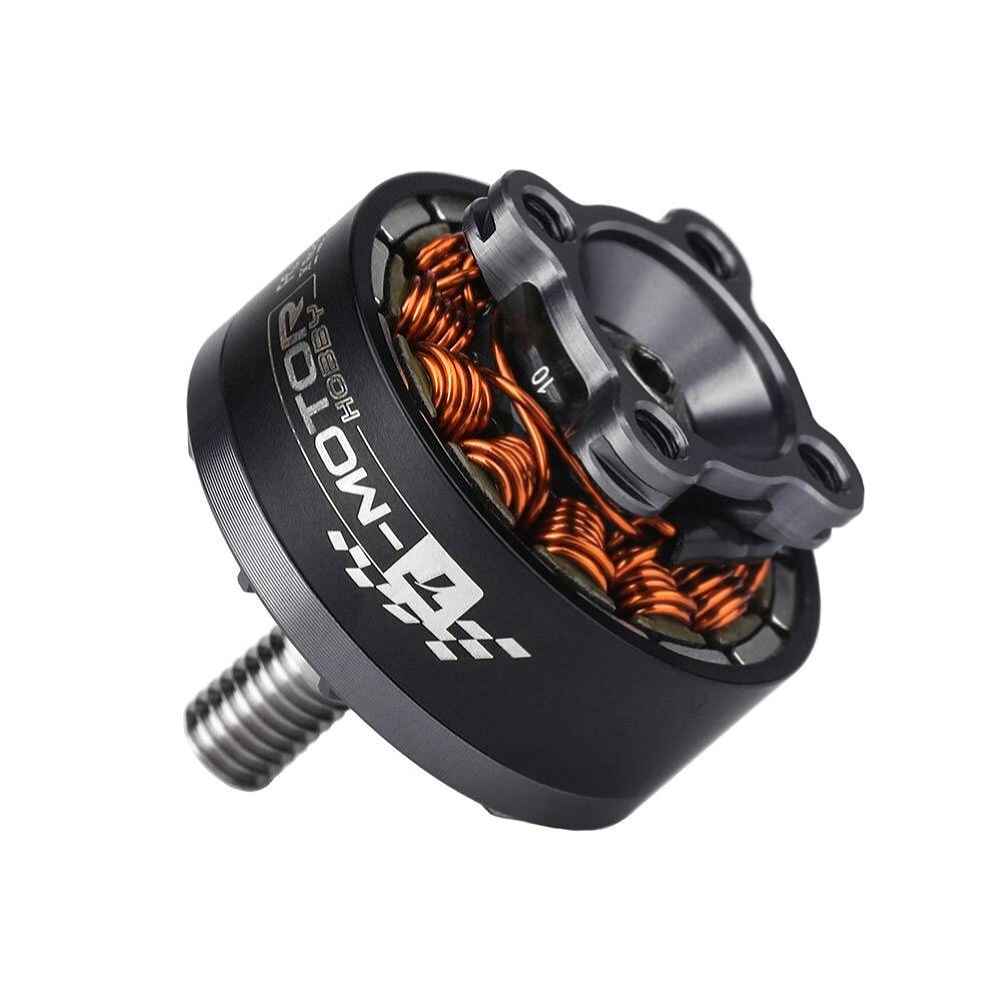

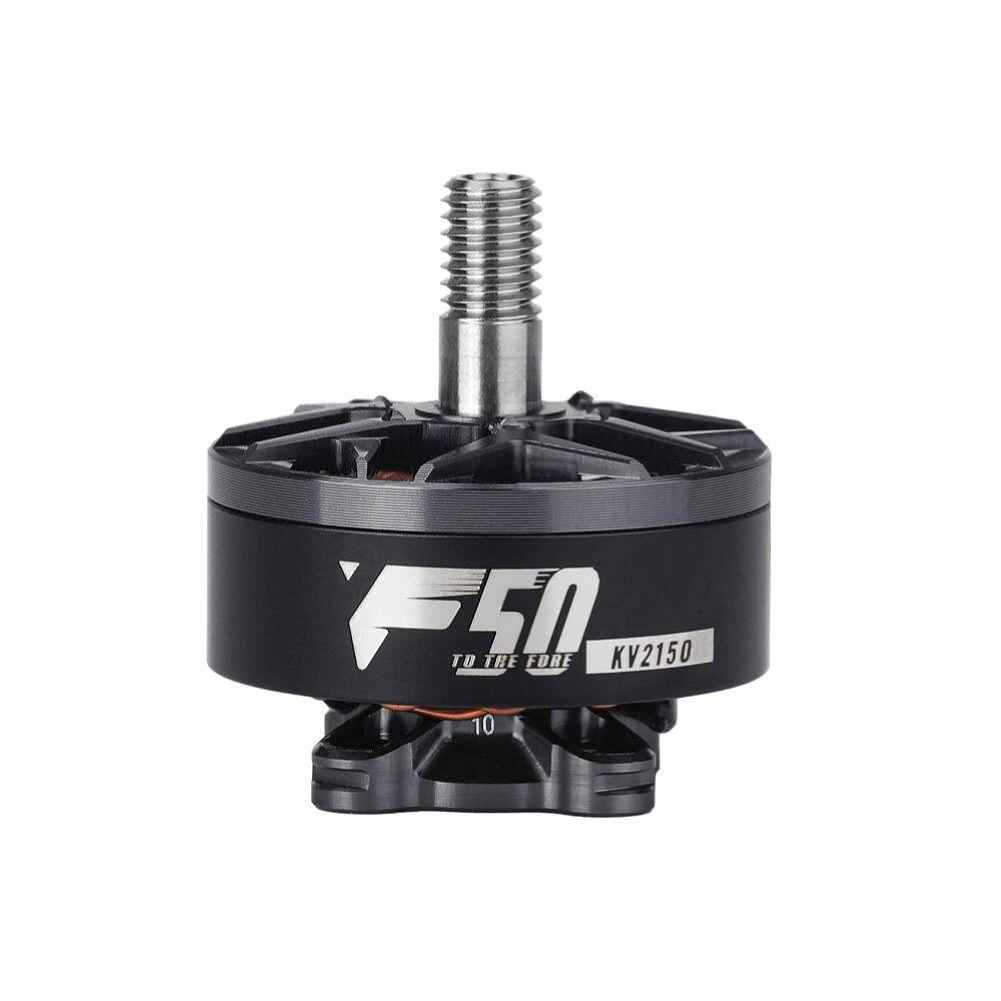

1PC / 4PCS T-Motor F50 2207 2150KV 2200KV 6S Brushless Motor 5mm Shaft for 5 Inch Lightweight FPV Racing Drone

The T-Motor F50 2207 brushless motor is engineered for high-performance FPV racing drones, featuring a robust titanium alloy shaft and EZO bearings for smooth flight. With a 2207 stator, this motor strikes an ideal balance between power and efficiency, making it perfect for both racing and freestyle flying. Endorsed by FPV racing champions, the F50 motor is positioned between the F40 and F60 models, offering optimized design and reliability. It supports 6S LiPo batteries and has a peak power output of up to 1315W, with a maximum thrust of over 2130g. Its durable construction includes a plated arc magnet and a black nickel finish, ensuring long-lasting performance.

Description:
The T-Motor F50 5 Inch racing FPV drone motor features a titanium alloy shaft, a 2207 stator, and EZO bearings, delivering ultra-smoot flight performance. It has been highly praised by FPV racing champios. Positioned between the F40 and F60, the F50 offers a perfect balance of power and efficiency. Its optimized design makes it ideal for both racing and freestyle applications.
Features:
– Balanced Power and Efficiency
– Champio-Endorsed
– Titanium Alloy Shaft
– Optimized Design
– EZO Bearings
– 2207 Stator
Specifications:
Brand: T-Motor
Model: F50 2207
KV: 2150KV/2200KV(Optional)

KV Rating

2150KV

2200KV

Weight (Excluding Cable):

28.56g

28.36g

Internal Resistance:

50m

47m

Rated Voltage (LiPo):

24V

24V

Idle Current (10V):

沌1.6A

沌1.6A

Peak Current:

54.8A

56.63A

Max Power:

1273W

1315W

Max Thrust:

2136g

2134g

Standards Compliance:

300V Withstand Voltage Test

Bearings:

Imported 684ZZ/MR84ZZ Bearings

Prop Adapter Shaft Thread:

M5 沁 10.75mm

Waterproof and Dustproof Class:

Yes

Motor Dimensions:

27 沁 29.5mm

Magnet Type:

Plated Arc Magnet

Lead Wire:

20AWG 沁 150mm

Material Finish:

Black Nickel

Packing Size:

68 沁 35.0mm

Coil Insulation Test:

Passed

Dynamic Balance:

<3mg

Configuration:

12N14P

Shaft Diameter:

5mm

Screw Diameter:

M3

Packing Weight:

55g

Type:

F50

Package Included:
1 x T-Motor F50 2207 Motor (Choose Your KV)
1 x Hardware Kit

Recommended Category:
Toys & Games > Hobbies > Remote & App Controlled Vehicles & Parts > Remote & App Controlled Vehicle Parts > Multi Rotor Parts

Additional information

Weight0.05 kg
Quantity

1 PC, 4 PCS

KV

2150KV, 2200KV
