iFlight XING-E Pro 2207 1800KV 3-6S /2450KV 2750KV 2-4S Brushless Motor for RC Drone FPV Racing

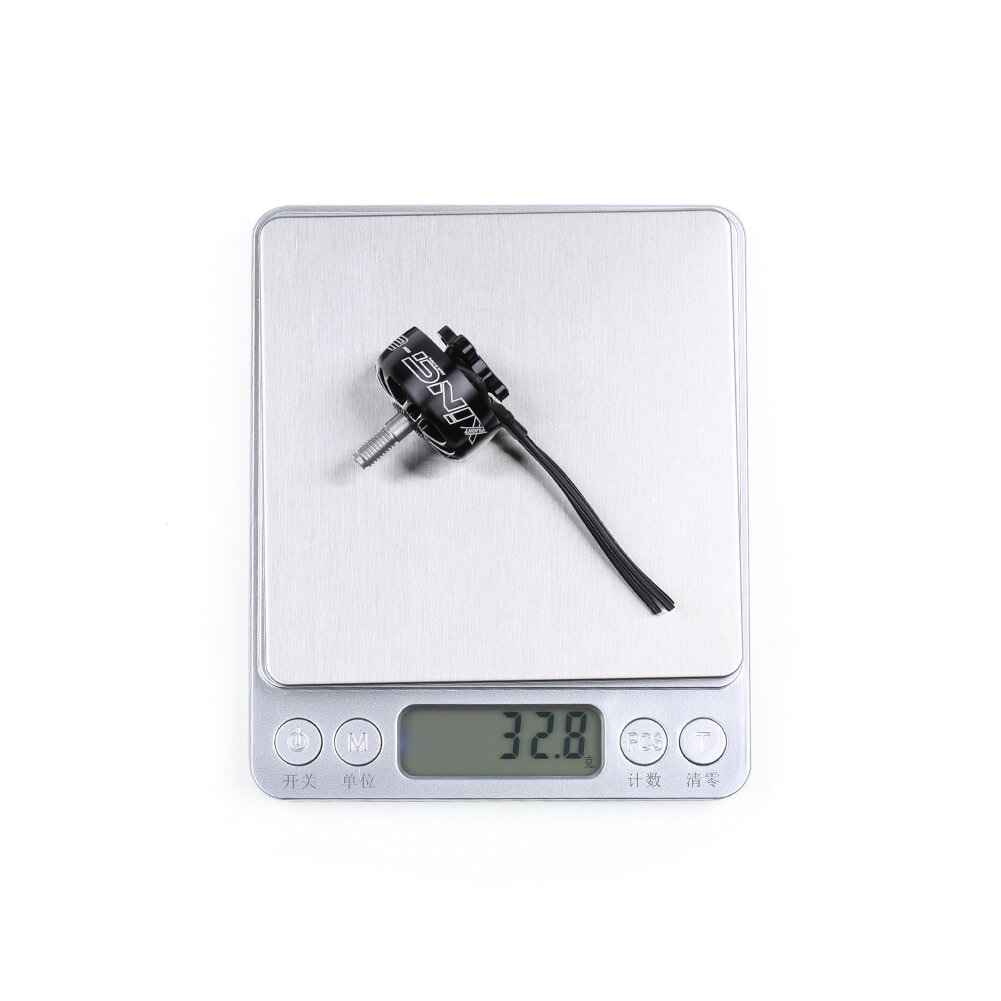

The iFlight XING-E Pro 2207 is a high-performance brushless motor designed for FPV racing drones. Available in 1800KV, 2450KV, and 2750KV options, this motor supports a voltage input of 3-6S for 1800KV and 2-4S for 2450KV/2750KV. Featuring a 12N14P configuration, the motor has a stator diameter of 22mm and a length of 7mm. It operates with an idle current of less than 1.2A at 10V for 1800KV and offers a maximum continuous power of up to 845.3W. With a compact design, the motor dimensions are 28.5×19.7mm, and it weighs 33.8g. This motor is ideal for enhancing the agility and speed of your racing drone.
Specification:
Brand Name: iFlightModel: XING-E Pro 2207Item Name: 2207 1800KV 2450KV 2750KV Brushless Motor KV: 1800KV /2450KV /2750KV ( Optional)Version: CW Screw ThreadQuantity: 1 PCInput Voltage: 3-6S @ 1800KV ; 2-4S @ 2450KV / 2750KVConfiguration: 12N14PStator Diameter: 22mmStator Length: 7mmShaft Diameter: 5mmMotor Dimension: 28.5×19.7mm (Dia*Len)Weight: 33.8gIdle Current(10) @10V: less than 1.2A (1800KV); less than 2.0A(2450KV); less than 2.2A (2750KV) Max. Con. Power (180S): 845.3W@1800KV; 682.1W@2450KV; 800.5W@2750KVInternal Resistance: 81.5m棒@1800KV; 46.8m棒@2450KV ; 41m棒@2750KVMax. Current (180S): 35.22A@1800KV; 42.63A@2450KV; 50.03A@2750KV
Package Included:

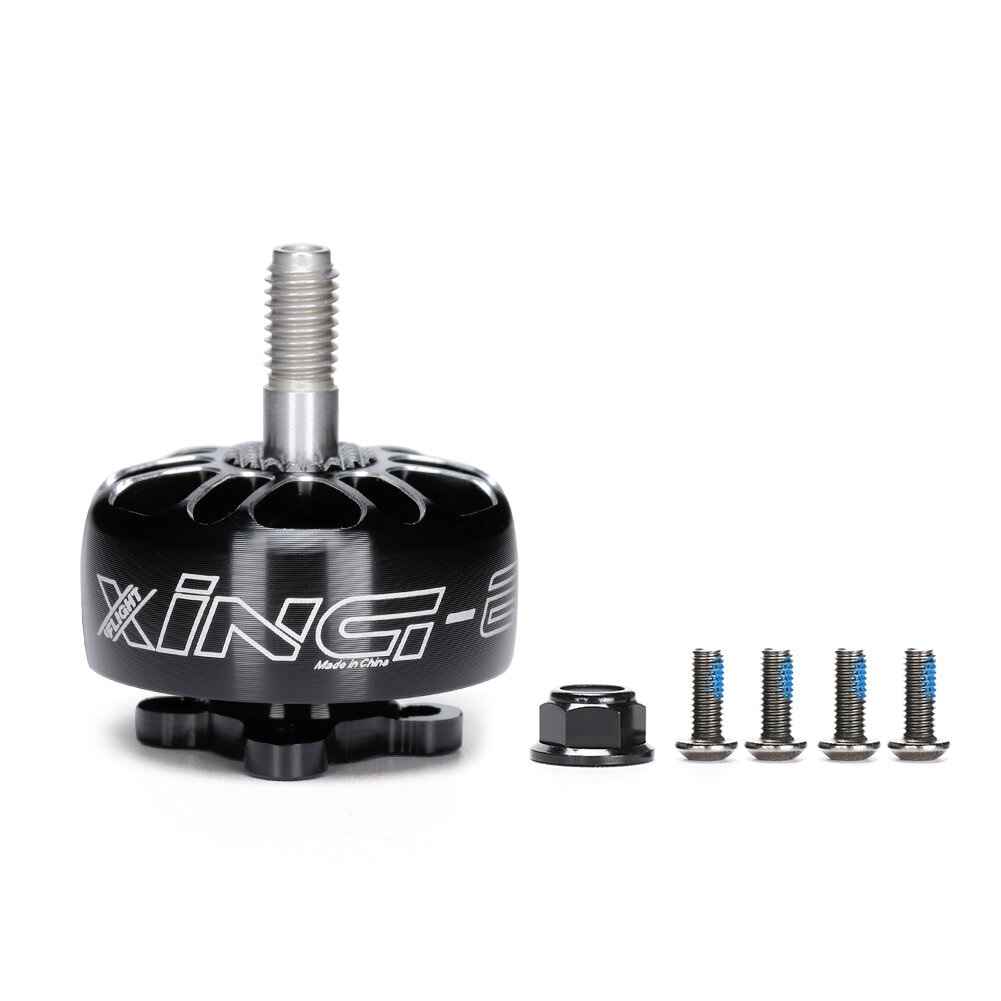

1x iFlight XING-E 2207 Motor
1x Motor Nut
4x Screws
