FIMI MINI 3 SE SoLink 9KM FPV Drone, 4K 30fps Camera, 3-Axis Gimbal, 29-Min Flight, 250g Ultralight Foldable Quadcopter

Description

FIMI MINI 3 SE SoLink 9KM FPV With 4K 30fps Camera 3-axis Mechanical Gimbal 29mins Flight Time Visual Tracking 250g Ultralight Foldable RC Drone Quadcopter RTF

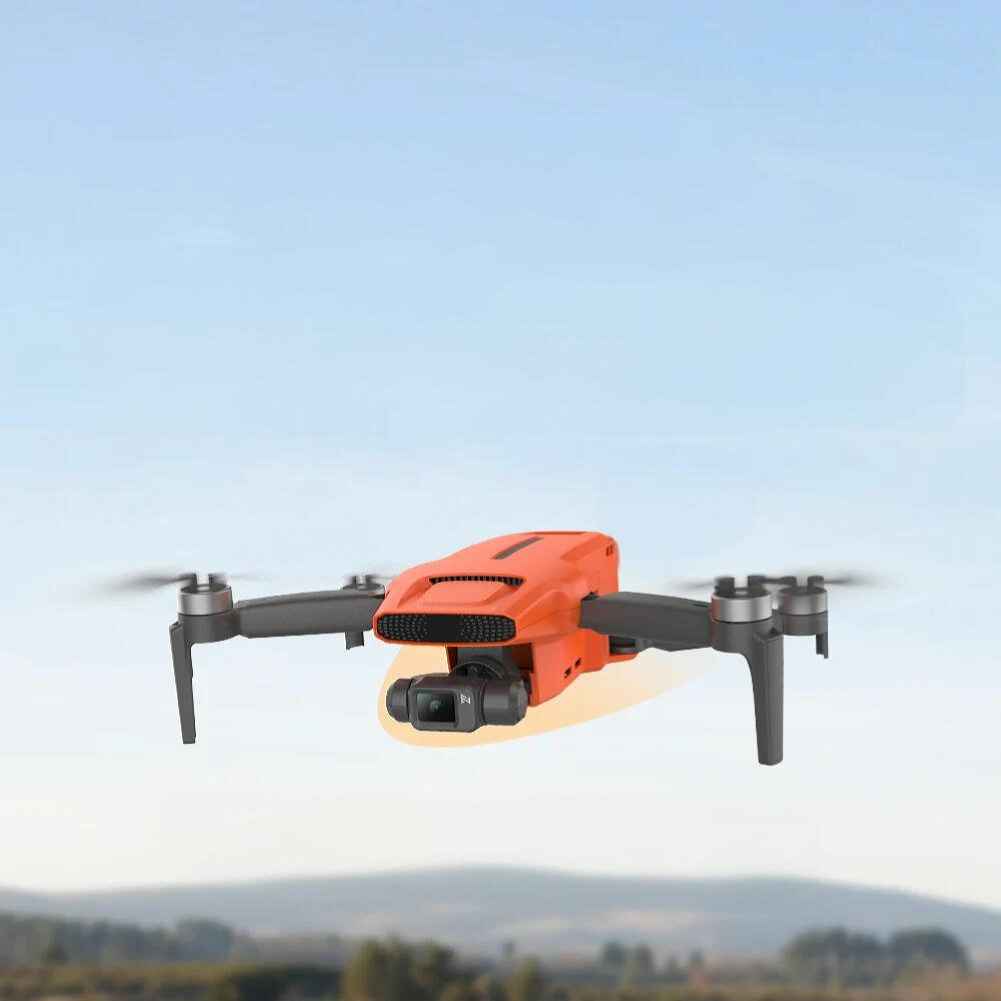

The FIMI MINI 3 SE SoLink 9KM FPV Drone is designed for seamless aerial photography and videography. Weighing approximately 250g, this ultralight foldable quadcopter is as portable as a smartphone, requiring no training or permits in most areas. Capture stunning 4K video at 30fps with its 3-axis mechanical gimbal, ensuring smooth and stable footage. The advanced SoLink HD digital transmission technology allows real-time video transmission up to 9km, with low latency for an immersive flying experience. With a maximum flight time of 32 minutes and support for intelligent flight modes like visual tracking and precision landing, this drone offers unparalleled performance and convenience. Fast USB Type C charging ensures your drone is ready for action anytime.

FIMI MINI 3 SE SoLink 9KM FPV With 4K 30fps Camera 3-axis Mechanical Gimbal 29mins Flight Time Visual Tracking 250g Ultralight Foldable RC Drone Quadcopter RTF
Specifications:

Aircraft

Dimensions (without propellers)

145 x 85 x 56mm (Folded)
200 x 145 x 56mm (Unfolded)

Color

Orange

Diagonal Distance

214mm

Takeoff Weight (with battery)

Approx. 245g

Max Ascension Speed

4m/s

Max Descent Speed

2m/s

Max Flying Speed

16m/s (in a windless environment at sea level )

Max Takeoff Altitude

沌 4000m

Hovering Accuracy

Vertical: 呼0.1m (when Vision Positioning is active)
呼0.5m (when GPS Positioning is active)
Horizontal: 呼0.3m (when Vision Positioning is active)
呼0.5m (when GPS Positioning is active)

Max Tilt Angle

35‵

Max Wind Speed Resistance

10.7m/s

Max Hovering Time

29 minutes

Maximum Flight Time

32mins

GNSS

GPS/Galileo/BeiDou/GLONASS

Operation Frequency

5.725 – 5.825GHz

Operating Temperature

0~40﹠

Gimbal Camera

Three-axis Mechanical Gimbal

-110‵ ~ 40‵ (Pitch)-40‵ ~ 40‵ (Roll)-40‵ ~ 40‵ (Yaw)

Controllable Rotation Range

10‵ ~ -90‵ (Pitch)

Angular Vibration Range

呼0.01‵

Image Sensor

1/2.5-inch CMOS

Lens

FOV 94‵

Aperture

F / 2.2

Format Length

2.35mm

Format Equivalent

20mm

Focus

0.8m to ?

Effective Pixels

12 million pixels

ISO Range

Video 100-6000Photo 100-6400

Shutter Speed

1/8000s – 2s

Max Photo Size

4000 x 3000

Max Video Resolution

3840 x 2160 @30/25/24fps

Max Video Bitrate

100Mbps

Supported File System

FAT32/exFAT

Photo Format

JPEG

Video Format

MP4

Digital Zoom

6X

Recommended Memory Card

Micro SD 8-256GB
(U3 and above)

Remote Controller

Model

FMYKQ04A3

Weight

About 260g

Dimensions

165 x 89 x 47mm

Operation Frequency

2.4000 GHz – 2.4835 GHz5.725 GHz – 5.850 GHz

Battery Type

Li-ion

Capacity

3500mAh

Nominal Voltage

3.7V

Input

5V=2A

Max Battery Life

8 hours (without charging the mobile device)4 hours (charging the mobile device)

Max Signal Effective Range FCC(No interference, No obstruction)

Approximately 9KM

Minimum Latency

Approx. 120 milliseconds

Supported Mobile Device Interface Types

Lighting,USB-C

Operating Temperature

0 – 40﹠

Charging Temperature

5 – 40﹠

Intelligent Flight Battery

Battery Type

Li-ion 2S

Weight

Approx. 85g

Capacity

2200mAh

Nominal Voltage

7.7V

Charging Limited Voltage

8.8V

Energy

16.92Wh

Charging Temperature Range

5 – 40﹠

APP

FIMI Navi Mini Mobile Device System Requirements

iOS 12.0 or later, Android 9.0 or later

Features:
1. 250g-Class Ultralight Design
With a compact and lightweight design under 250g, it doesnㄙt require training, exams, or flight permits in most areas. Itㄙs as small as a smartphone, highly portable, and folds easily for storage, letting you fly anytime and anywhere you want. *Please refer to local regulations for actul usage.
2. 4K/30fps Video
Capture stunning high dynamic range video in 4K at 30fps, with each frame showcasing fine details. Even the smallest elements are vivid and in 4K ultra-high definition, making every recording appear as a real moment before your eyes.
3. 9km Video Transmission
The FIMI Mini 3 SE, featuring the new SoLink HD digital transmission technology, offers real-time high-definition transmission up to 9 kilometers away. It supports dual-band switching between 2.4GHz and 5.8GHz, and advanced encoding and decoding optimization techniques reduce latency to just 120 milliseconds. This ensures stable, smooth video transmission and an immersive flying experience.
4. Support USB Type C Fast-Charging
The USB Type C charging port on the battery supports 9V/3A rapid charging. This enables you to experience fast and convenient charging wherever you are, allowing you to charge your spare batteries effortlessly even while your drone is in flight.
5. Visual Tracking and Other Flight Modes
Supports multiple intelligent flight modes, such as the smart tracking modes, powerful flight plan shooting, SAR mode, precision landing, timelapse, one-tap video, panorama and so on.
Function: 9KM Distance, 3-axis Gimbal, 29-Minute Flight Time, 250g-Class Ultralight Design, Smart Tracking Modes, One-Tap Video, Night Shooting, Powerful Flight Plan Shooting

Package Included:

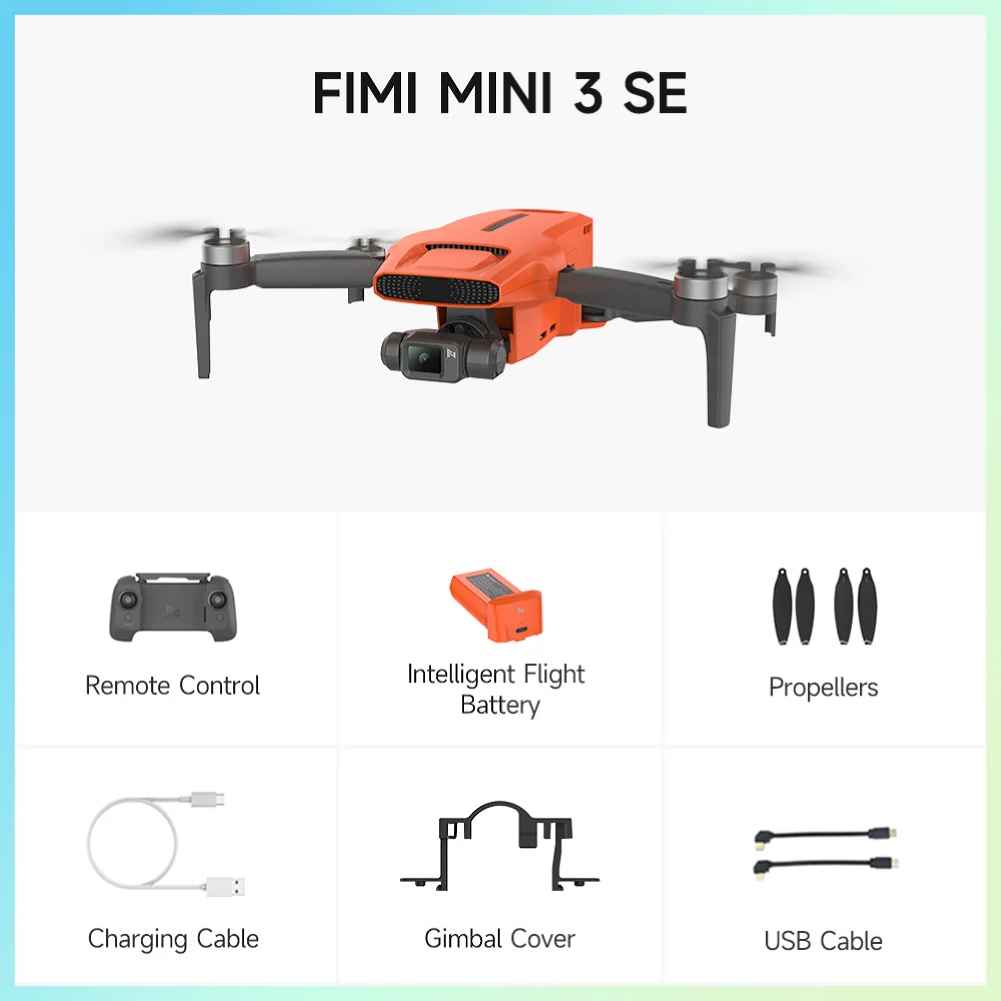

One Battery Version:
1 x MINI 3 SE Quadcopter (with camera)
1 x Remote Controller
1 x Battery
1 x USB Cable
2 x Spare Propeller
2 x RC Connected Cable
1 x Gimbal Cover
1 x Manual

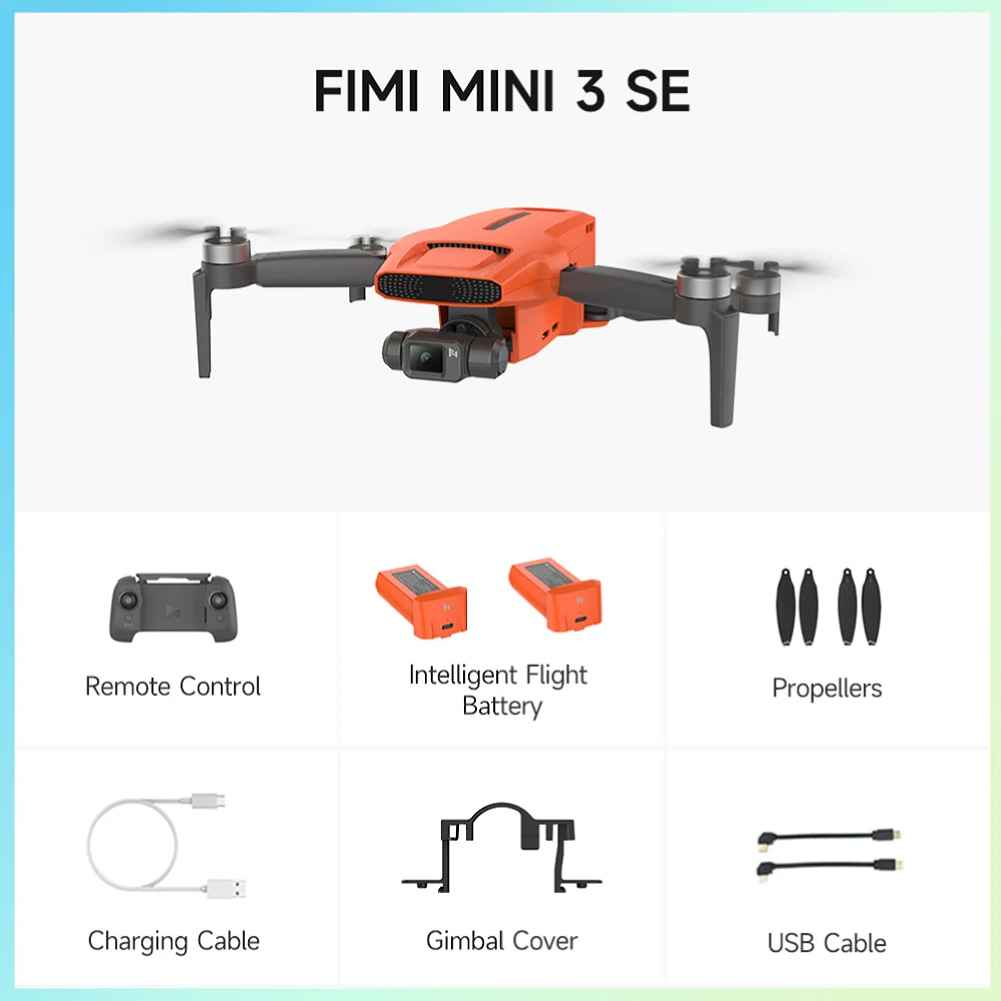

Two Batteries Version:
1 x MINI 3 SE Quadcopter (with camera)
1 x Remote Controller
2 x Battery
1 x USB Cable
2 x Spare Propeller
2 x RC Connected Cable
1 x Gimbal Cover
1 x Manual
