SJRC F22 S3 PRO GPS 6KM 5G FPV Drone with 4K HD EIS Camera, 3-Axis Gimbal, Optical Flow, Brushless Motor, Foldable Quadcopter

Description

SJRC F22 S3 PRO GPS 6KM 5G Repeater Digital FPV with 4K HD EIS Camera 3-Axis Gimbal Lower Vision Module Optical Flow w/ Searchlight Brushless Foldable RC Drone Quadcopter RTF

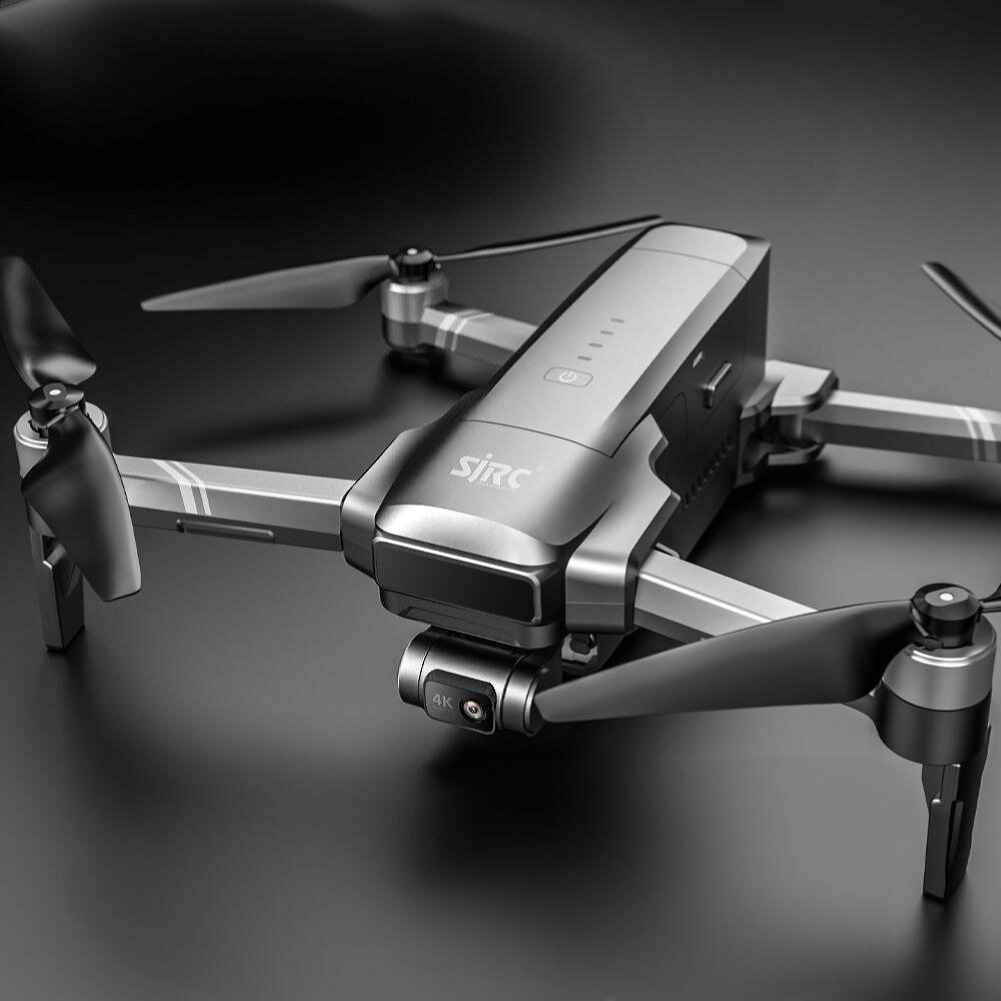

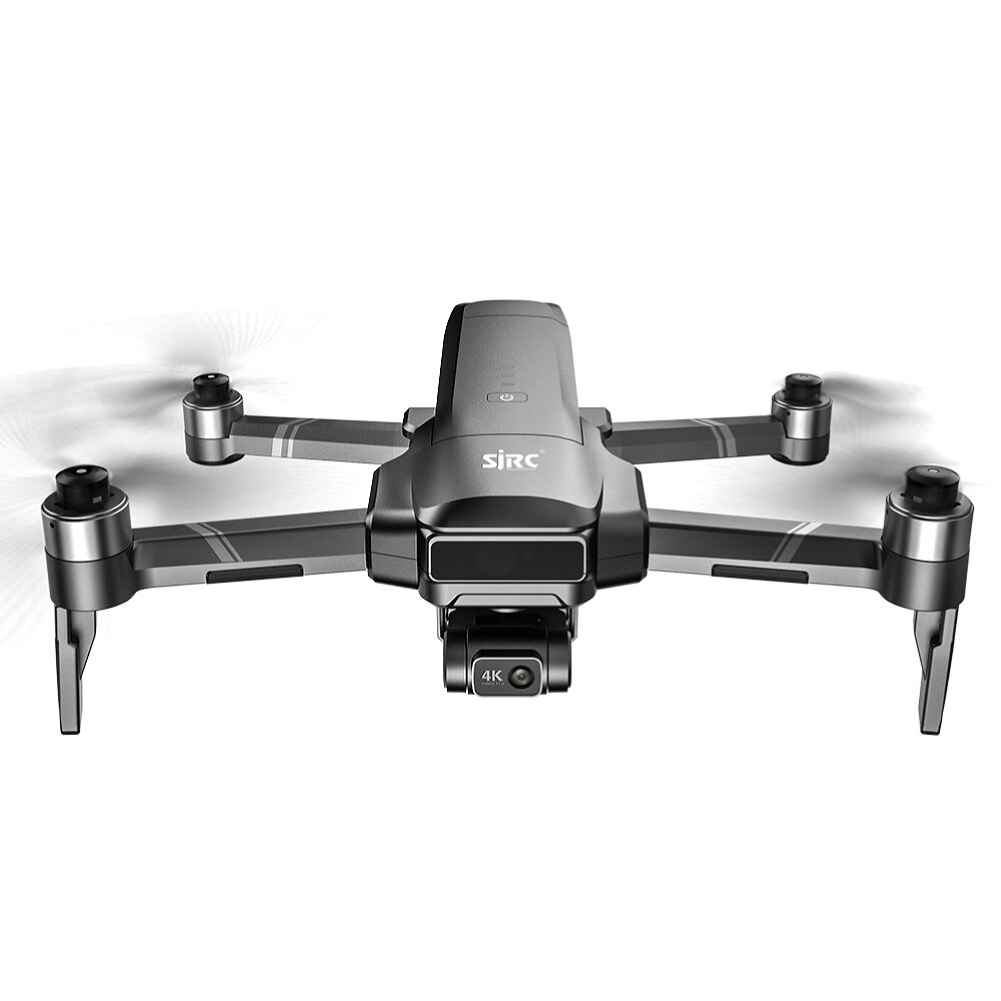

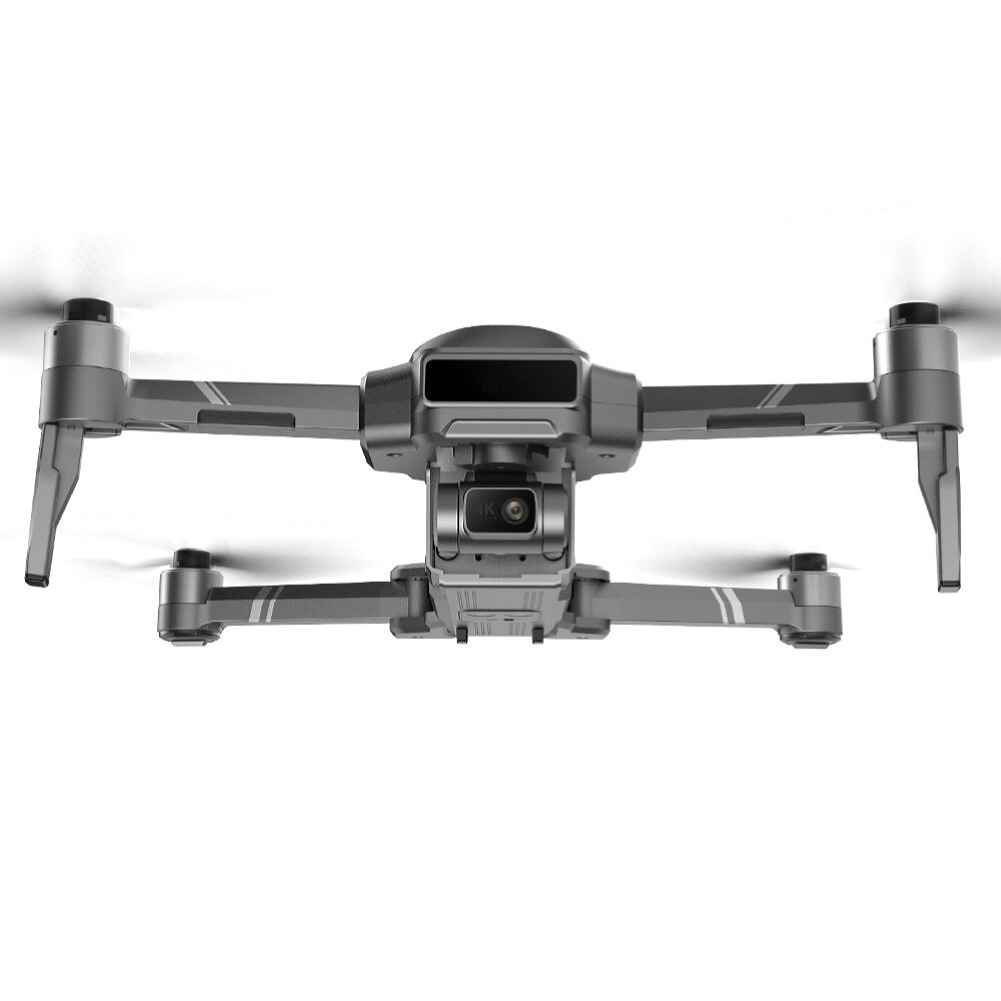

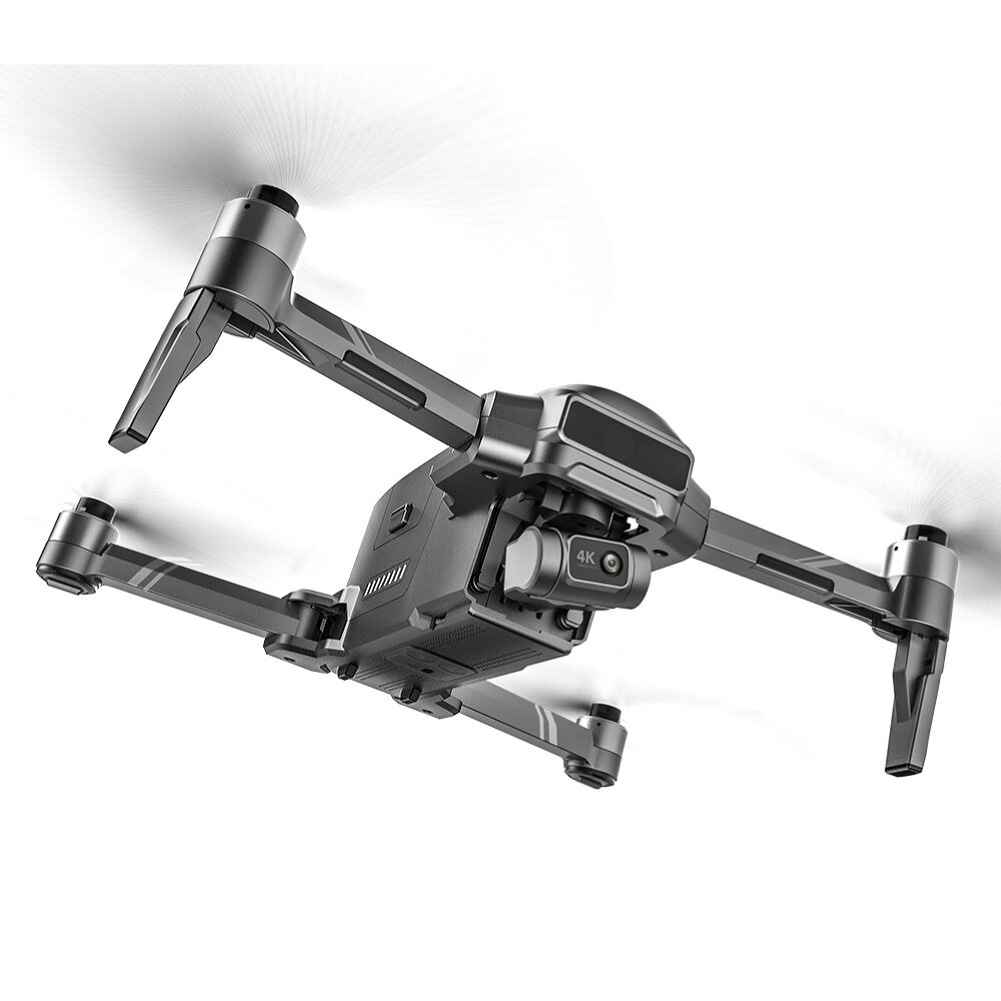

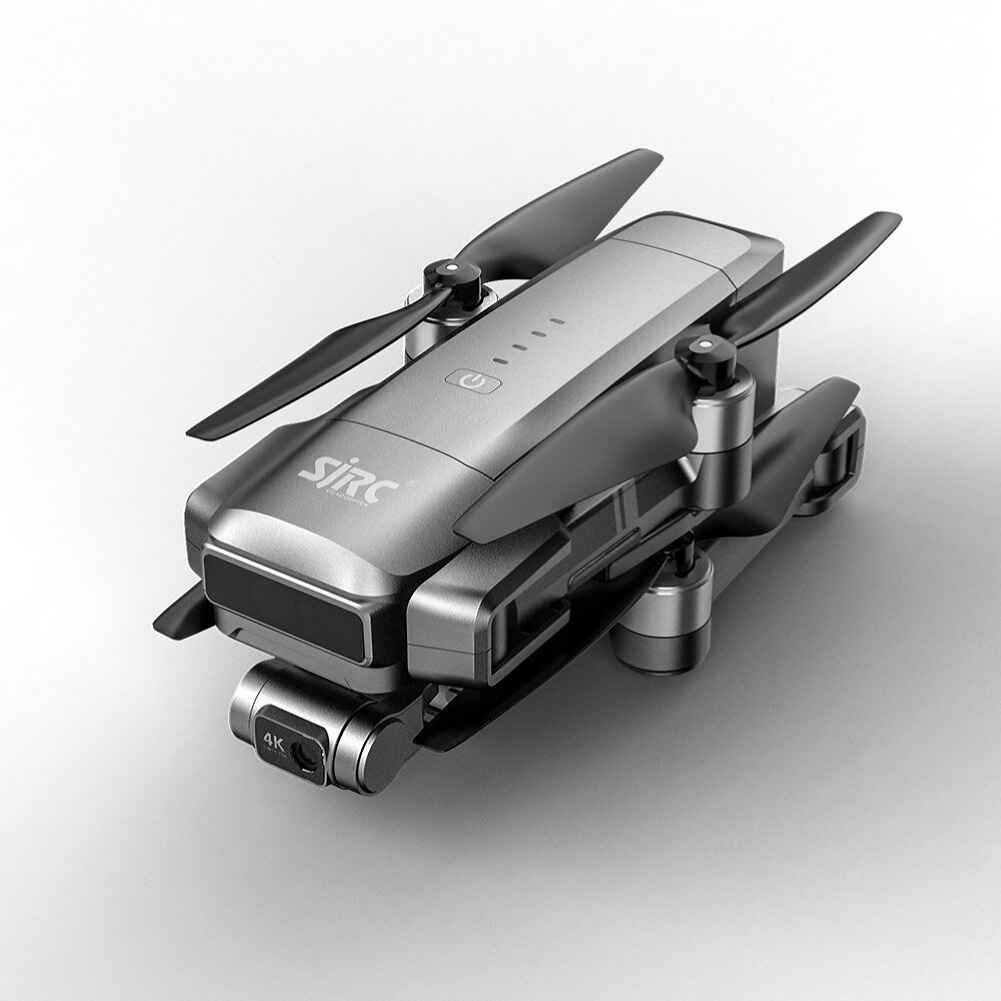

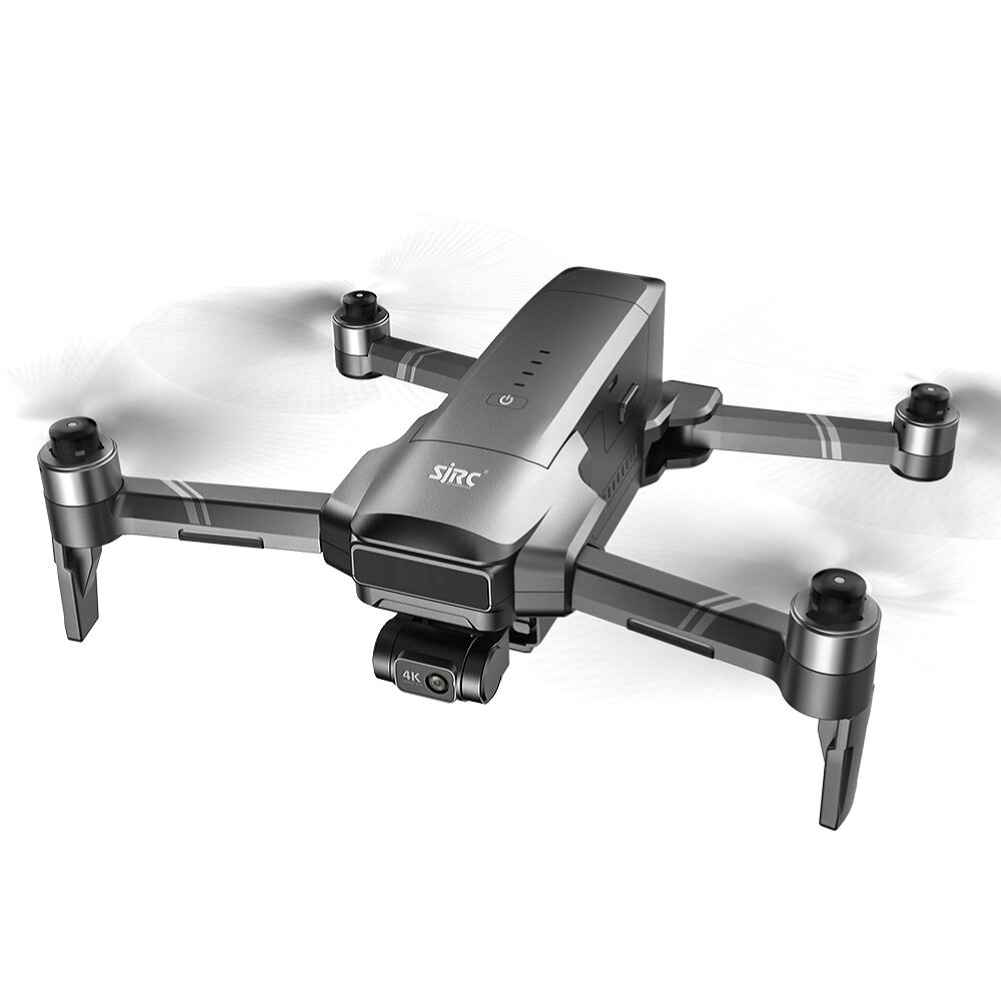

The SJRC F22 S3 PRO Drone is a high-performance RC quadcopter designed for both hobbyists and professionals. Equipped with a 4K HD EIS camera and a 3-axis gimbal, it ensures smooth and clear aerial footage. The drone supports GPS and GLONASS for precise positioning and offers intelligent flight modes such as gesture shooting, image follow, and route planning. With a flight time of approximately 40 minutes and a control distance of up to 6KM, it provides extensive coverage and exploration capabilities. The foldable design and brushless motors enhance portability and durability, while the optical flow mode and downward ranging module ensure stable hovering even in low-light conditions.

SJRC F22 S3 PRO GPS 6KM 5G Repeater Digital FPV with 4K HD EIS Camera 3-Axis Gimbal Lower Vision Module Optical Flow w/ Searchlight Brushless Foldable RC Drone Quadcopter RTF
Specifications:
Brand Name: SJRC
Item No.: F22 S3 PRO
Color: Silvery Grey
Motor: 1806 Brushless
Operating Frequency: 5G Bridge
Drone Battery: 11.1V 3500mAh 38.85Wh Lipo (Included)
Flight Time: About 40 min
Charging Time: About 120 minutes
USB Charging: 5V/3A Type-C 30W
Remote Control Mode: Mode 2 (Left Hand Throttle)
Remote Control Battery: Built-in 1500mAh Battery
Control Distance: About 6000m (No Interference, No Obstruction)
Transmitter Charging Time: About 110 minutes
Transmitter Operating Time: About 2.5 hours
Operating Voltage: 7.4V
FPV: 5G USB Digital Image Transmission
Operating Frequency: 5.18~5.32 GHz, 5.745~5.825 GHz
Support Protocol: 802.11a
FPV Range: About 6000m (No Interference, No Obstruction)
Video Transmission Frame Rate: 30fps / 60fps
Camera Pixel: 4K HD
Camera Lens: FOV 100‵
Sensor: 1/2 inch
Viewing Angle: 56‵ (Horizontal), 33‵ (Vertical)
Equivalent Focal Length: 25cm
Focus Range: Fixed Focus
Photo Resolution: 3840 x 2160P (APP), 8000 x 6000P (SD Card)
Video Resolution: 1280 x 720P (APP), 3840 x 2160P (SD Card)
Photo Format: JPG
Video Format: MP4
SD Card: 32G-128G Class 10/U1 or above (Not Included)
Select FAT32 format for formatting and 64KB for allocation unit size (select the largest option)
Gimbal: 3 -Axis Brushless Mechanical
Pitch: -100‵ – +70‵
Roll(X): -35‵ – +35‵,
Heading: -15‵- +15‵
Adjustable Angle: -80‵- +0‵
Gesture Shooting: 1-3 M
Image Follow Me: 3-10M
GPS Follow Me: 10-100M
Optical Flow Mode: YesPosition: GPS / GLONASS
Mobile Device System Version: iOS 9.0 or later / Android 5.0 or later
Operating temperature: 0 ~ 40﹠
Take-off Weight: 615 g (Battery 245g)
Quad’s Size: 350 x 350 x 83mm (Unfolded), 202 x 107 x 83mm (folded)
Package Size: 25.5 x 27 x 16.5cm
Package Weight: About 2170g
Features:
1. GPS returns to the take-off point with one click, low battery return, and no signal return.
2. ?GPS smart follow: follow the phone to fly;
?Image follow: identify the subject and follow the subject for 360-degree circumnavigation.
3. Gesture shooting recognition: within 1-3m from the aircraft, face the camera to make a photo/video gesture.
4. Route multi-point planning flight: the aircraft flies autonomously according to the pre-set route, and the player focuses on shooting.
5. Fixed-point surround: find the center point of the surround, and then move the desired surround radiuss through the joystick.
6. Intelligent functions: one-click long-distance flight, one-click skyward, one-click spiral, vertical screen aerial photography, time-lapse photography, panoramic photography.
7. Downward ranging module: stable hovering at low altitude without GPS or weak signal; turn on the night vision auxiliary light to ensure your hovering performance in low-light environment.
8. USB digital image transmission: easy to use, long distance, stable transmission, strong anti-interference.
9. Aircraft recovery function:
Open the APP—Settings—Trajectory—Find aircraft, enter the map interface, and the map shows the aircraft’s last distance, latitude and longitude.
10. Picture and video sharing: You can select single or multiple photos to share, and videos can only be shared one at a time.
11. The lens angle is 65‵, and the camera can be adjusted to 80‵.
12. 11.1V plug-in smart lithium battery, ultra-long battery life.
Function:
EIS electronic anti-shake/Brushless 3-axis gimbal/GPS positioning/Gesture photos/One click to return/Pointing flight/Orbiting flight/Automatic follow/Lost and returned/Low power return/Soar to the sky with one button/Mechanical head/Vertical screen shooting/One key screw/Time delay photography/Panoramic shooting/4K Camera/Electrically adjustable camera/Digital mapping approximately 6KM/Portable folding/Intelligent modular battery/Brushless motor/Farther away flight/Speed control

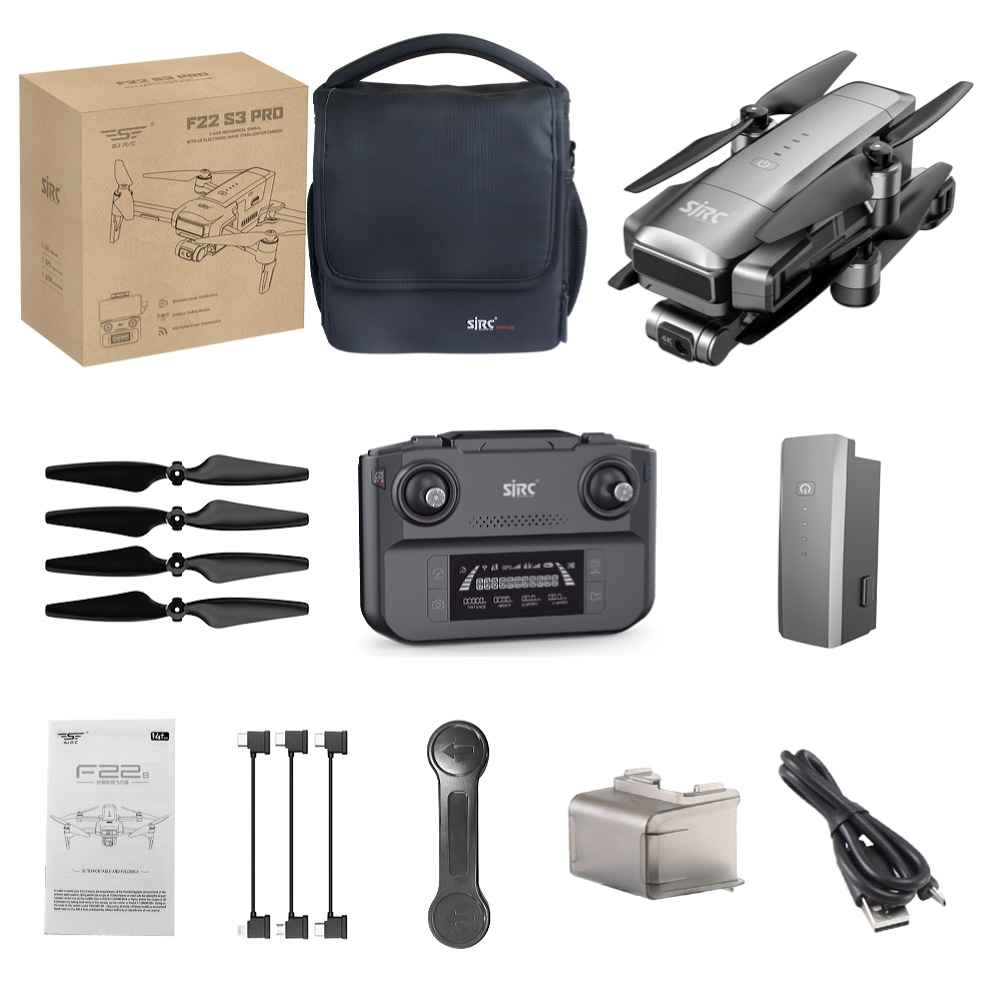

Package Included:
1 x F22 S3 PRO Drone

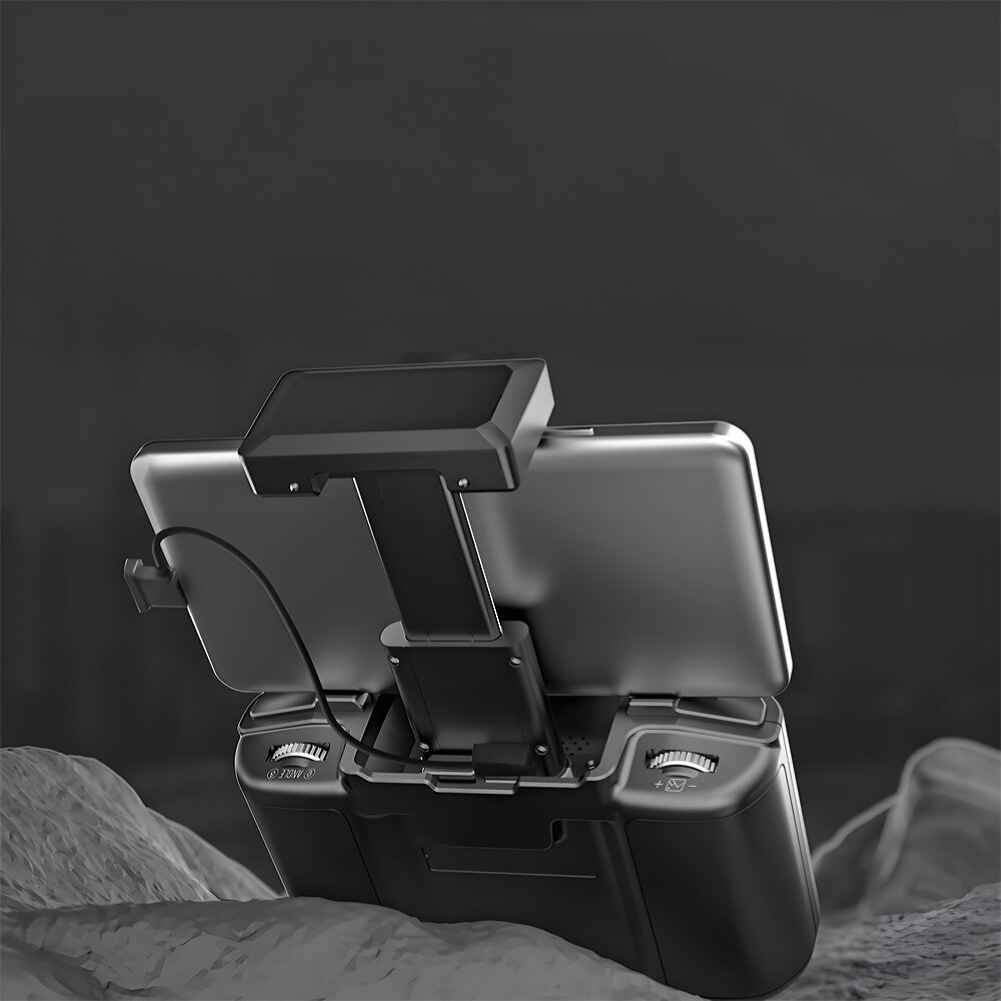

1 x Remote Controller
1 x Battery
1 x USB Charging Cable
4 x Spare Propellers
3 x RC Connected Cable
1 x Gimbal Cover
1 x Props Fixing Holder
1 x User Manual
1 x Storage Bag
