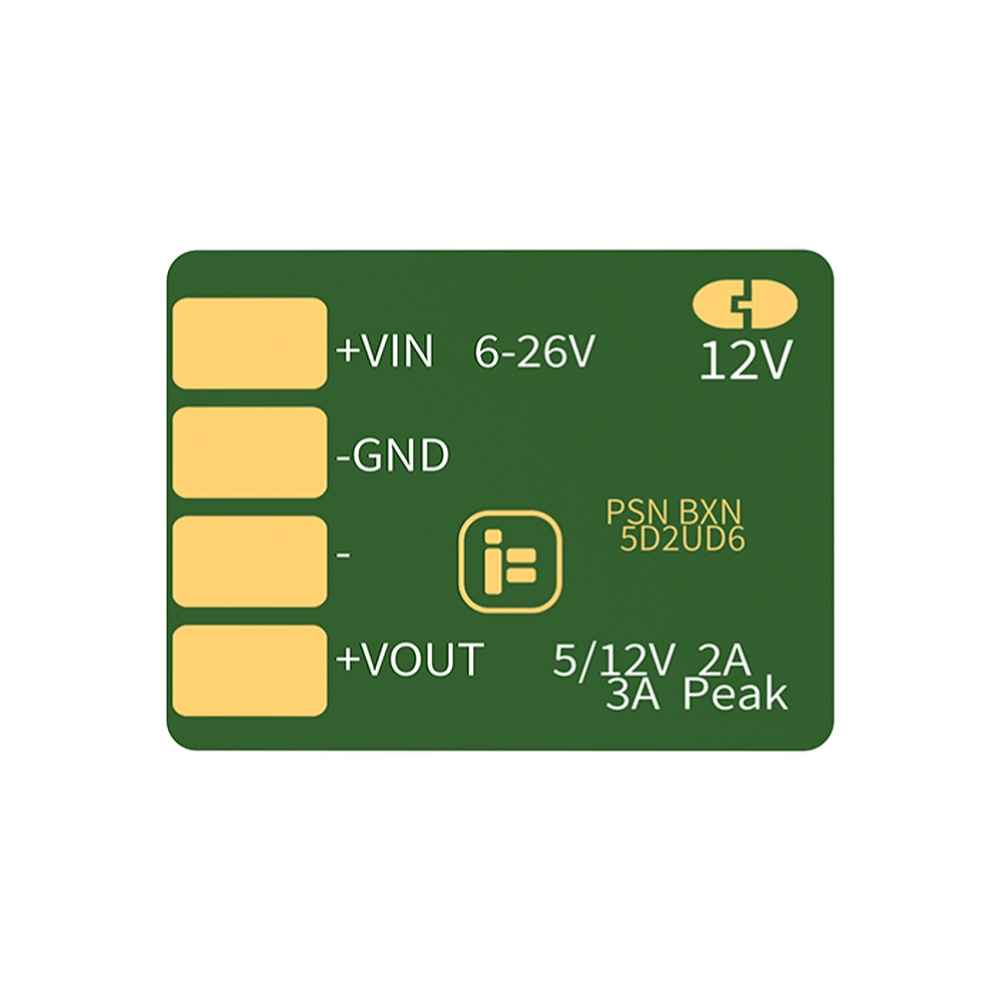

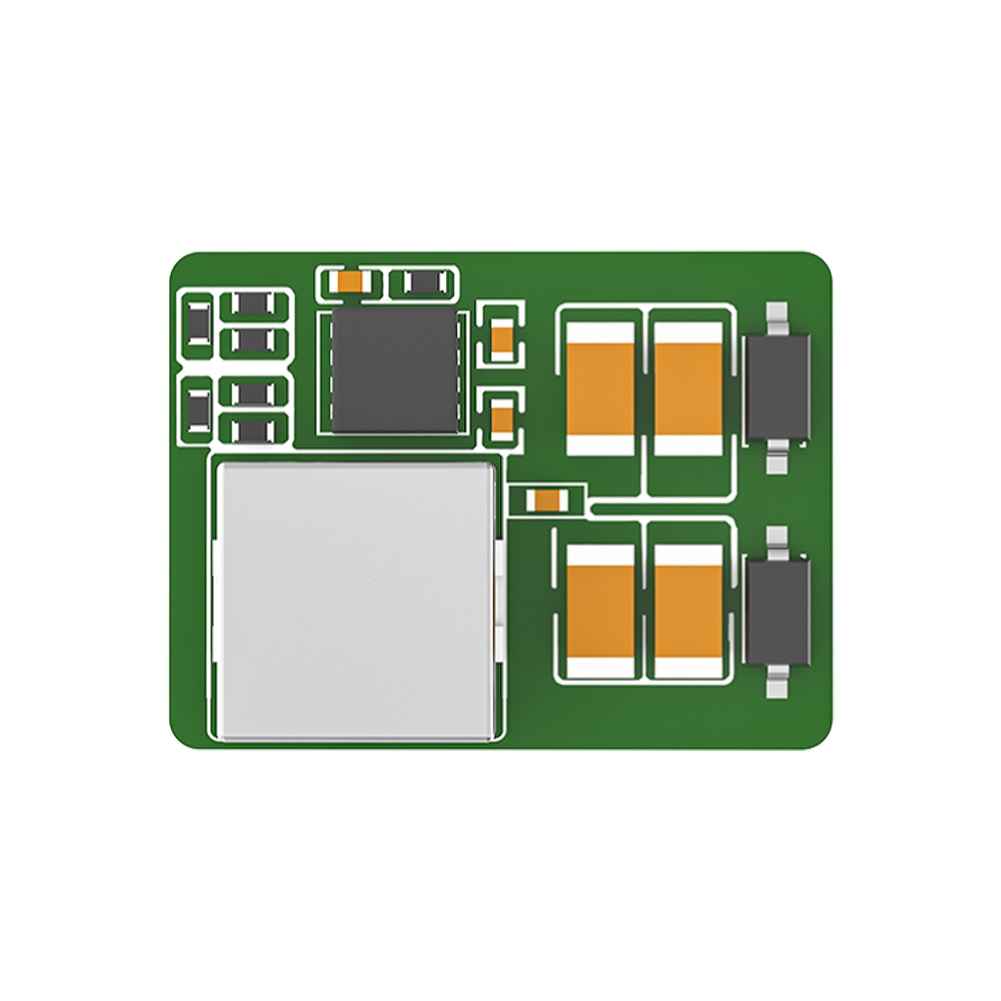

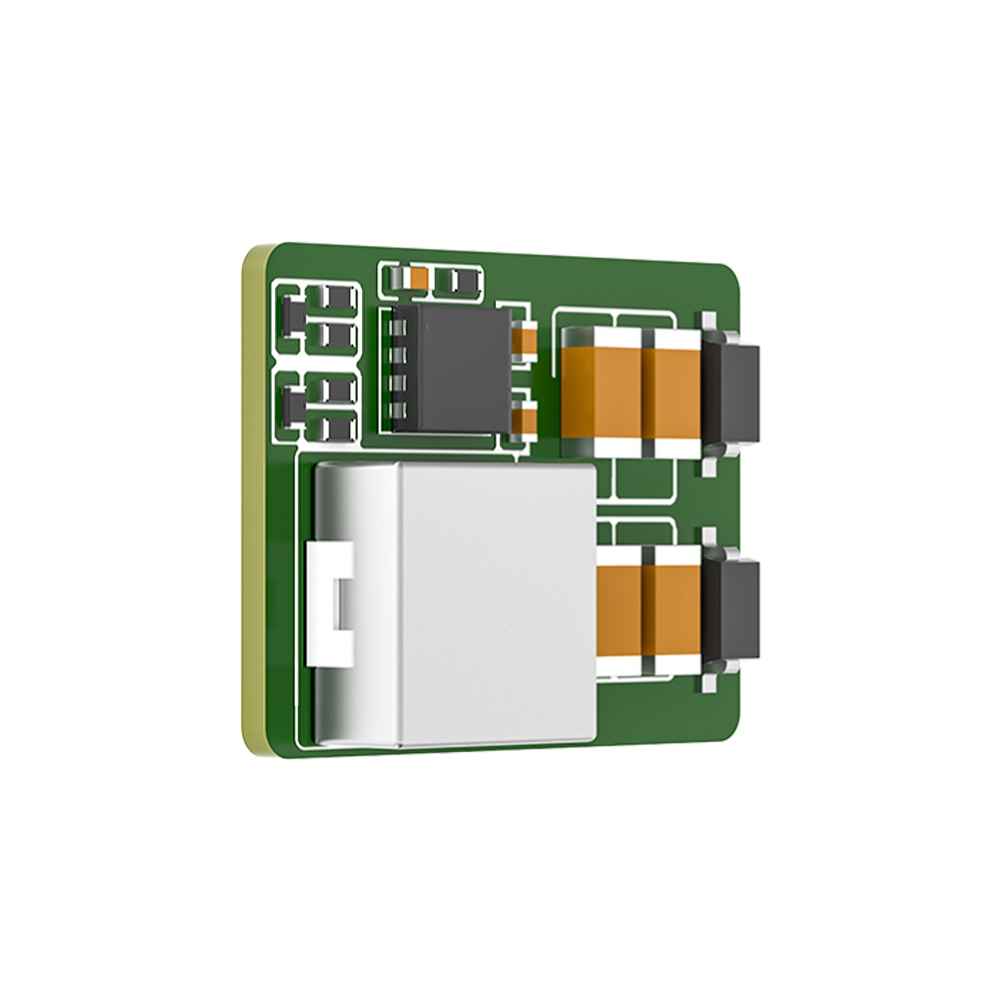

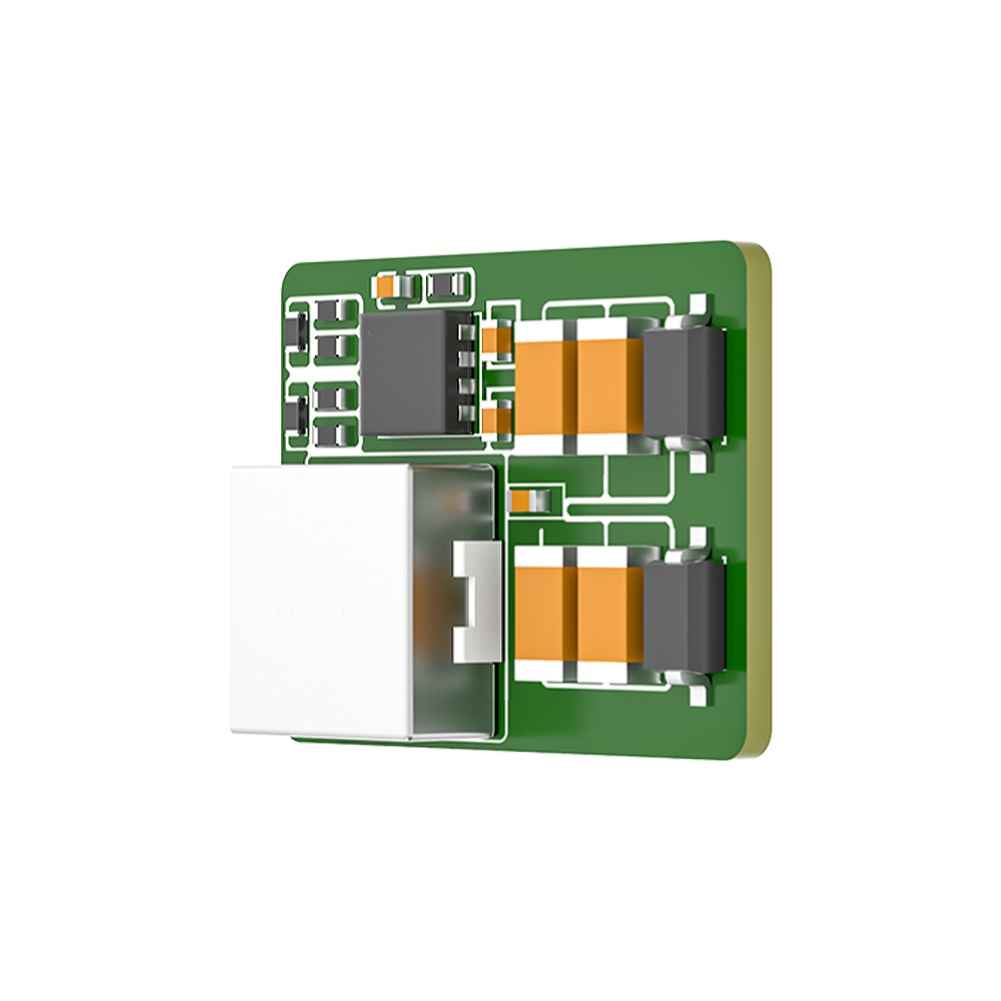

iFlight BLITZ V1.1 5V 2A 12V 3A 2-6S BEC Power Module for RC Drone FPV Racing Drone
The iFlight BLITZ V1.1 BEC Power Module is designed for RC FPV racing drones, providing a compact and efficient solution for voltage step-down applications. It supports an input voltage range of 6V to 26V, delivering a stable output of either 5V or 12V, with an average current of 2A and a peak of 3A. The module features a step-down switch mode and high-efficiency synchronous rectification, ensuring reliable performance. With a conversion efficiency of over 92% at 12V output and 88% at 5V output, it is ideal for maintaining optimal drone performance. Note: To prevent sparking, ensure the input voltage does not exceed 26V.
Description:
The BLITZ ESC features step-down switch mode, high-efficiency synchronous rectification, and the ability to step down from an input voltage of up to 26V to a low output stable voltage, which makes it ideal for step-down voltage applications.
It offers a very compact solution to achieve 2A/3A output current over a wide input supply voltage (6 to 26V).
Features:
– Step-down switch mode
– High-efficiency synchronous
– Wide 6V to 26V Input voltage range
– The voltage output can be 5V or 12V adjustable. (default 5V)
Note:
If there is sparking phenomenon when the power is turned on, it is recommended that the input voltage should not exceed 26V.
Specification:
Brand: iFlight
Model: BLITZ BEC Module V1.1
Input voltage: 6-26V
Output voltage/current: 5V or 12V. Average 2A / Peak 3A
Conversion efficiency: the average efficiency of output 12V is above 92%, and the average efficiency of output 5V is above 88%.
Size: 16*12*4.5mm
Pins distance: 2.55mm
Weight: 1.8g呼0.1g
Package Included:
1 x iFlight BLITZ BEC V1.1 1 x Connecting Cables
