GEPRC SOMA 3.3G 17dBi RHCP Directional Flat-Panel FPV Antenna for DIY RC Drone

Description

GEPRC SOMA 3.3G High Gain 17dBi RHCP Directional Long Version Flat-Panel FPV Antenna For DIY RC Drone

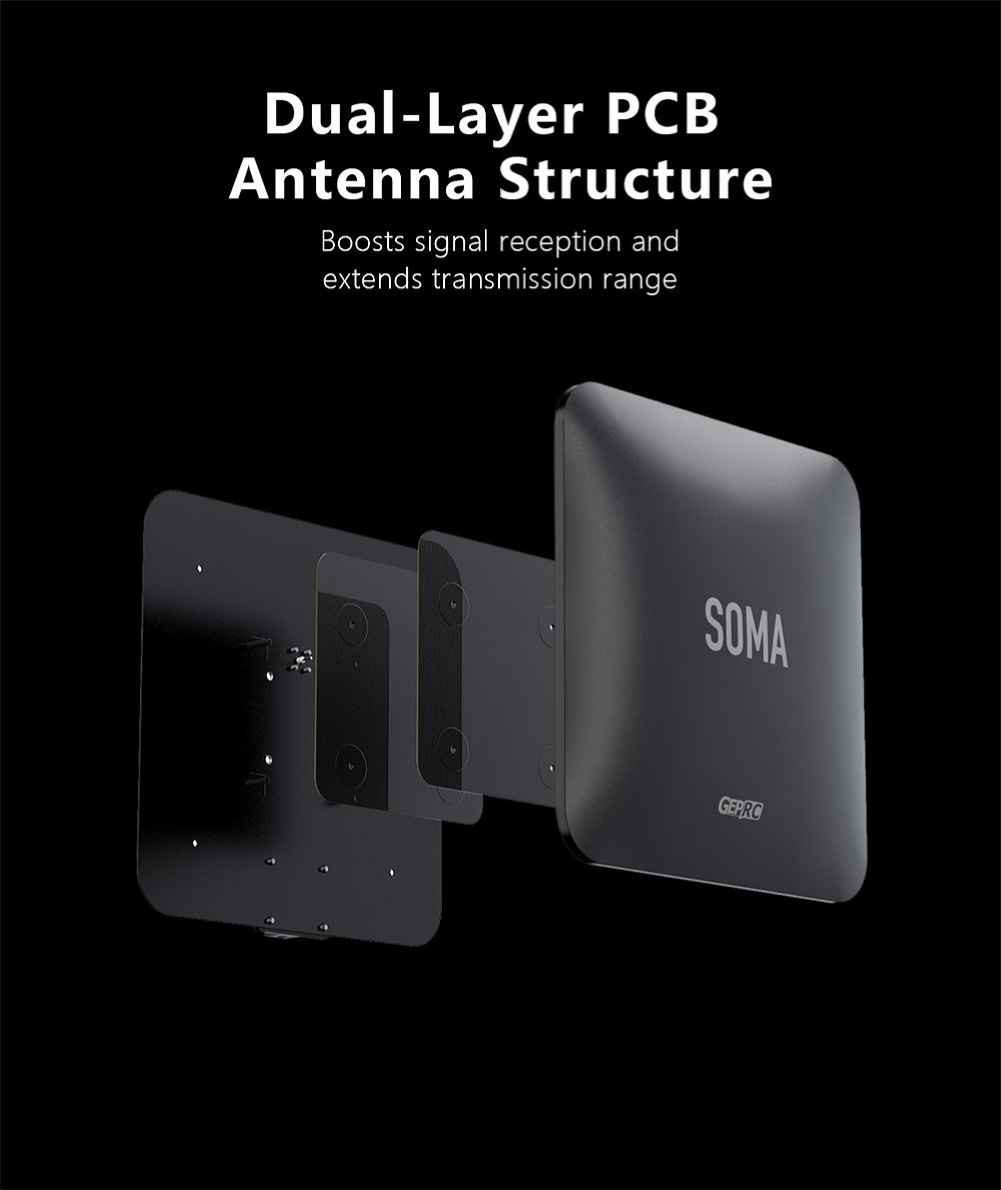

The GEPRC SOMA 3.3G Directional Flat-Panel Antenna is engineered with a dual-layer PCB RF design, delivering a significant gain of up to 17dBi with a low VSWR of 1.47 for optimal signal reception. Its sleek, ultra-thin design incorporates a robust 1/4 aluminum alloy base, making it compatible with various brackets. The antenna is housed in an injection-molded casing, ensuring superior structural integrity and a high-tech appearance. Equipped with a high-quality SMA connector, it offers lower impedance and enhanced transmission efficiency. Each unit undergoes rigorous testing with a spectrum analyzer to guarantee compliance with industry VSWR standards.

Description:
The GEPRC SOMA 3.3G Directional Flat-Panel Antenna features a dual-layer PCB RF design, offering a high gain of up to 17dBi and a low average VSWR of 1.47, ensuring excellent signal reception.
Itㄙs compatible with various brackets and is built with a 1/4 aluminum allloy base. The antenna features a sleek, high-tech design, with an integrated injection-molded casing for superior structural integrity
Features:
– Smooth, ultraathin design.
– Low VSWR, high gain directional antenna, up to 17dBi.
– 1/4 aluminum allloy base, compatible with various brackets.
– High-quality SMA connector for lower impedance and better transmission efficiency.

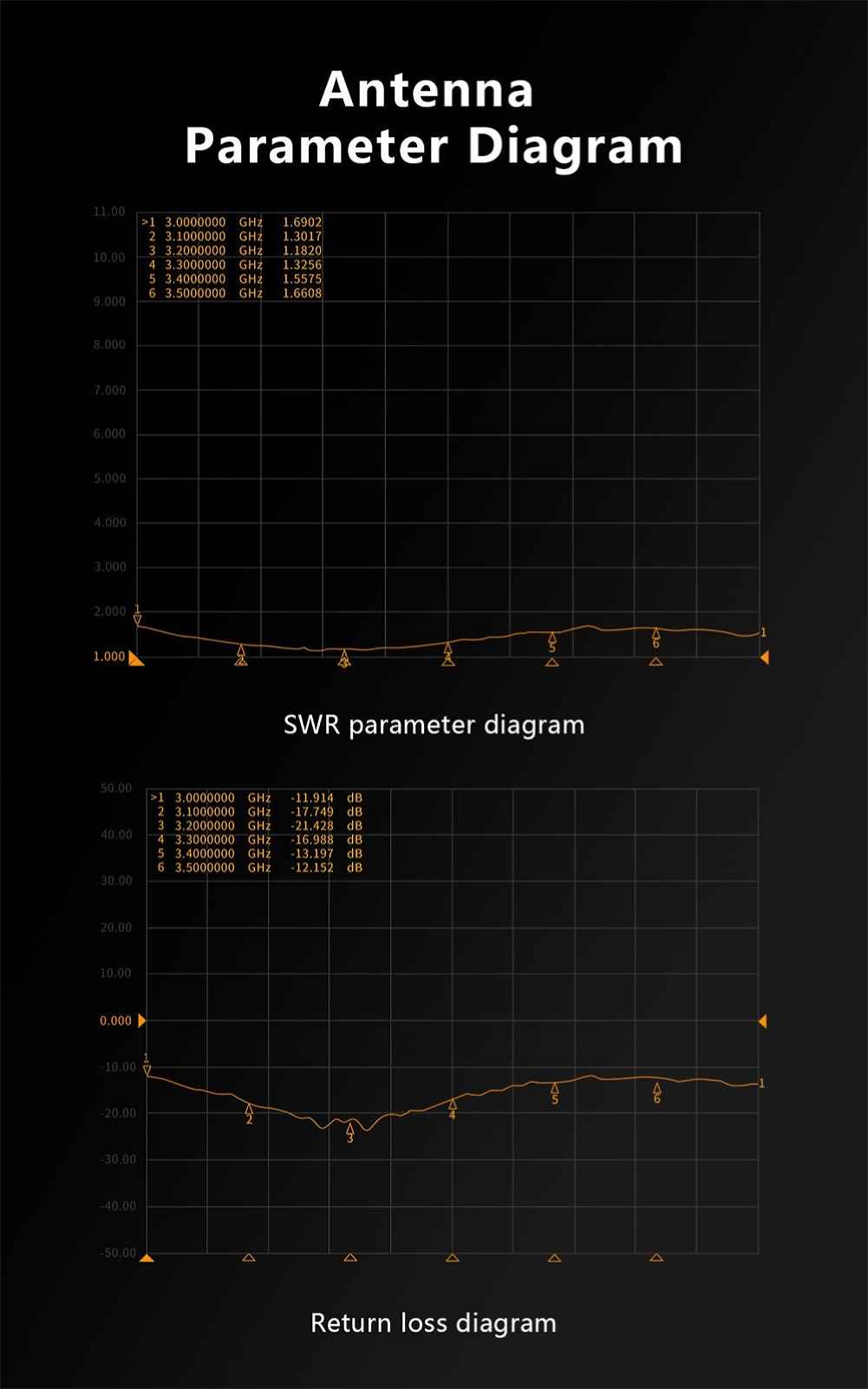

– Each antenna undergoes meticulous testing with a spectrum analyzer to ensure VSWR compliance with industry standards.

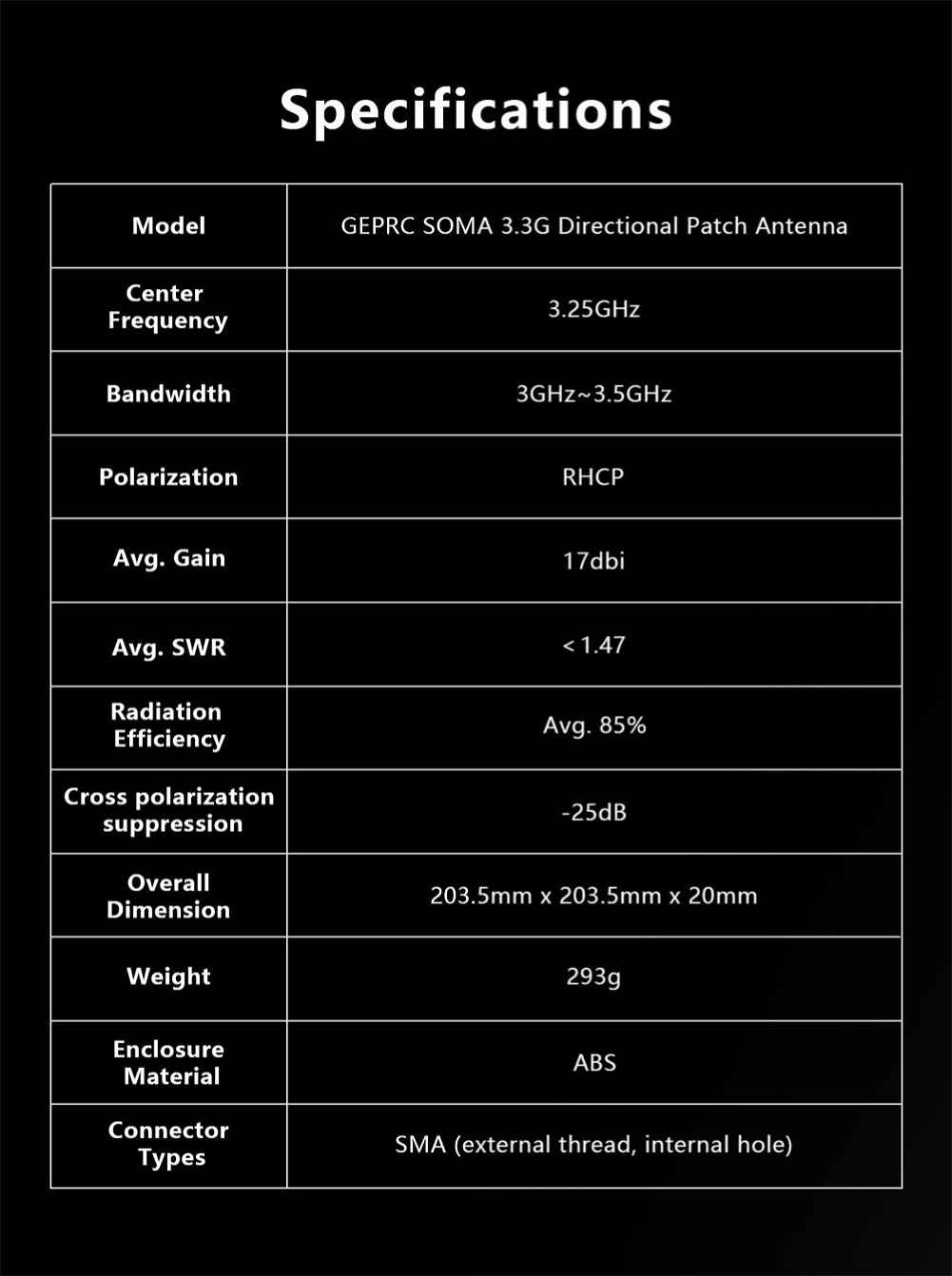

Specifications:

Brand:

GEPRC

Model:

SOMA 3.3G Directional Patch Antenna

Center Frequency:

3.3GHz

Bandwidth:

3.0GHz~3.5GHz

Polarization:

RHCP

Gain:

17dBi

Axial Ratio:

沌3

SWR券

沌1.47

Radiation Efficiency:

86%

Cross polarization suppression:

-25dB

Connector Type:

SMA (external thread, internal hole佩

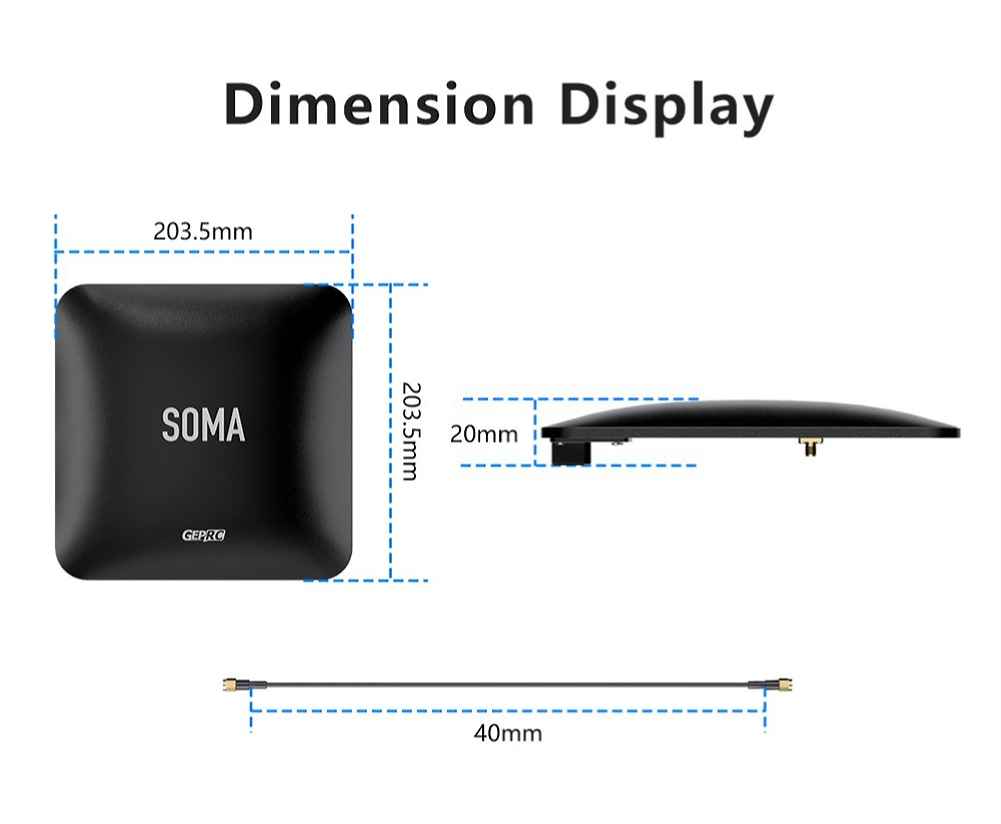

Overall Dimension:

203.5mm x 203.5mm x 20mm

Antenna Weight:

293g

Enclosure Material:

ABS

Package Included:
1 x SOMA 3.3G Directional Patch Antenna
