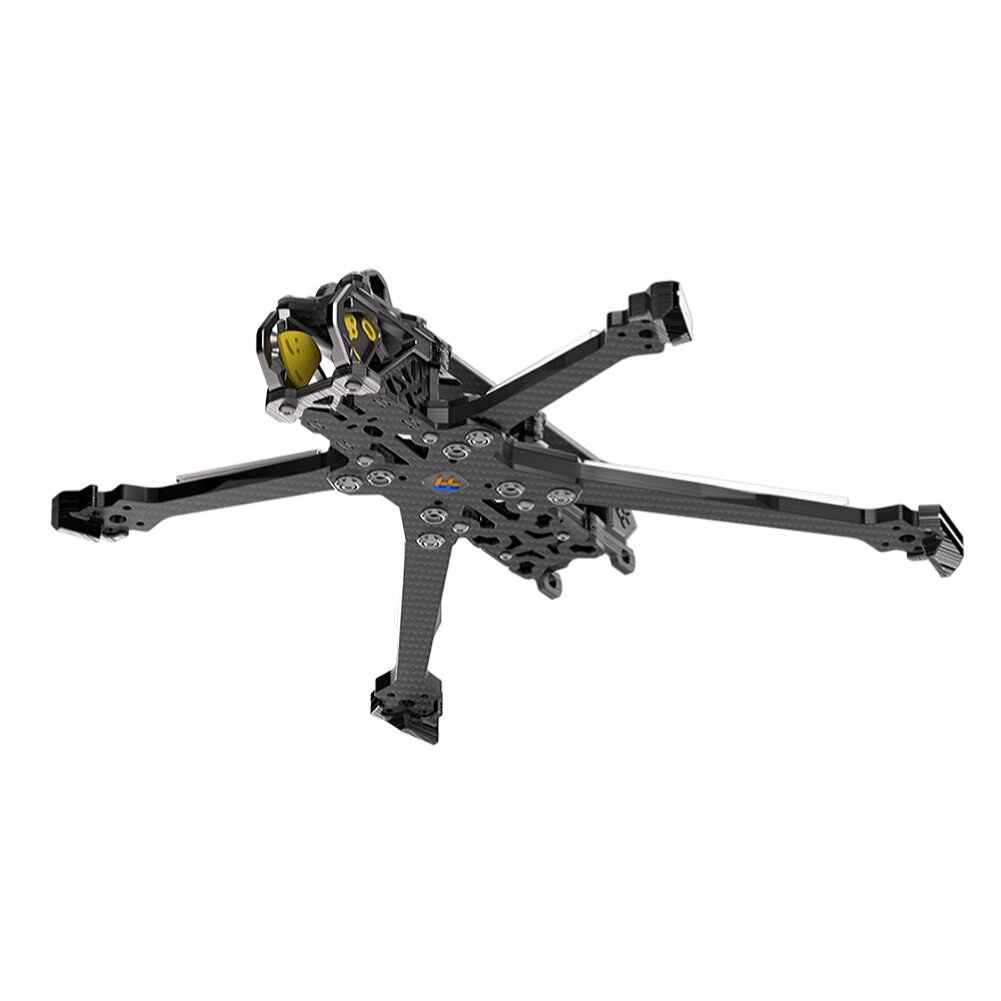

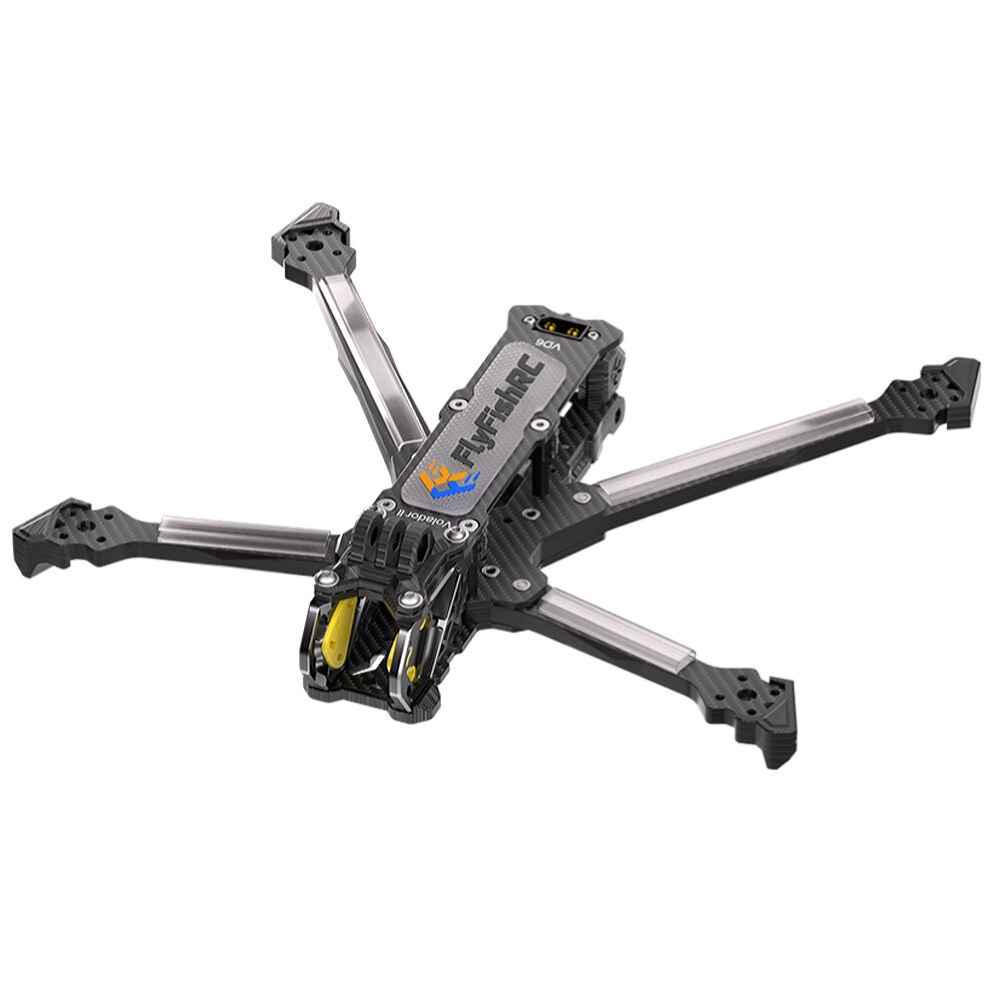

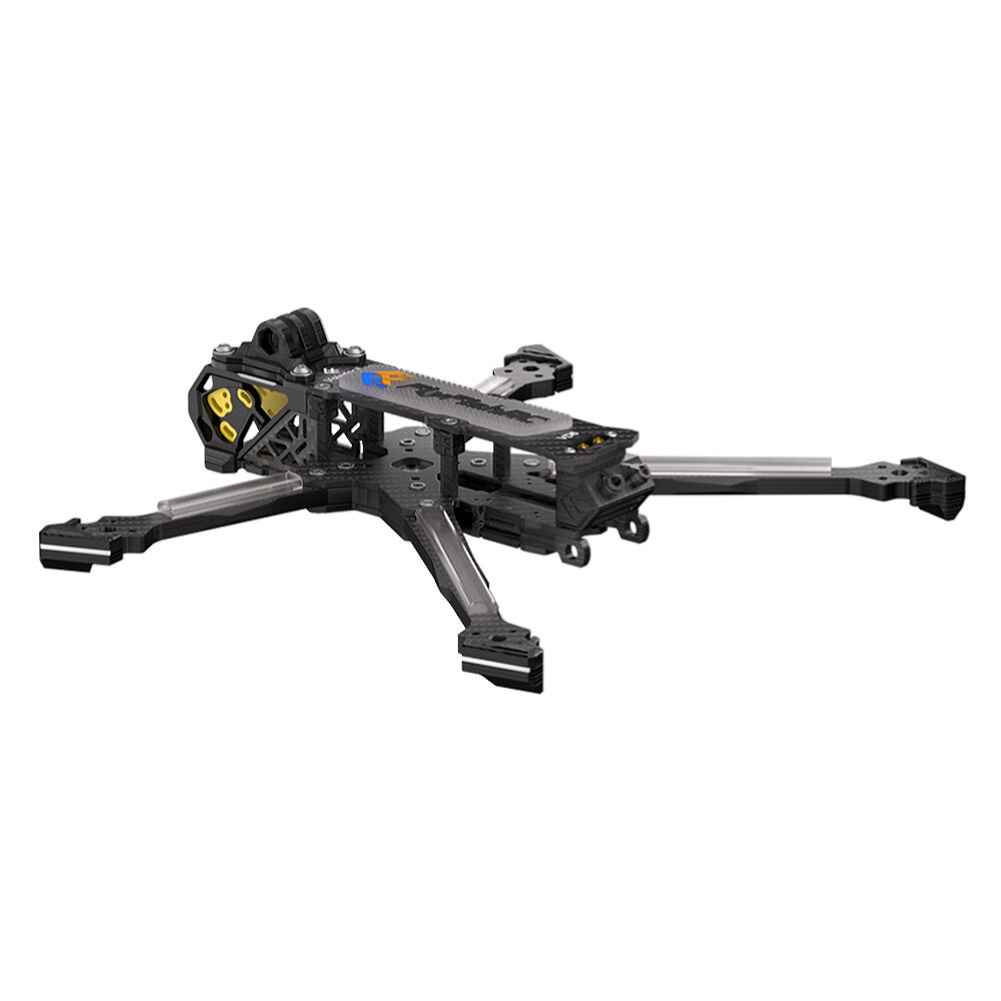

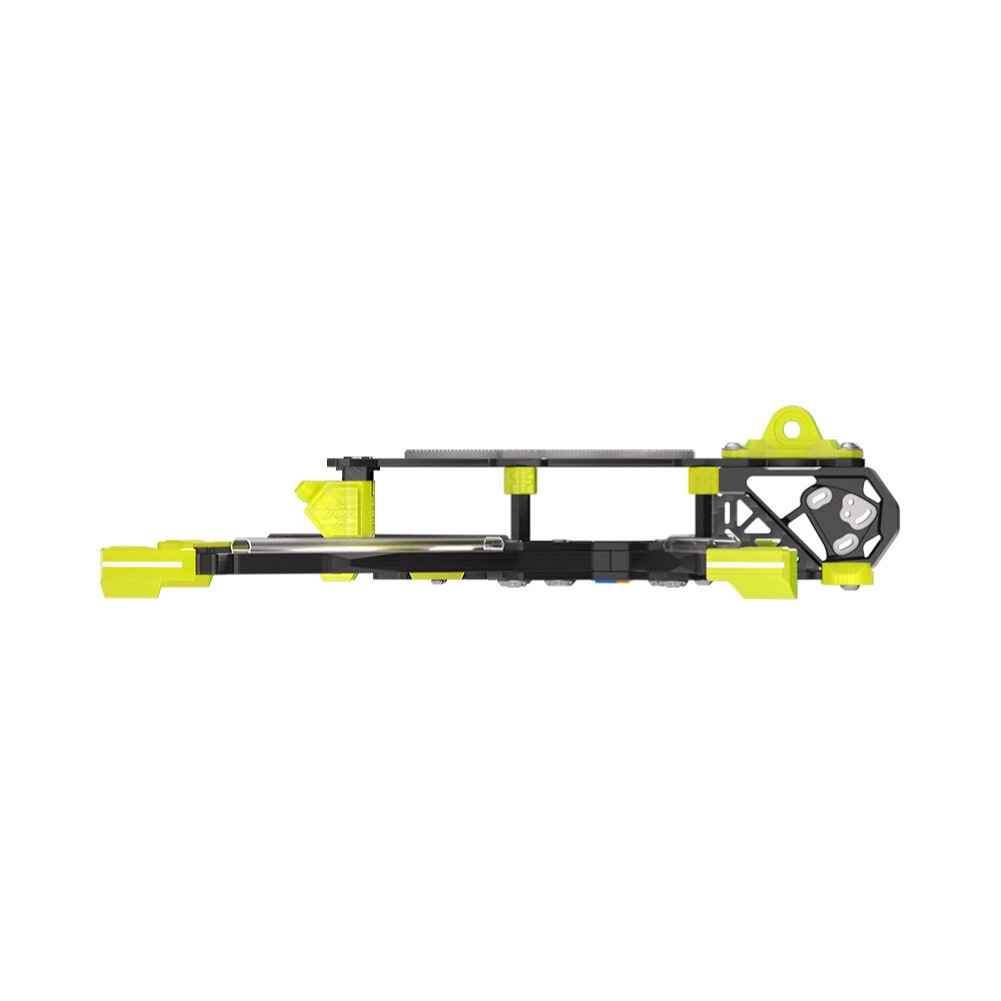

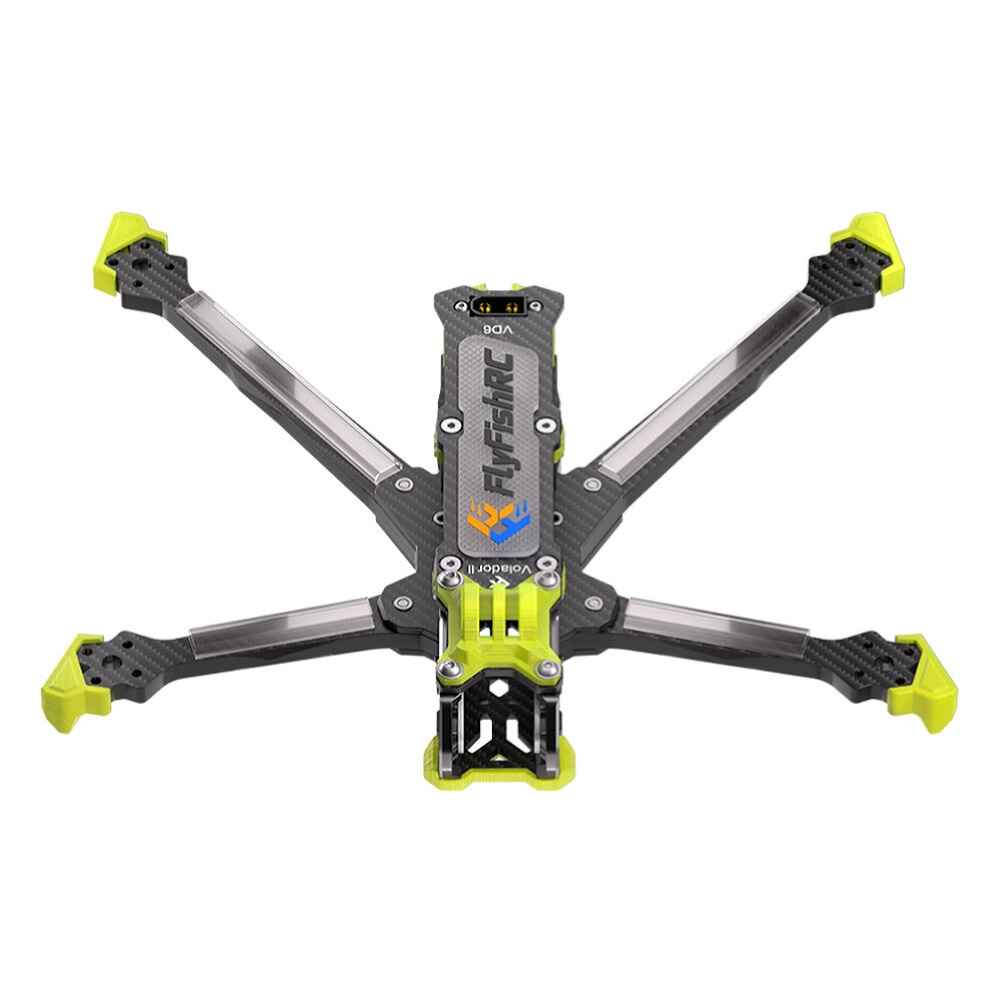

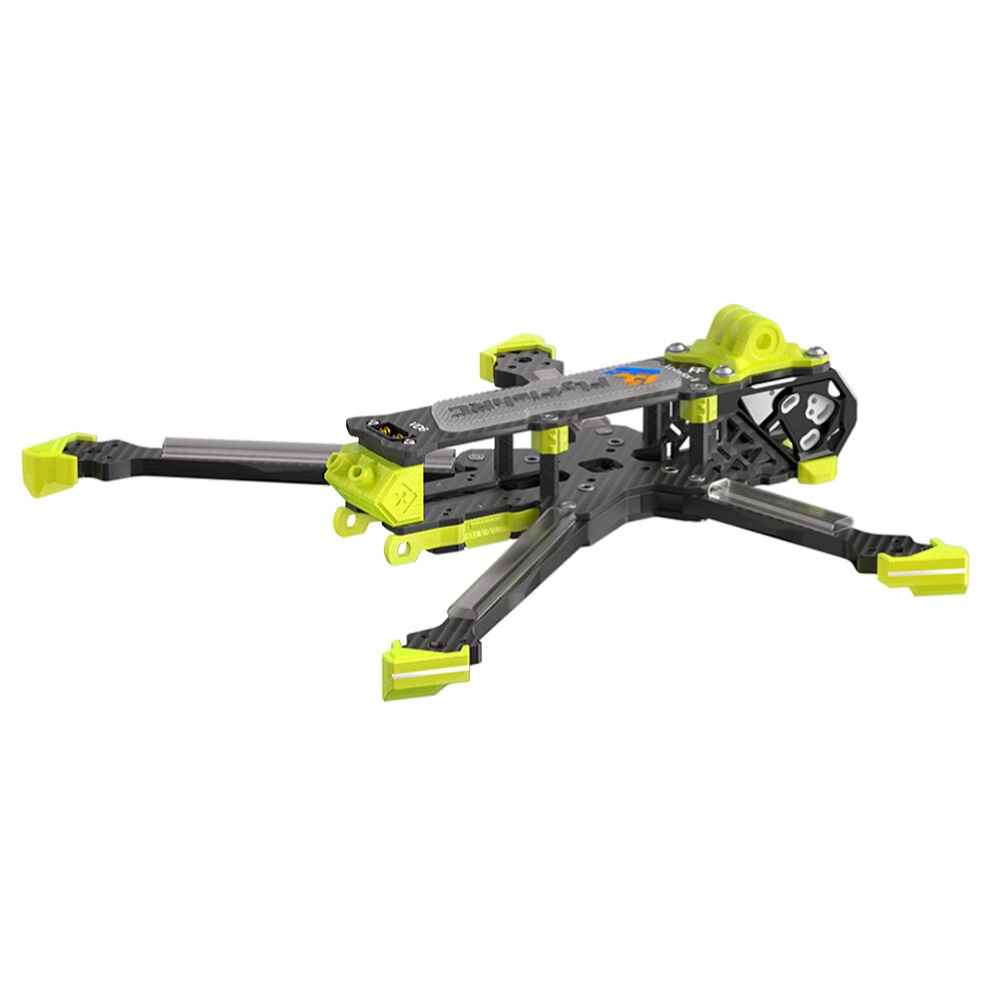

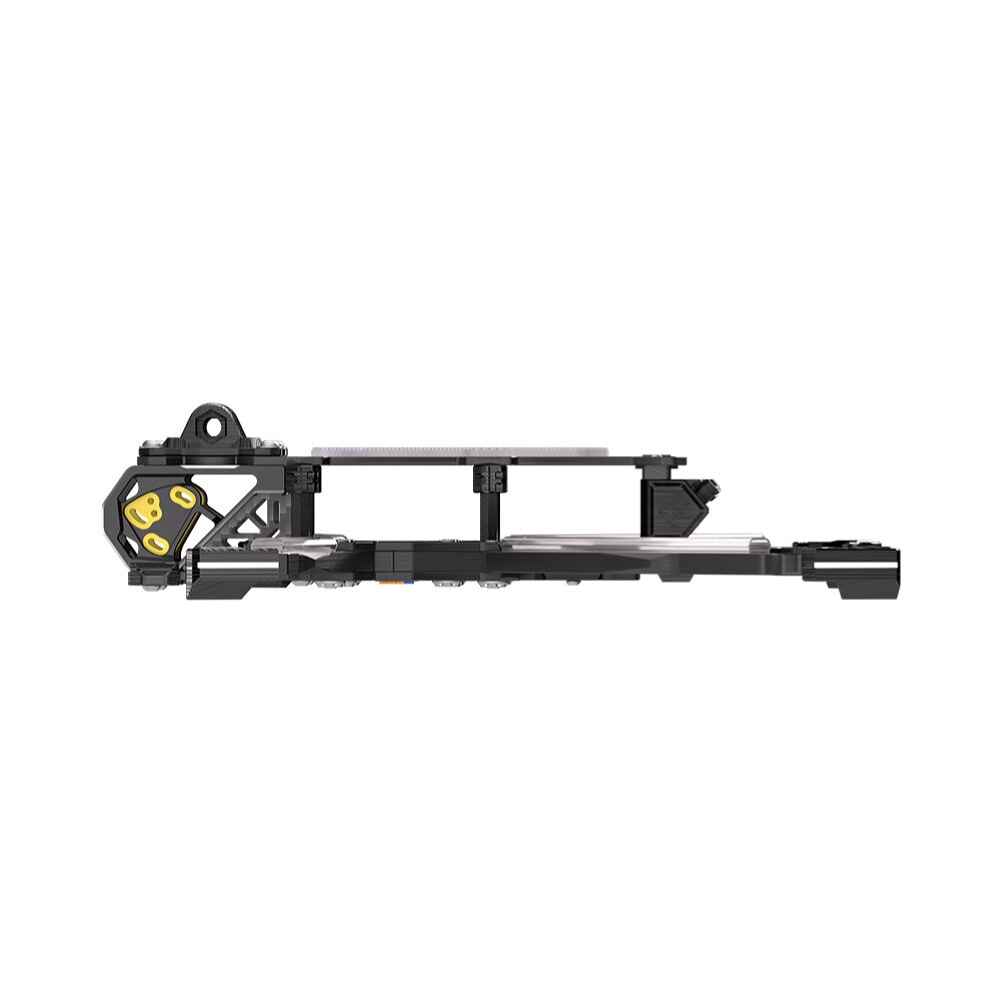

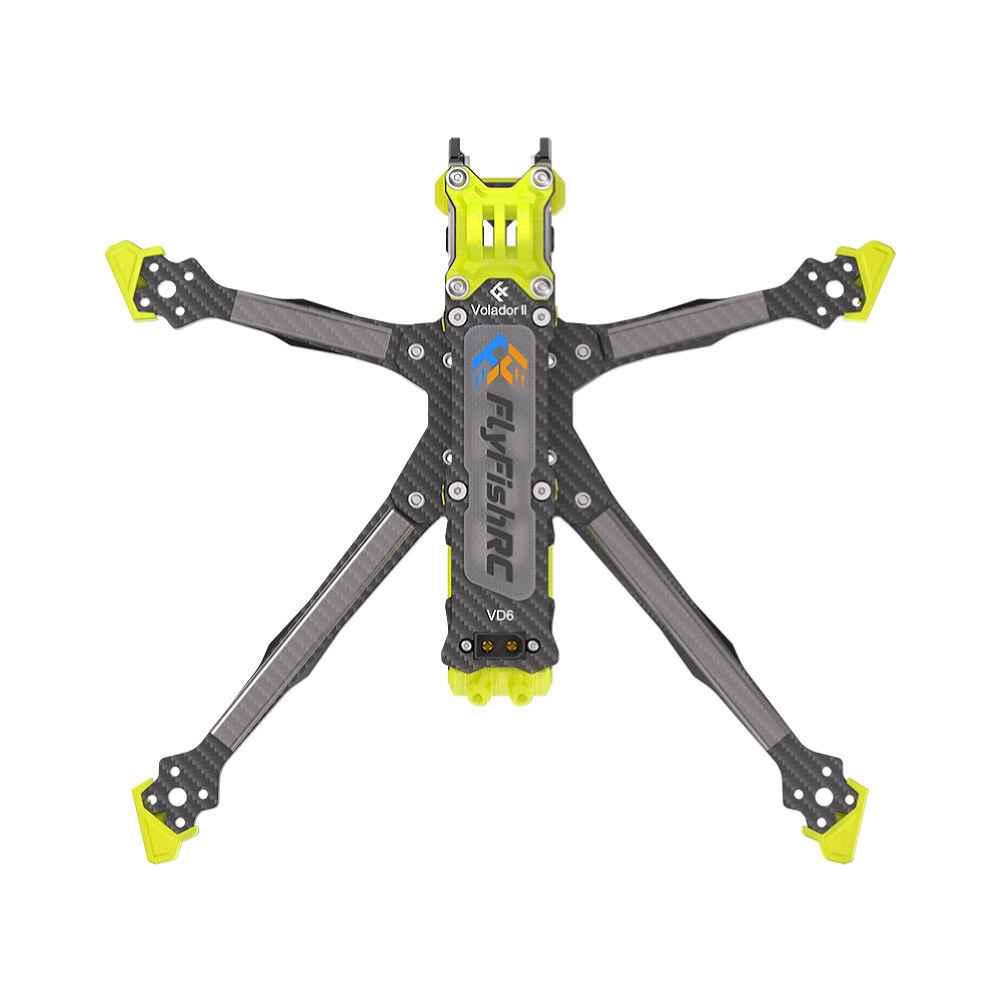

FlyfishRC Volador II VD6 V2 260mm T700 Carbon Fiber Frame Kit for DJI O4 Air Unit, 6 Inch Deadcat Style, DIY RC FPV Racing Drone

Description

FlyfishRC Volador II VD6 V2 260mm Wheelbase 6 Inch T700 Carbon Fiber Frame Kit Support DJI O4 Air Unit for DIY RC FPV Racing Drone

The FlyfishRC Volador II VD6 V2 is a 6-inch frame kit designed for DIY RC FPV racing drones, featuring a 260mm wheelbase and crafted from high-quality T700 carbon fiber. This frame supports DJI O4 Air Unit and offers a Deadcat style configuration to ensure props remain out of view. It boasts a tight-fitting structure with independently detachable arms to minimize frame resonance. The frame includes high-end CNC aluminum alloy parts, innovative anti-slip battery pads, and an integrated XT60 connector for enhanced reliability. Compatible with both 19mm and 20mm cameras, it comes equipped with all necessary accessories for analog and HD builds, ensuring a neat and organized assembly.

Description:We are pleased to announce the second version of our 6 Inch frame, Volador II. Thanks to the numerous suggestions and feedback (special shoutout to Ryan Harell and Kai Lin) from V1 users and testers, weㄙve made many optimizations in the V2 version to better suit the needs of pilots.The Volador II Frame maintains high compatibility and a simple construction design, equipped with the necessary accessories for easy, convenient, and organized assembly.The Volador II VX Frame comes in the Squashed X configuration for maximum control, while the Volador II VD Frame features the popular Deadcat style configuration with no props in view. It is compatible with a variety of analog and HD systems on the market, and the independently detachable arm and tight-fitting structure design minimize frame resonance. The high-quality TPU parts are cleverly designed for a more integrated and neat installation. We guarantee, that pilots with the Obsessive-Compulsive Disorder of any degree will be highly satisfied as Volador II is the only frame on the market that allows users to have the cleanest looking builds possible.We have also designed a silicone shock-absorbing camera plate insert specifically for the DJI O4 Air Unit camera installation, thatㄙll eliminate any possible jello in your DVR, while also being compatible with 19mm/20mm format cameras.
The frame is made of high-strength CNC aluminum alloy parts and highest quality T700 carbon fiber sheets, with a super smooth surface and uniform chamfered edges. Say no to damaged cables and battery straps. And, well, it just looks aesthetically more pleasing, doesnㄙt it
The redesigned battery pad with an added grid has now an even better anti-slip effect and is using a stronger adhesive. The XT60 connector integrated at the tail of the frame eliminates the probability of the power lead getting damaged by props in a crash, while allowing easy, single hand plugging of the battery.The frame comes with all the accessories needed for analog and HD builds, and is equipped with hardware with Loctite threadlocking agent for an additional reliability. The tight structure design fully minimizes resonance.Great efforts have been made on the TPU parts. They fit the frame perfectly, improve the overall durability of the frame, look very smooth and, oh my, the Tropical Mix Set is just out of this world! This is something we take a lot of pride in!
Features:
– High-end T700 carbon fiber.
– Tight structure design minimizes resonance.
– The new CNC aluminum camera plates effectively protect the camera.
– The silicone shock-absorbers for the O4 AU eliminate jello.
– Integrated XT60 connector for safety and reliability.
– High-quality TPU parts.
– Innovative anti-slip battery pads.
– New motor wire protection tubes.
– Compatible with both 19/20mm cameras.
– Equipped with all accessories needed for analog and HD builds.
– 12.9-grade strength hardware with Loctite threadlocker pre-applied.
– High electronics compatibility.
Specifications:
Brand: FlyfishRC
Model: Volador II
Item Name: 6 Inch DC-Type Frame Kit
Color: Yellow/Black(Optional)
Wheelbase:260mm
Geometry: Deadcat
Arm Thickness: 6mm
Top Plate Thickness: 2.5mm
Middle Plate Thickness: 2.5mm
Bottom Plate Thickness: 2.5mm
Keystone Thickness:5mm
Side Plate Thickness:2mm
CNC Side Plate Thickness:5mm
Propeller Size: 6~6.1 inch
Material: T700 carbon plate
FPV Cam Spacing: 19mm/20mm
Weight: 200g(with TPU parts)
Total Dimensions:259mm*109mm
Stack Mounting Holes: 20mm*20mm/30.5mm*30.5mm(M3)
VTX Mounting Holes: 20mm*20mm/25.5mm*25.5mm(M2)
Recommend Parts ( NOT Included):FC & ESC: 20x20mm SpeedyBee F405 Mini F4 Brushless Motor: Emax ECO II 2807 6S 1300KV 5S 1500KV 4S 1700KV Brushless MotorPropeller: Gemfan 6045 6.0×4.5 6 Inch 3-Blades Props PropellerVTX & Camera: DJI O4 Air Unit
Lipo Battery: CNHL Black Series V2.0 6S 22.2V 1300mAh 130C LiPo Battery

Package Included:
1 x Volador II VD6 Frame Kit
