Description

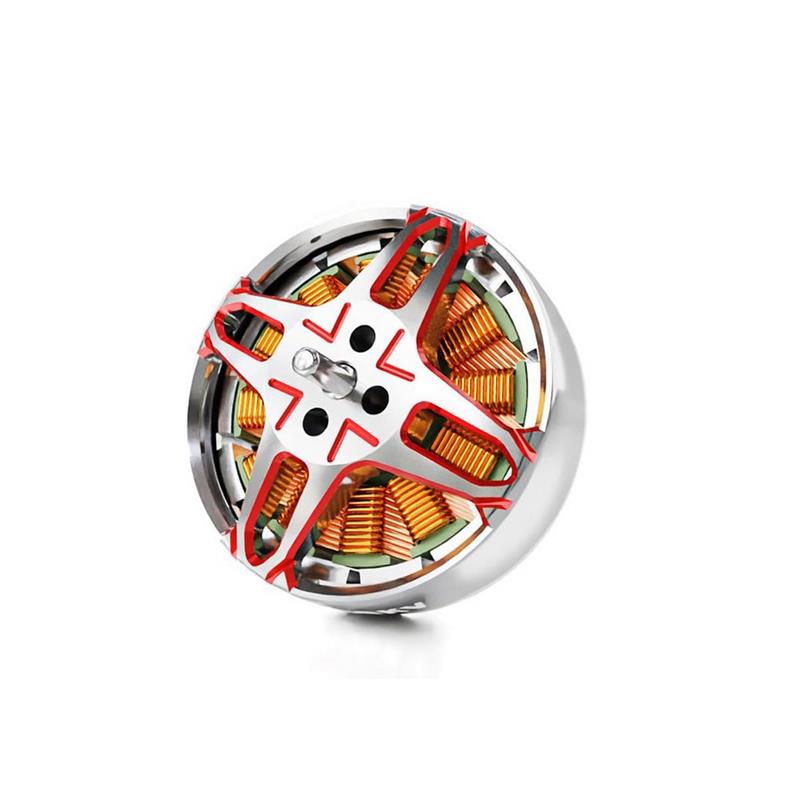

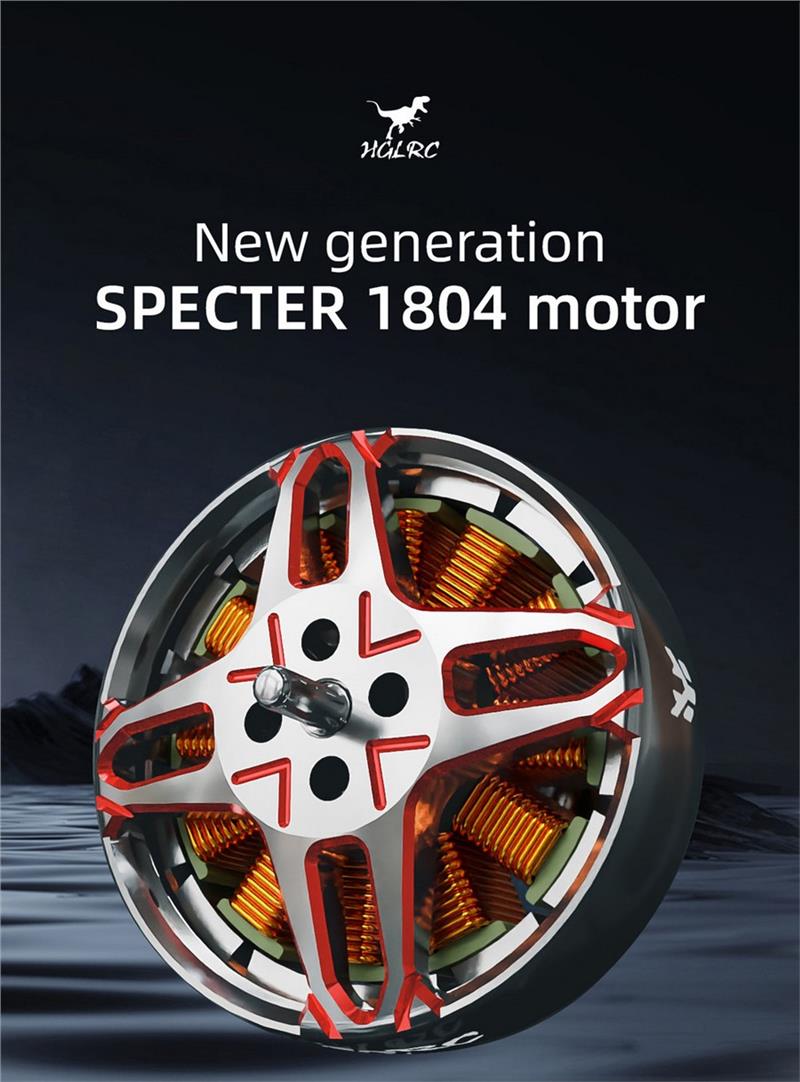

4PCS HGLRC Specter 1804 2450KV 4-6S Brushless Motor 1.5mm Shaft for RC Drone FPV Racing
Elevate your FPV racing drone performance with the HGLRC Specter 1804 2450KV Brushless Motor. Crafted with a new rotor design and anodized in a two-color process, it boasts a high-strength one-piece rotor made from 7075 aviation aluminum. The motor features customized N52H curved magnetic steel for strong magnetism and large torque. It utilizes super high temperature-resistant copper wire winding for stable operation. The imported Kavasaki silicon steel sheets reduce heat generation and enhance efficiency. Optimized for precise and quick response, it maintains high torque at low speeds with linear power output. The titanium alloy shaft reduces drone weight, making it ideal for 3-3.5 inch freestyle and racing drones.
Featuresㄩ
1.Brand new rotor appearance design, anodized two-color process
2.7075 aviation aluminum material, high-strength one-piece rotor

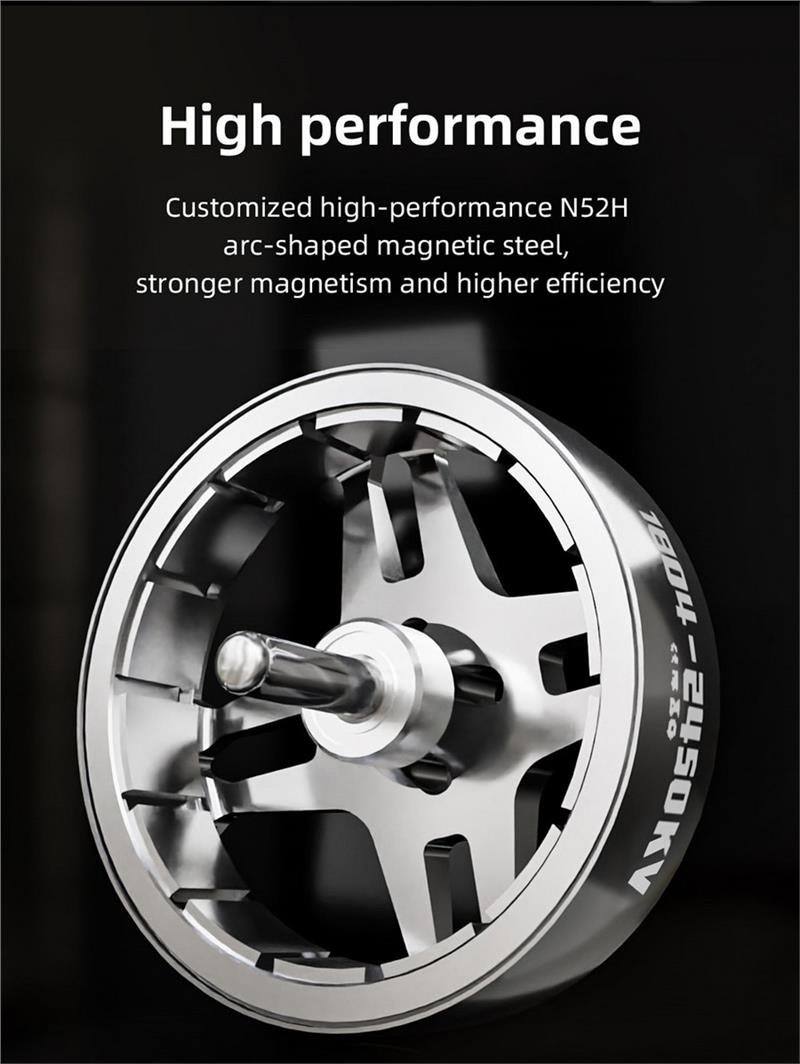

3.Customized N52H curved magnetic steel, strong magnetism, large torque
4.Super high temperature resistant 260～ copper wire winding, the motor runs more stably
5.Imported Kavasaki silicon steel sheets, low loss stator, reduce heat generation and improve efficiency
6.New optimized adjustment and calibration, maintain high torque at low speed, linear power output when the throttle changes rapidly, precise and quick response when turning
7.Titanium alloy shaft, high strength and reduce the weight of the drone
8.Applicable to 3-3.5inch freestyle drones and 3-3.5inch racing drones
Specificationㄩ
Motor model: 1804
KV value: 2450KV
Magnetic pole: 12N14P
Magnetic steel: N52H
Stator: Kavasaki 1200
Rotor: 7075
Bearing: ISC
Winding: 260～ high temperature resistant copper wire
Output shaft: M1.5×3.8mm
Max current: 18A
Max power: 432W
Suitable propeller: 3-3.5 inch
voltage: 4-6S
Outlet specification: 26AWG-150mm

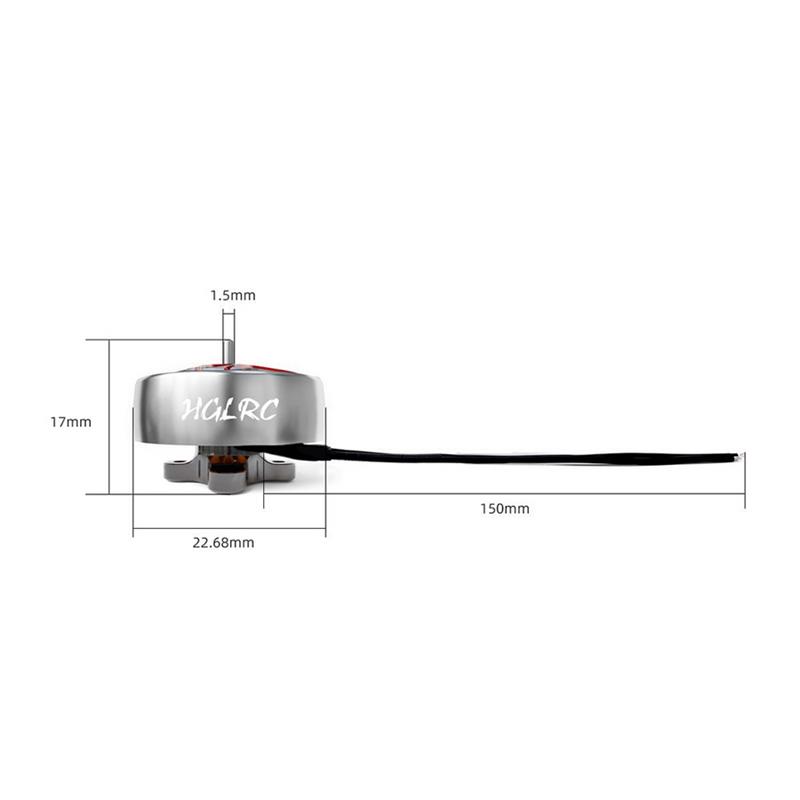

Motor size: 朴22.68×13.2mm
Mounting hole: 12×12ㄗM2ㄘ
Weight: 13.3g (including wire)
Product Listㄩ
4x 1804-2450KV motor
4x M2x6mm round head screw
8x M2x7mm round head screw
Package Included:
4 x 1804-2450KV motor
4 x M2x6mm round head screw
8 x M2x7mm round head screw
