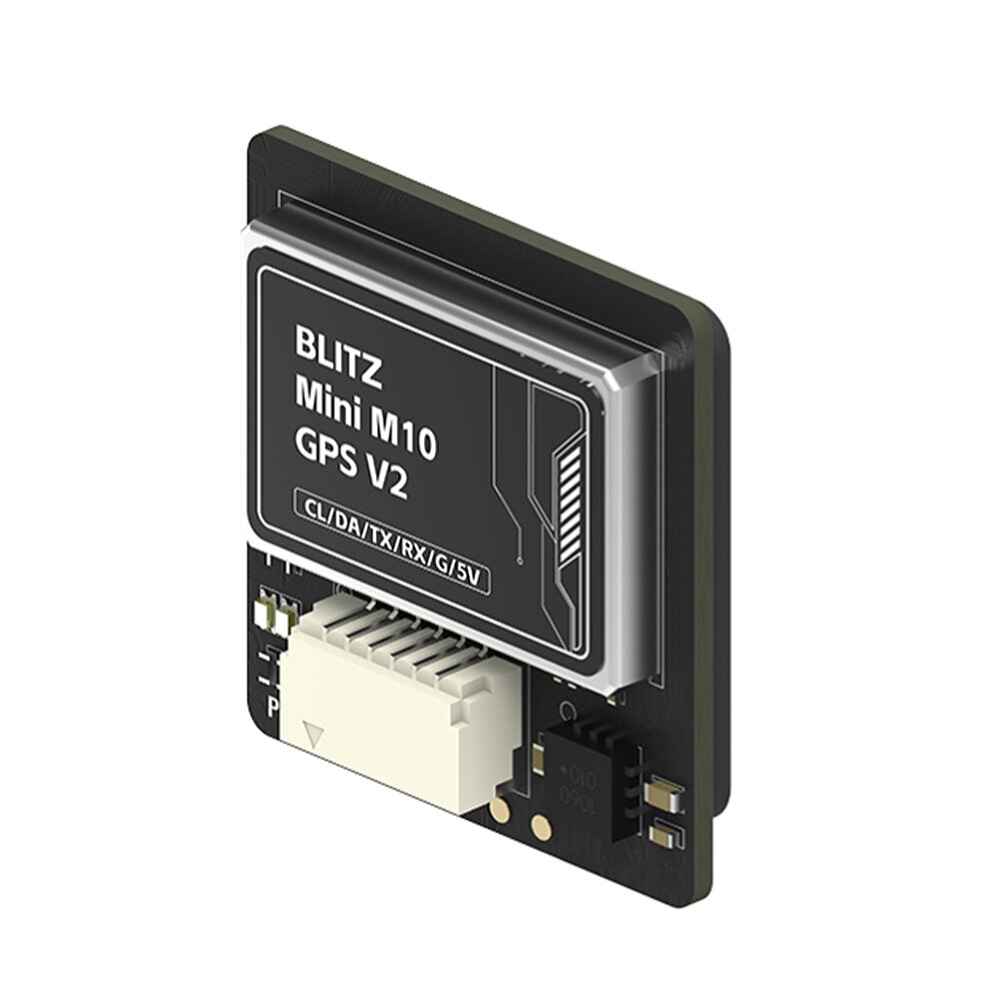

iFlight BLITZ Mini M10 GPS V2 Module with QMC5883L Compass, 18.2x18.2mm Antenna for RC Airplane FPV Racing Drone

Sale!

iFlight BLITZ Mini M10 GPS V2 Module with QMC5883L Compass, 18.2×18.2mm Antenna for RC Airplane FPV Racing Drone

Original price was: 75.98$.Current price is: 60.02$.

Advanced UBLOX M10 chip for improved GPS performance
Integrated QMC5883L compass module

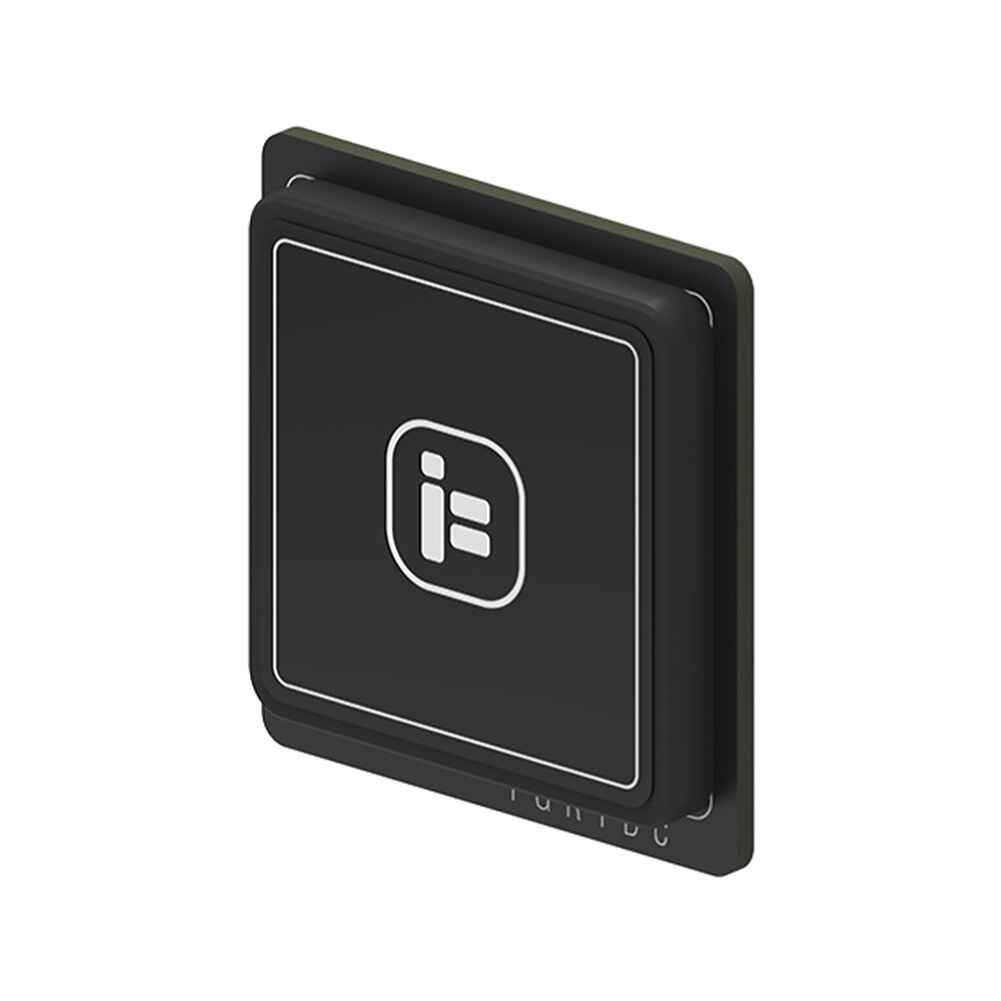

Lightweight 18.2×18.2mm GPS ceramic antenna
Built-in farad capacitor for faster hot starts
10 Hz refresh rate for precise navigation

SKU: RC2006347 Category: Multi Rotor Parts Tags: BLITZ Mini M10 GPS, drone GPS module, GPS for FPV racing, high-speed GPS navigation, iFlight GPS module, lightweight GPS antenna, QMC5883L compass module, RC airplane GPS Brand: iFlight

Description

20218mm iFlight BLITZ Mini M10 GPS V2 Module QMC5883L Compass 18.2×18.2mm GPS Ceramic Antenna for RC Airplane FPV Racing Drone Quadcopter

Experience enhanced GPS performance with the upgraded iFlight BLITZ Mini M10 GPS V2 Module. Designed for RC airplanes and FPV racing drones, this module ensures faster and more stable satellite acquisition. It features the advanced UBLOX M10 chip and an integrated QMC5883L compass module. The 18.2×18.2mm GPS ceramic antenna is lightweight and energy-efficient, providing a strong signal. With a built-in farad capacitor for quick hot starts, onboard LNA, RF filter, and TCXO, this module offers a 10 Hz refresh rate for precise navigation. Enjoy reliable GPS functionality with low power consumption, making it perfect for high-speed and high-altitude applications.

Description:
The newly upgraded BLITZ Mini M10 GPS V2 has arrived, offering faster and more stable satelite search. This advancement in technology provides users with a more reliable and efficient GPS experience.
Features:
-UBLOX M10 chip
-Compass module QMC5883L integrated
-Built-in farad capacitor for faster hot start
-18.2×18.2mm GPS ceramic antenna, low power consumption, strong signal, lightweight.
-Onboard LNA (Low Noise Amplifier), RF filter, and TCXO (temperature-compensated crystal oscillator)
-10 Hz Refresh rate
-Built-in Flash
Specifications:
Brand: iFlight
Model: BLITZ Mini M10
Item Name: GPS Module
Compass module: QMC5883L
Baud Rate: 9600bps-460800bps (Default – 115200bps)
Sensitivity: Tracking: -167dBm
Cold start: 27s
Hot start: 1s
Maximum height: 80000m
Maximum speed: 500 m/s
Speed accuracy: 0.05 m/s
Maximum acceleration: 蜼 4G
Refresh Rate: 10 Hz
GPS patch antenna size: 18.2 x 18.2 x 4 mm
Total dimensions: 20 x 21 x 8 mm
Weight: 8 g
Input Voltage: 3.3-5.5 V
GPS pin definition: RX/TX UART
Compass pin definition: SDA/SLA
GNSS: GPS+SBAS+Galileo+QZSS+Glonass
Packing List:
1 x BLITZ Mini M10 GPS V2
1 x Cable set
