JHEMCU GHF722AIO HD F7 Flight Controller with 40A 4in1 ESC, 5V BEC, DJI O3 Support for RC FPV Racing Drone

Sale!

JHEMCU GHF722AIO HD F7 Flight Controller with 40A 4in1 ESC, 5V BEC, DJI O3 Support for RC FPV Racing Drone

Original price was: 127.32$.Current price is: 102.49$.

Equipped with STM32F722RE chipset for fast processing
ICM-42688-P gyroscope ensures flight stability
Supports 2-6S input voltage for battery flexibility
Multiple USART ports for enhanced connectivity
Pre-flashed with betaflight firmware for ready-to-fly setup

SKU: RC2000781 Category: Multi Rotor Parts Tags: 2-6S input voltage, 40A 4in1 ESC, Betaflight Firmware, DJI O3 support, FPV racing drone controller, ICM-42688-P gyroscope, JHEMCU flight controller, STM32F722RE chipset Brand: JHEMCU

Description

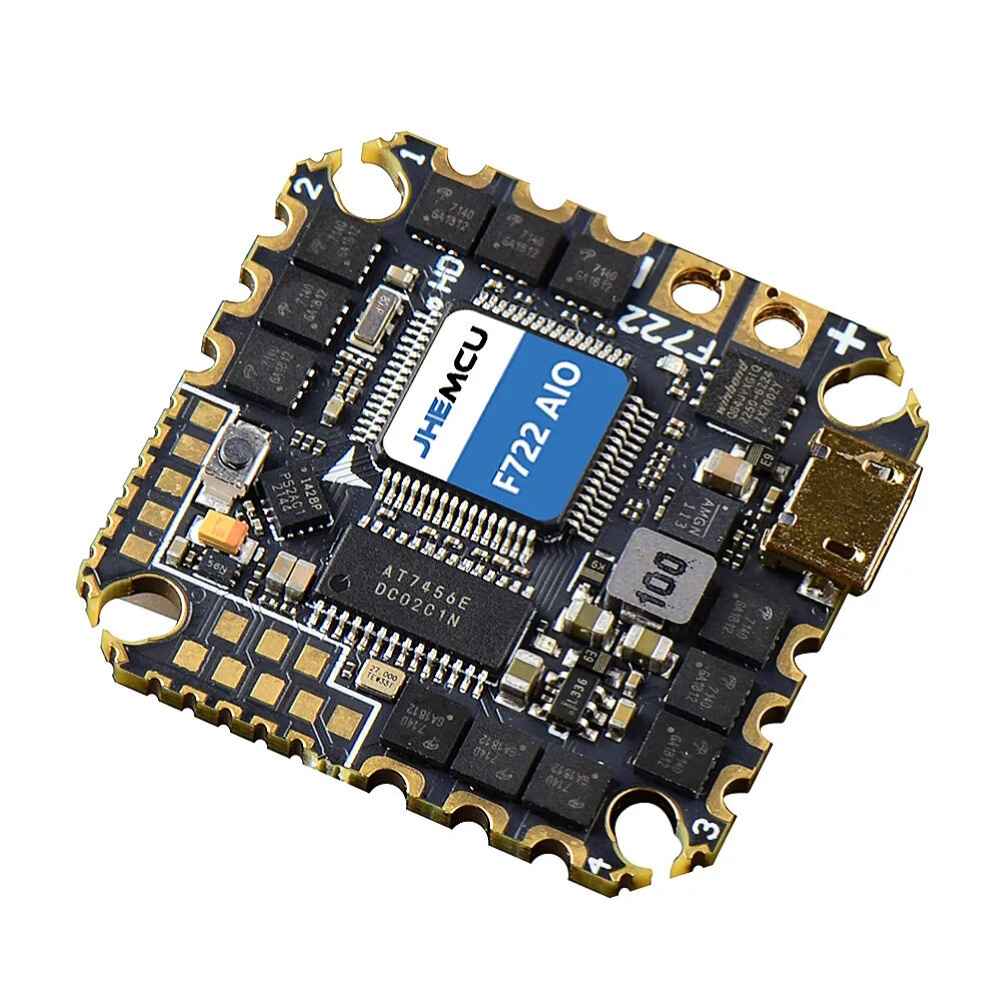

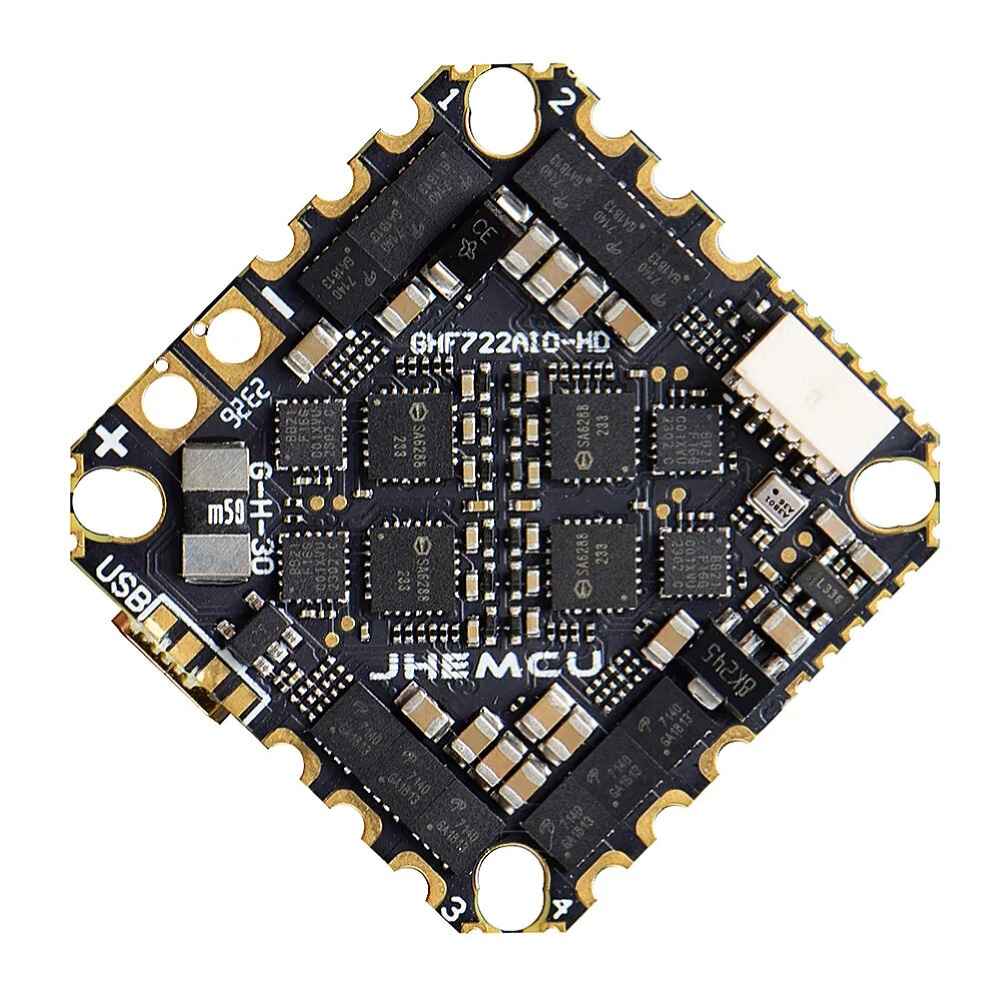

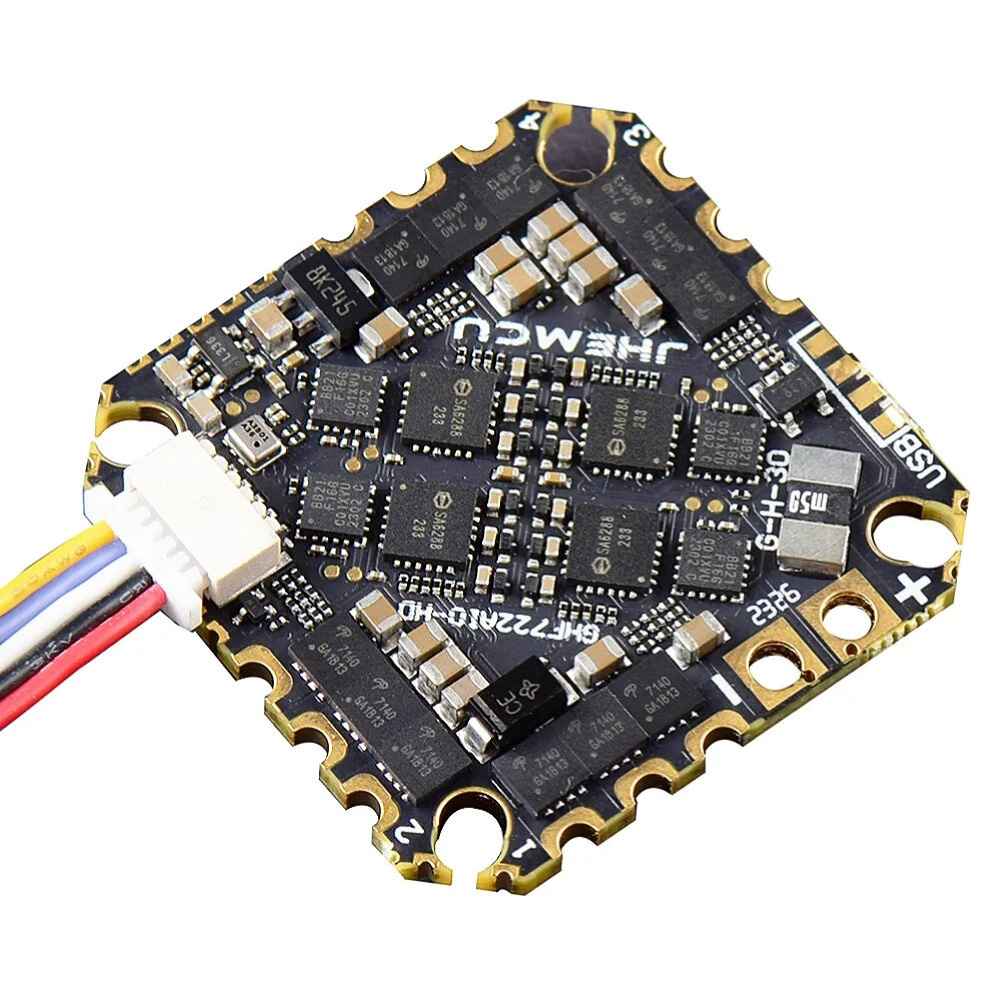

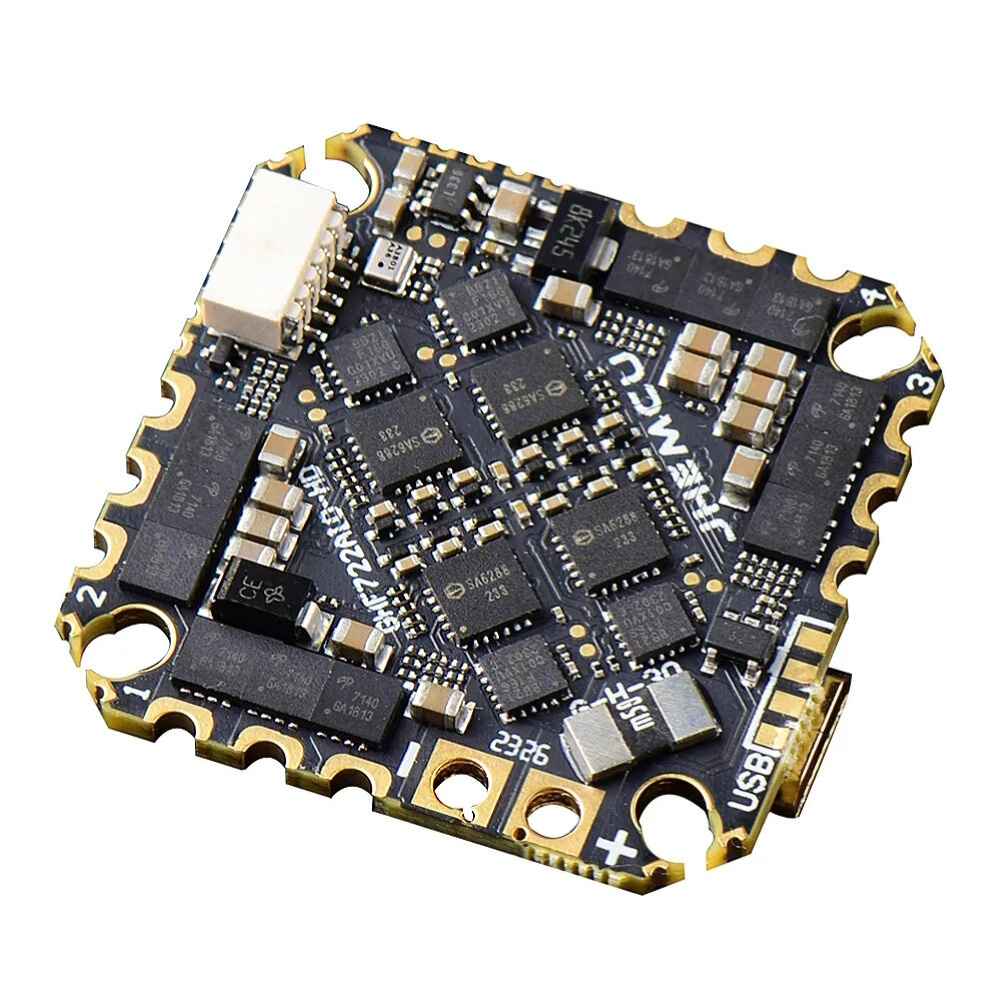

25.5×25.5mm JHEMCU GHF722AIO HD F7 OSD BlackBox Flight Controller with 5V BEC 40A BL_S 4in1 ESC 2-6S Support DJI O3 HD Digital System for RC FPV Racing Drone

The JHEMCU GHF722AIO HD F7 Flight Controller is designed for RC FPV racing drones, offering high-performance computing with its STM32F722RE chipset. It features an ICM-42688-P gyroscope for enhanced flight stability and supports a versatile input voltage range of 2-6S. This controller is equipped with multiple USART ports (UART1-6) for diverse connectivity options, and it comes pre-flashed with betaflight_4.4.2_jhef7Dual.hex firmware for optimal settings. The integrated 40A 4in1 ESC supports the DSHOT600 protocol, ensuring a seamless flying experience. With a compact design and a weight of just 7.6g, it’s ideal for competitive racing drones.

Specifications:
Brand: JHEMCU
Model: GHF722AIO-HD 40A
Main control: STM32F722RE (216MHz)
Gyroscope: ICM-42688-P
Blood pressure meter: Yes
OSD chip: AT7456E
Black box: 8MB
LED programming: support
BB ring: support
Input voltage: 2-6s
I2C interface: support
BEC: 5V/2.5A
Camera input: Support
USART: UART1, UART2, UART3, UART4, UART5, UART6
Flying control firmware: betaflight_4.4.2_jhef7Dual.hex
Electric current: 40A * 4
Current meter: Yes
Firmware: BlueJay G-H-30.HEX (48K)
Whether to support BLHELI S: Support
Flying control default electrical driver protocol: DSHOT600
Installed hole distance: 25.5-26.5mm*3mm
Maximum shape size: 33*33mm
Weight: 7.6G
Features:
Advanced STM32F722RE chipset ensures rapid processing and high-performance computing for a seamless flying experience.
Integrated ICM-42688-P gyroscope provides enhanced stability and precision in flights.
Versatile input voltage of 2-6S caters to a wide range of battery choices.
Multiple USART ports (UART1-6) offer increased connectivity options for peripherals and telemetry.
Comes with pre-flashed firmware, ensuring a ready-to-fly state with optimal settings and the reliable DSHOT600 protocol.

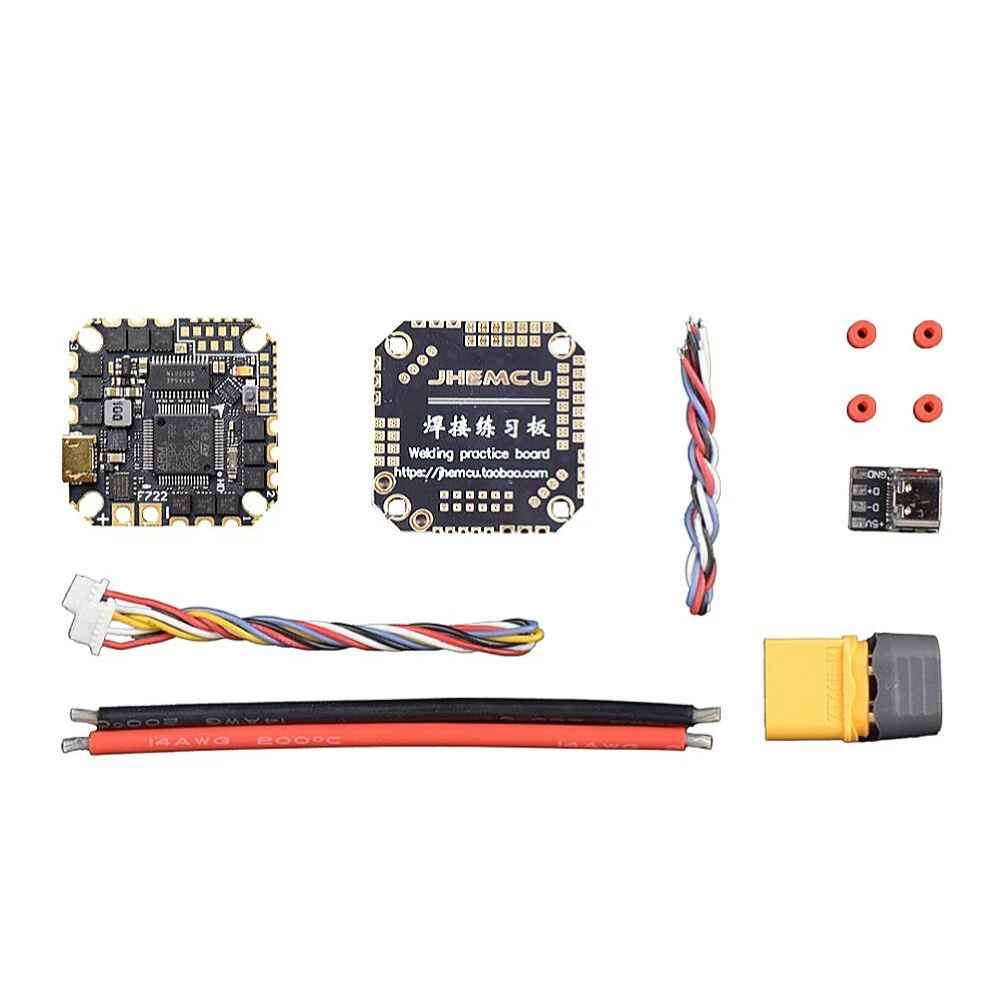

Package Included:
1x Ghf722aio-HD
1x Welding Practice Board
2x 14AWG Cable (Red+Black)
1x XT60 Connector Plug
4x Anti-vibration Ball
1x TYPE-C Conver Adapter Board
1x Connection Cable for DJI O3
1x Connection Cable
