Description

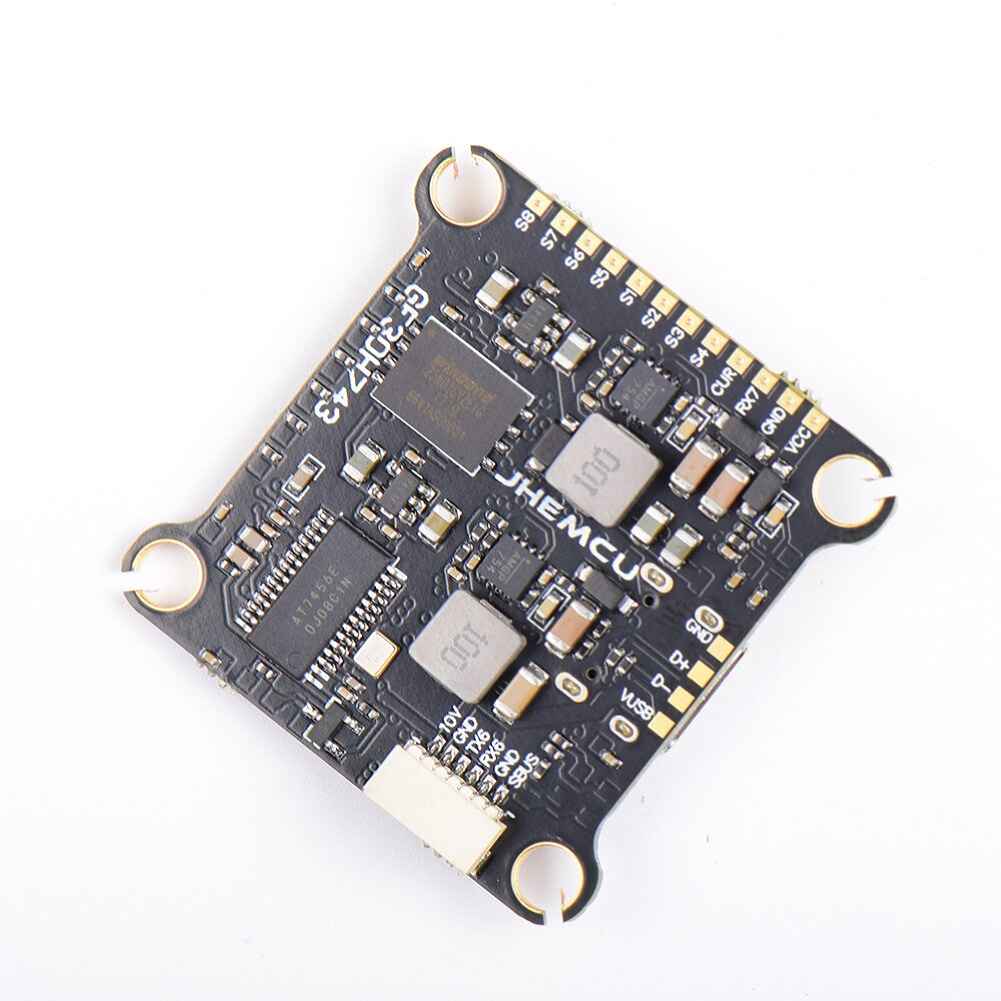

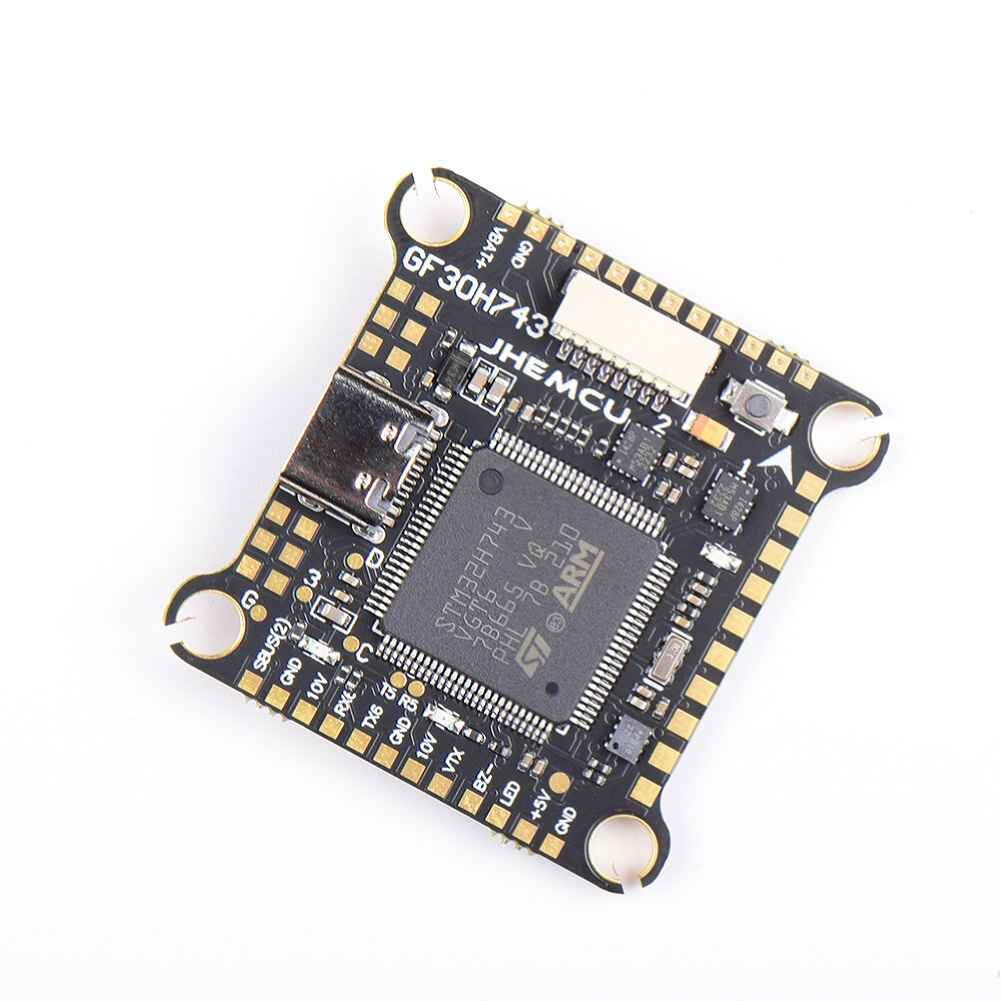

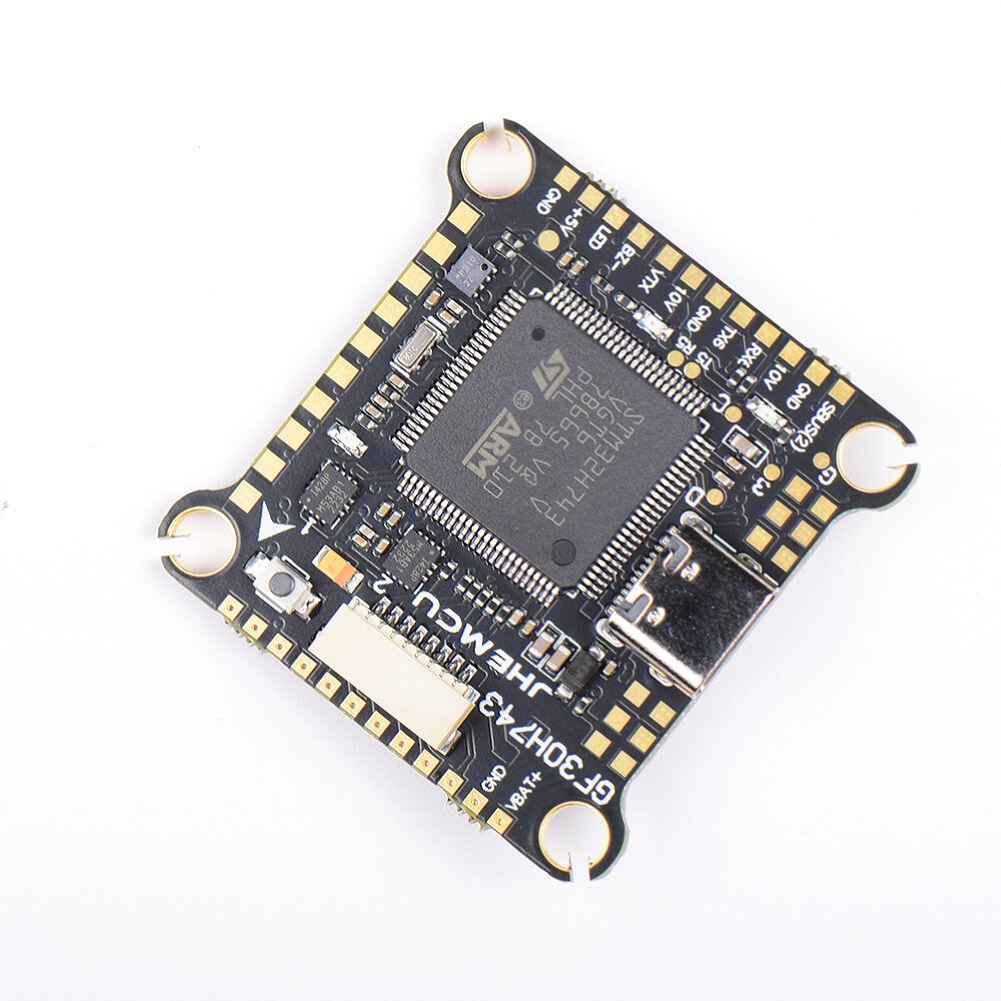

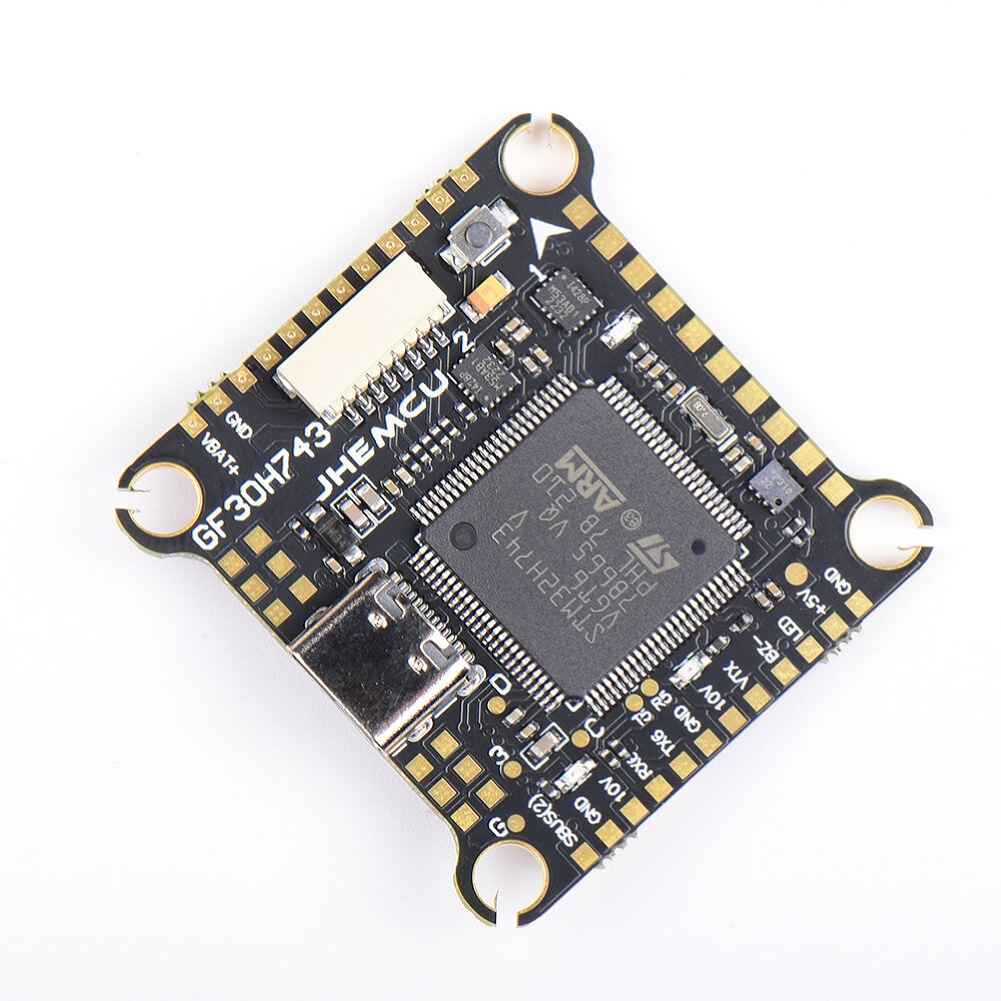

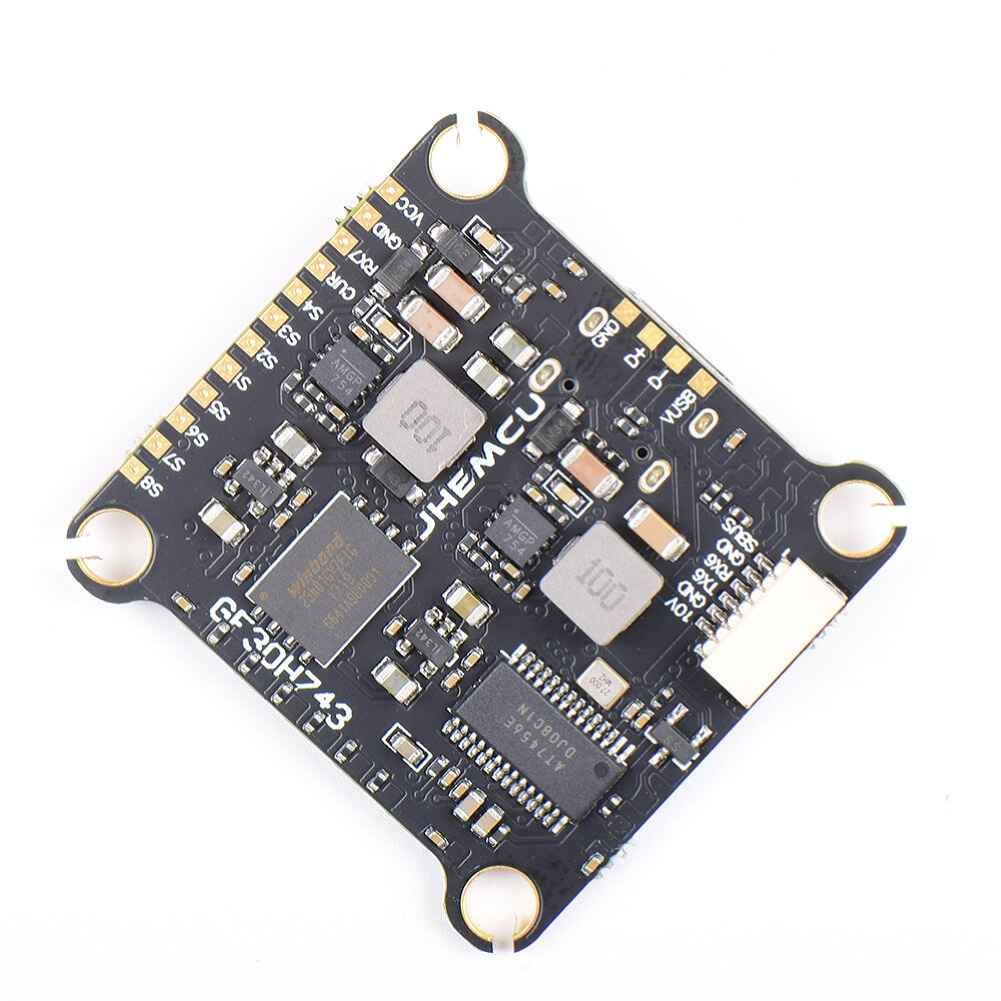

30.5×30.5mm JHEMCU GF30H743 H743 480MHZ Flight Controller DUAL Barometer OSD BlackBox 5V 10V BEC 3-6S Support DJI O3 for RC Drone
The JHEMCU GF30H743 Flight Controller is designed for RC drone enthusiasts seeking high performance and reliability. Powered by the STM32H743 main control running at 480MHz, this controller features a dual barometer system and an ICM-42688-P gyroscope for precise flight management. It supports a wide input voltage range of 3-6S, with 5V/2.5A and 10V/2.0A BEC outputs. Equipped with an AT7456E OSD chip and 128MB BlackBox for detailed flight data recording, it offers extensive connectivity options, including multiple UART ports and support for various receiver protocols. The controller is compatible with DJI O3, has a built-in compass, GPS, and supports Dshot ESC signals. Installation is straightforward with a 30.5×30.5mm hole pattern.
Specifications:
Brand: JHEMCU
Model: GF30H743
Main control: STM32H743(480MHZ)
Gyroscope: ICM-42688-P *2
Barometer: DPS310
OSD chip: AT7456E
Black box: 128MB
LED programming: support
BB ring: support
Input voltage: 3-6S
I2C interface: support
BEC:5V/2.5A
BEC: 10V/2.0A
Camera input: Support
USART: UART1,UART2,UART3,UART4, UART5,UART6,UART7
Receiver: ELRS(CRSF), TBS(CRSF),SBUS,IBUS,DSM2,DSMX
GPS: YES
Compass: YES
HD O3: YES
ESC signal: Dshot150, Dshot300, Dshot600
USB: TYPE-C
Current port: YES
Voltage sensor: YES
DFU button: YES
Flight control firmware: betaflight_4.4.3_JHEH743HD.HEX
Installation hole distance: 30.5*30.5MM*4MM
Maximum overall size: 36*36MM
Weight: 7.9g

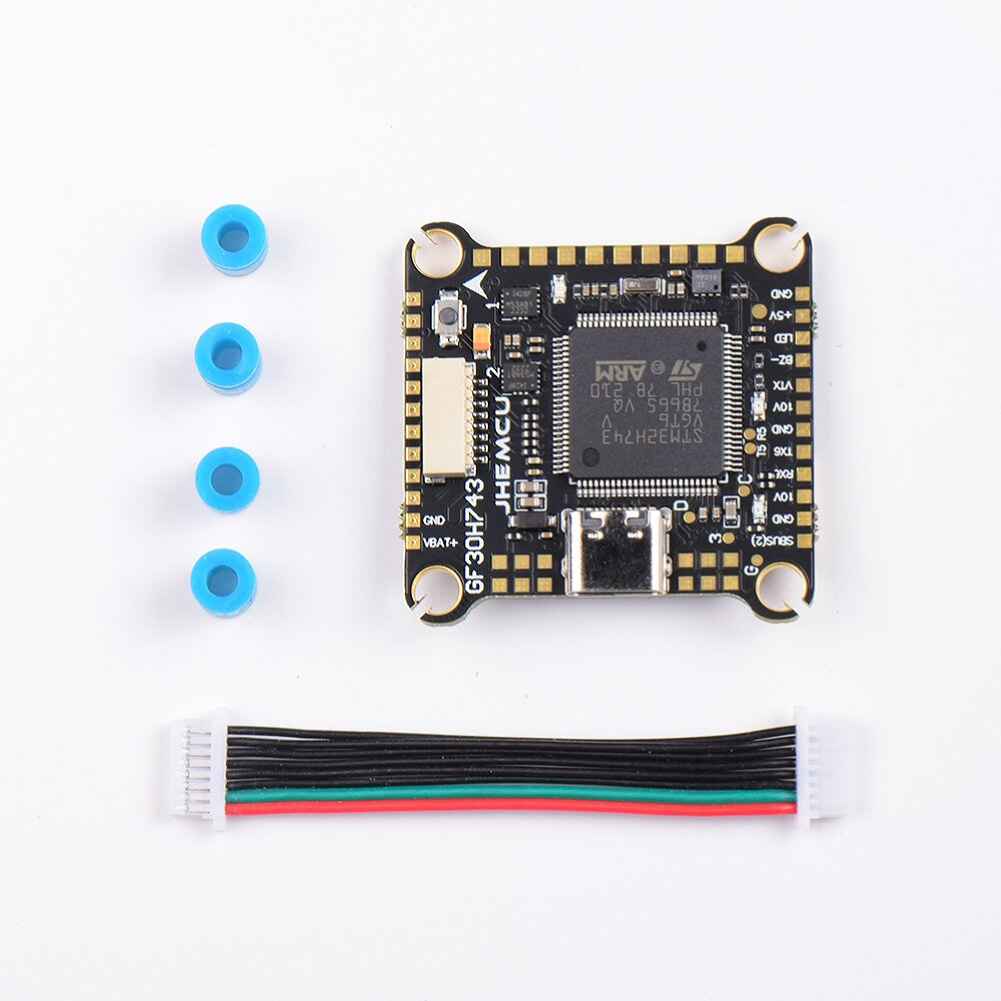

Package Included:
1x GF30H743 Flight Controller
1x SH 8P 1.0MM Plug wire
4x M6 8MM Shock absorbing ball
