Description

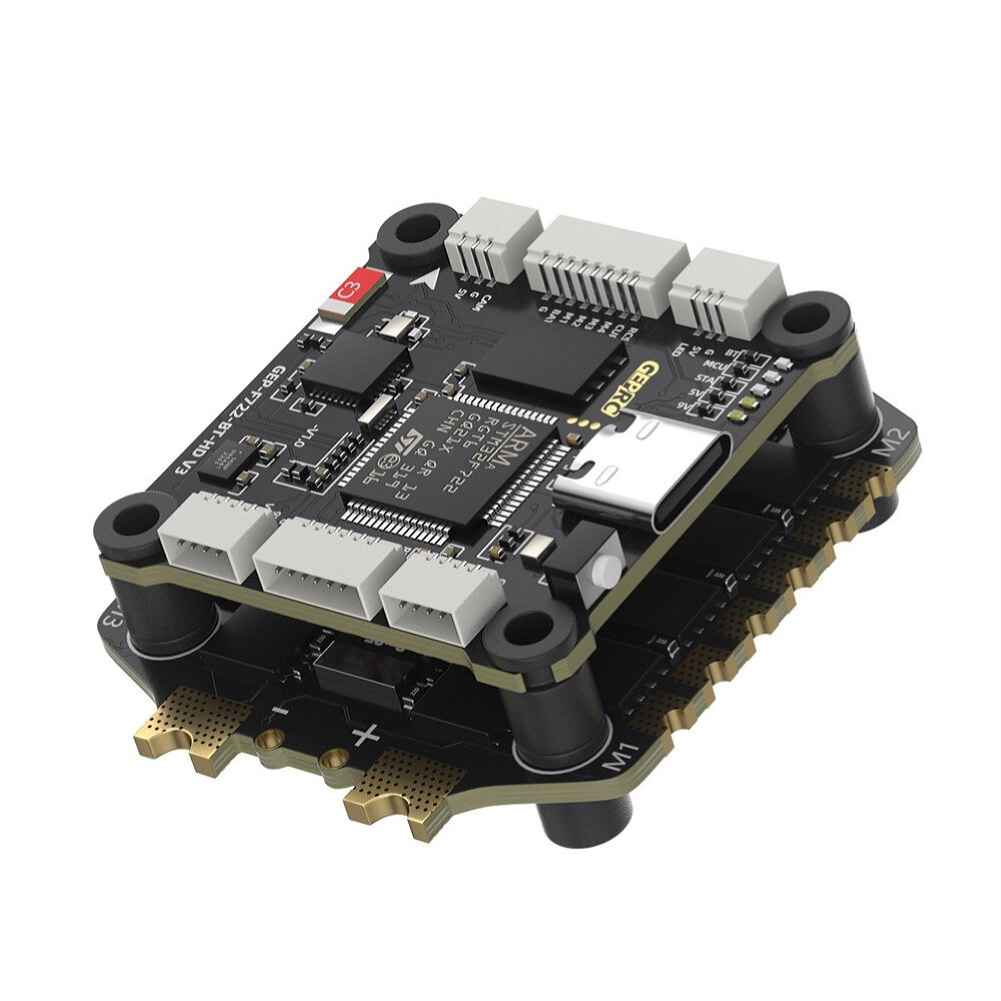

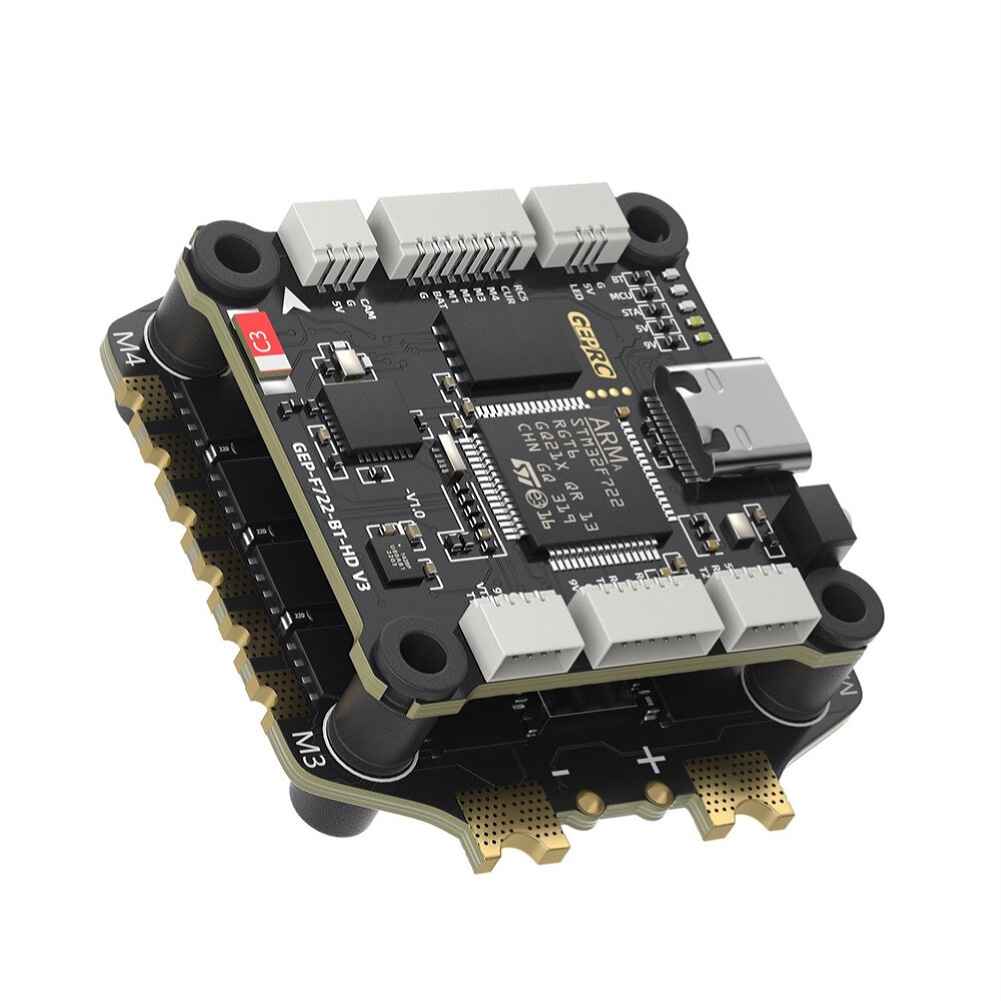

30.530.5mm GEPRC TAKER F722 BT HD V3 Flight Controller 3-6S 60A 8Bit 4In1 Brushless ESC Stack for RC FPV Racing Drone
The GEPRC TAKER F722 BT HD V3 Flight Controller Stack is designed for RC FPV racing drones, offering advanced features for seamless performance. It utilizes the STM32F722 chip and integrates a 42688-P gyroscope for precise navigation. The stack includes a 512M black box for extensive data storage and supports Bluetooth parameter tuning. With an integrated LC filter and dual BEC outputs (9V@2.5A, 5V@3A), it ensures stable power distribution. The Type-C USB interface and direct DJI Air Unit connection facilitate easy setup. The TAKER H60_BLS 60A 4IN1 ESC delivers smooth flight dynamics, supported by a shock-absorbing mount system for enhanced stability. The onboard barometer and BetaFlight OSD add to its comprehensive functionality.
Feature:
1. Use mainstream STM32F722 chip
2. Equipped with the latest 42688-P gyroscope
3. 512M black box storage
4. Support Bluetooth parameter tuning
5. Integrated LC filter
6. Upgrade type-C USB interface

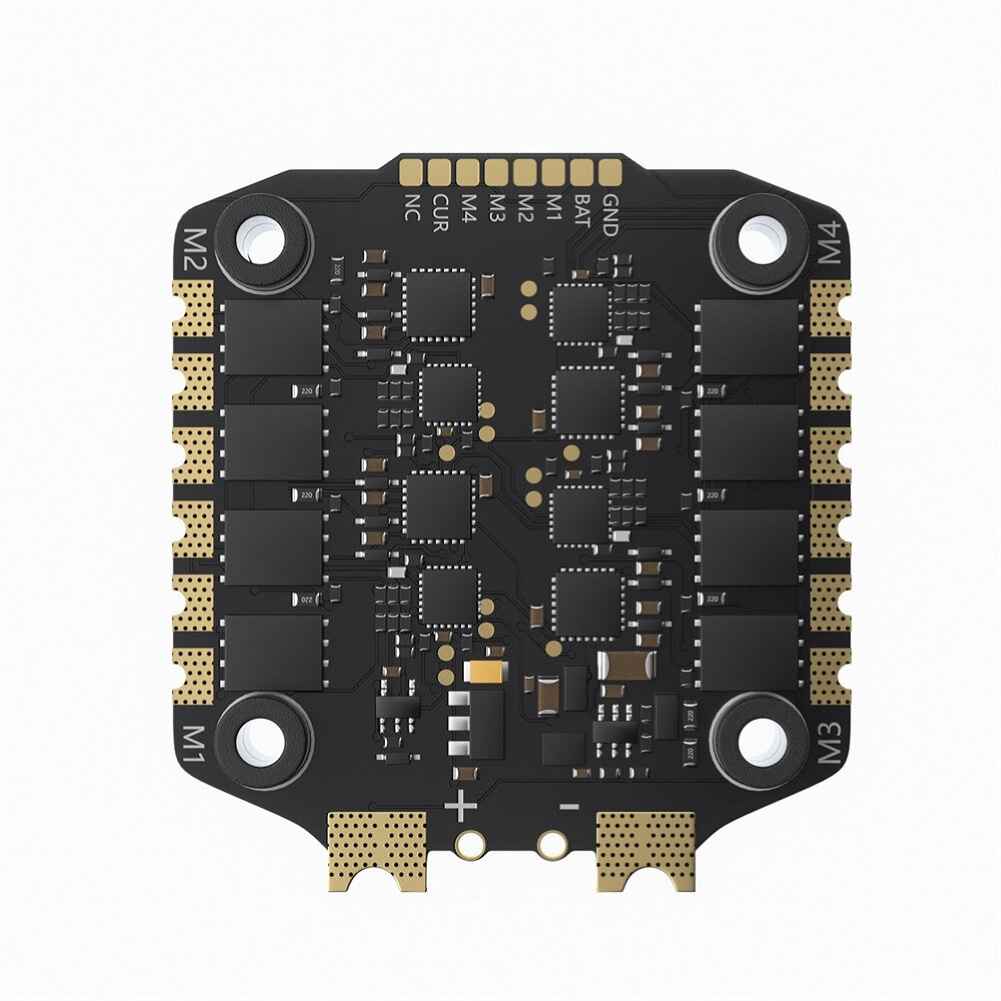

7. With TAKER H60_BLS 60A 4IN1 ESC, silky flight
8. Directly plugs into the DJI Air Unit
9. Simple and effective installation with shock-absorbing mounts for stable gyroscope performance
10. Integrated Barometer
11. 9V@2.5A + 5V@3A dual independent BEC
Specification:
Brand: GEPRC
Model: TAKER F722 BT 8Bit 60A STACK
Package Included:
1 x FC board
1 x ESC board
1 x Capacitor
1 x DJI O3 3-in-1 connection cable
1 x FC adapter cable
1 x sh1.0 4pin silicone cable
1 x Camera connection cable
1 x VTX connection cable
1 x XT90 power cable
4 x M3 30 screws
4 x M3 25 screws
8 x Nylon nuts
12 x Silicone anti-shake pads
Toys & Games > Hobbies > Remote & App Controlled Vehicles & Parts > Vehicle Parts & Accessories > Multi Rotor Parts
