Holybro H-RTK NEO-F9P GPS GNSS Receiver with RM3100 Compass for UAVs and Base Stations

Description

Holybro H-RTK NEO-F9P GPS Integrated GNSS Receiver RM3100 Compass for Base Station / Fixed Wing / Multi-Copter

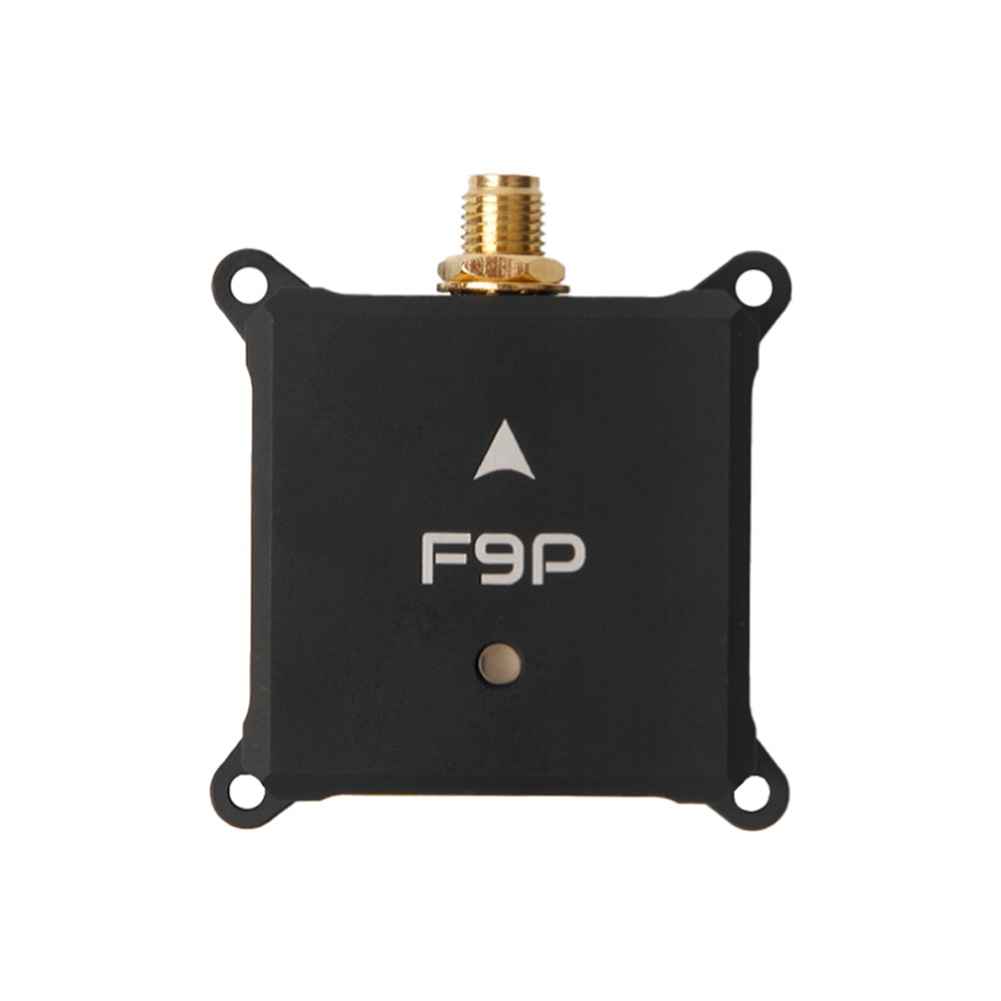

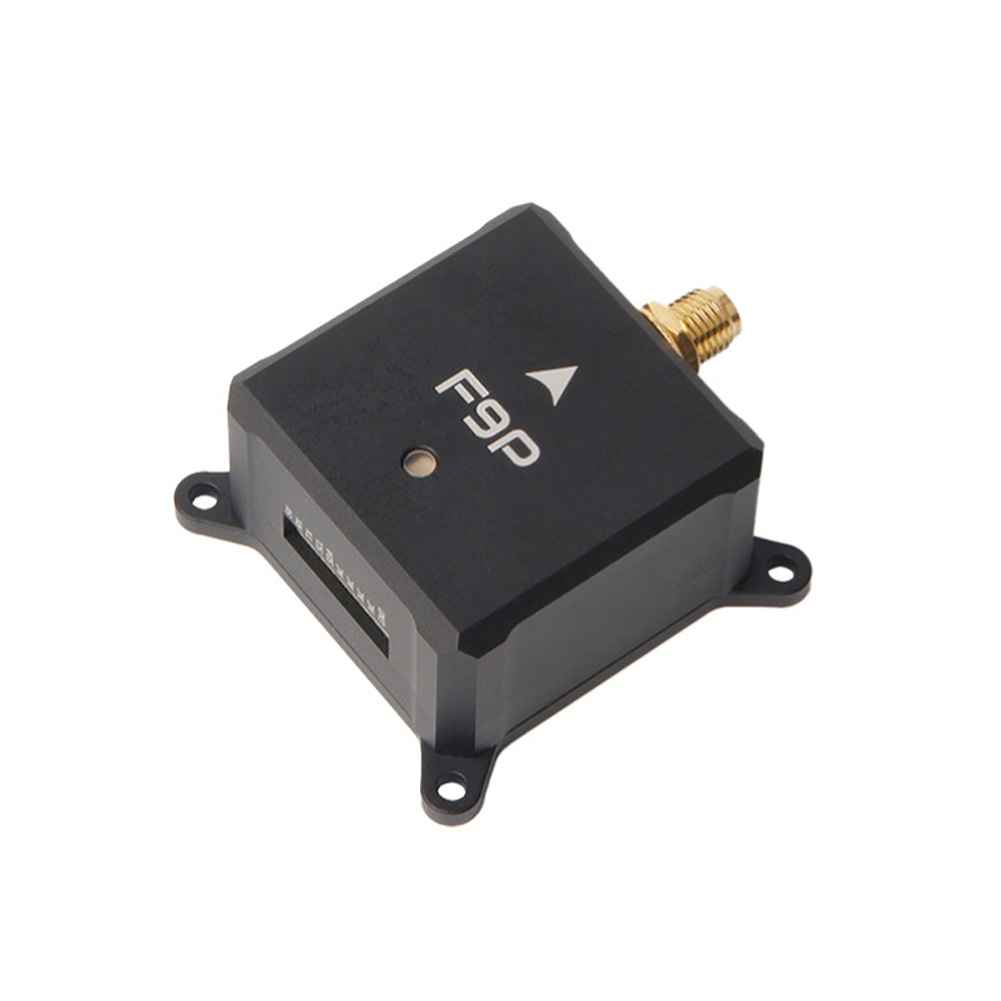

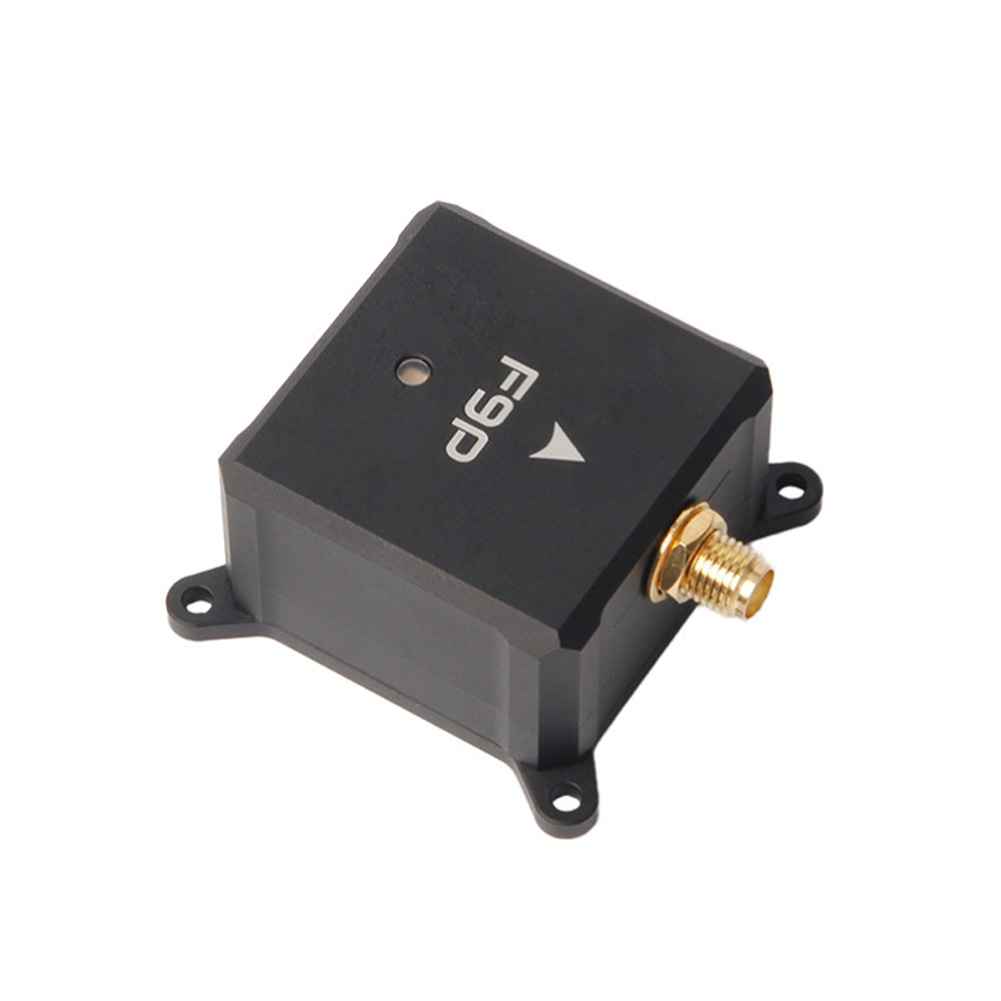

The Holybro H-RTK NEO-F9P GPS is a high-precision GNSS receiver featuring the advanced u-blox NEO-F9P technology and an integrated RM3100 compass. Designed for UAVs and base stations, it offers rapid RTK convergence and centimeter-level accuracy. The system supports GPS, GLONASS, Galileo, BeiDou, and QZSS signals, with flexible connectivity options including UART and DroneCAN. The DroneCAN version is equipped with an MCU, IMU, and barometer for seamless UAV integration. The RM3100 compass provides reliable orientation and stability, while multiple antenna options ensure versatile installation. The receiver excels in high-resolution, low-power performance with strong noise immunity and stable measurements across temperatures.

Description:
The H-RTK NEO-F9P GPS integrates the advanced u-blox NEO-F9P GNSS receiver, high-precision RM3100 compass, and a tri-color LED indicator. This high-precision system delivers multi-band RTK capabilities with rapid convergence times, reliable performance, and fast update rates, which is ideal for highly dynamic, high-volume applications requiring centimeter-level accuracy. Multiple antenna options are available to suit diverse use cases.

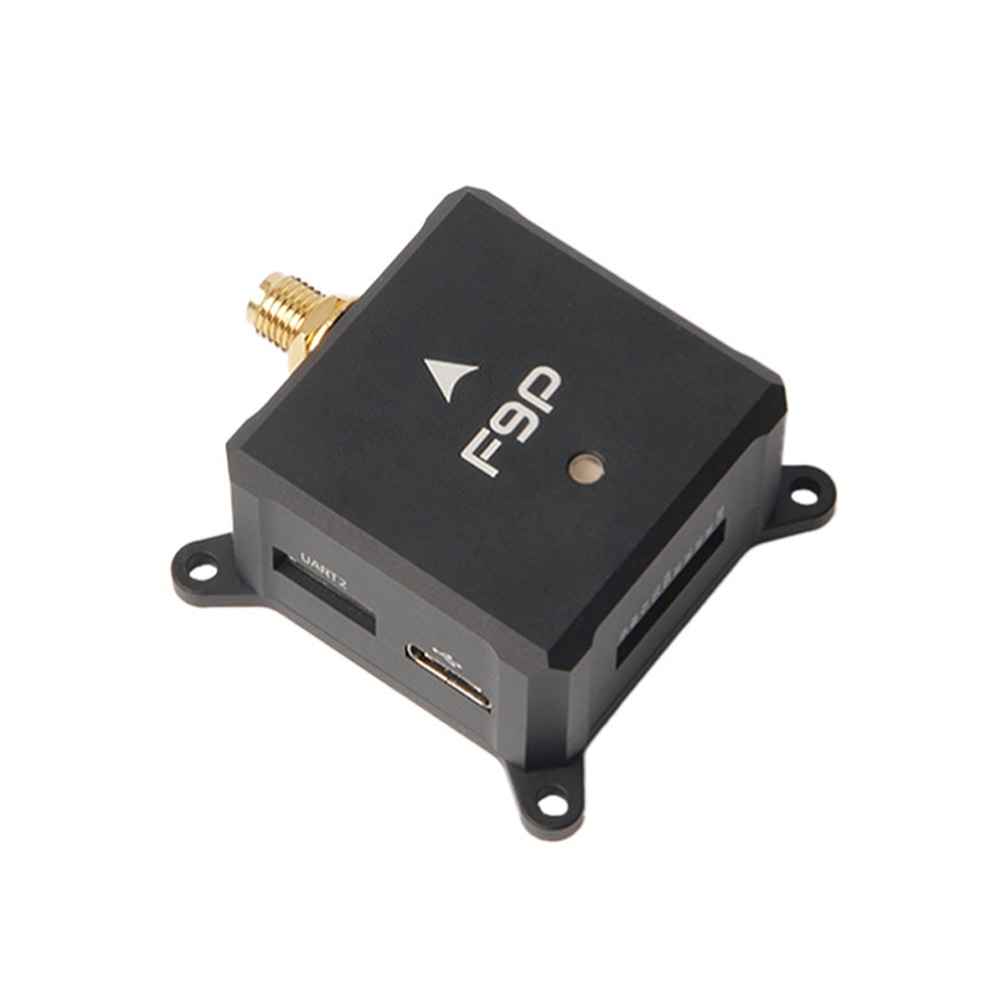

Supporting concurrent reception of GPS (L1 & L5), GLONASS, Galileo, BeiDou, and QZSS signals, it offers flexible connectivity in both UART and DroneCAN options. The DroneCAN version includes an MCU, IMU, and barometer, enabling robust communication and seamless integration for advanced UAV systems.
The high-precision PNI RM3100 compass ensures accurate orientation and stability with exceptional reliability, making it perfect for demanding UAV applications. It features high resolution, low power consumption, strong noise immunity, a broad dynamic range, and high sampling rates. Measurements are stable across temperatures and inherently free from offst drift.
Features:
1.Advanced GNSS Receiver: High precision u-blox NEO-F9P GNSS receiver with reliable and stable centimeter-level positioning.
2.Integrated RM3100 Compass: Accurate and stable orientation data.
3.Rapid RTK Convergence: Advanced multi-frequency DGNSS algorithms enable quick RTK Fix.
4.High-Gain Antenna: Enhanced signal reception across GNSS frequencies.
5.Advanced Filtering & Amplification: Hybrd Coupler, SAW filter, and LNA architecture deliver exceptional signal strength and effective interference rejection.
6.Versatile Installation: Multiple antenna options offer flexibility for various situations.
Specification:

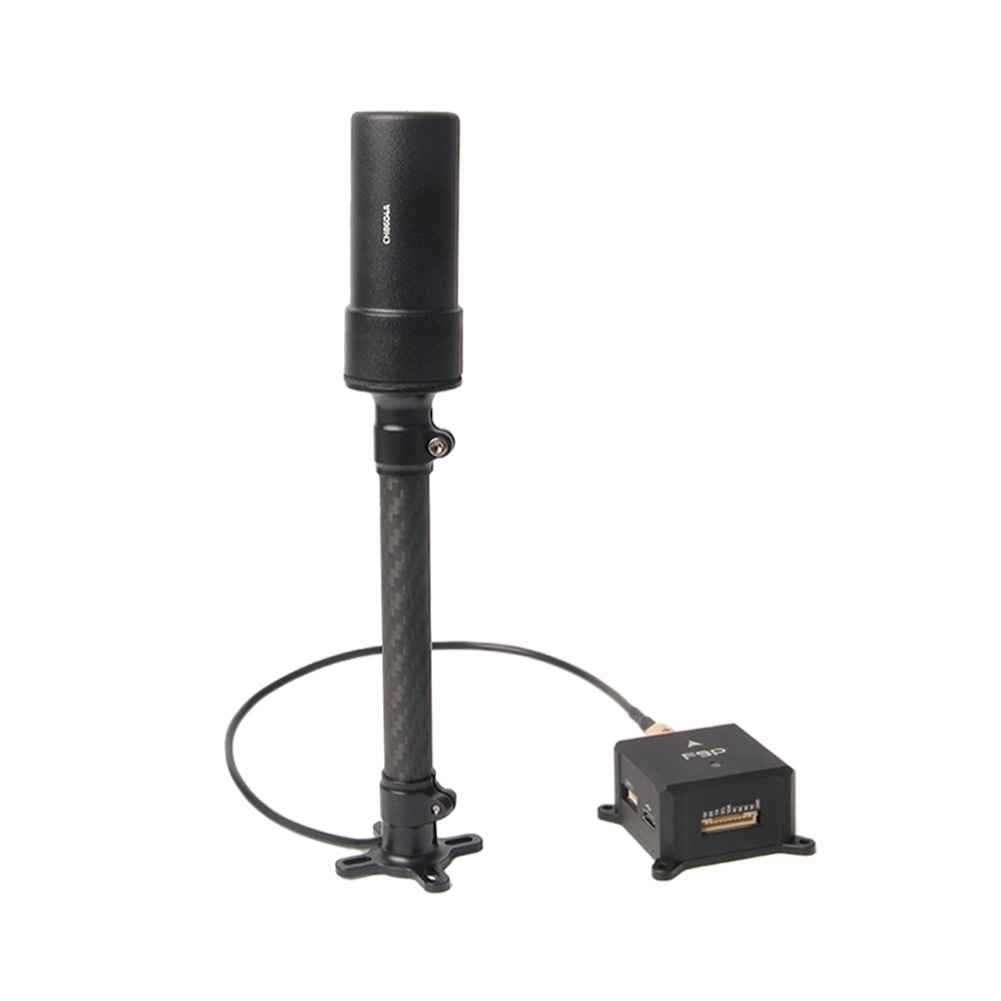

H-RTK NEO-F9P w/ Helical Antenna

H-RTK NEO-F9P w/ Vertical Array Patch Antenna

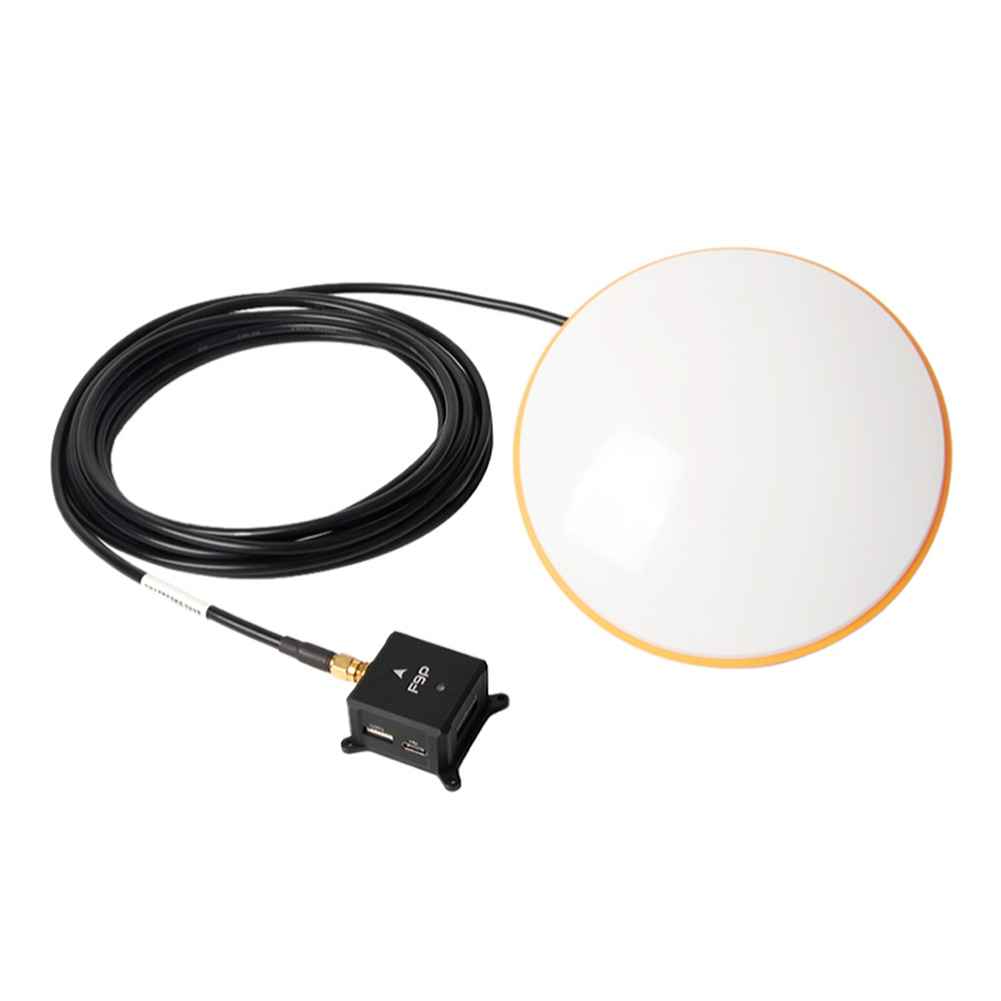

H-RTK NEO-F9P w/ Base Station Antenna

Recommended Application

Rover Station (UAV, Marine, Land Vehicle, etc)

Rover Station (UAV, Marine, Land Vehicle, etc)
Base Station

Rover Station (Marine, Land Vehicle, etc)
Base Station

GNSS Receiver

u-blox NEO-F9P

u-blox NEO-F9P

u-blox NEO-F9P

Processor

N/A

N/A

IMU & Barometer

N/A

N/A

Antenna

Helical Antenna

High Precision Vertical Array Patch Antenna

High-Gain Ceramic Antenna

Antennas Peak Gain

L1: 2dBi
L5: 2dBi

L1: 3.5dBi
L5: 3.5dBi

L1: 5.5dBi
L5: 4dBi

An

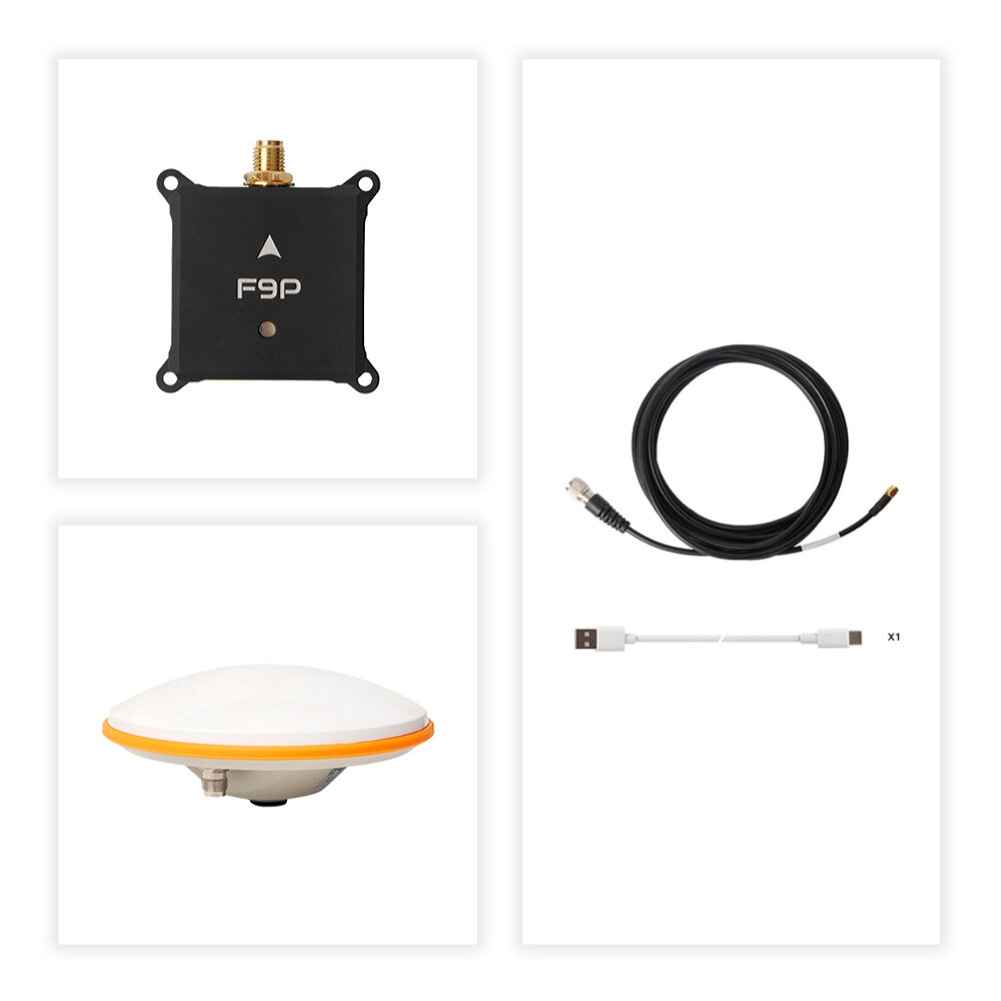

Package Included:
1 x Holybro H-RTK NEO-F9P GPS Integrated GNSS Receiver RM3100 Compass
