Description
30.5mm*30.5mm SEQURE E70 G2 2-8S 70A BLHeli_32/AM32 Firmware 128K 4in1 ESC for Racing Freestyle FPV Drone

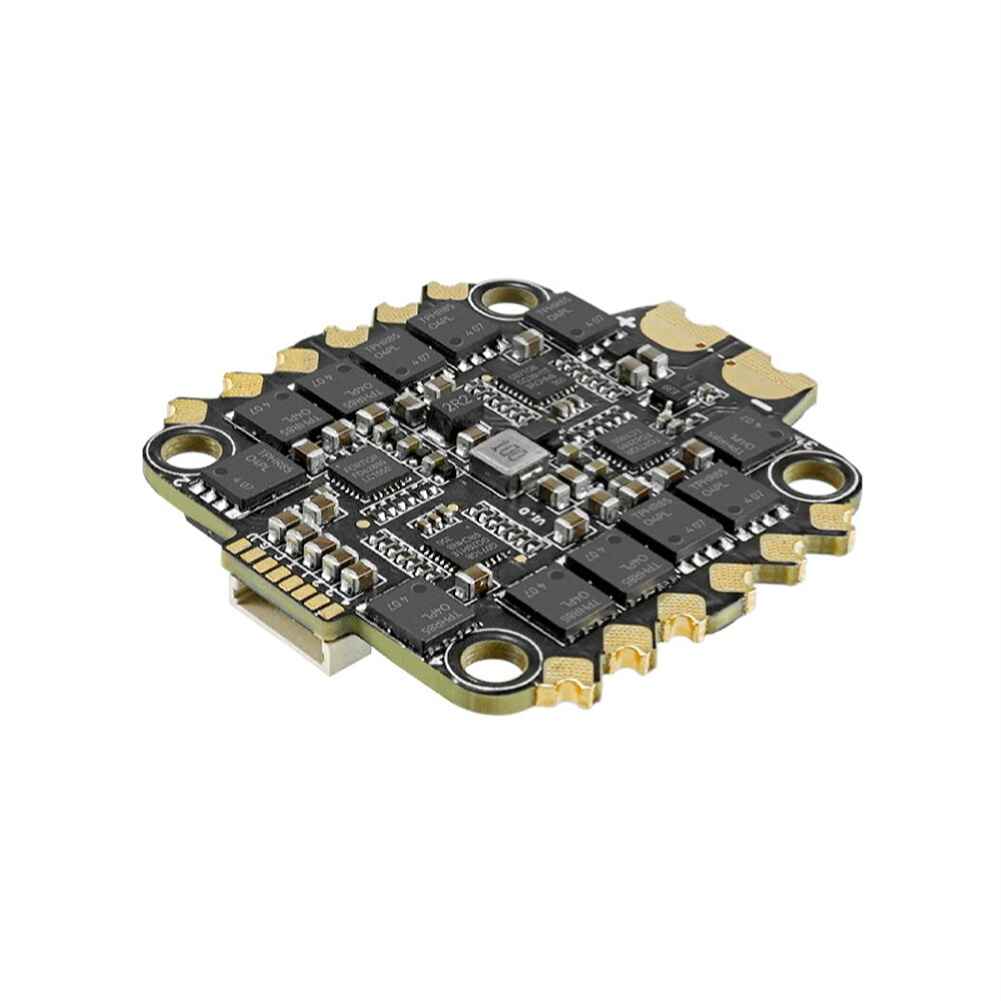

The SEQURE E70 G2 4in1 ESC is designed for racing and freestyle FPV drones, featuring a high-performance STM32G071 processor compatible with BLHeli_32 and AM32 firmware. It supports a wide voltage input of 2-8S and delivers a continuous current of 70A, with a peak current reaching 150A. The built-in galvanometer enables real-time telemetry, providing updates on motor speed, temperature, and current. Enhanced with high-quality MOSFETs, it ensures ultra-efficient power conversion, reducing losses and extending flight time. Its multi-layer PCB with high copper thickness offers excellent heat dissipation and increased over-current capability. The ESC also features precise switch interval time control for smooth and responsive control, with PWM frequency support from 16KHz to 128KHz.
Feature:
(1) STM32G071 high-performance processor, support BLHeli_32 | AM32 firmware, 2-8S wide voltage input, single-channel continuous current 70A, peak current up to 150A.
(2) Built-in galvanometer, supports telemetry return, and updates motor speed, temperature, current and other data in real time.
(3) High-quality high-power MOSFET, ultra-high efficiency conversion, reducing losses and extending flight time.
(4) High copper thickness multi-layer PCB design increases over-current capability, efficient heat dissipation performance, and is not afraid of load pressure.
(5) Precise switch interval time control, speeding up the response speed of the ESC, smooth control, and delicate feel.
(6) PWM frequency supports 16KHz-128KHz, and excellent circuit design to solve the out-of-step problem.
(7) Innovative design, oblique surface soldering pad, motor wiring layout is more beautiful and safe, while reducing welding difficulty.
(8) 30.5*30.5mm installation hole spacing design, compact structure, adaptable to various types of racks, easy to install.
Specification:
Brand: SEQURE
Model: E70 G2 4IN1 ESC
Processor: STM32G071
Firmware Version: BLHeli_32 / AM32 (Optional)
PWM Frequency: 16KHz-128KHz
Working Voltage: 2-8S Lipo
Continuous Current: 70A
Peak Current: 150A
Support Protocol: Dshot600/300/150,Oneshot,Multishot,PWM
Telemetry Return: YES
Galvanometer: YES
BEC: NO
Mounting Hole Spacing: 30.5*30.5mm, ?4mm/M3

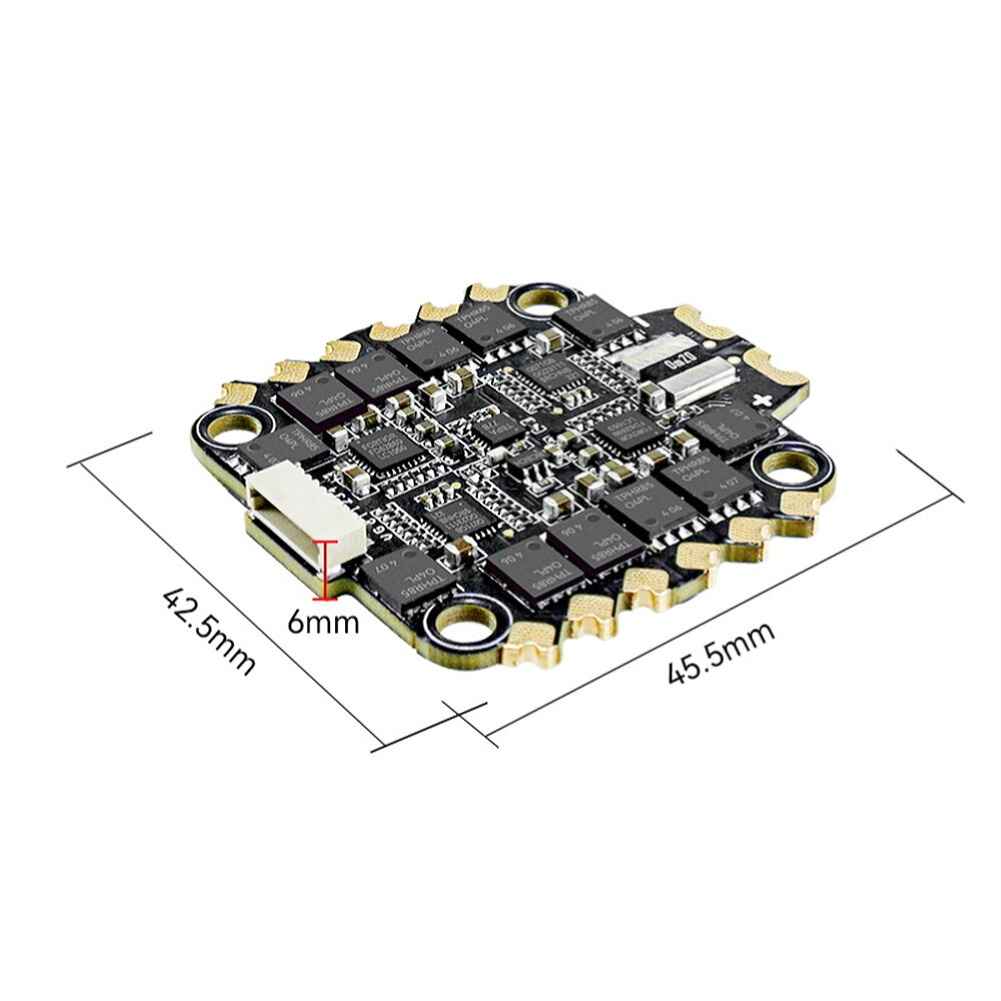

Product Size: 45.5*42.5*6mm

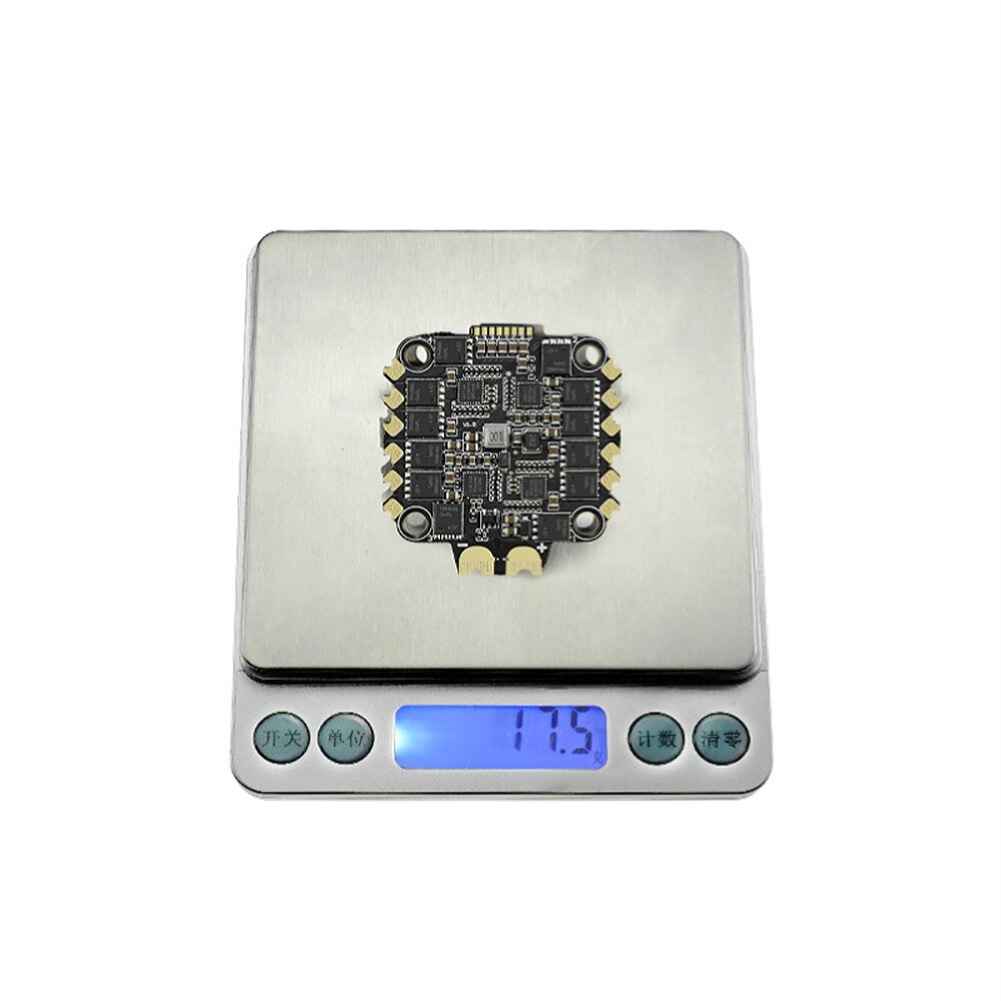

Product Weight: 17.5g

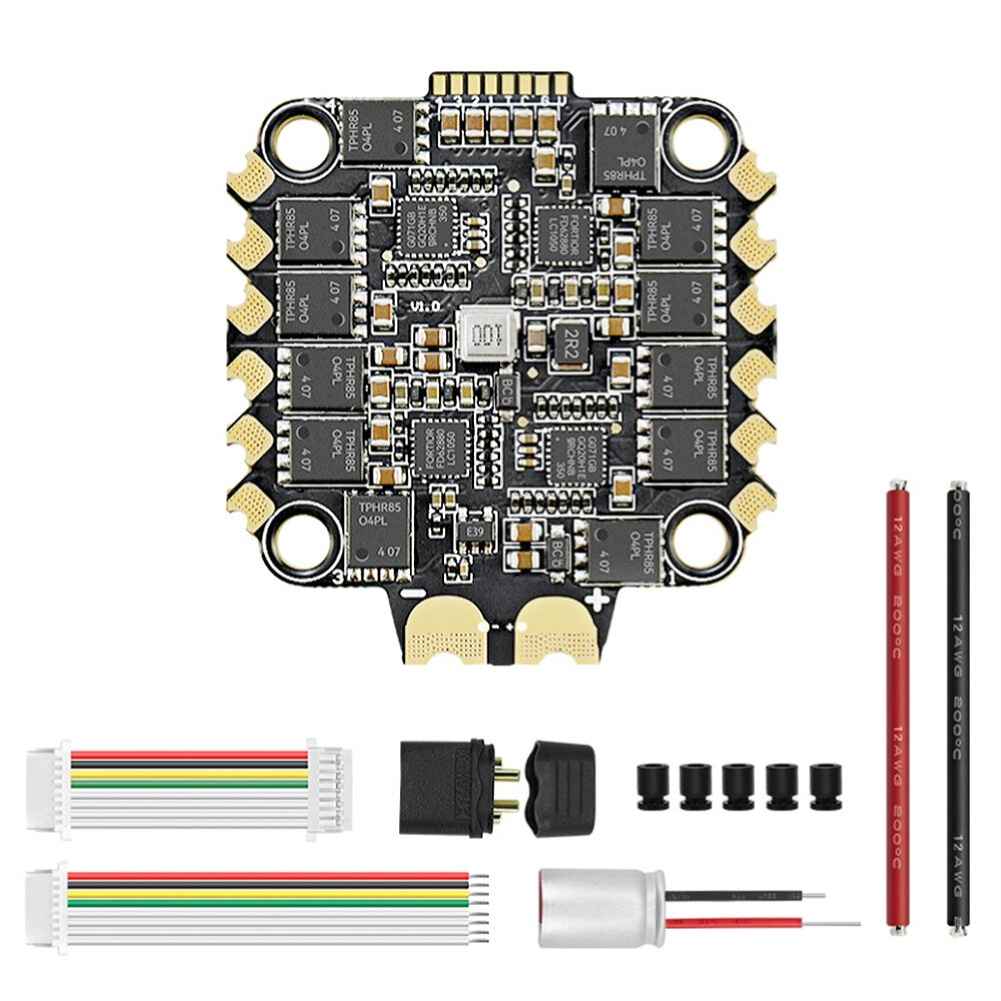

Package Included:
1x SEQURE E70 G2 4 in 1 ESC
1x 30AWG 40mm reverse double plug SH1.0-8P cable
1x 30AWG 60mm single plug SH1.0-8P cable
2x 12AWG 100mm power cable (black/red)
1x XT60H-M black male connector
1x 35V 680UF solid capacitor
5x M3 8mm shock absorbing washer (black)
