TEARCKEP F722 X8 Flight Controller & 60A 4in1 ESC Stack for 7-10 Inch FPV Freestyle Racing Drones

Description

30.5mm*30.5mm TEARCKEP F722 X8 Flight Controller 5V 10V BEC Output with 60A 3-6S 4in1 BLheli_S ESC Stack Support RC 7 Inch 10 Inch FPV Freestyle Racing Drone

The TEARCKEP F722 X8 Flight Controller is designed for optimal control in FPV freestyle racing drones. It features a 36x36mm mini flight controller with 16MB Blackbox flash memory and dual BEC outputs of 5V and 10V. Constructed from high-end composite materials, it offers superior overcurrent capability and heat dissipation. The controller includes industrial-grade LDOs for high temperature resistance and high-quality capacitors for excellent filtering performance. With a built-in low-noise button, it allows for intelligent remote control. The included 60A 4in1 ESC supports various drive signals, enhancing the drone’s performance with maximum speed and accuracy.

Note:
1. Due to the difference between different monitors,the picture may not reflect the actual color of the item. We guarantee the style is the same as shown in the pictures.
2. Due to the manual measurement and different measurement methods, please allow 1-3mm deviation.
Descriptions:
F722 Flight controller: the fpv-freestyle flight controller has been designed for optimal control of flight, which allows you to have more control over the flight. The controller is equipped with fpv, ac adapter, and a power cable. it can be used to connect the drone to the controller.
Features:
1. The F722 is a 3-8S 36x36mm mini flight controller with a 16MB Blackbox flash memory, 5V 10V dual BEC. Designed for easy maintenance and low interference.
2. The PCB adopts high-end composite material, which has stronger overcurrent capability and good heat dissipation.
MOS adopts imported high current resistance mos, low energy consumption, long life and strong load capacity.
3. Using industrial grade LDO, high temperature resistance. High-quality capacitors, strong filtering performance.
4. Intelligent control: The controller has a built-in low-noise button, which can be controlled remotely by one button.
5. Maximum power: The OSD allows you to control your drone with maximum speed and accuracy, while providing a smoother flight.
Specification:

Specification

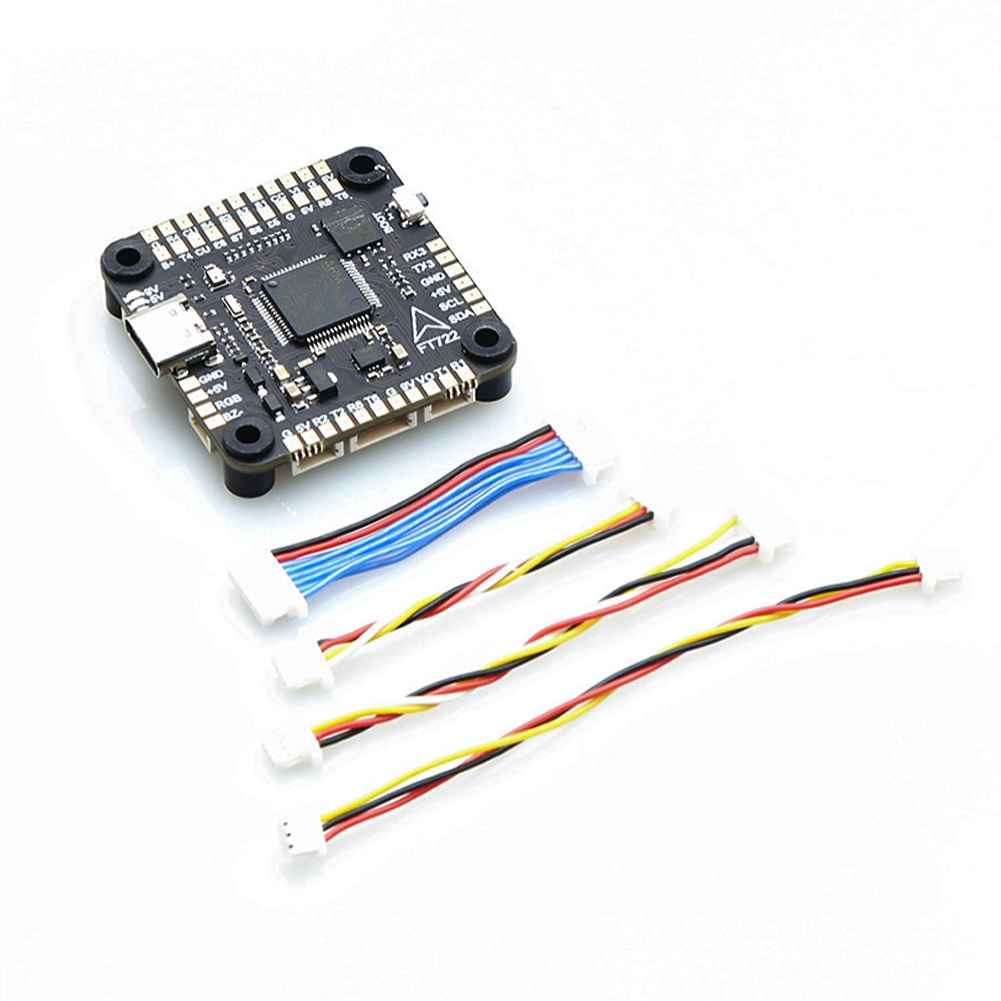

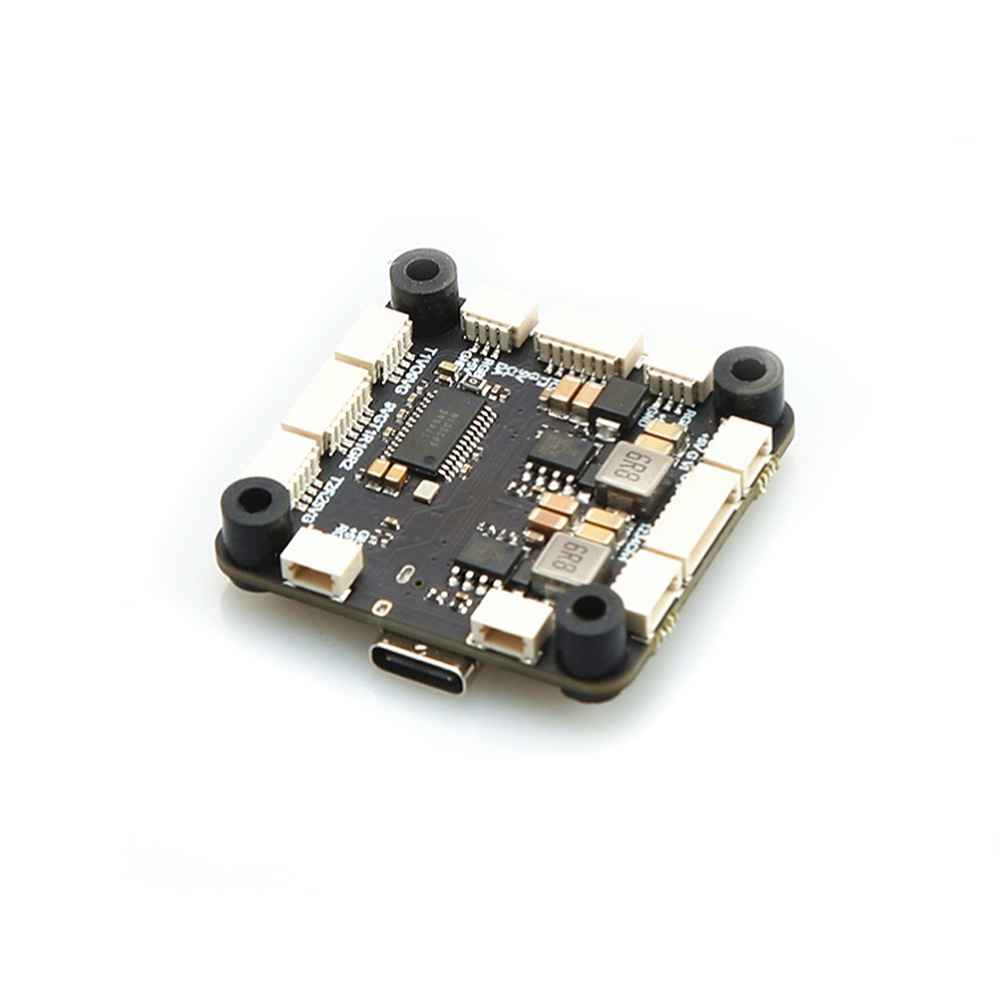

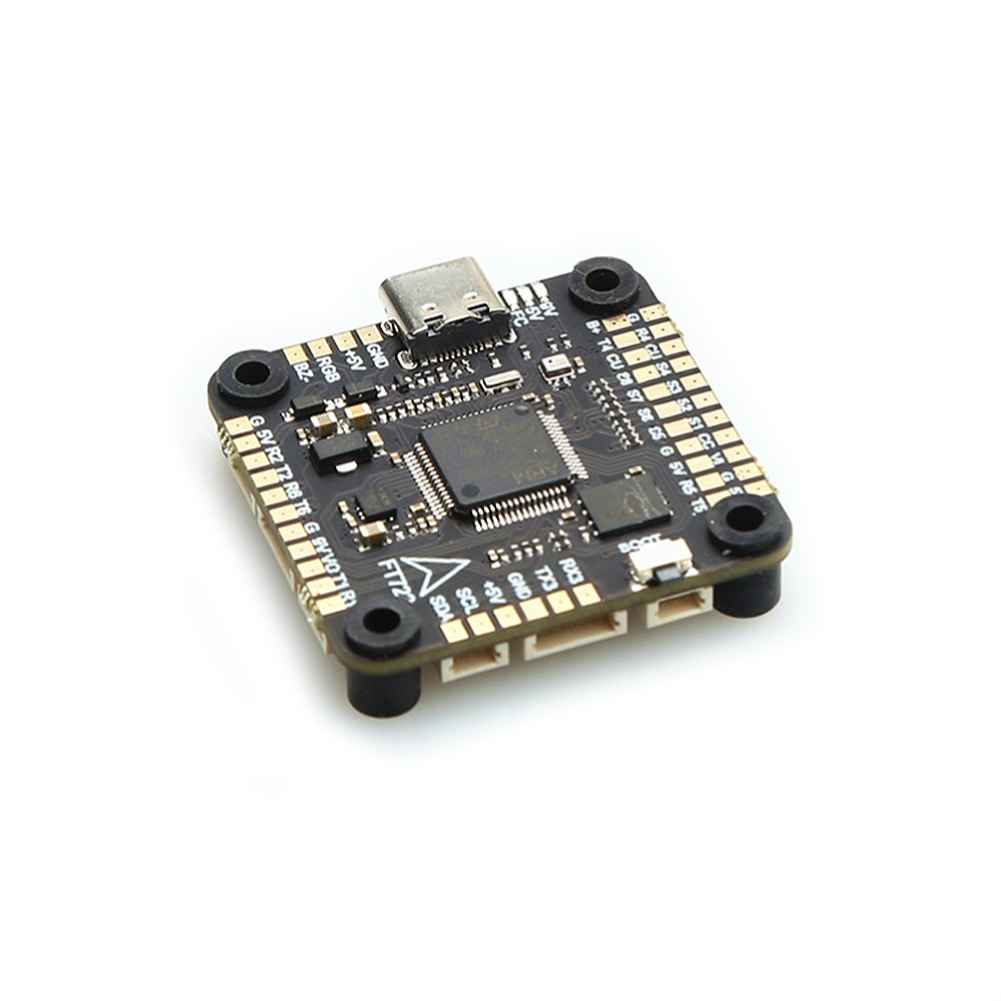

F722 F7 Flight Controller

MCU: STM32F722RET6
IMU: ICM-42688
OSD: AT7456E
Baro: SPL06-001
Blackbox: 16MB
Input voltage: 3-6S Lipo(11.4-36V)
5V-BEC: 5V/2.5A 呼0.1V
10V-BEC: 10V/2A(USER1)
IO2: USER2
Receiver: ELRS(CRSF), TBS(CRSF), SBUS.IBUS.DSM2.DSMX
UART: UART1/2/3/4/5/6
IIC: 12C1
Led Strip: YES
Buzzer: 5V
ESCsignal: Support PWM, Oneshot125, Oneshot42. Multishot Dshot150, Dshot300, Dshot600
USB: TYPE-C
Current port: YES
Voltage sensor: YES
DFU button: YES
Firmware: Betaflight 4.3.1 JHEF7DUAL.HEX
Size: 36*36MM
Mounting Hole: 30.5*30.5*4MM
Weight: 8.8g

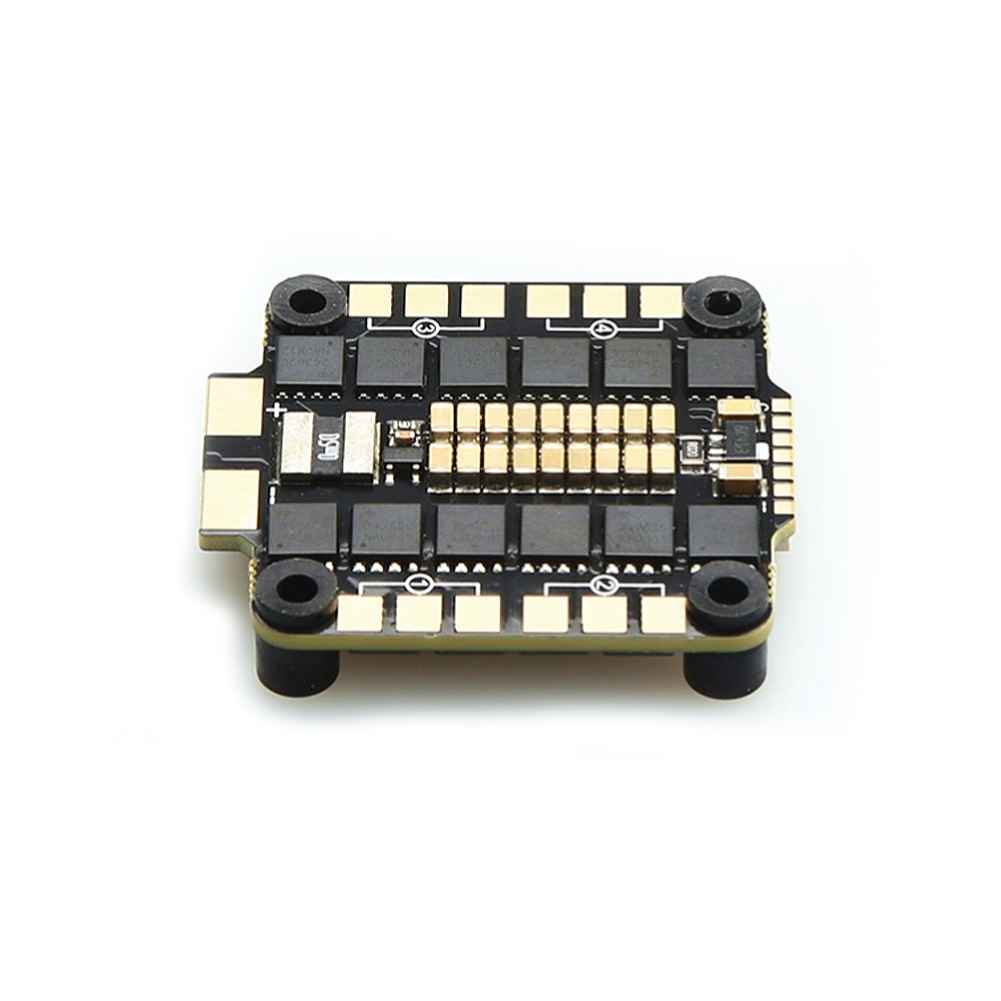

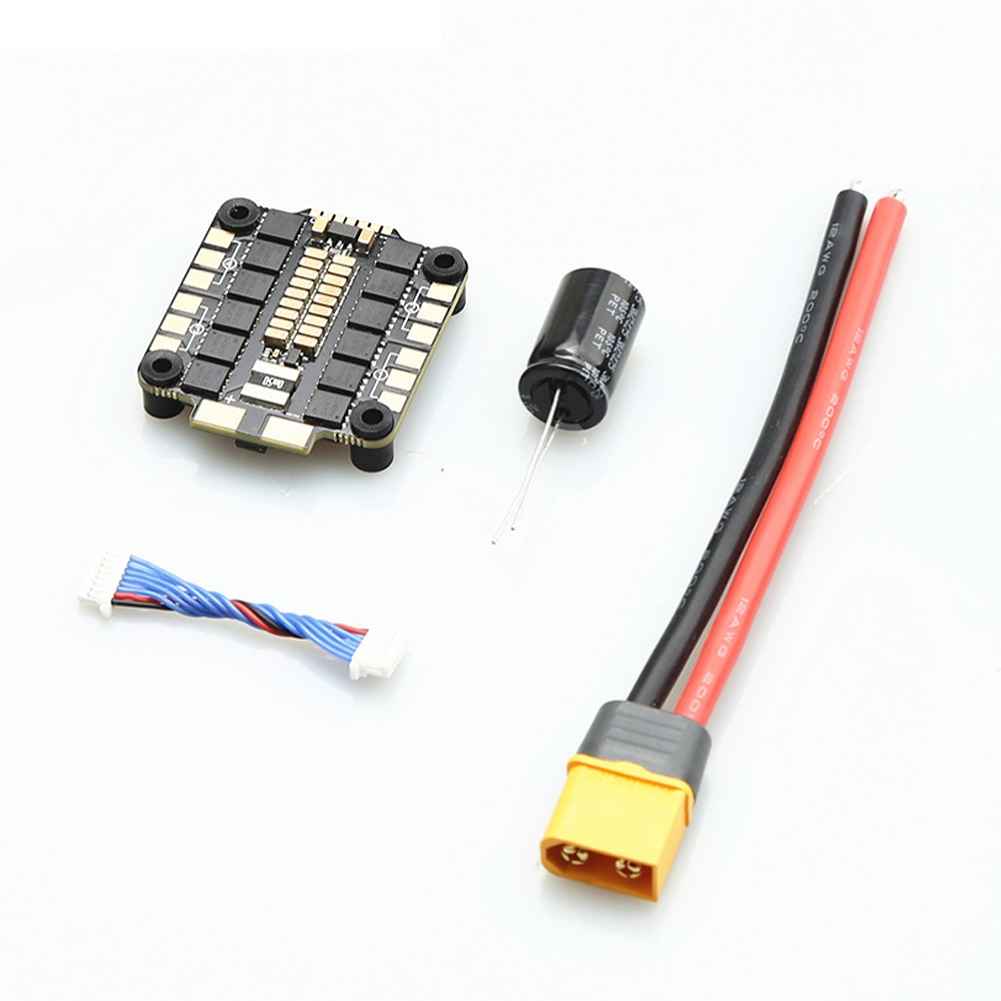

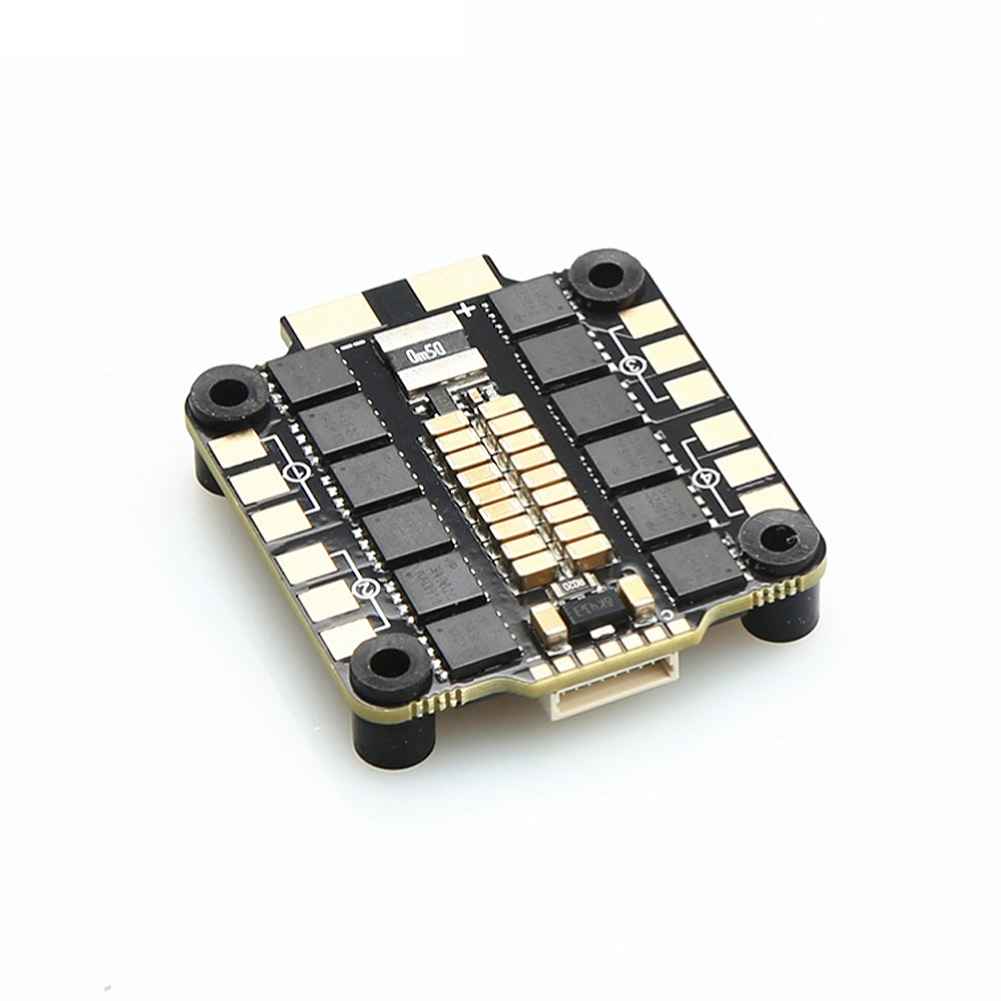

BLS-60A 4in1 3-6S ESC

Aperture: 30.5 * 30.5mm (after installing the shock absorber ball, the aperture is 3mm)
Firmware: BLHELI-S
Input voltage: LIPO 3-6S
Continuous current: 60A
Maximum current: 65A (10 seconds)
Processor: EF8BB21
Drive signal support: DShot150-300-600/Multishot/Oneshot/PMW
Current sensor: supports
Size: 41 * 39 * 5mm
Weight: 15g

Package Included:

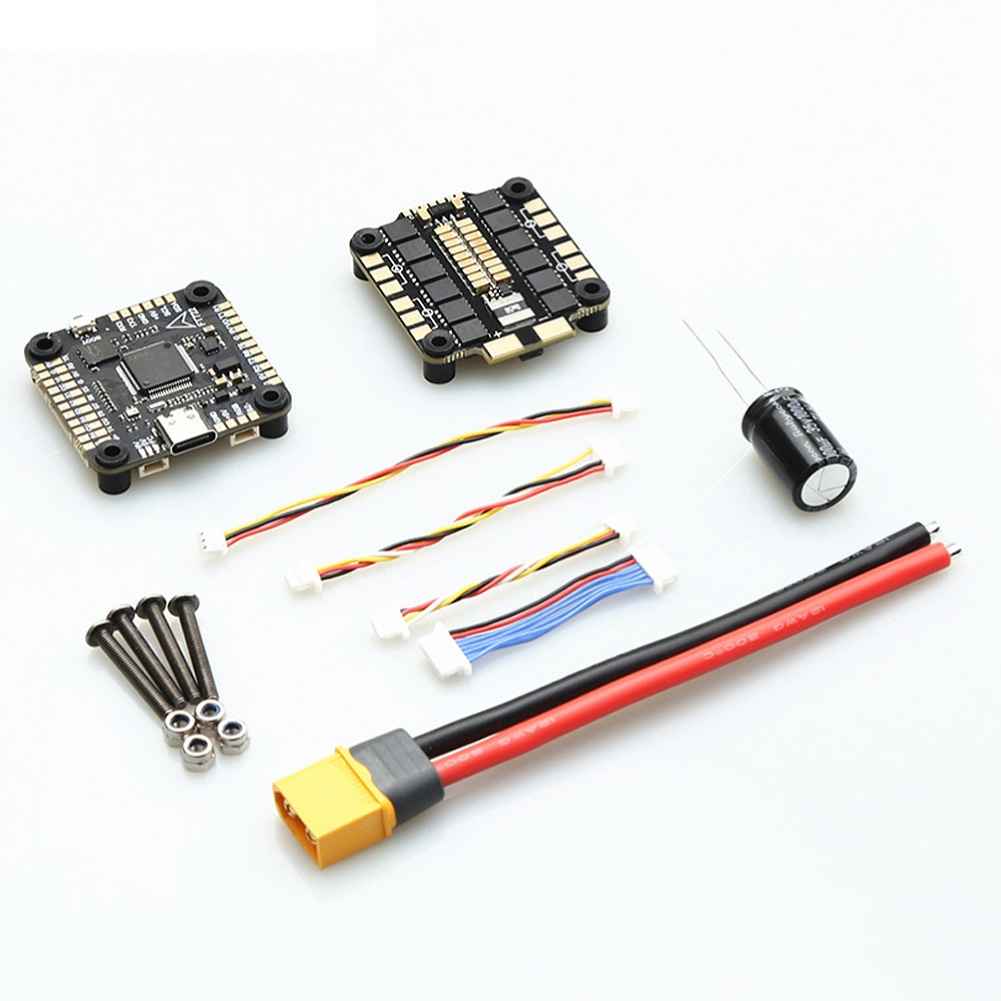

1 x F722 FC or 1 x 60A 4in1 ESC or 1 x F722 60A Stack
