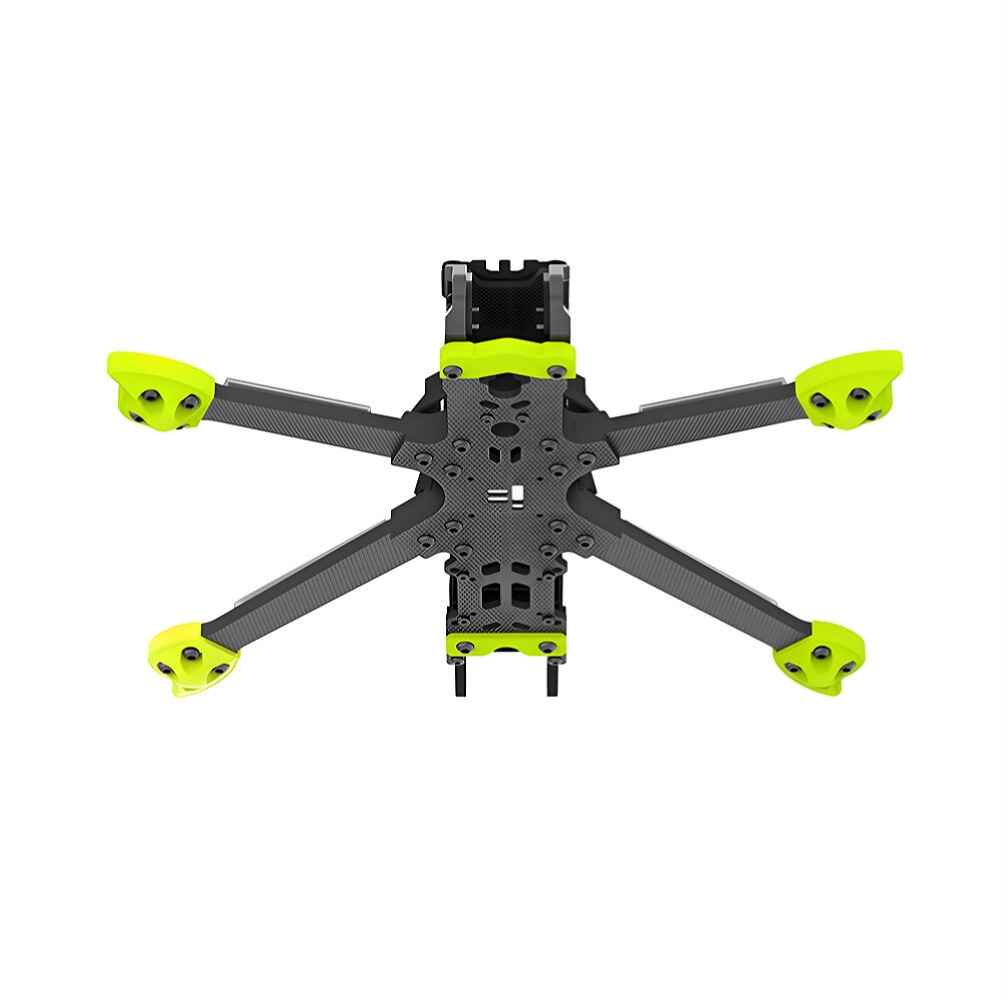

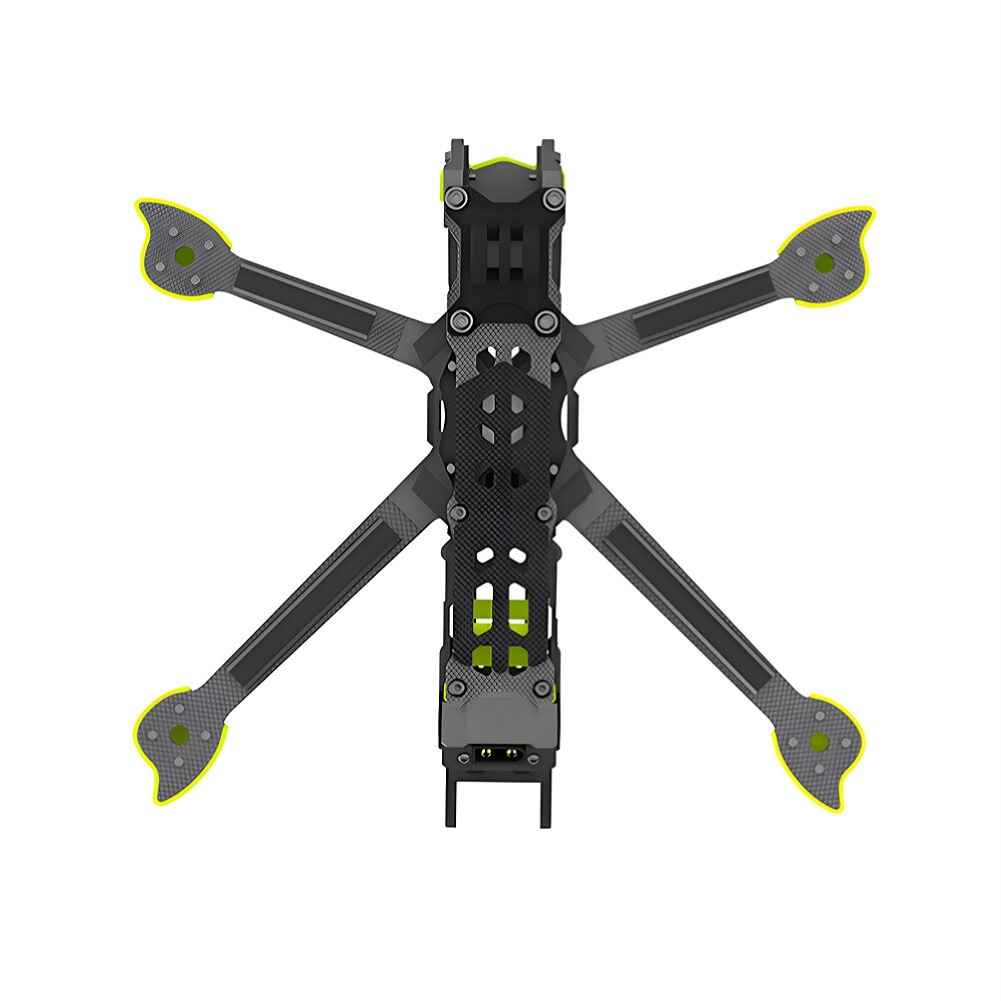

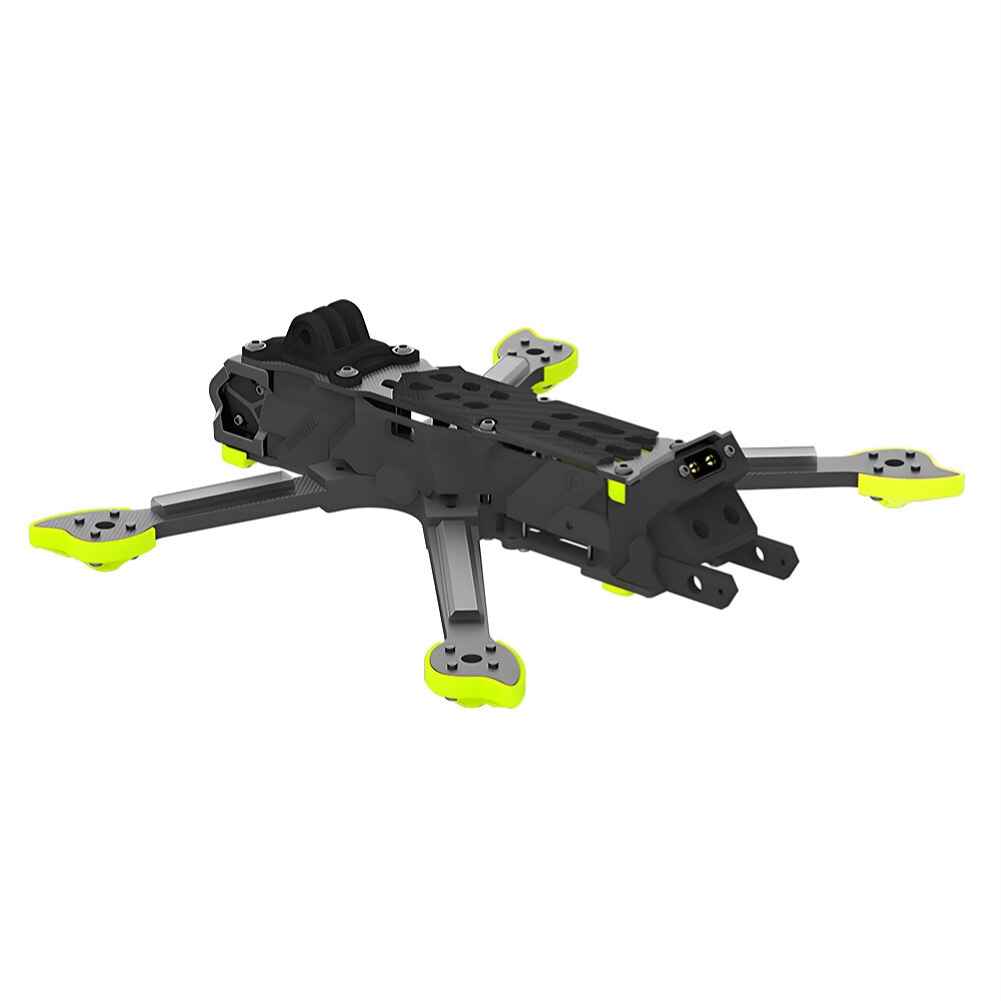

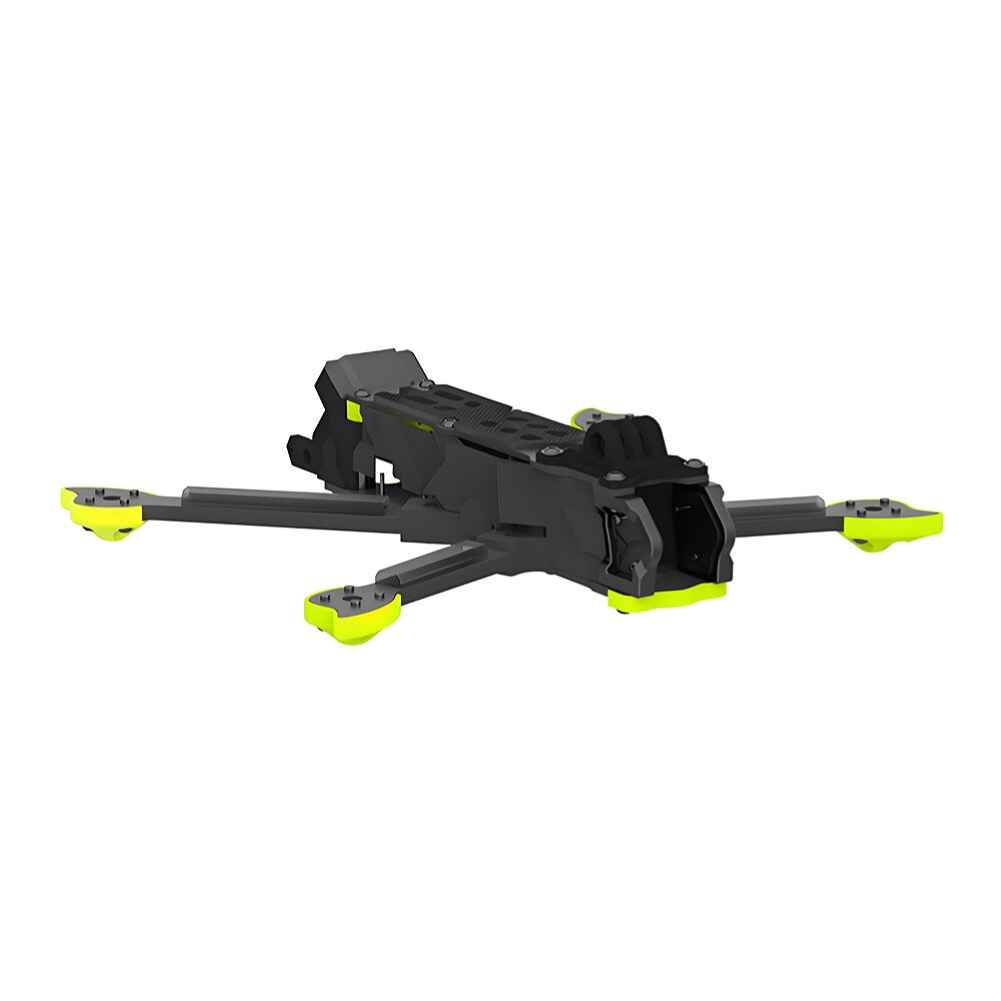

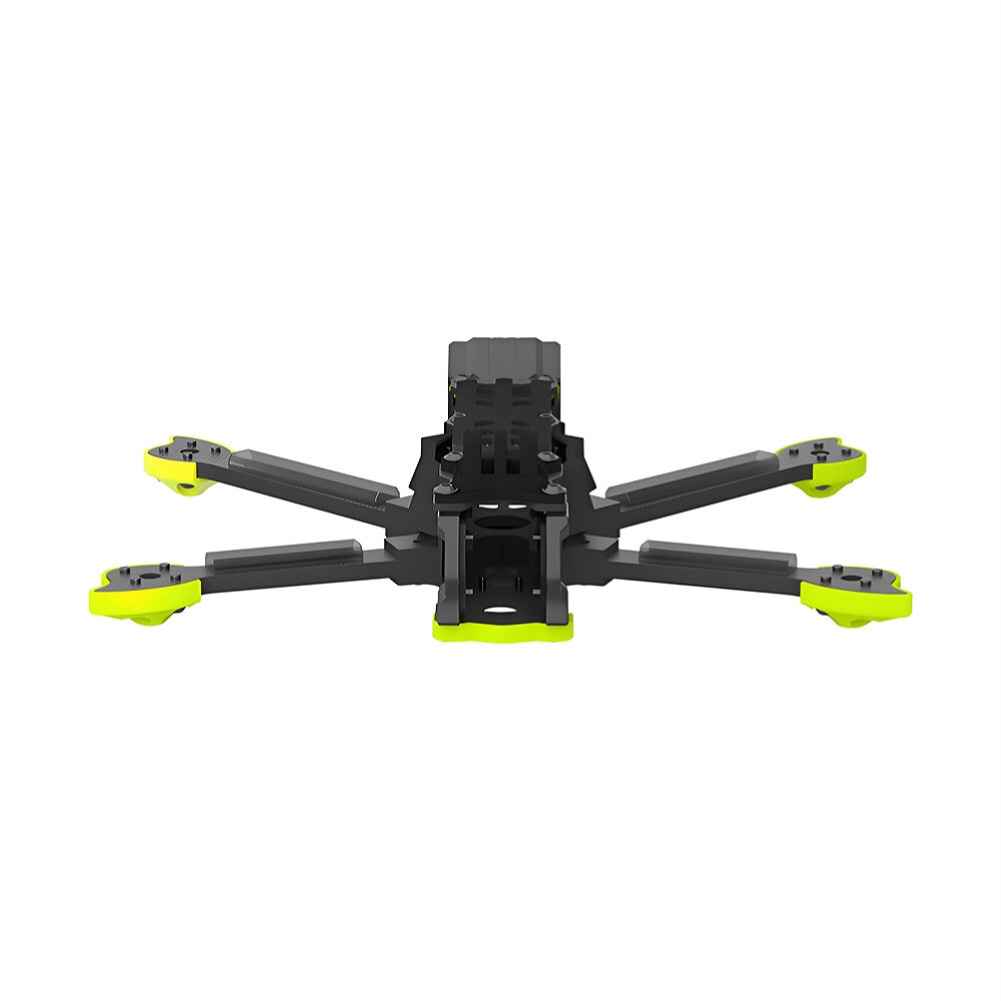

iFlight Nazgul DC5 ECO V1.1 240mm 6S 5 Inch Frame Kit Compatible with DJI O4 Pro Air Unit for RC Freestyle FPV Racing Drone
The iFlight Nazgul DC5 ECO V1.1 is a 5-inch freestyle frame kit designed for RC pilots who prioritize performance and affordability. Made from robust carbon fiber, this frame minimizes resonance for stable and precise flights. It supports the DJI O4 Pro Air Unit, ensuring compatibility with high-quality equipment. The frame’s design ensures no props or frames obstruct the view during flight, enhancing the flying experience. The kit comes unassembled, allowing enthusiasts to build it according to their preferences. Recent updates include a new camera mount and silicone side panels for improved functionality.
Note:
– Due to manufacturing processes, the thickness of our products may have a standard manufacturing tolerance of 呼0.2mm. The size of the hole may have a standard manufacturing tolerance of 呼0.1mm.
– Comes unassembled. Need build by buyers.
Description:
The iFlight Nazgul DC5 frame is a high-valu 5-inch freestyle drone frame designed for pilots seeking an optimal balance between performance and cost. Constructed from exceptionally rigid carbon fiber to minimize resonance, it ensures stable and precise flight characteristics. Notably, no props or frames are in view! during flight. Recently updated, the Nazgul DC5 now also supports the DJI O4 Pro Air Unit for enhanced compatibility with professional-grade equipment.
Features:
– DJI O3 to O4 was upgraded for the DJI O4 Pro Air Unit:
– New Camera Mount for DJI O4 Pro Air Unit
– New Silicone side panels
– Different Screws
Specificaitons:
Brand: iFlight
Model: Evoque DC5Product Name: 5 Inch O4 Pro Freestyle Frame Kit
Geometry: DC (DeadCat)
Wheelbase: 240mm
Frame Dimension: 193*144*34mm
Arm Thickness: 5mm
Bottom Plate Thickness: 2.5mm
Upper Plate Thickness: 3mm
Maximum Flight Stack Height: 22mm
Maximum VTX Height: 29mm
FC Mounting: 20*20/?2mm 30*30/?3mm
Motor Mounting: 16*16/?3mm
VTX Mounting券30*30 嫉3mm / 25.5*25.5 嫉1.6mm / 20*20 嫉2mm
Weight: 239g呼5g
Compatibility: DJI O4 Pro Air Unit/DJI O4 Air Unit/Vista HD/BLITZ Whoop 1.6W VTX
Recommand Battery:
FC&ESC: BLITZ ATF435 Flight Controller & BLITZ E55S 4-IN-1 ESC
VTX&Camera: DJI O4 Pro Air Unit
Motor: XING-E Pro 2207 1800KV
Propeller: Nazgul F5 propellers
Battery: 1480mAh 6S LiPo Battery
Package Included:
1 x Nazgul DC5 V1.1 O4 Frame Kit
1 x TPU set (Inclu. GPro TPU Base Mount)
1 x Screw Bag
2 x Anti-slip Battery Pad
4 x Motor Wire Shield Tube
2 x Battery Strap
