Description
iFlight XING2 2809 1250KV 6S Cinelifter Brushless Motor for Chimera7 Pro V2 Long Range Cinematic RC Drone FPV Racing
The iFlight XING2 2809 1250KV Brushless Motor is designed for the Chimera7 Pro V2, providing powerful performance for long-range cinematic RC drone FPV racing. Weighing 60.7g, this motor features a 5mm titanium alloy shaft and a 7075 aluminum bell, enhancing crash resistance. It includes high-quality NSK bearings and N52H curved arc magnets for optimal power and precision. The motor is dynamically balanced for smoother flights and features XING O-ring bearing gap protection and motor wire protectors for durability. With a peak current of 49.23A and a maximum wattage of 1147.1W, this motor ensures a reliable and efficient flight experience.
Specifications: ( Drawing Picture and Test Table)
Brand: iFlight
Model: XING2 2809
KV: 1250KV
Weight(included wire): 60.7g
Dimension: 耳35.33*21.7mm
Interphase Resistance: 65.46m次
Input Volts: 24V
Peak Current: 49.23A
Max Watt: 1147.1W
Mounting Holes: 19*19 耳3mm
Rotor Specifications: Unibell
Shaft Diameter: 4mm
Shaft Protruding Length: 15mm
Lead: 260mm/18AWG
Magnet: N52H Curved
Configuration: 12N14P
Bearing Type: NSK
Bearing Specification: 耳11耳55
Winding: Single Strand copper winding
Features:
Powerful Performance: 1250KV Motor for optimal power and precision.
Sturdy Design: 5mm titanium alloy shaft and 7075 aluminum bell for increased crash resistance.
Quality Components: Long-lasting NSK 11x5x5 bearings and center slotted N52H curved arc magnets for improved performance.
Motor Protection: Features XING O-ring bearing gap protection and motor wires protector.
Balanced Operation: Dynamically balanced for a smoother flight experience.

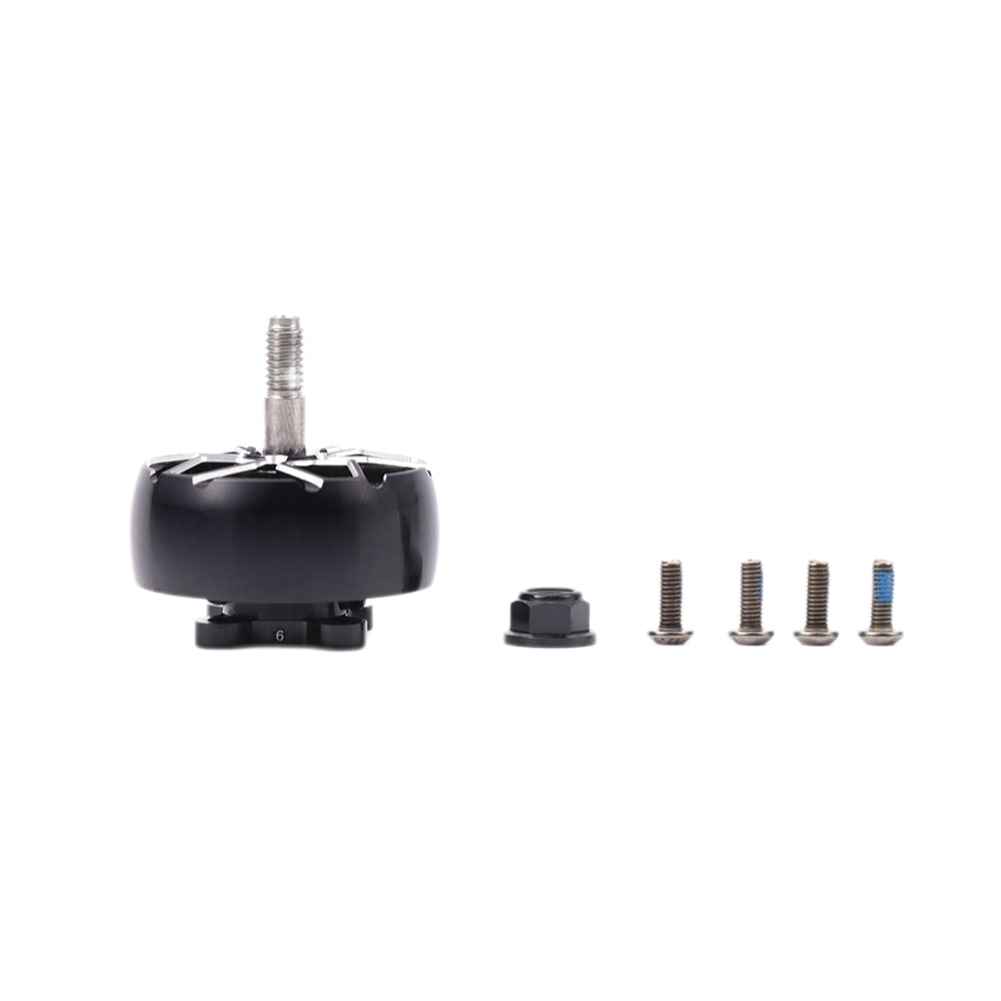

Package Included:
1 x XING2 2809 Brushless Motor
4 x M3x8 screws
1 x M5 Flange Nut
OR
4 x XING2 2809 Brushless Motor
8 x M3x8 screws
4 x M5 Flange Nut
