Description
iFlight BLITZ SPLIT GPS Module M10 Chip Built-in Flash for Defender25 RC Drone FPV Racing
The iFlight BLITZ SPLIT GPS Module is designed for the Defender25 RC drone, featuring the advanced UBLOX M10 chip for superior performance and reliability. With a baud rate ranging from 4800bps to 115200bps, it offers a fast start-up time thanks to its built-in farad capacitor. The module boasts a high sensitivity for tracking at -167dBm and supports a maximum height of 50000m and speed of 500 m/s. It also includes an onboard Low Noise Amplifier for enhanced signal reception and a refresh rate of 10 Hz to ensure up-to-date GPS data. Its compact design with a split antenna allows for easy concealment within the drone, maintaining aerodynamics.
Specifications:
Brand: iFlight
Model: BLITZ SPLIT GPS
Chip: UBLOX M10
Baud Rate: 4800bps-115200bps (Default – 115200bps)
Sensitivity: Tracking: -167dBm
Cold Start: 60s
Hot Start: 1s
Maximum Height: 50000m
Maximum Speed: 500 m/s
Speed Accuracy: 0.05 m/s
Maximum Acceleration: 汨 4G
Refresh Rate: 10 Hz
Dimensions: 18 x 16 x 7 mm
Weight: 1.8 g
Input Voltage: 3.3-5.5 V, Current 40mA
GPS Pin Definition: RX/TX UART
Features:
UBLOX M10 Chip: This GPS module utilizes the UBLOX M10 chip for optimal performance and reliability.
Fast Start-up Time: The built-in farad capacitor allows for a faster hot start, saving you time.
Onboard LNA: The onboard Low Noise Amplifier improves signal reception quality and enhances GPS performance.
High Refresh Rate: The 10 Hz refresh rate ensures that your GPS data is always up to date.

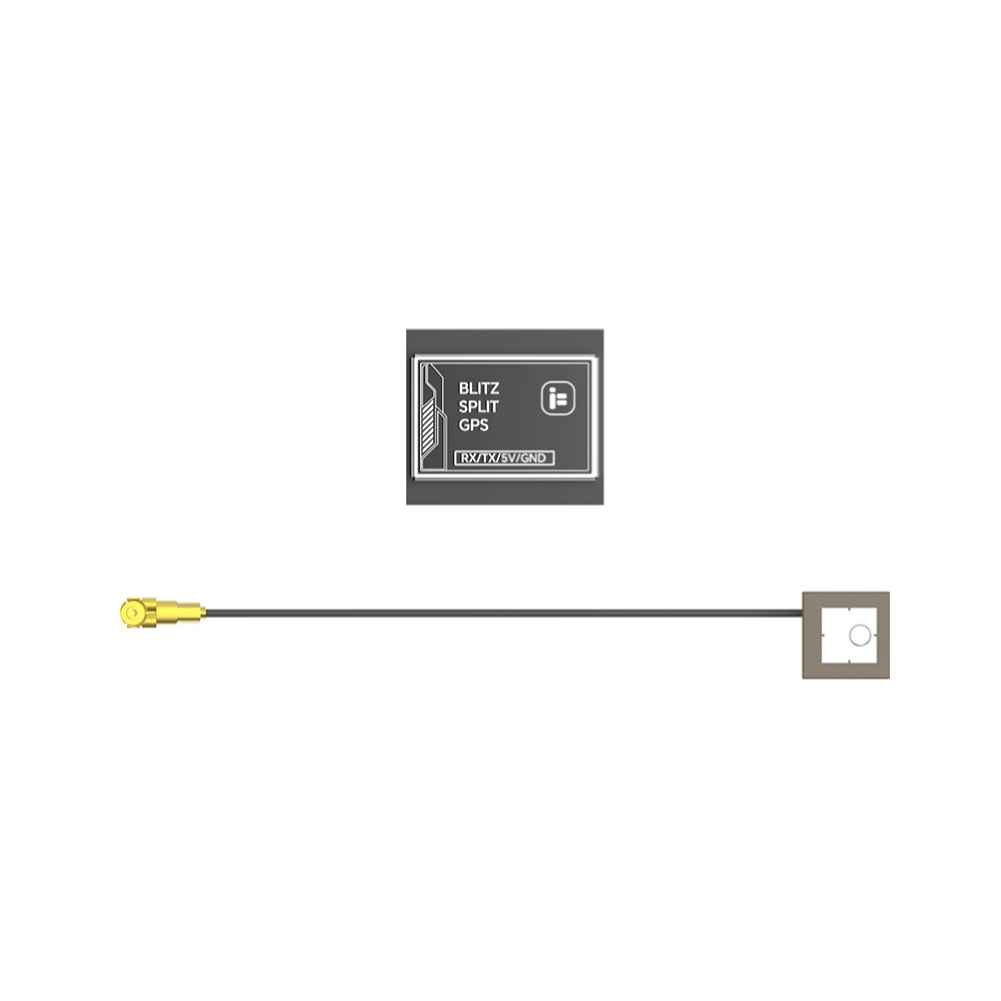

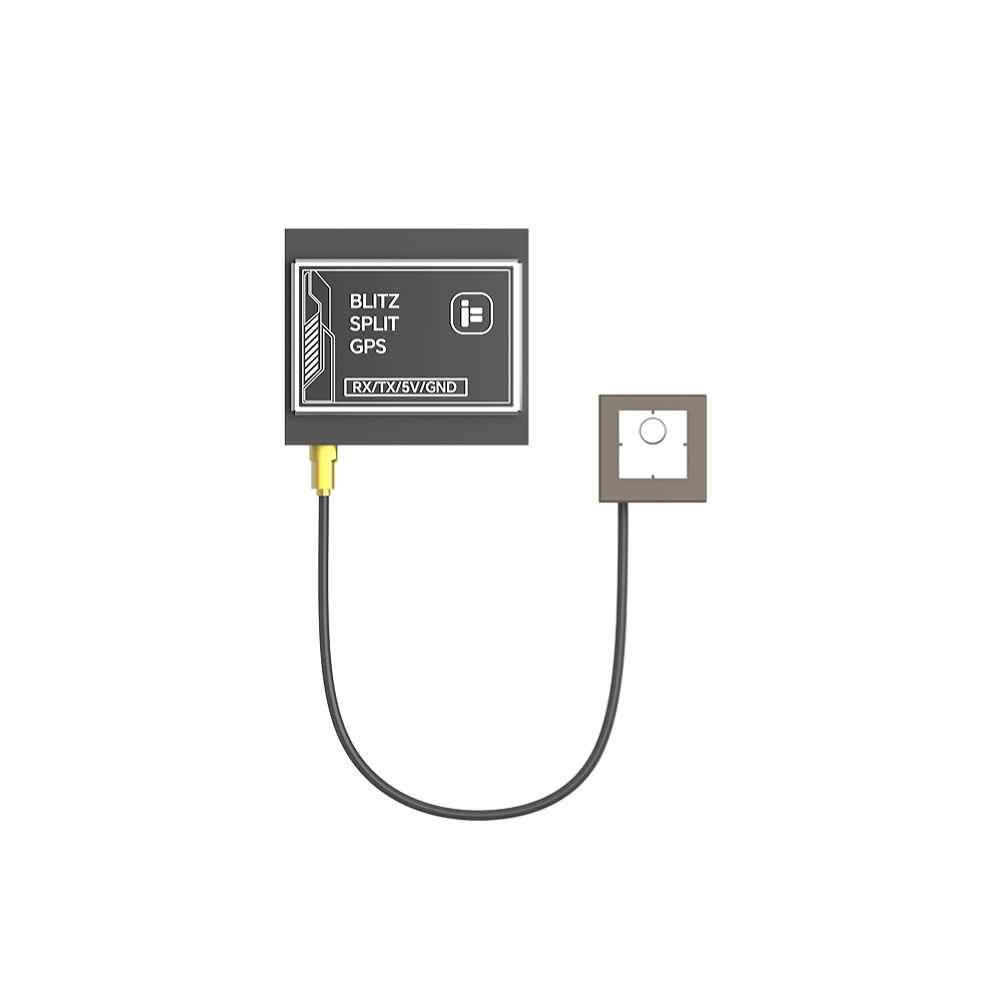

Compact and Concealable Design: The split antenna design allows the antenna to be hidden inside the drone, maintaining a sleek and aerodynamic look.
Package Included:
1 x BLITZ SPLIT GPS
1 x Cable set
