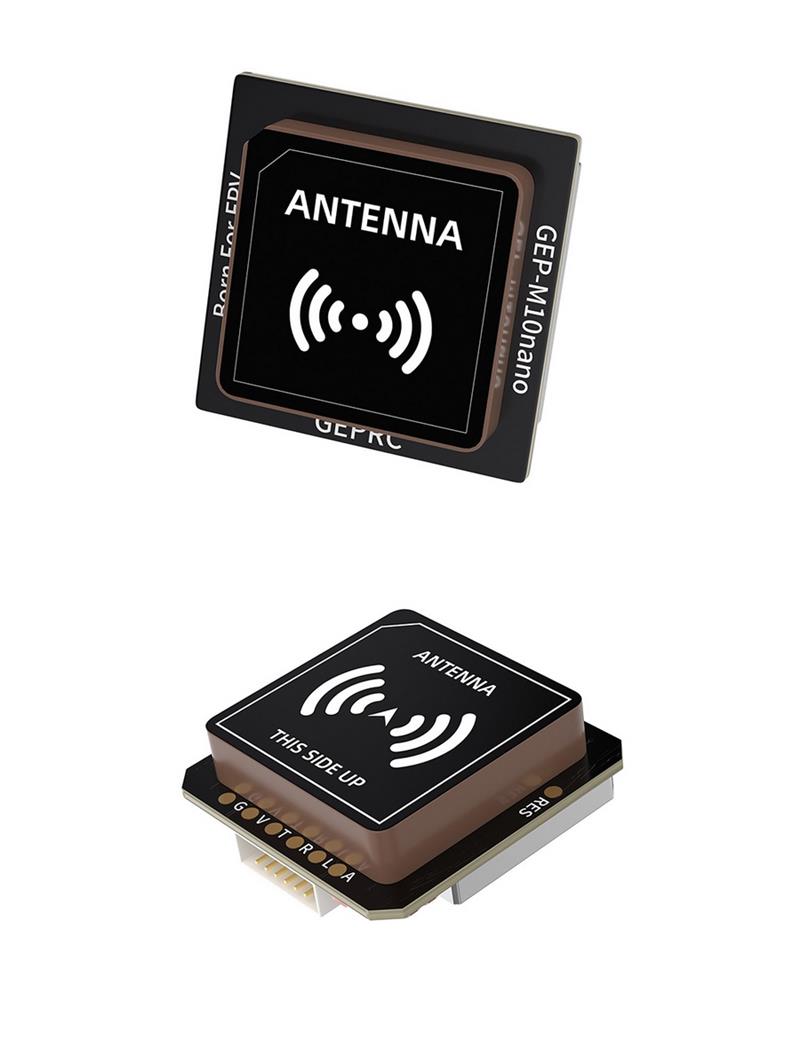

Geprc GEP M10 Series GPS Module 3.3-5V M10 Chip Barometer BDS Galileo QZSS SBAS with Onboard Indicator Light for FPV Racing Drone RC Airplane Mulit-Rotor Quacopter
The GEPRC GEP M10 Series GPS Module is designed for FPV racing drones, RC airplanes, and multi-rotor quadcopters. Featuring the u-blox M10 chip, this module offers high-speed positioning and supports GPS, BDS, Galileo, QZSS, and SBAS joint positioning. It can connect to up to 32 satellites for precise and reliable location data. The compact size ensures easy integration without adding unnecessary weight. Equipped with a built-in Flash chip and farad capacitor, it allows for a fast hot start by saving configuration parameters. The GEP-M10-DQ version includes an integrated QMC5883L magnetometer and DPS310 barometer for enhanced sensing capabilities.
Specifications:
Brand: Gerpc
Model: M10 GPS
Optional Version: M10 Nano / M10 / M10 DQ
Input Voltage: 3.3V-5V
GPS chip: u-blox M10
Receiving frequency: GPS L1,GLONASS L1,BDS B1,GALILEO E1,SBAS L1,QZSS L1
Operating mode: GPS+BDS+LALILEO+QZSS+SBAS joint positioning
Channel: 72ch
Navigation satellits: Up to 32 pieces
Baud rate: 115200bps
Output Frequency: 10Hz
Speed Accuracy: 0.05 m/s
Horizontal positioning accuracy: 2D ACC1.5m(Weather)
Timing accuracy: 30 ns
Receiver sensitivity: Trace-162dBm, Capture-160dBm
Dynamic characteristics: Max Height: 50000m, Max Speed: 500m/s
Maximum acceleration: 4G
Features:
Compact Size: The GEP-M10 series GPS positioning module features a small size, making it ideal for FPV drones, multi-rotors, fixed-wing aircraft, and other model products. Its compact design allows for easy integration without adding excessive weight or bulk.
High-Speed Positioning: Equipped with the u-blox M10 chip, the GPS module offers rapid positioning speed, saving you valuable time during your drone flights.
Multiple Satellit Positioning: Supports GPS+BDS+Galileo+QZSS+SBAS joint positioning and is capable of connecting to up to 32 satellits, ensuring accurate and reliable location data.
Convenient Use: The built-in Flash chip and farad capacitor enable the module to save configuration parameters, ensuring a fast hot start.
Enhanced Sensing: Integrated QMC5883L magnetometer and DPS310 barometer (only GEP-M10-DQ) can provide accurate azimuth pointing and sensitive altitude change data. It can meet the needs of most FPV drones, multi-rotors, fixed-wing and other model products.
Package Included:
1 x GPS module
1 x Terminal wire
1 x Instruction manual
1 x GEPRC sticker
1 x Heat shrink tubing
