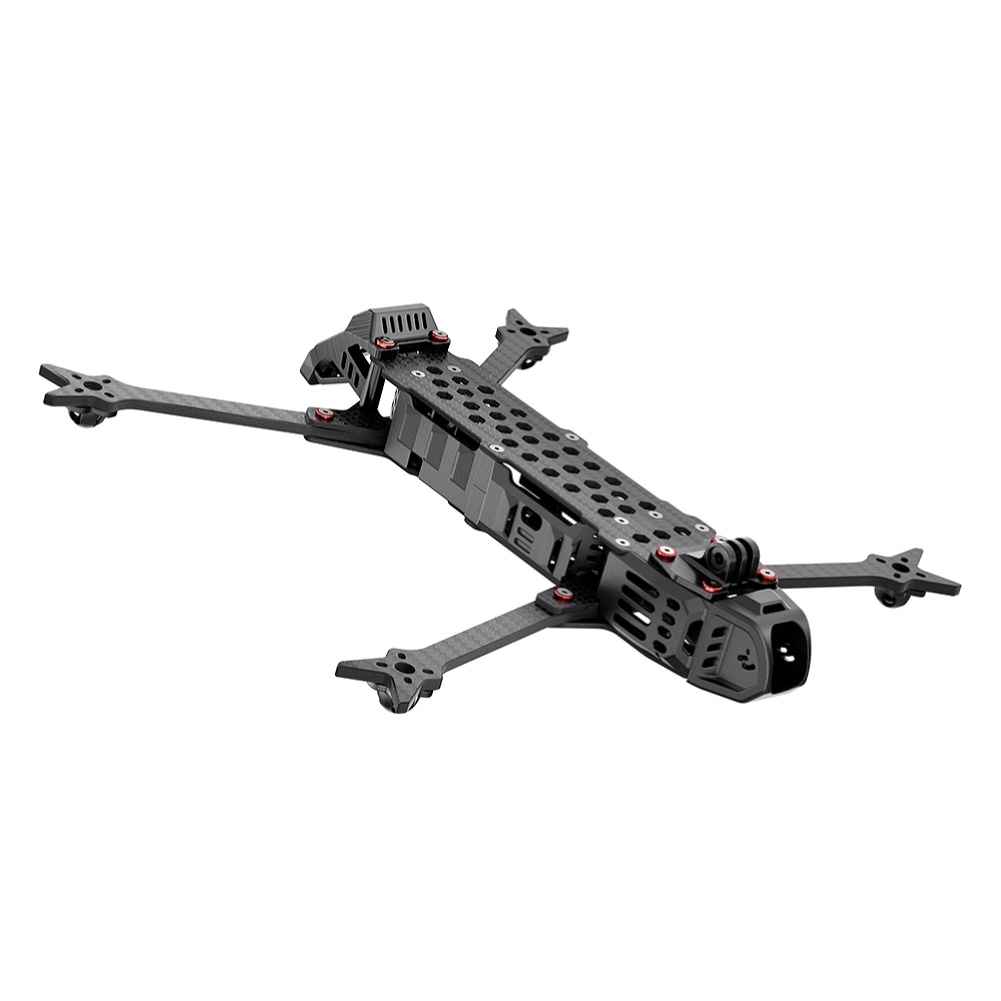

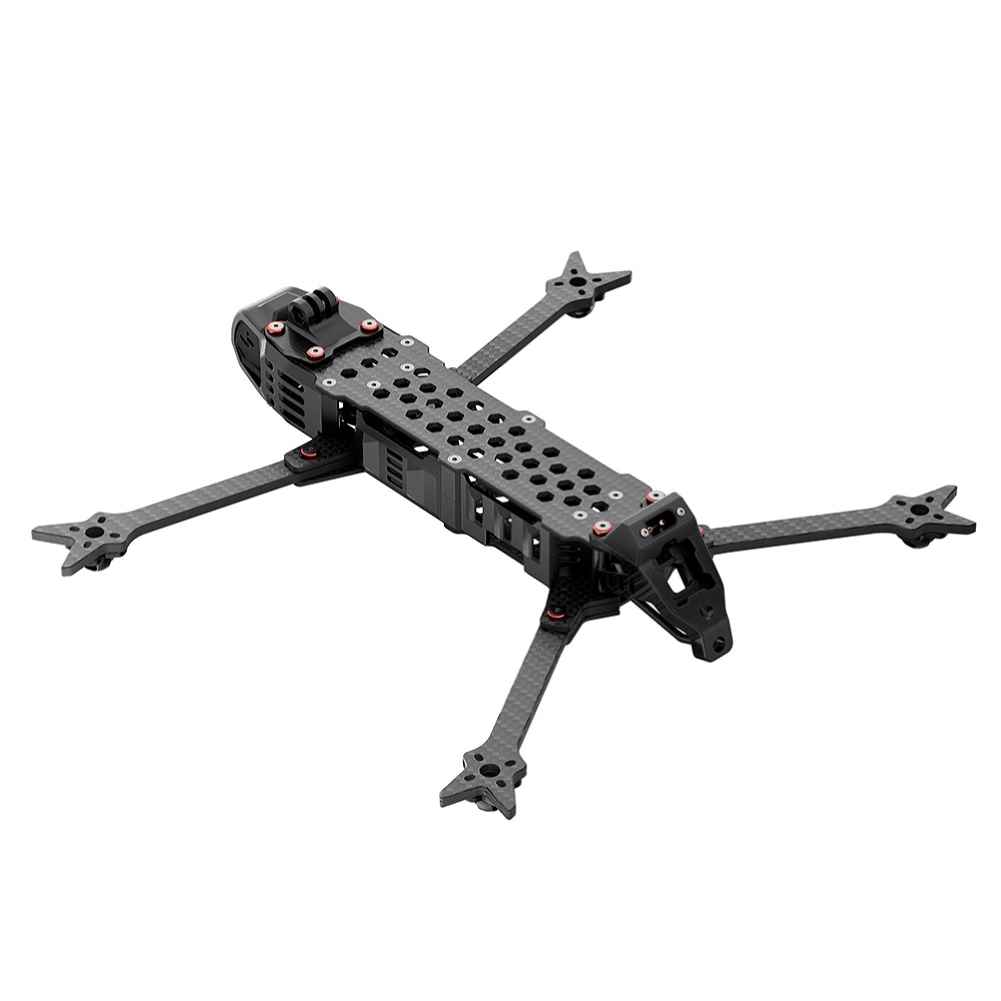

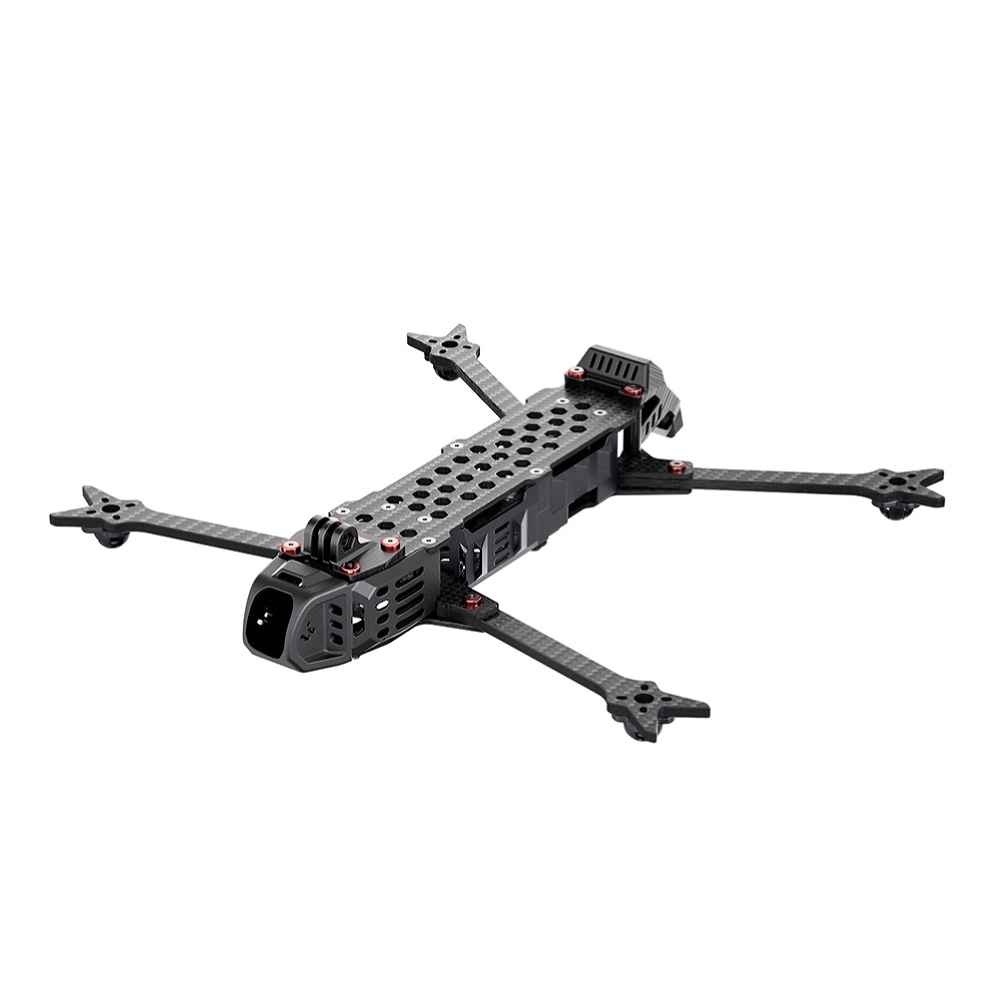

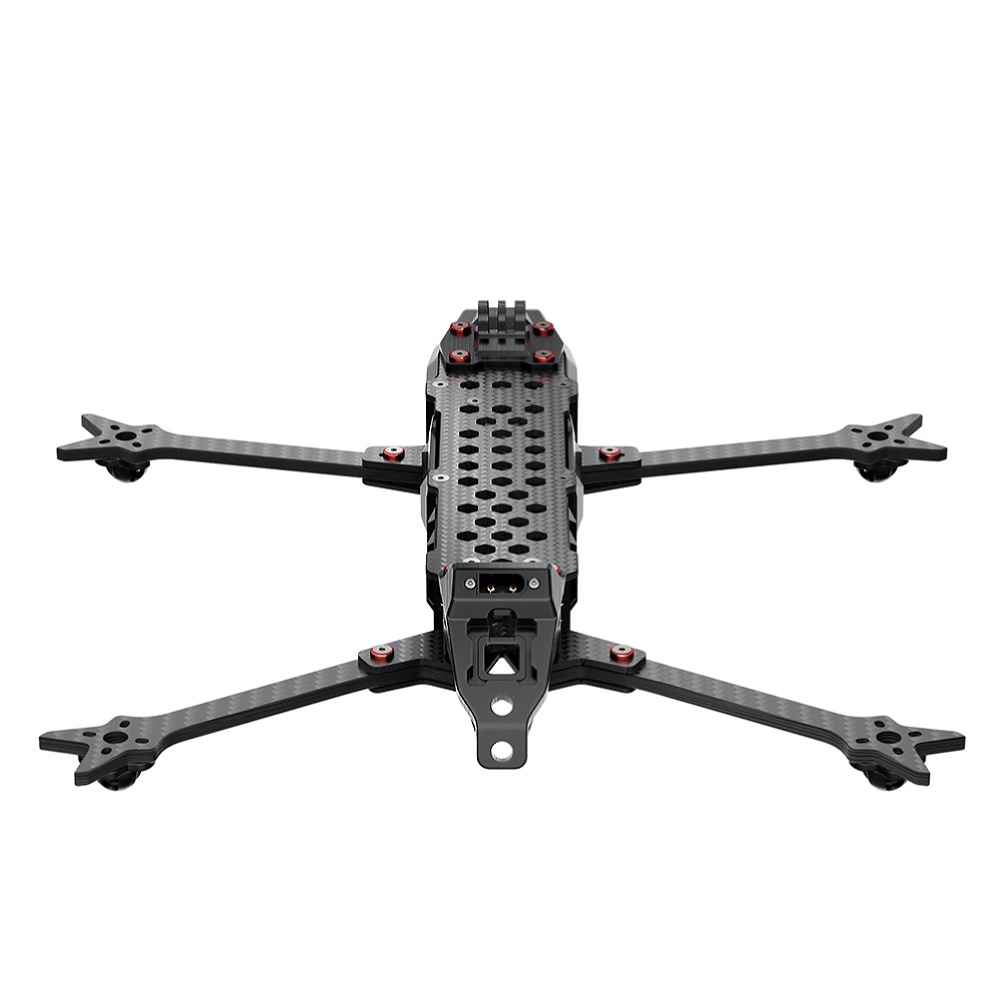

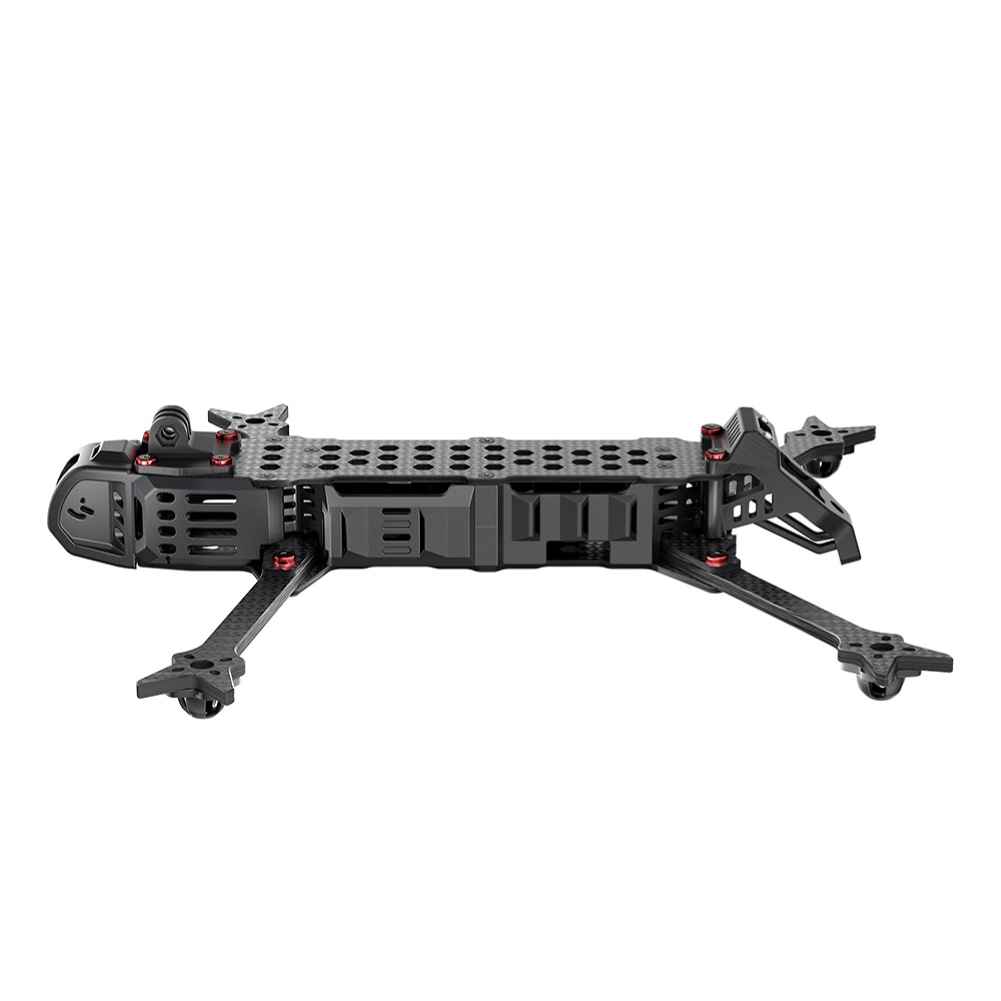

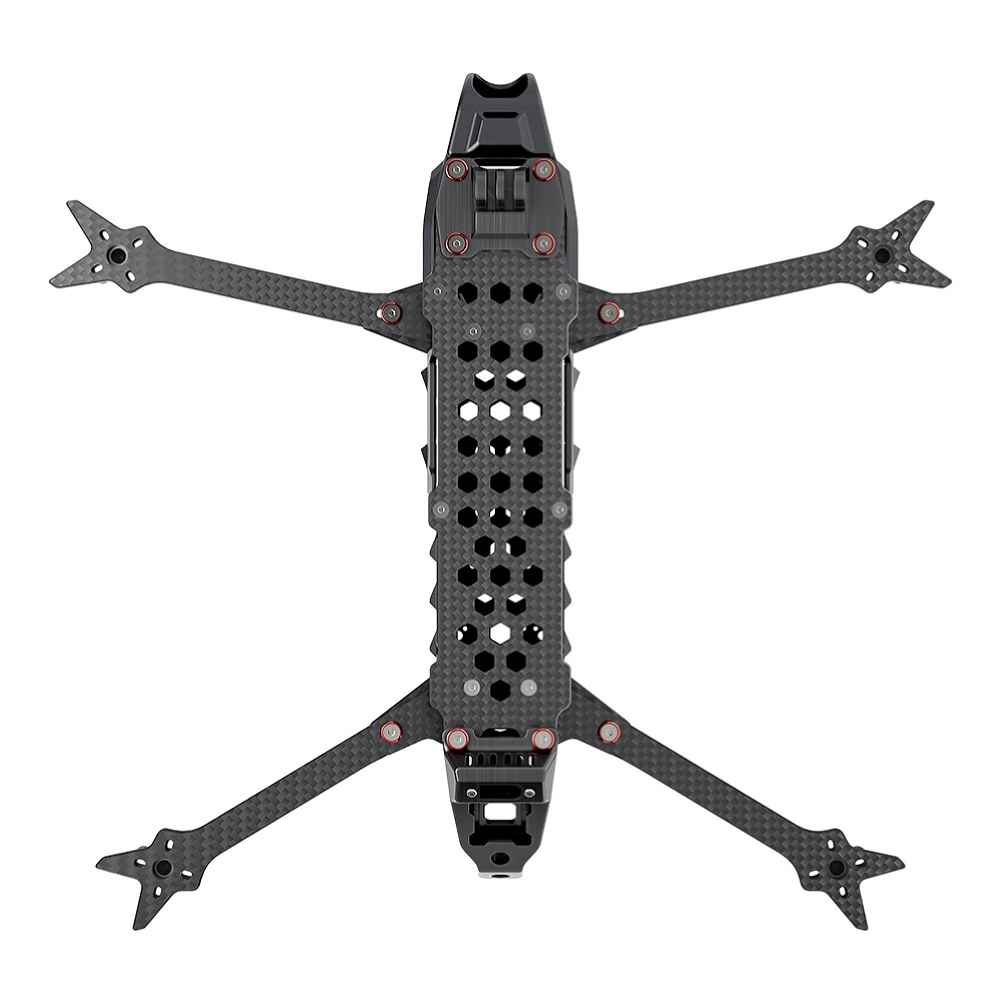

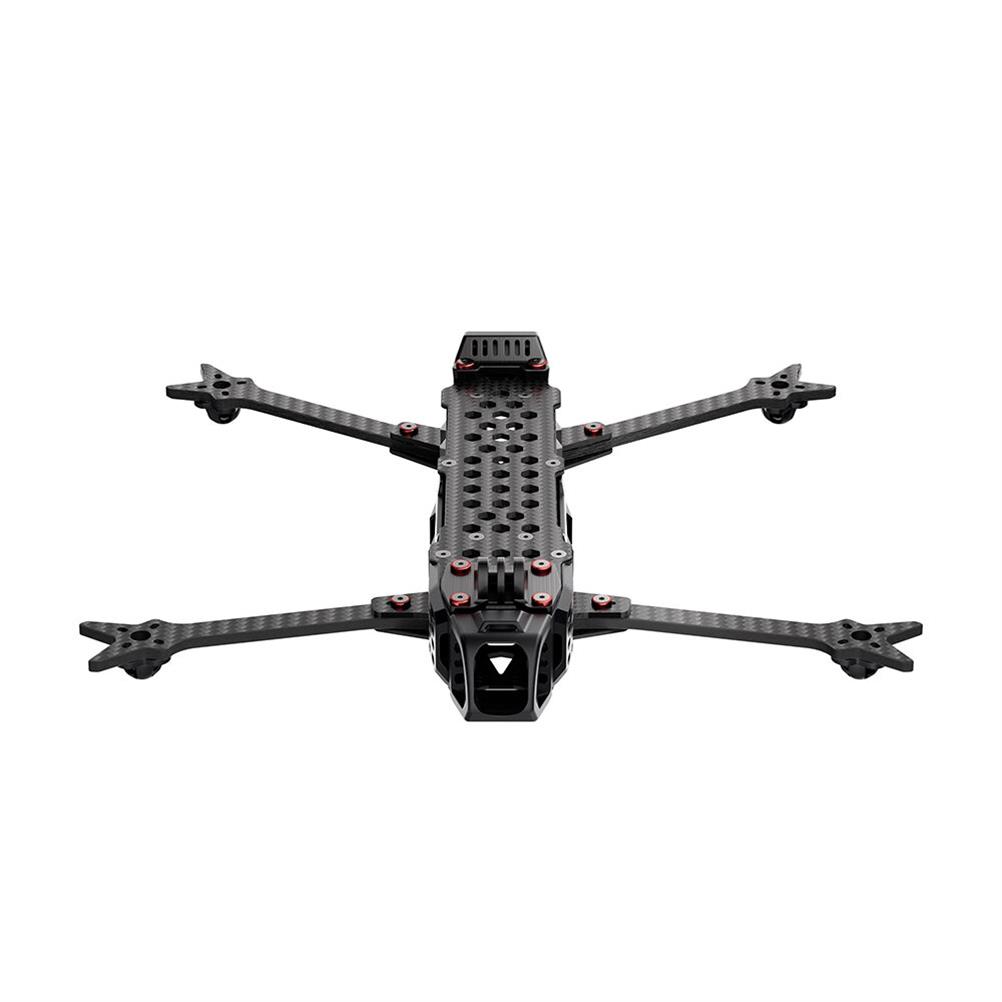

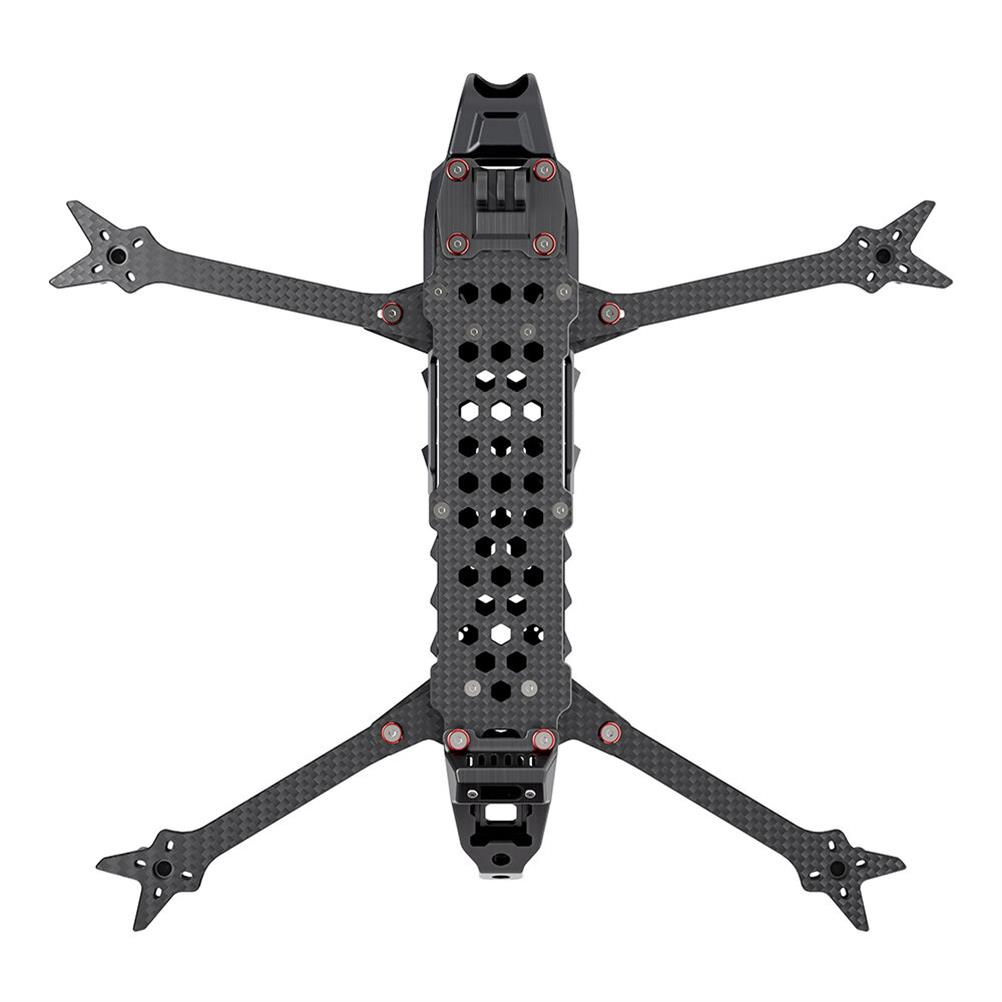

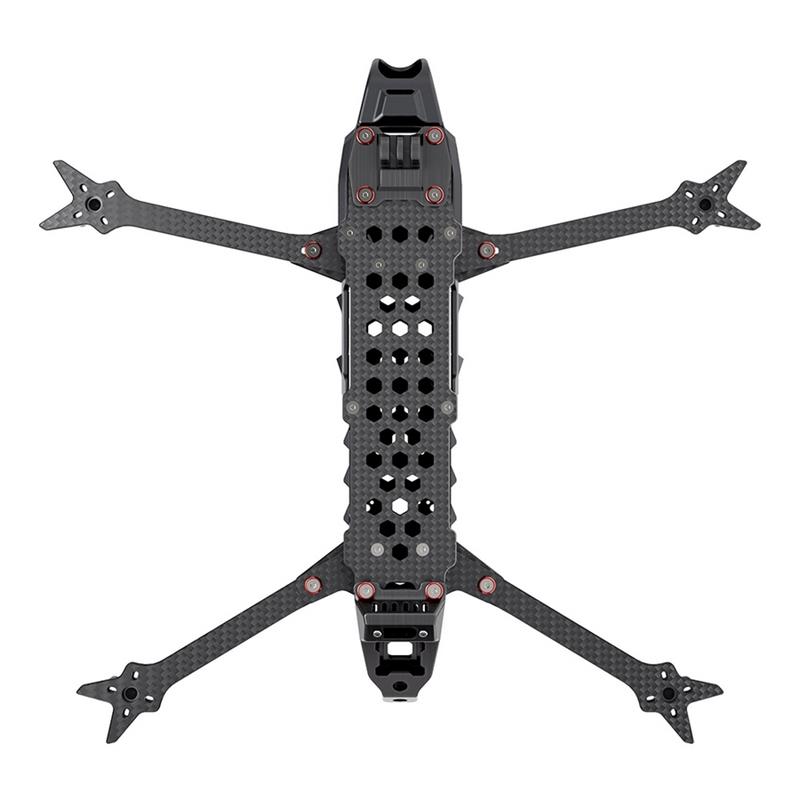

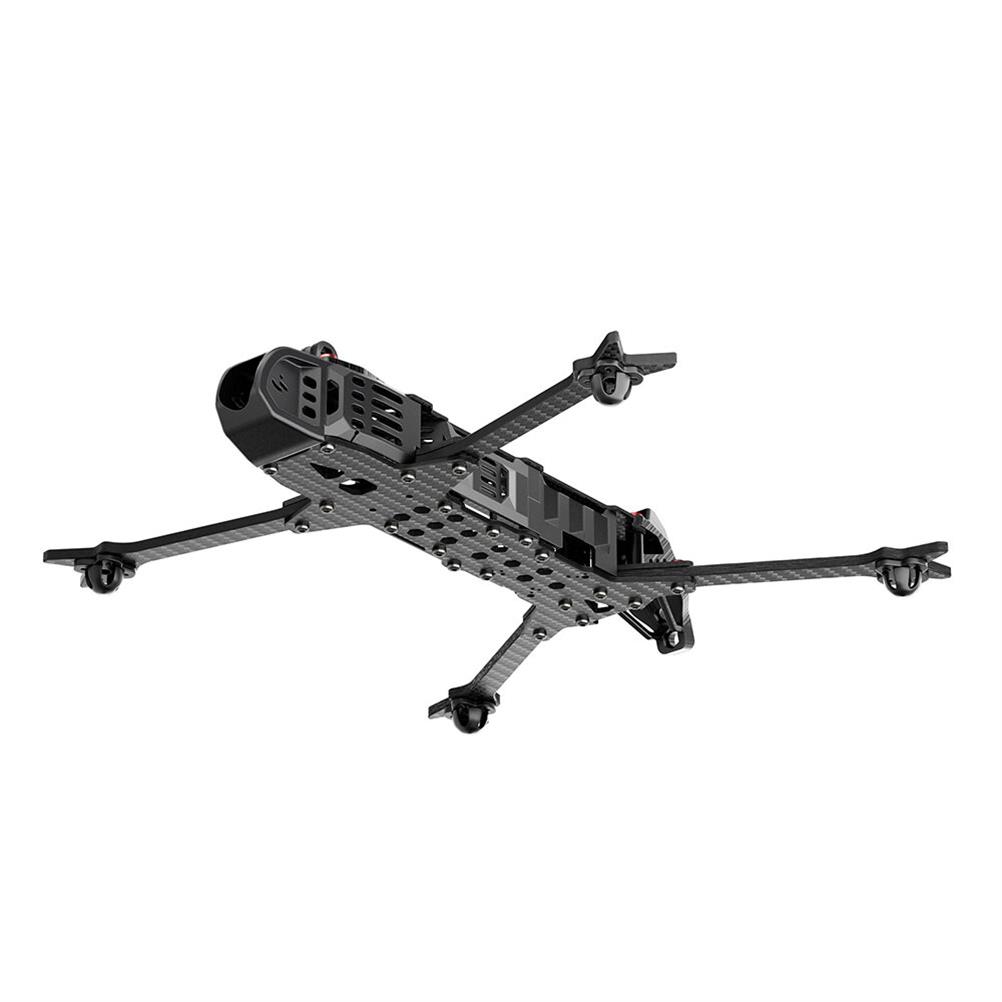

GEPRC GEP LC75 V3 342mm Wheelbase 6mm Arm 7.5 Inch Long Range Frame Kit for DIY RC Drone FPV Racing
The GEPRC GEP LC75 V3 is a 7.5-inch long-range frame kit designed for DIY RC drone FPV racing enthusiasts. It features a 342mm wheelbase and robust 6mm arm plates, providing excellent stability and strength. The frame is equipped with a 2.5mm top plate and a 3.0mm bottom plate, ensuring durability. Its novel design enhances the fuselage structure, reducing vibration impact on gyroscope data. Protective side panels safeguard the electronic control system from dust and sand. The integrated battery plug design simplifies power-on operations, offering both simplicity and aesthetic appeal. Ideal for 7 to 7.5-inch propellers, it supports Lipo 6S 3300mah-4500mah or Lion 6S 6000mah batteries for extended flights.
Specification:
Brand: Geprc
Model: LC75 V3
Size: 7.5 inch
Wheelbase: 342mm
Top plate: 2.5mm
Bottom plate: 3.0mm
Arm plate: 6.0mm
FC mounting hole: 30.5mm*30.5mm
VTX mounting hole:20mm*20mm / 25.5mm*25.5mm
Motor mounting hole: 16mm*16mm / 19mm*19mm
Camera mounting hole: 19mm / 20mm
Recommended propeller size: 7-7.5inch
Weight: 266g
Feature:
Adopt a novel appearance design, strengthen the fuselage structure, and reduce the impact of fuselage vibration on the gyroscope sampling data.
The fuselage adds protective side panels for a more technological appearance and to protect the electronic control system from sand and dust pollution.
The integrated design of the battery plug and the body simplifies the power-on operation, simplicity and beauty.
Perfect match for 7-inch or 7.5-inch propellers
The Crocodile75 V3 frame has a lengthier fuselage, can be mounted with Lipo 6S 3300mah-4500mah or Lion 6S 6000mah battery for flight.
Package Included:
1 x GEP-LC75 V3 top plate
1 x GEP-LC75 V3 bottom plate
4 x GEP-LC75 V3 arms plate
1 x GEP-LC75 V3 front splint plate
1 x Header printed parts
1 x Tail printed parts
1 x GP camera base
4 x Motor damping pad
1 x Nylon front side plate (Pair)
1 x Nylon Rear side plate (Pair) (for DJI O3 version)
1 x Nylon Rear side plate (Pair) (universal version)
1 x XT60EW-M plug
2 x Rubber elastic anti-slip straps 20 250mm
4 x Motor wire hub 60mm
10mm Screw kits: 4 x M3 5 30 mesh aluminum columns
4 x M3 5 21.5 mesh aluminum columns
10 x M3 Countersunk head Gaskets 每 wine red
6 x M3 pressed Rivet nuts
8 x M3 8 shock absorbing balls
10 x countersunk hexagon socket screws M3 8
4 x countersunk hexagon socket screws M3 12
4 x Hexagon socket screws with semicircular head M3 8
16 x Hexagon socket screws with semi-round head M3 11
8 x semi-round head hexagon socket screws M3 16
4 x countersunk hexagon socket screws M3 16
4 x Hexagon socket screws with semi-round head M3 25
6 x M3 aluminum alloy hexagonal lock nuts
2 x Hexagon socket screws with half round head M2 6
4 x round head hex socket screws with pad M2 4
4 x Silicone gasket for DJI O3 Air Unit
6 x Cup-head hex socket screws M1.6 12
4 x Hexagon socket screws with half round head M2 23
4 x Self-tightening nuts M2
4 x Nylon columns M2 5
4 x Hexagon socket screws with half round head _ Black Nickel plated M2 7
4 x M2 Nylon nuts
8 x Hexagon socket screws with semicircular head M3 6
4 x black mesh M3 13 aluminum columns
