Description
4PCS EMAX ECO II 2306 1900KV 3-6S 2400KV 3-4S Brushless Motor for FPV Racing RC Drone
The EMAX ECO II 2306 Brushless Motor is engineered for FPV racing RC drones, offering two KV options: 1900KV and 2400KV. This motor features a robust 12N14P framework and precision bearings for enhanced performance. With a length of 31.6mm and a diameter of 28mm, it is compatible with 3-6S and 3-4S cells for 1900KV and 2400KV respectively. The motor’s steel shaft and anodized finish ensure durability, while the multi-strand winding and 120mm 20 AWG silicone wire provide efficient power delivery. The M5 prop adapter shaft thread and 16mm hole pattern facilitate easy installation.

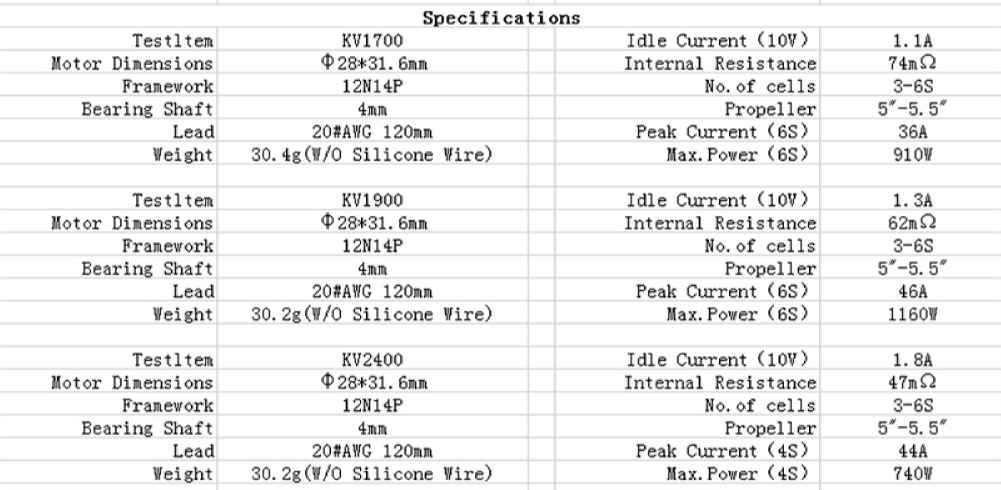

Specifications:
Brand: Emax
Item Name: EMAX ECO II 2306 Motor
KV: 1900KV/ 2400KV (Optional)
Framework: 12N14P

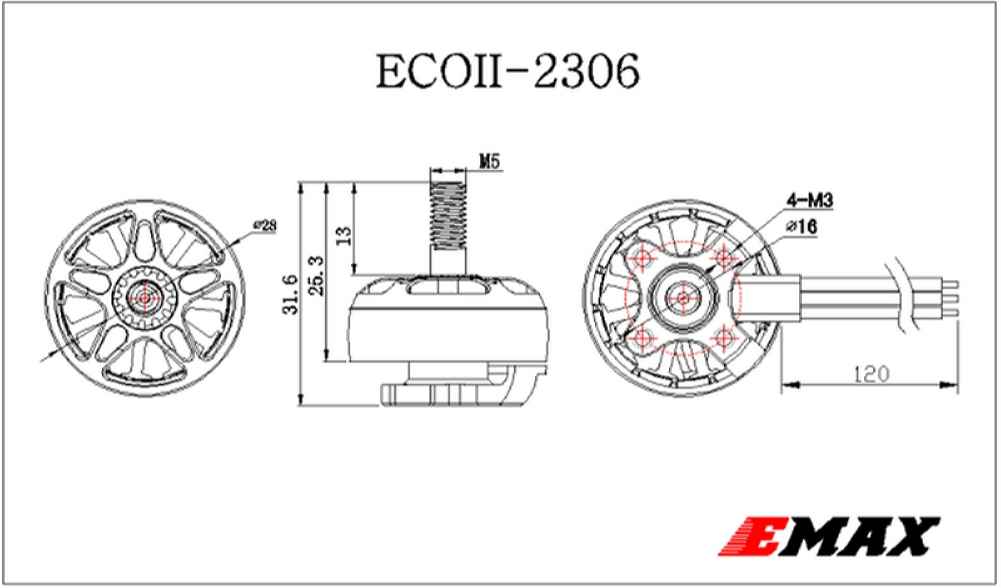

Length: 31.6mm
Diameter: 28mm
No.of cells: 3-6S 1900KV
No.of cells: 3-4S 2400KV
Propeller: 5′-5.5′
Weight: 30.4g(W/O Silicone Wire) 1700KV
Weight: 30.2g(W/O Silicone Wire) 1900KV
Weight: 30.2g(W/O Silicone Wire) 2400KV
Prop adapter shaft thread: M5
Bearing Shaftㄩ4mm
Shaft ThreadㄩCW
Feature:
Precision bearing
Steel shaft
Anodizing
16*16mm hole pattern
Multi-strand winding
120mm 20 AWG silicone wire

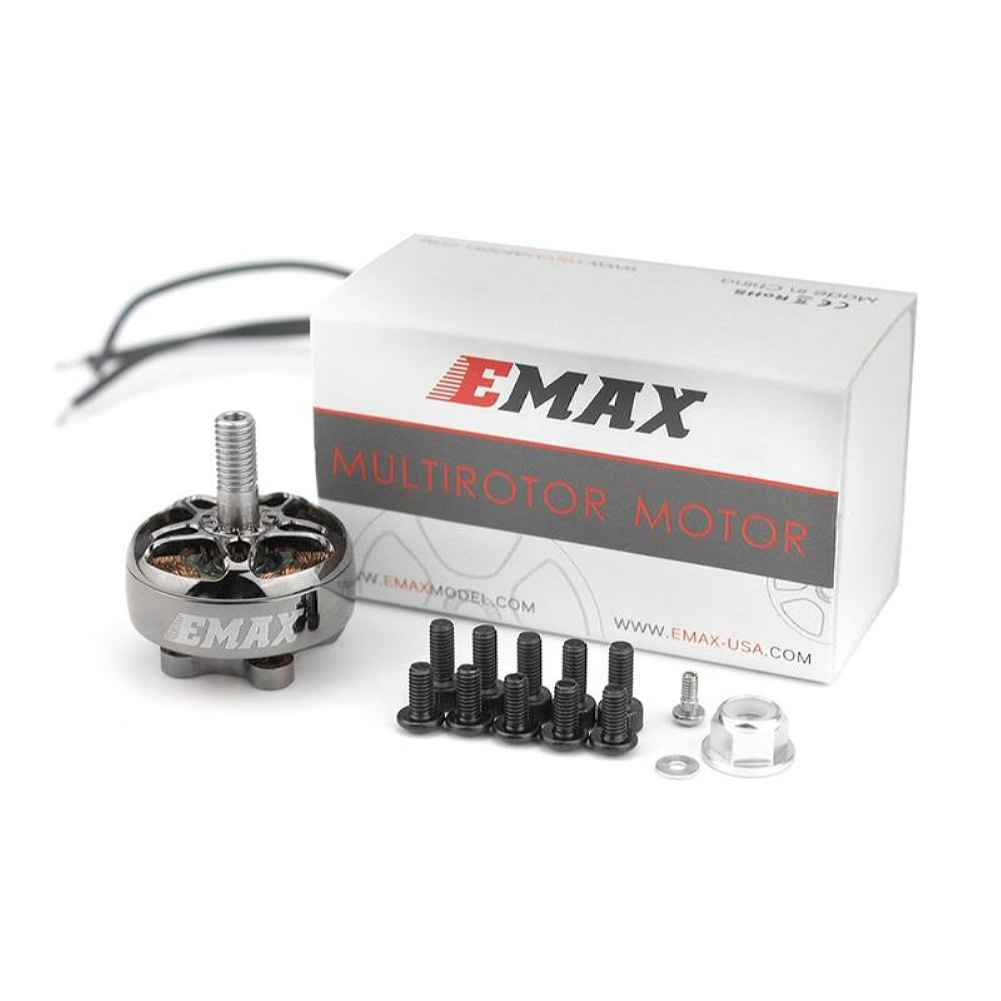

Package Included:
4 x EMAX ECO II 2306 Motor
20 x M3 8 Screw
20 x M3 7 Screw
20 x M3 6 Screw
4 x Aluminum M5 Nylock Nut
4 x Washer and Screw for Shaft
