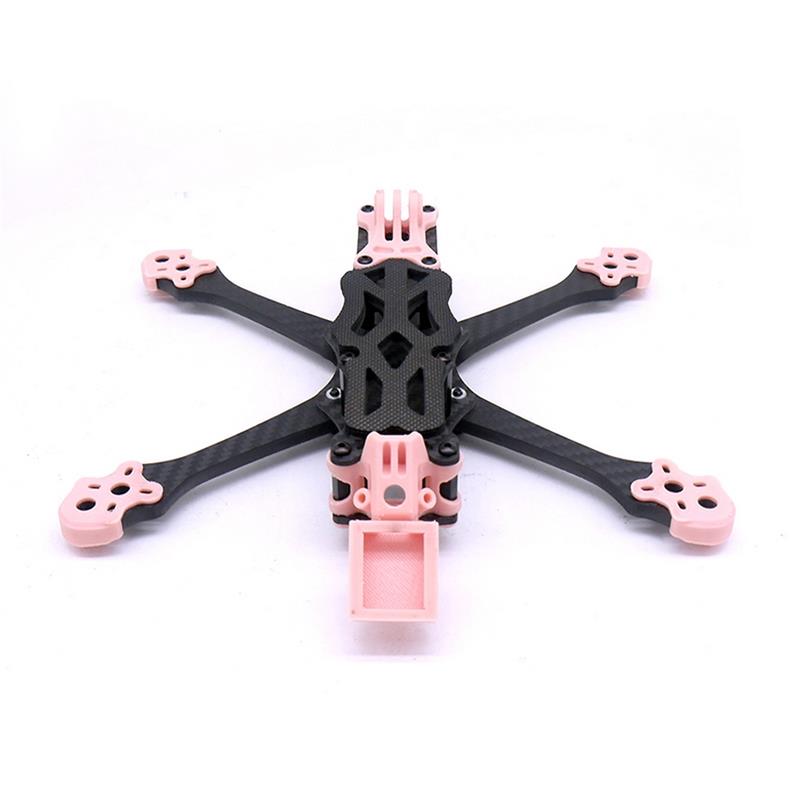

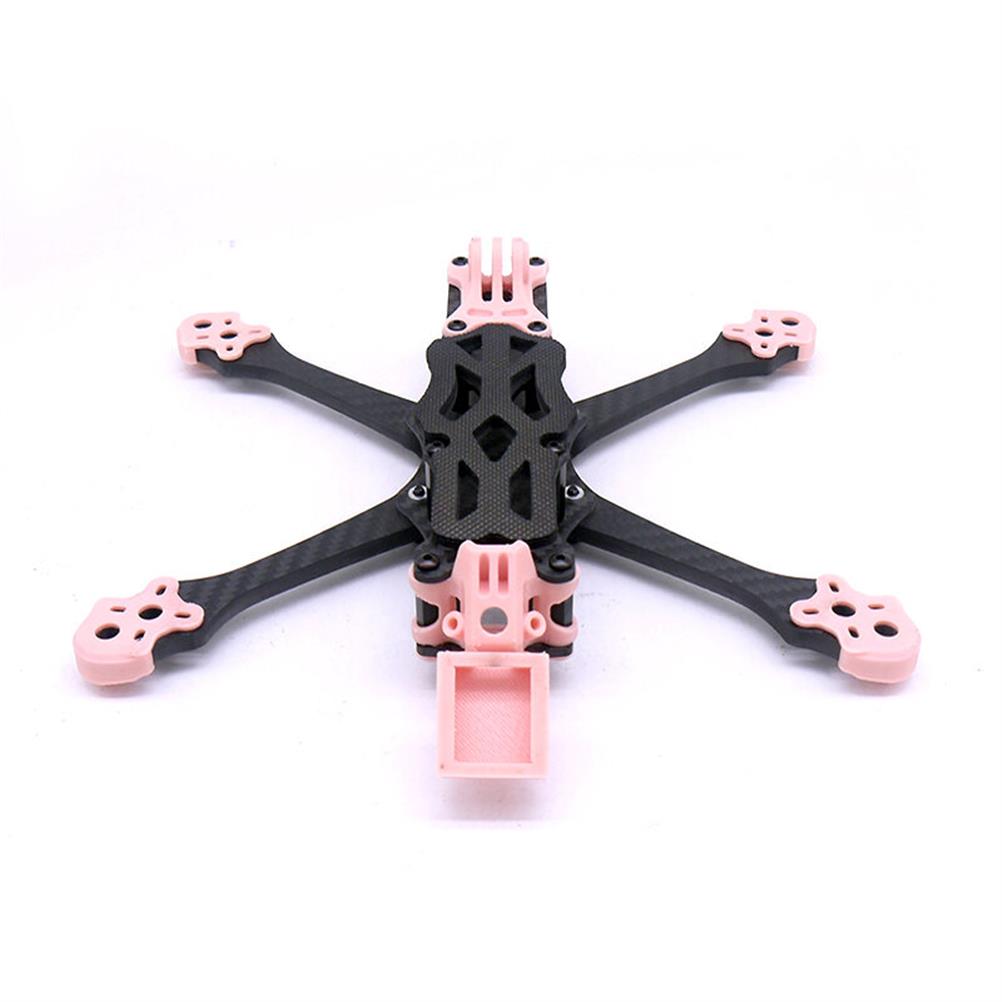

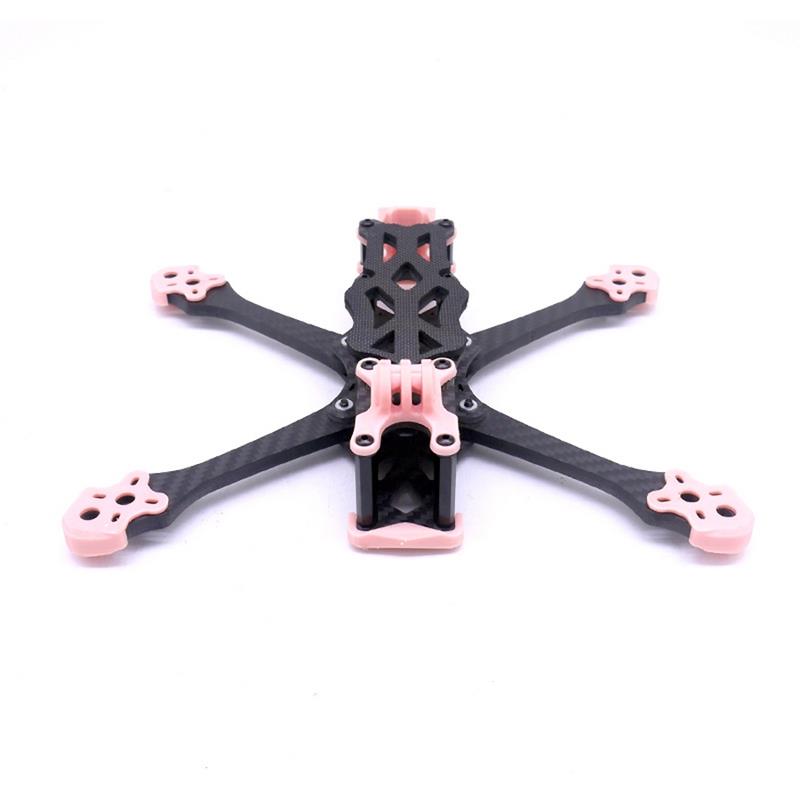

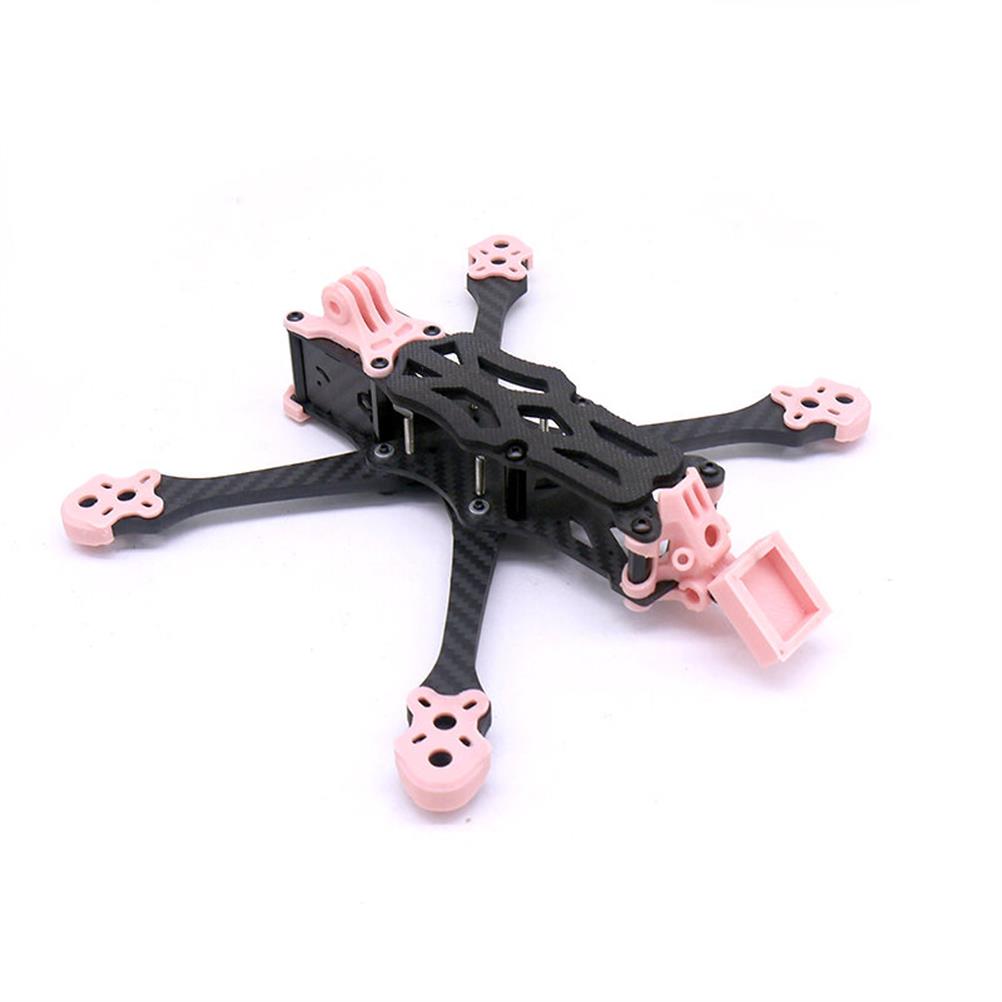

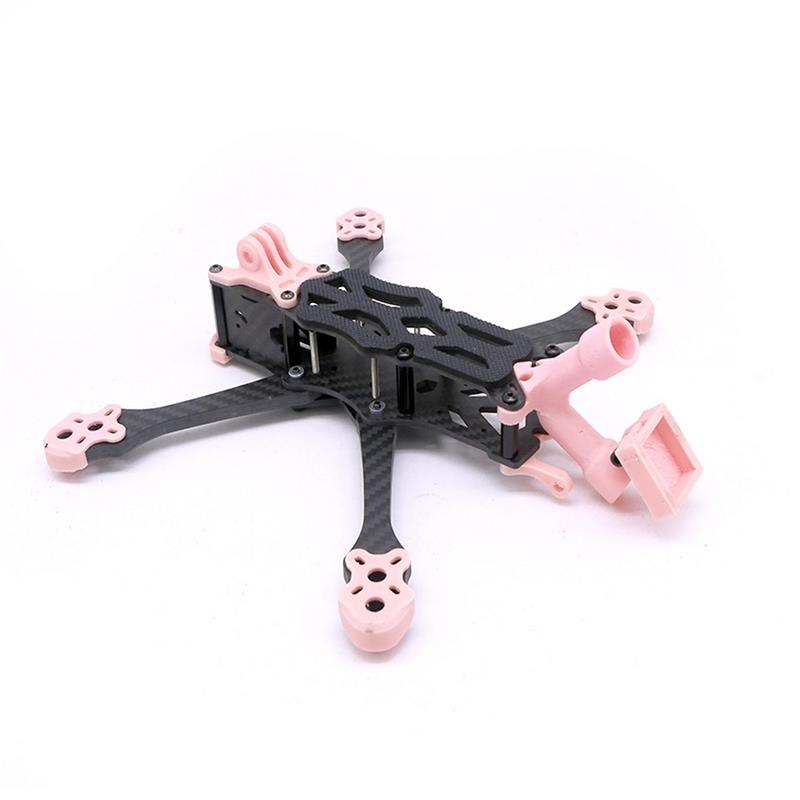

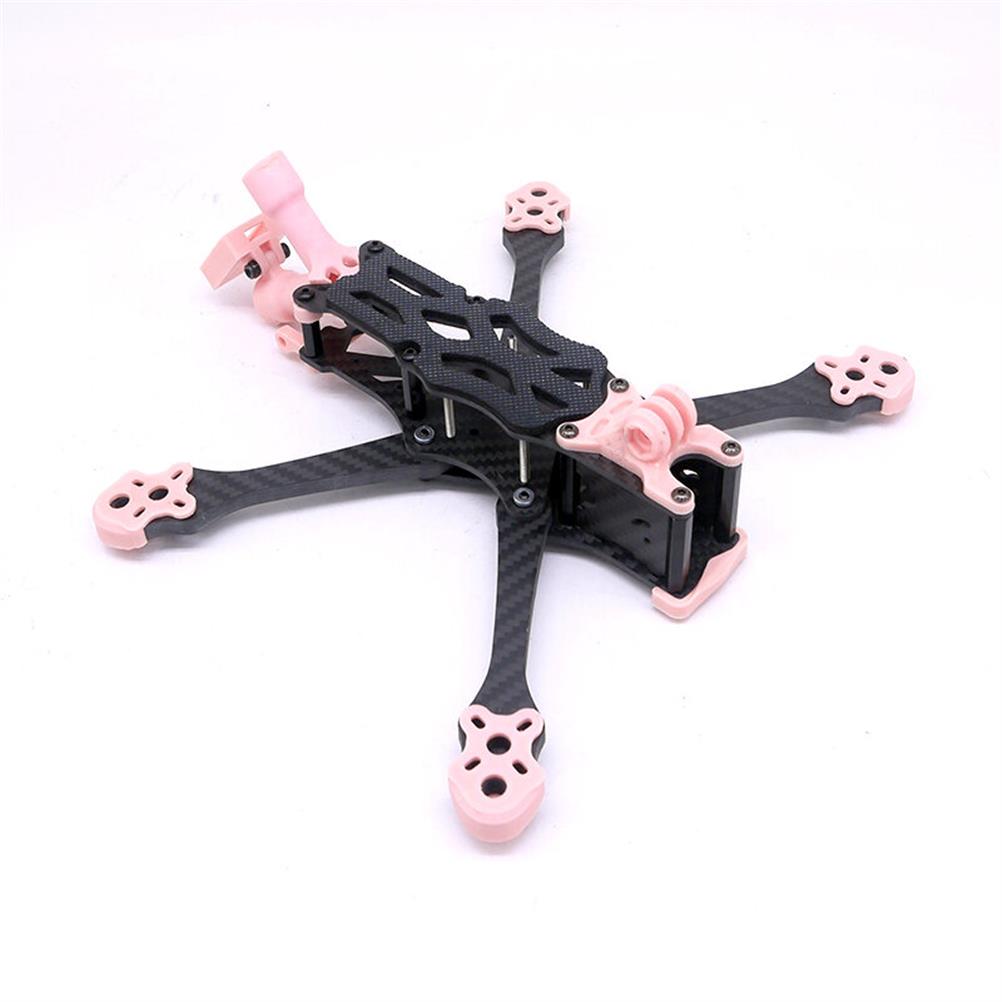

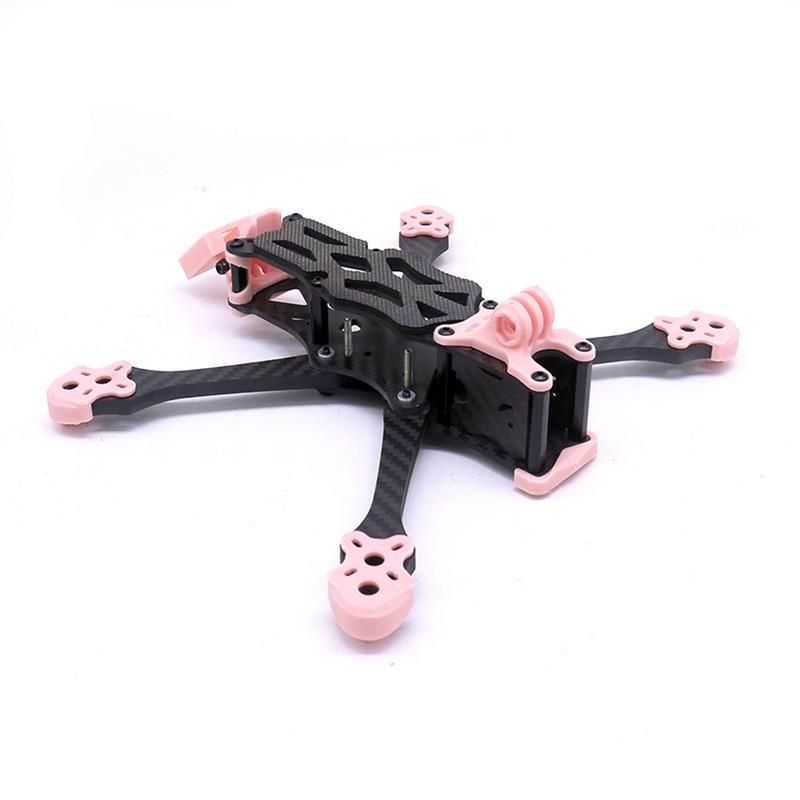

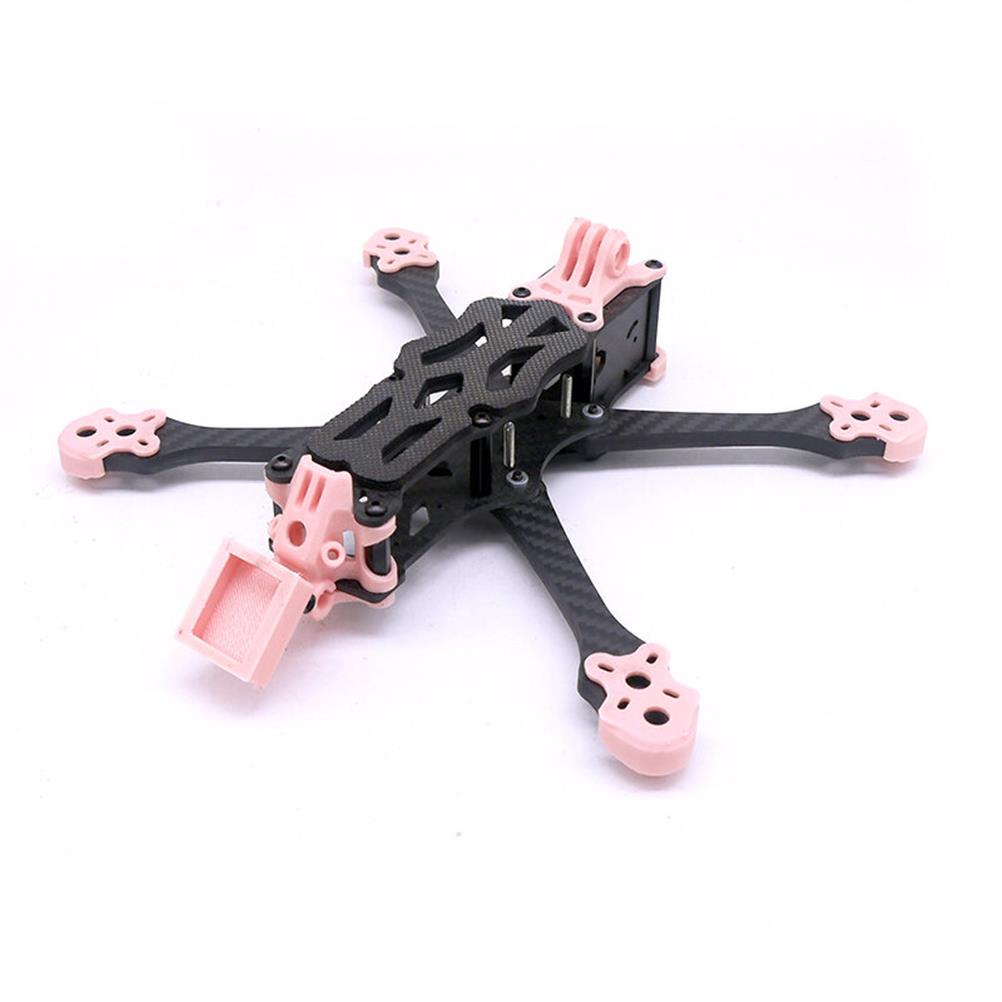

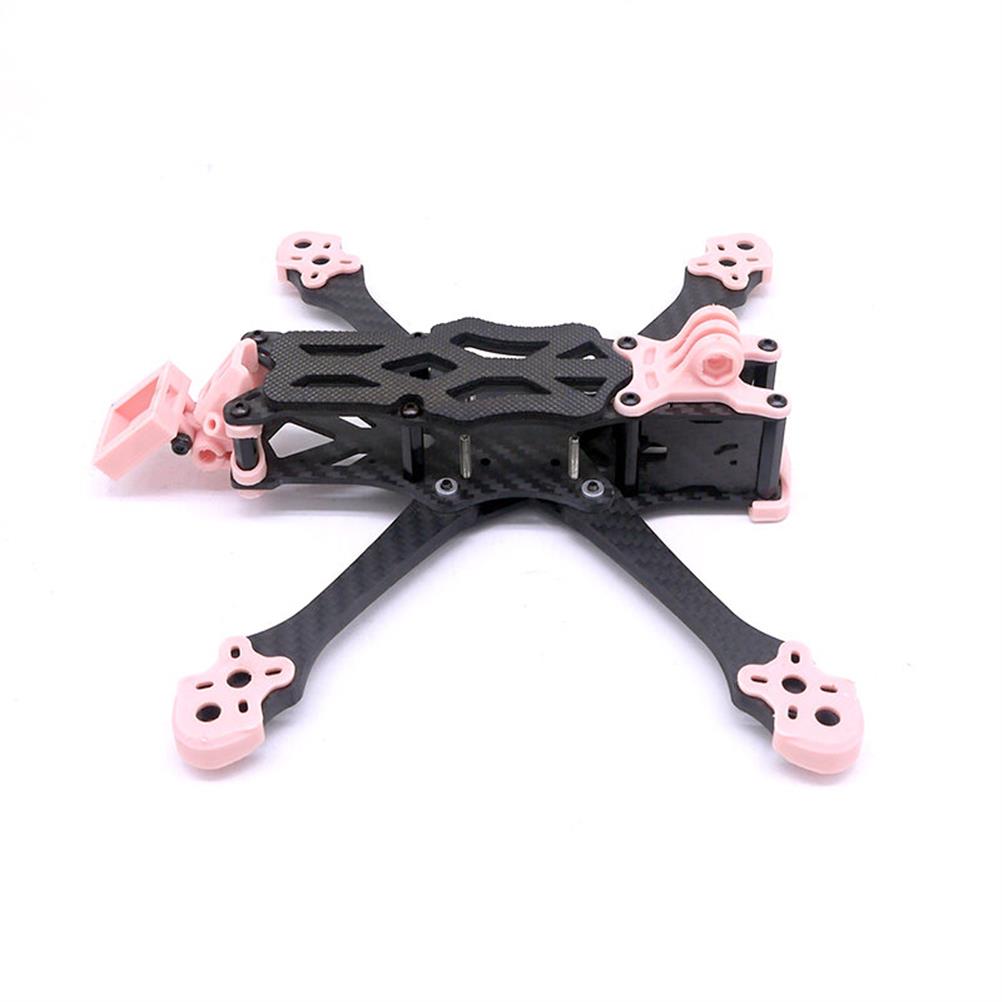

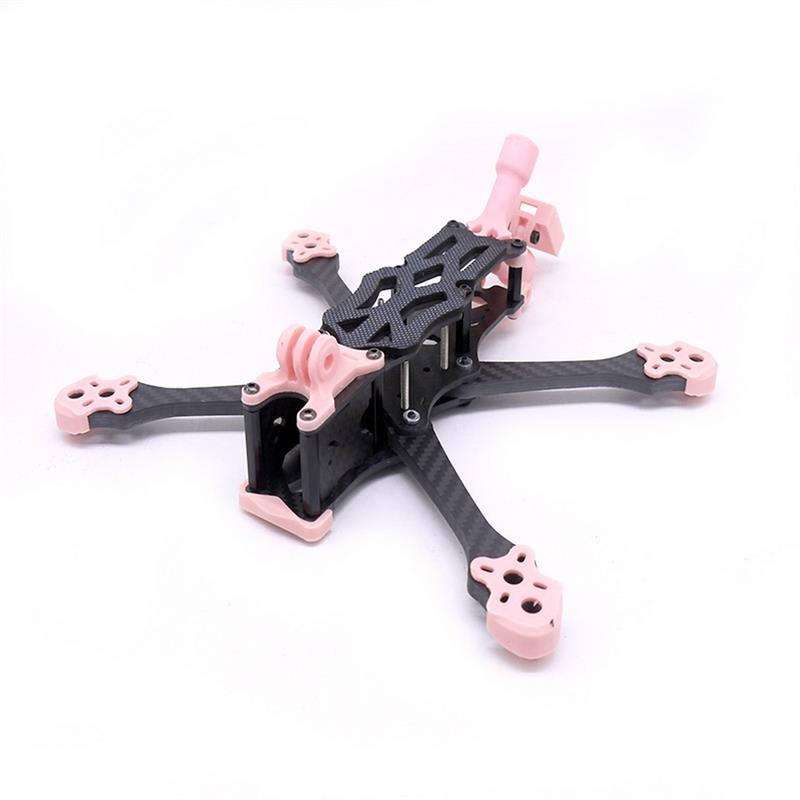

Teosaw Turbo 5S 223mm Wheelbase 5.5mm Arm Thickness 5 Inch Frame Kit Support DJI / Vista HD Digital System for FPV Racing Drone

Teosaw Turbo 5S 223mm Wheelbase 5.5mm Arm Thickness 5 Inch Frame Kit Support DJI / Vista HD Digital System for FPV Racing Drone

Specification:
Model: Turbo 5S
Item Name: 223mm Wheelbase 5 Inch Racing Frame Kit
Wheelbase: 223mm
Material: 3K Carbon Fiber (T700)
Arm Plate Thickness: 5.5mm
Upper Plate Thickness: 2mm
Side Plate Thickness: 2mm
Bottom Plate Thickness: 2.5mm
Center Plate Thickness: 2.5mm
Inner Standoff Height: around 20mm

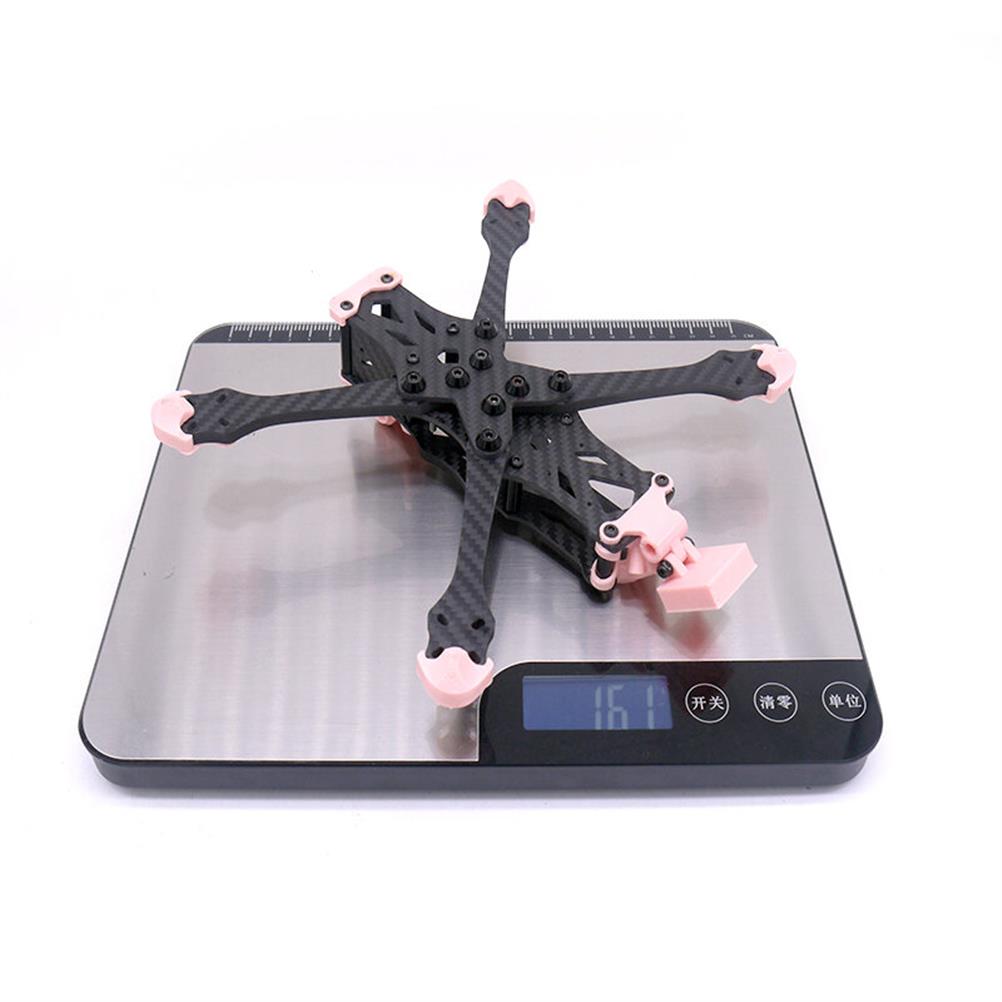

Weight: 161g
Recommend Parts: (NOT Included)
Flight Controller: 20x20mm / 30.5×30.5mm ( M3) F4 / F7 FC
Brushless Motor: 16x16mm(M3) / 19x19mm (M3) Hole , 2204/2205 2207/2306/2405/2307/2308/2506
Propeller: 50XX 5 Inch Prop, Max. 5.1 Inch
VTX Mounting Hole: 20x20mm, M2
FPV Camer AWidth: 22mm ( if use 20mm/ 19mm, need add gasket ; if use 14mm, need use 3d parts invert)
GPS: BN220
The following Parts are Compatible: ( NOT Included)
FC & ESC: 30.5×30.5mm HGLRC Zeus F748 Stack F722 F7 FC w/ 5V 9V BEC & 48 ABL_S 4in1 ESC
20x20mm SKYSTARS Stack F405 Mini HD2 35 A3-6S FC & KM35 4IN1 ESC
Brushless Motor: iFlight XING-E Pro 2207 2207 1800KV 3-6S Brushless Motor
iFlight XING-E 2306 2450KV 2-4S Brushless Motor
Propeller: HQProp DP5X5X3V1S Durable 5050 5X5 5 Inch 3-Blade Propeller
VTX: HGLRC Zeus VTX 5.8G 40CH PIT/25/100/200/400/800mW FPV Transmitter
VTX & Camera: DJI Air Unit / CADDX Air Unit
GPS Module: BN220
Package Included:
1x Turbo 5S 223mm Frame Kit
1x set of 3D Printing Parts
