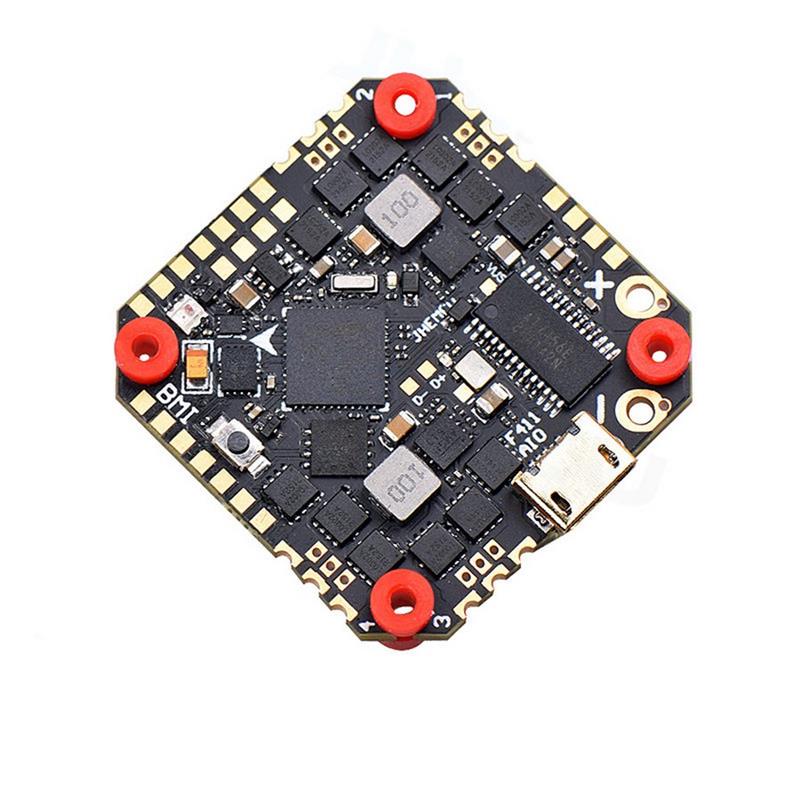

25.5×25.5mm GHF411AIO BMI F4 OSD Blackbox Flight Controller with 5V 10V BEC AIO 40A BLheli_S 4In1 ESC Support Analog Digital HD VTX for RC Drone FPV Racing
Notice:
The BMI270
Gyro change into ICM42688, more stable.
Specification: ( Diagram Picure Link)
Brand: JHEMCU
Model: GHF411AIO BMI
Item Name: F4 Flight Controller AIO 40A ESC
Mounting Hole: 25.5×25.5mm
Dimension: 33x33mm
Weight: 7.6g
| Flight Controller | MCU: STM32F411CEU / 100MHz IMU: ICM42688 / Gyro/ Accel OSD: AT7456E Baro: NO Input Voltage: 2-6S Lipo ( 7.4-26V) Blackbox: 8MB BEC: 5V 2.5 A(+-0.1V), 10V 2 A(+-0.1V) Firmware: betaflight_4.3.0 JHEF411.HEX HD VTX Port: NO UART: UART1, UART2 IIC: IIC1 LED Strip: Support Buzzer: Yes, support 5V Positive USB: Micro USB Current Port: Yes Voltage Sensor: Yes DFU Botton: Yes Receiver: Support SBUS/IBUS/DSM2/DSMX/TBS/ELRS |
| Onboard ESC | Con. Current: 40A MCU: EFM8BB21F16G Type: BLHeli_S Current Sensor: Yes Firmware: G_H_30_REV16_7.HEX Support 48K /96K Firmware: Need flash by buyers ownselves |
Package Included:
1x JHEMCU GHF411AIO BMI Board
4x Anti-Vibration Balls M2x6.5
1x Capacitor
1x XT60
1x Set of Cable
Additional information
| Weight | 0.041 kg |
|---|
