25.5×25.5mm JHEMCU GHF405AIO Pro F4 OSD Blackbox Flight Controller w/ 5V 10V BEC Output AIO 40A BLheli_S 4in1 Brushless ESC Support Analog Digital HD VTX for RC Drone FPV Racing

Original price was: 166.34$.Current price is: 114.72$.

SKU: RC1972141 Category: Multi Rotor Parts

Description

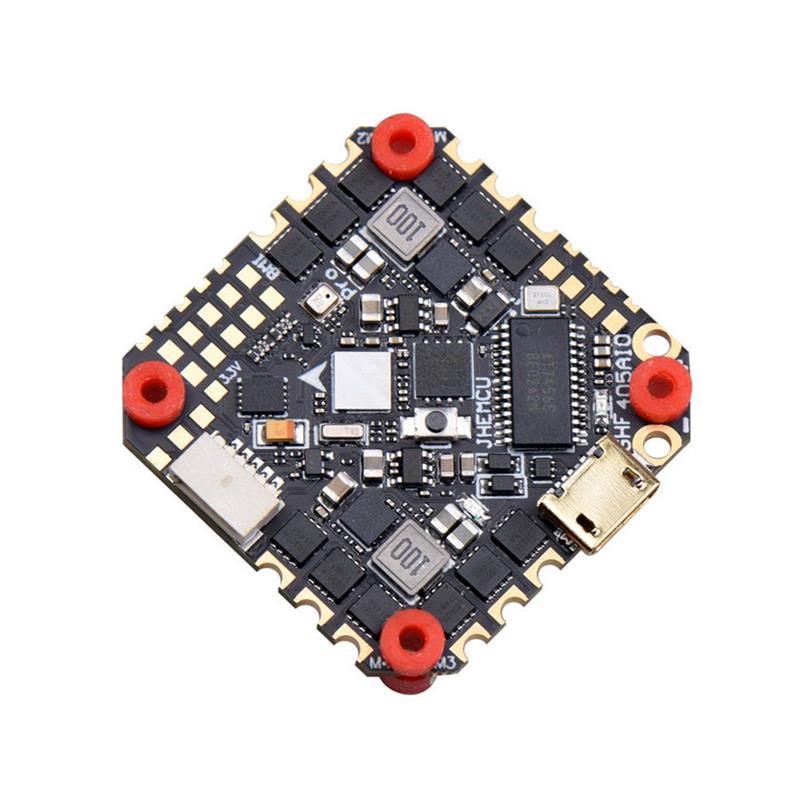

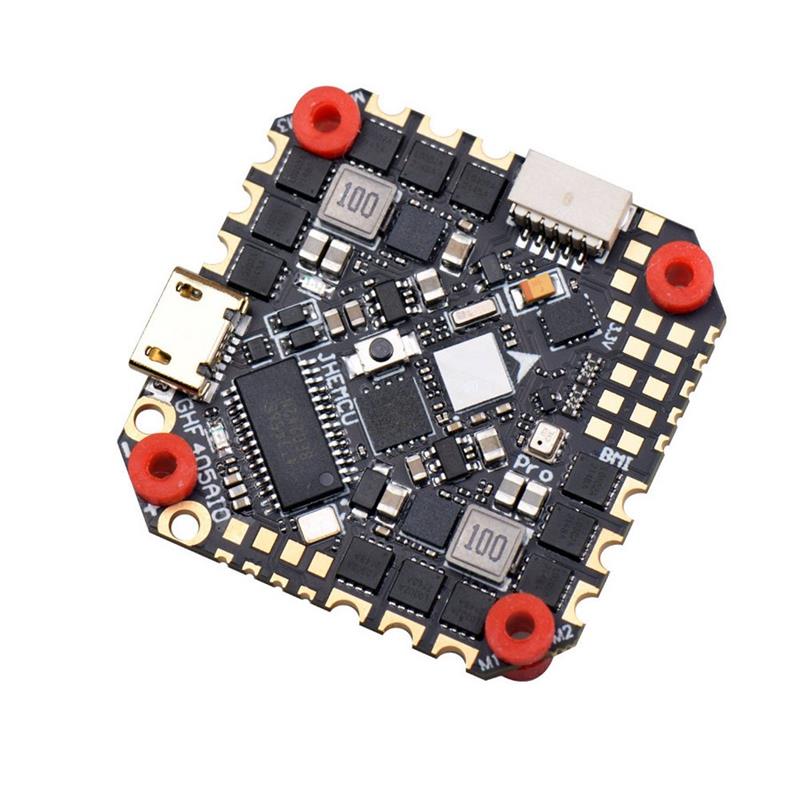

25.5×25.5mm JHEMCU GHF405AIO Pro F4 OSD Blackbox Flight Controller w/ 5V 10V BEC Output AIO 40A BLheli_S 4in1 Brushless ESC Support Analog Digital HD VTX for RC Drone FPV Racing

Specification:
Brand: JHEMCU
Model: GHF405AIO Pro
Item Name: F4 Flight Controller AIO 40 AESC
Mounting Hole: 25.5×25.5mm
Dimension: 33x33mm

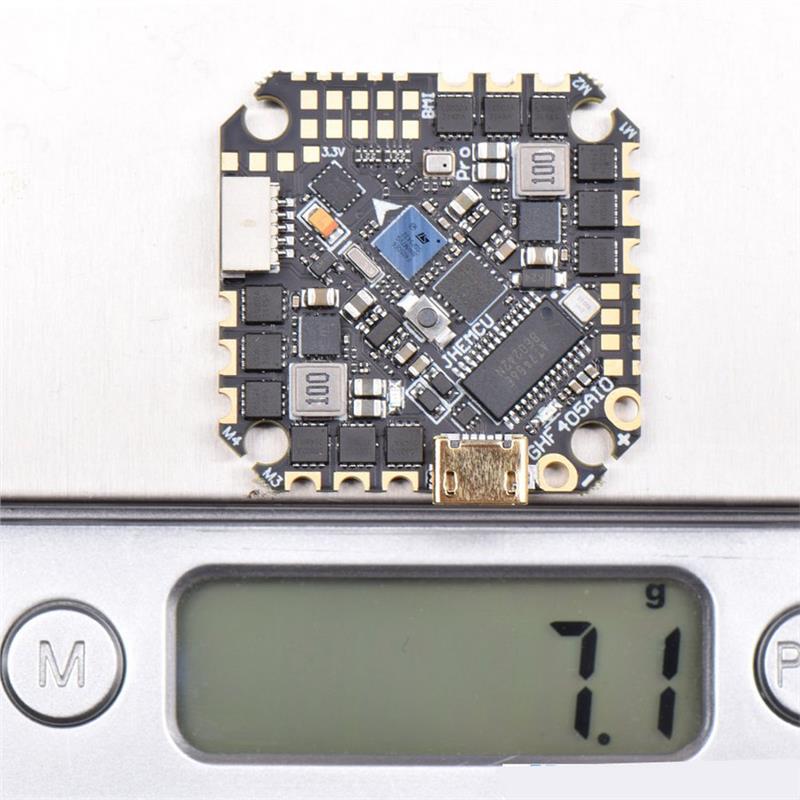

Weight: 7.1g

F4 Flight Controller

MCU: STM32F405 / 168MHz
IMU: BMI270 / Gyro/ Accel
OSD: AT7456E
Baro: YES
Input Voltage: 2-6S Lipo ( 7.4-26V)
Blackbox: 8MB
BEC: 5V 2.5 A(+-0.1V), 10V 2 A(+-0.1V)
Firmware: betaflight_4.3.0 JHEF405PRO.HEX
HD Port: YES
UART: UART1, UART2, UART3, UART4, UART6
LED Strip: Support
Buzzer: Yes, support 5V Positive
USB: Micro USB
Voltage Sensor: Yes
DFU Botton: Yes
Receiver: Support SBUS/IBUS/DSM2/DSMX/TBS (CRSF)/ELRS (CRSF)

Onboard 40A 4in1 ESC

Con. Current: 40A
MCU: EFM8BB21F16G
Type: BLHeli_S
Firmware: G_H_30_REV16_7.HEX
Support 48K /96K Firmware

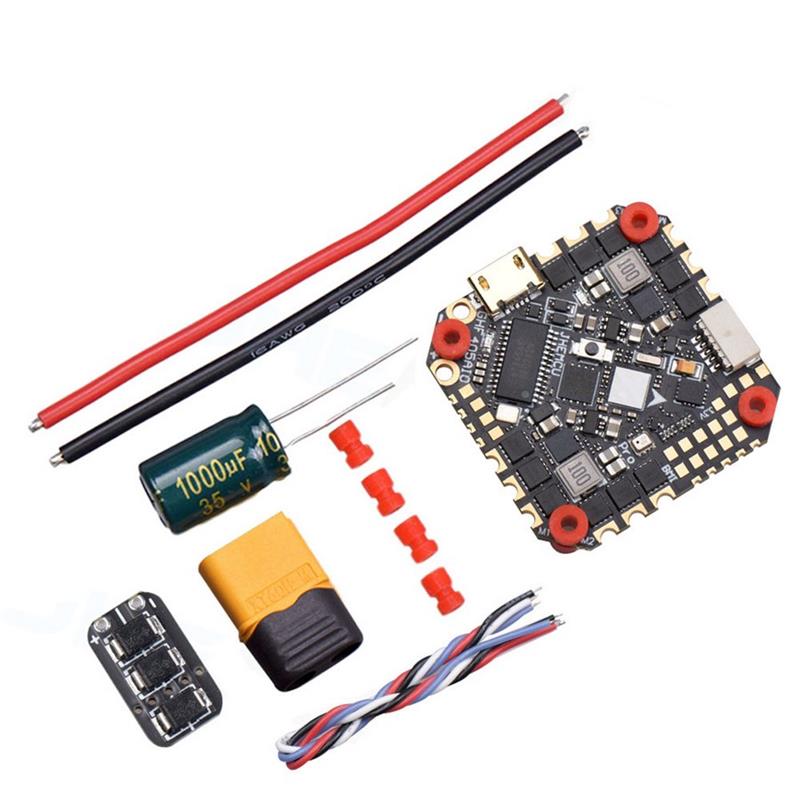

Package Included:
1x JHEMCU GHF405AIO Pro Board
1x XT60 Connector
4x M2*6.5 Anti-vibration Ball
1x Capacitor
2x 16AWG Cable
1x TVS Board
