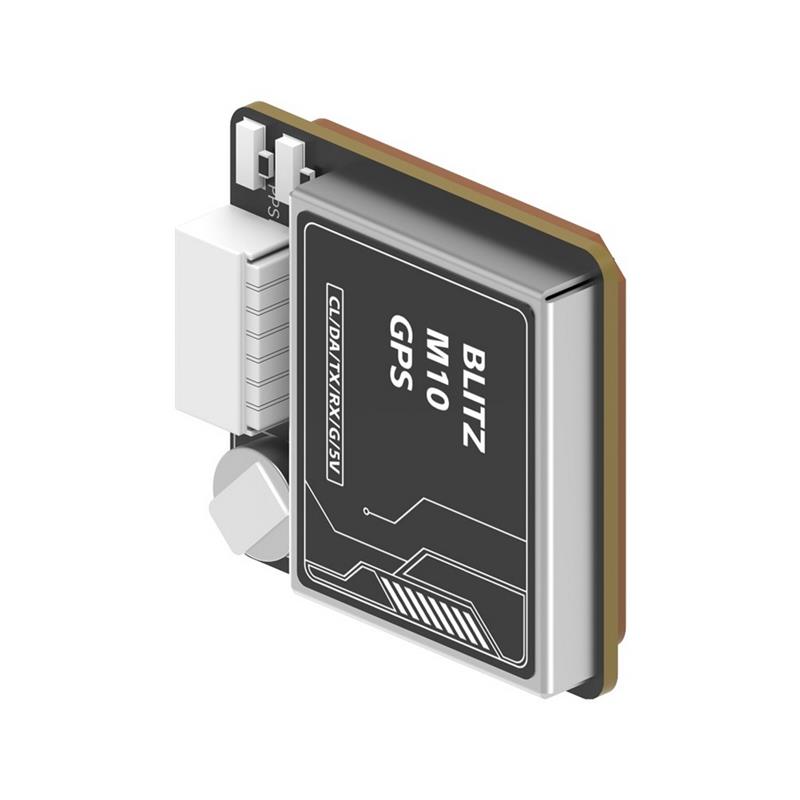

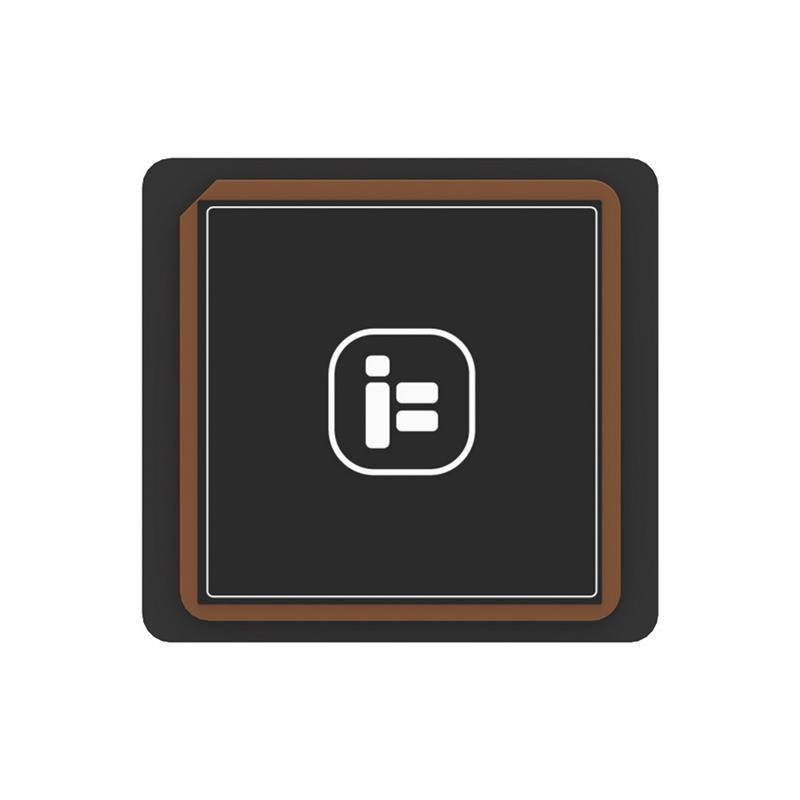

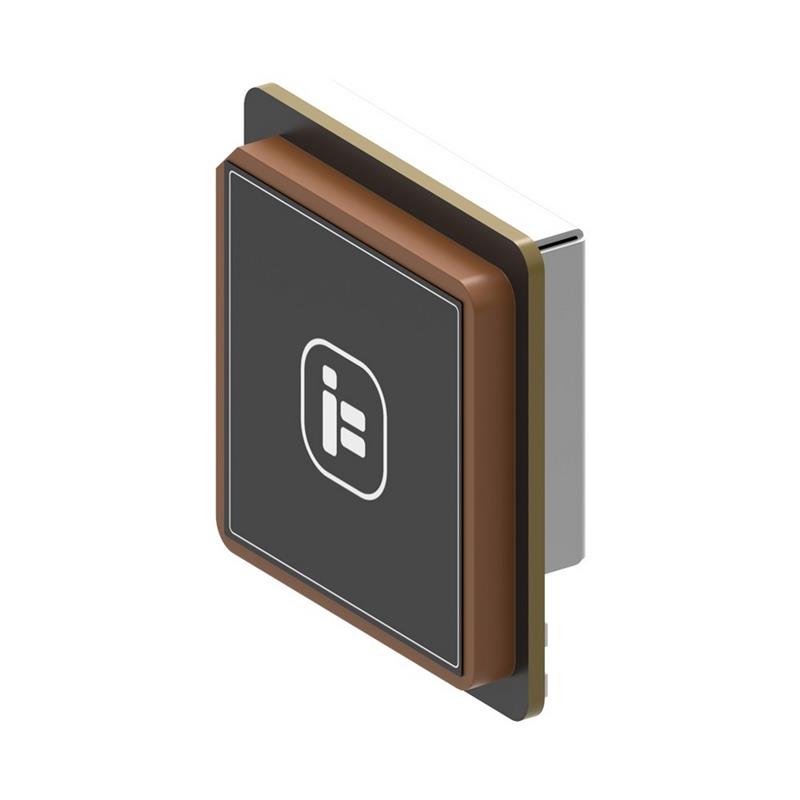

iFlight BLITZ M10 GPS Compass Module QMC5883L with Cable for DIY RC Model Frame Nazgul Evoque F5 FPV Raicng Drone

iFlight BLITZ M10 GPS Compass Module QMC5883L with Cable for DIY RC Model Frame Nazgul Evoque F5 FPV Raicng Drone

Features:
– UBLOX M10 chip
– Compass module QMC5883L integrated
– Built-in farad capacitor for faster hot start
– Onboard LN A(Low Noise Amplifier)
– 10 Hz Refresh rate
– Built-in Flash
– High sensitivity 18x18mm GPS patch antenna, low power consumption, strong signal, lightweight.
Specification:
Compass module: QMC5883L
Baud Rate: 4800bps-115200bps (Default – 115200bps)
Sensitivity: Tracking: -167dBm
Cold start: 26s
Hot start: 1s
Maximum height: 50000m
Maximum speed: 500 m/s
Speed accuracy: 0.05 m/s
Maximum acceleration: nbsp;4G
Refresh Rate: 10 Hz
GPS patch antenn Asize: 18 x 18 mm
Total dimensions: 20 x 21 x 6.5 mm
Weight: 5.2 g??.5gbr>Input Voltage: 3.3-5.5 V, current 40mA
GPS pin definition: RX/TX UART
Compass pin definition: SDA/SLA
Package Included:
1x BLITZ M10 GPS
1x Cable set
