25.5×25.5mm Foxeer Reaper AIO V4 F745 F7 Flight Controller MPU6000 Built-in 45A Bluejay BL_S 2-6S 4In1 ESC for RC Drone FPV Racing
Specifications:
Brand: Foxeer
Model: Reaper AIO V4
Item Name: F7 Flight Controller AIO 45A 4in1 ESC
Power supply: 2-6S Lipo(8.4-25.2V)
Size: 32.5??32.5mm
mount Hole: 25.5??25.5mm, ??3mm/M2
Weight: 8.6g
Working Temperature: -20?? +55
Working Humidity: 20-95%
Storage Temperature: -20-+70nbsp;
| Flight Controller | CPU:STM32F745 GYRO:MPU6000 BEC Output:DC5V/2.5A OSD:BF OSD Black box:16M Flash Memory UART:5 set USB:MICRO USB Fireware:FOXEERF745V4_AIO |
| Onboard ESC | Firmware:Bluejay 0.16 G-H-30(default) / G-H-30 BLS16.7 Continue Current / Burst Current:45A??4/ 50A??4 Telemetry:no ESC Programming:Bluejay(default) / BLHeli-S Stick Programming:Supported Current sensor:Supported Current scale:100 Input signal Dshot 300/600 |
Features:
High Performance Core:

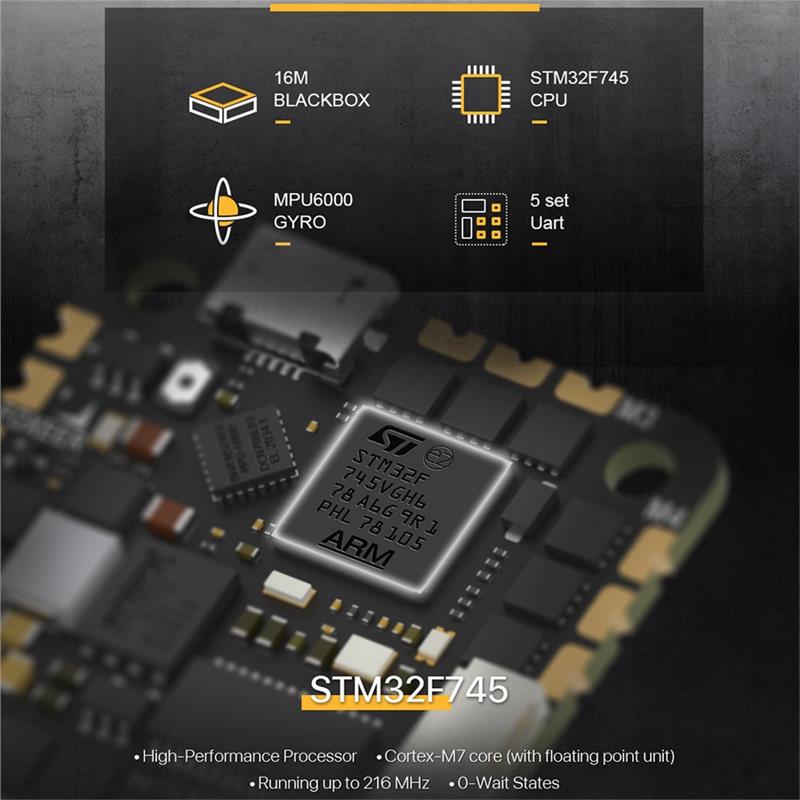

The FOXEER Reaper AIO is powered by an STM32F745 CPU and an MPU6000 gyro, providing rapid response and stable flight control. It also boasts a 16M Flash Memory black box for recording flight data, essential for tuning and performance optimization.
Enhanced Power Management:
This unit provides a BEC Output of DC5V/2.5A, and its ESC continues with a current of 45A per channel (4 in total) and a peak current of 50A per channel. It supports a power supply range from 2 to 6S Lipo (8.4~25.2V), ensuring adaptability across a wide range of drone models and flight conditions.
Advanced Firmware and Programming:
The ESC comes pre-loaded with Bluejay 0.16 G-H-30 firmware but can also support BLHeli-S, providing versatility and customization options for advanced users. It also supports stick programming for convenient and easy adjustments on the go.
Robust Construction:
With a compact size of 32.5??32.5mm and a weight of just 8.6g, the FOXEER Reaper AIO V4 is light and compact, yet tough enough to withstand temperature ranges from -20??to +55and humidity up to 95%.
Wide Connectivity:
The unit comes with 5 sets of UART interfaces and a MICRO USB port for easy connection and data transfer. It is designed to receive Dshot 300/600 input signals, promoting high-speed, accurate communication between the flight controller and the ESCs.
Package List:
1x FOXEER Reaper AIO V4 F745 Board
Additional information
| Weight | 0.05 kg |
|---|
