HAKRC 65A 2-8S BLHeli_32 4in1 Brushless ESC for FPV Racing Drones, 30.5x30.5mm Mounting, Superior Heat Dissipation

-15%

HAKRC 65A 2-8S BLHeli_32 4in1 Brushless ESC for FPV Racing Drones, 30.5×30.5mm Mounting, Superior Heat Dissipation

Original price was: $104.82.Current price is: $89.59.

65A continuous and 75A peak current capacity
Supports PWM, Oneshot, and Dshot protocols
High-end 6-layer copper PCB for superior heat management
Durable 40V imported MOS and industrial-grade LDOs
Equipped with high-quality Murata capacitors

SKU: RC1991572 Category: Multi Rotor Parts Tags: 2-8S LiPo ESC, 4in1 Brushless ESC, advanced technology ESC, BLHeli_32 ESC, FPV racing drone ESC, HAKRC 65A ESC, high-end PCB ESC, imported MOS ESC Brand: HAKRC

Description

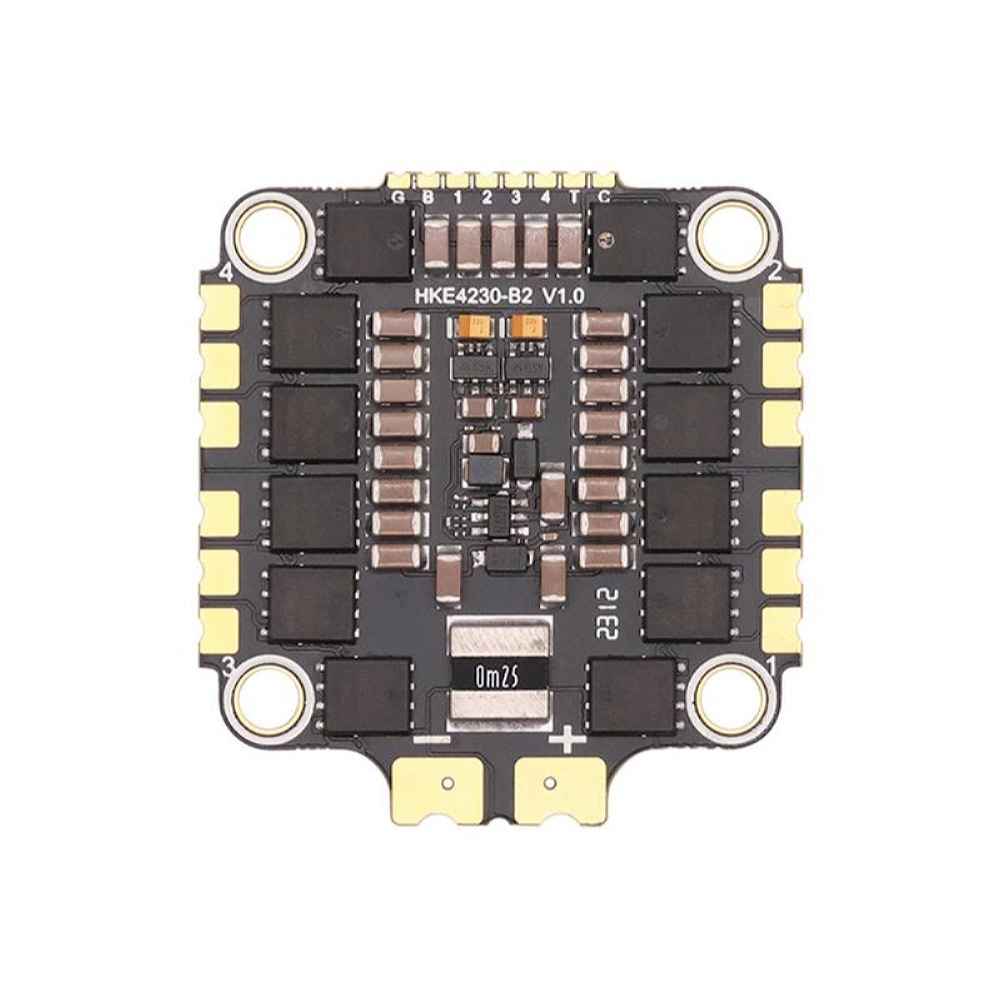

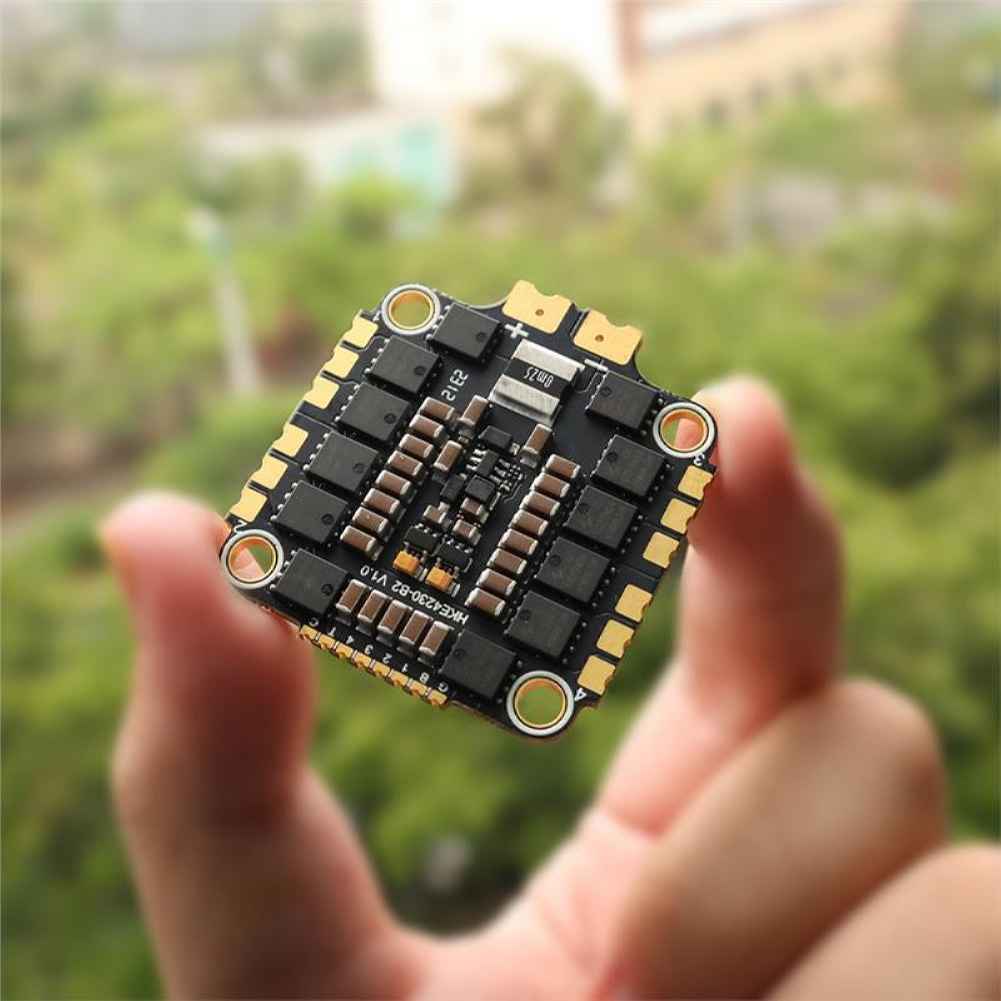

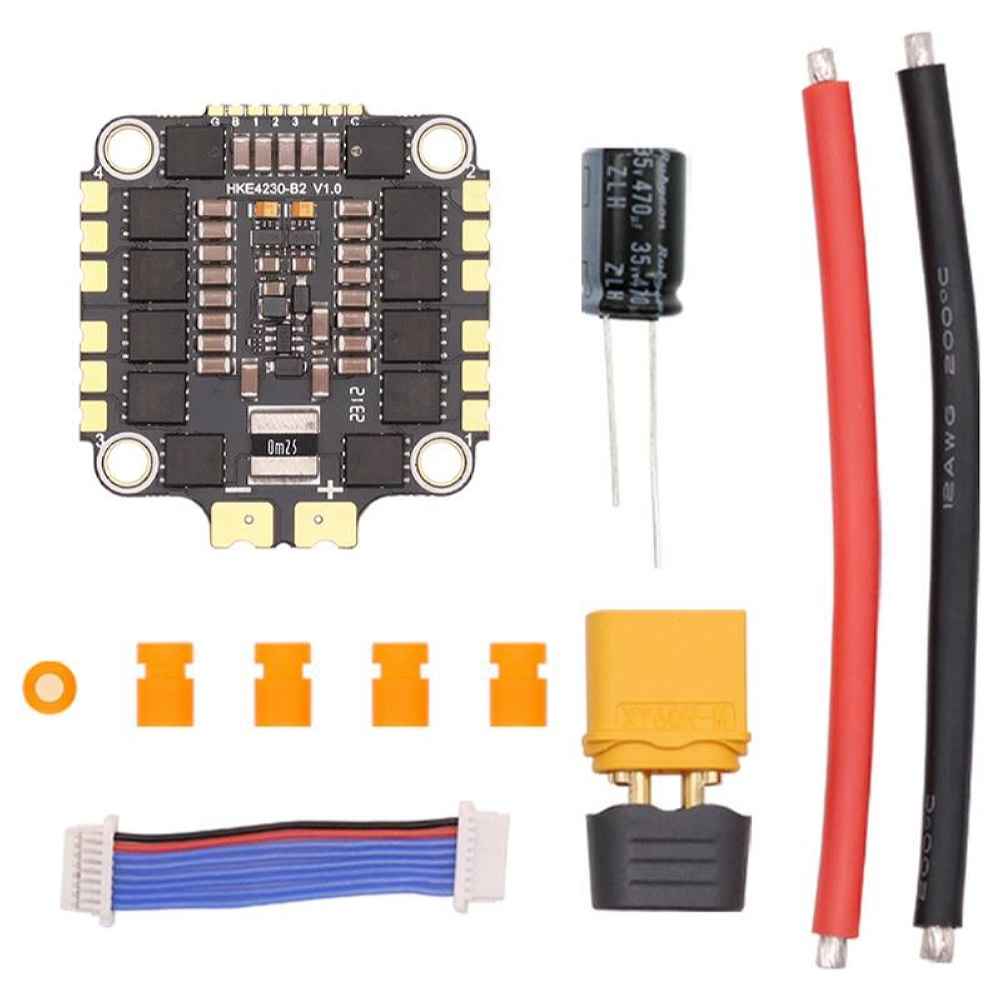

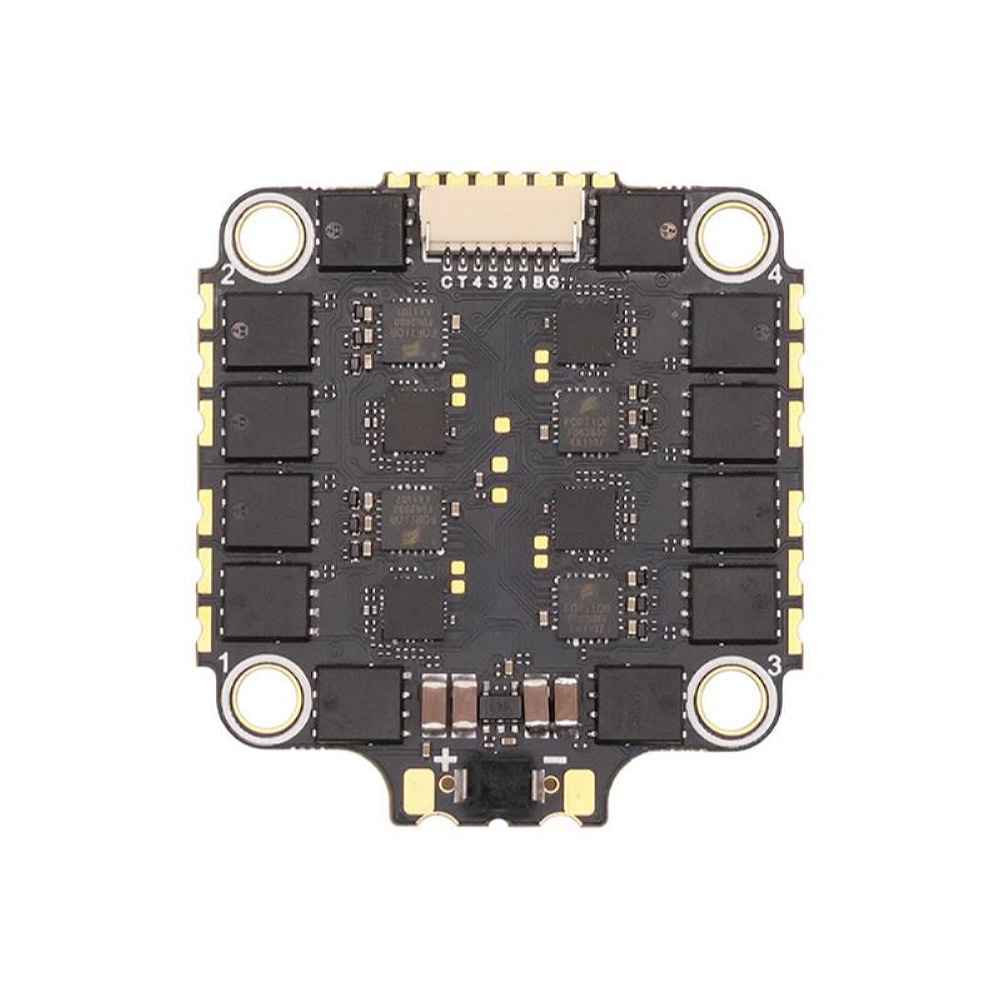

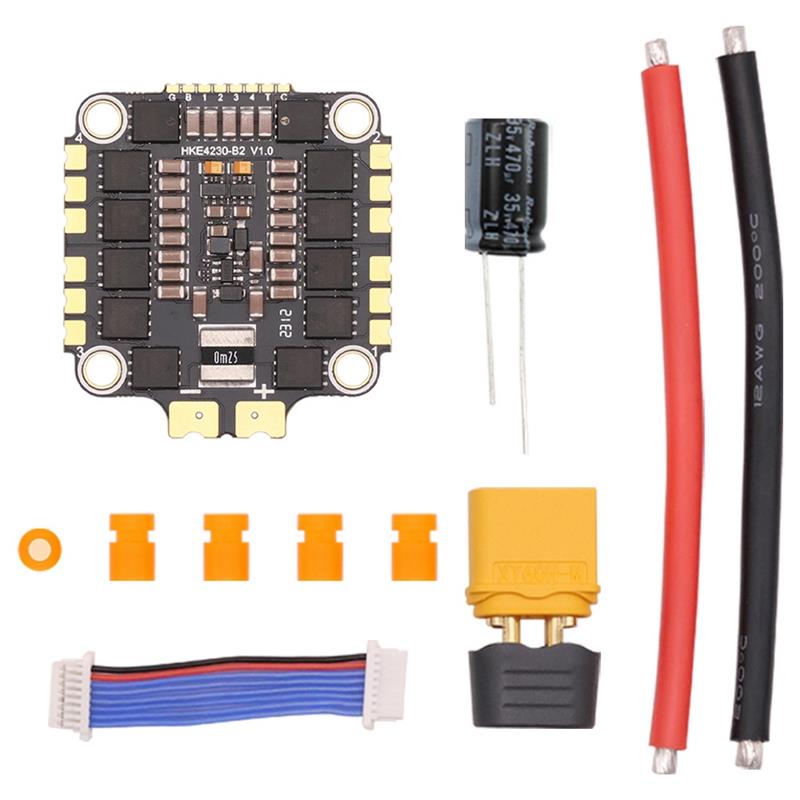

30.5×30.5mm HAKRC 65A 2-8S BLHeli_32 4in1 Brushless ESC for RC Drone FPV Racing

The HAKRC 65A 2-8S BLHeli_32 4in1 Brushless ESC is engineered for FPV racing drones, offering a continuous current of 65A and a peak current of 75A. It supports various protocols such as PWM, Oneshot125, and Dshot600. The ESC is equipped with a high-end 6-layer 2oZ copper PCB for enhanced overcurrent capacity and heat dissipation. It features imported 40V MOS for durability and industrial-grade LDOs for temperature resistance. The inclusion of high-quality Murata capacitors ensures excellent filtering, while advanced hardware like the AT32F421 chip and FD6288Q driver optimize flight performance. Damped Light technology provides precise control and extends flight duration.

Specifications:
Brand: HAKRC
Item Name: 65A 2-8S 4in1 Brushless ESC
Continuous Current: 65A
Peak Current: 75A
Firmware: HAKRC_AT4G_Multi_32.9 Hex
Protocol Support: PWM, Oneshot125, Oneshot42, Multishot, Dshot150, Dshot300, Dshot600
Input Voltage: 2S-8S Lipo
Current Scale: 160
Size: 40* 43mm (30mm-30mm mounting hole)
Packaging Size: 64*64*35mm
Product Net Weight: 14g
Packaging Weight: 53g
Features:
Superior PCB Design: With a high-end 6-layer 2oZ thickened copper skin, the PCB ensures stronger overcurrent capacity and superior heat dissipation, resulting in a smooth operation even in demanding situations.
Imported MOS: Utilizing a durable and robust 40V high endurance imported MOS, the HAKRC 4230 delivers long lifespan and impressive load capacity. Reliable performance is just a plug away.
Industrial Grade LDO: Temperature swings are no match for the HAKRC 4230’s industrial-grade LDO. It offers excellent resistance to high temperatures, ensuring unyielding performance.
High-Quality Murata Capacitors: Equipped with premium quality capacitors from Japan, this ESC promises excellent filtering performance, optimizing your flight experience.
Cutting-Edge Hardware: The HAKRC 4230 boasts an AT32F421 main control chip running at a high frequency of up to 128MHz, and an FD6288Q driver, coupled with high-quality hardware, it ensures you get the most out of your flight.
Advanced Technology:Hardware PWM drives motors with less noise and smoother throttle response. Thanks to the Damped Light technology, the regenerative braking functionality ensures more precise control and extends your flight’s duration.
