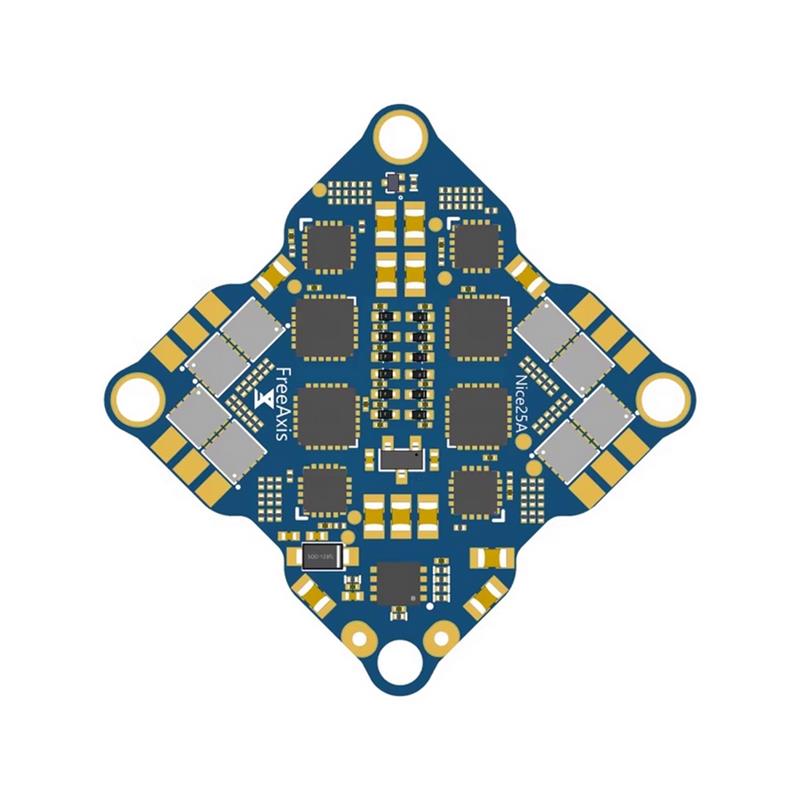

25.5×25.5mm FreeAxis F4 AIO 25A Flight Controller Built-in 4in1 Brushless ESC 2-6S for Toothpick FPV Racing Drone

25.5×25.5mm FreeAxis F4 AIO 25A Flight Controller Built-in 4in1 Brushless ESC 2-6S for Toothpick FPV Racing Drone

Specification:
Brand: FreeAxis
MCU: STM32F411 108MHz
OSD: AT7456E or UART HD
Black Box: 128M FLASH
LED: On-board + Solderable
Current: 25A*4
ESC Firmware: GH_30??BLUEJAY 24K??Supports 48k 96k
ESC Protocol: Dshot 150 Dshot 300 Dshot 600 proshot 1000
Bidirectional Dshot: Supported
Weight: 5.9g
Features:
Highly Integrated Design: Combining Flight Controller and ESC on a single board simplifies installation and reduces the weight of your racing drone, enhancing maneuverability and speed.
Enhanced Flight Stability: Thanks to our MCU’s design and optimized gyro power, your drone will provide smooth and stable flight, free from jitter.
High Current ESC: With our multi-layer 20Z copper foil design, this board can support ESC current up to 25A, ideal for high-powered flights and drone racing.
Built-In Black Box: The 128M Flash Black Box records flight data, enabling you to analyze flight performance and make necessary adjustments for improved drone operation.
Lightweight Design: At only 5.9 grams, this board will not weigh down your drone, ensuring maximum speed and maneuverability.
Package Included:
1x F4 AIO 25A Board
1x USB Adapter Board
1x 16AWG Power Cord
1x XT30 Plug
1x 6S TVS
1x 470uF Capacitor
4x M2 Silicone Balls
