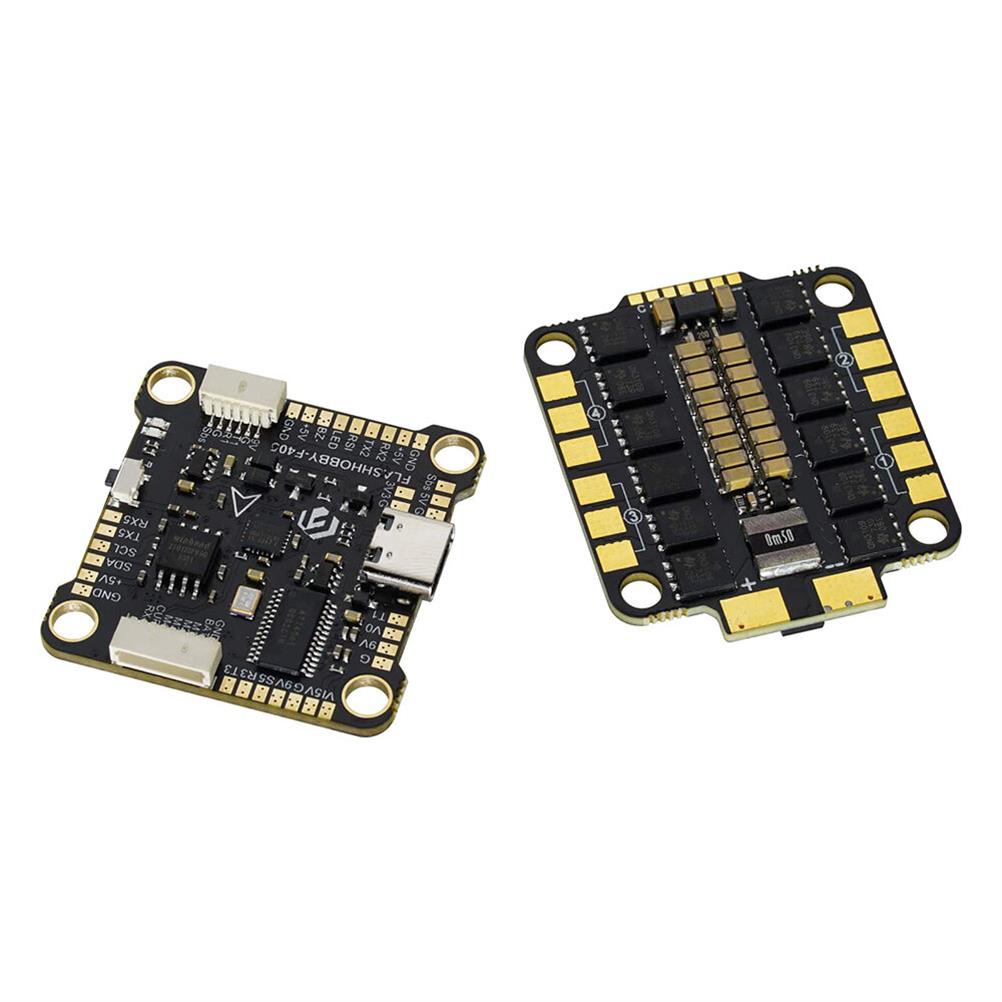

Product Name
FLASH HOBBY F405 30.5×30.5 Flight Controller
MCU
STM32F405
IMU(Gyro)
MPU6000
USB Port Type
Type-C
Barometer
BMP280
OSD Chip
BetaFlight OSD w/ AT7456E chip
DJI Air Unit Connection Way
Two ways supported: 6-pin connector or direct soldering.
6-pin DJI Plug
Supported. Completely compatible with DJI O3/RunCam Link/Caddx Vista/DJI Air Unit V1, no wire is needed to be changed.
Black box
16M Black Box
Current Sensor Input
Supported. For 50A ESC, please set scale = 180 and Ofset = 0.
Power Input
3S – 6S Lipo(Through ESC 8-PIN connector)
5V BEC Output
5 grous 5V output，the total current load is 3A
9V Output
3 groups 9V output，the total current load is 2.5A
3.3V Output
1 group 3.3V output，maxmum current is 300mA
ESC Signal
M1 – M4
UART
6 sets(UART2 UART5, UART3), UART6(Dedicated for SBUS), UART4(Dedicated for ESC telemetry),UART1 (Dedicated for VTX data setting)
Sbs
Debugging to UART6 Channel
ESC Telemetry
UART R4(UART4)
I2C
Supported. SDA & SCL pads on front side. Used for magnetometer.
LED Pad
Supported. LED,5V, and GND pads on bottom of the front side. Used for WS2812 LED controlled by Betaflight firmware.
Buzzer
supported，5V,BZ pads for 5V Buzzer
BOOT Button
Supported.
[A]. Press and hold BOOT button and power the FC on at the same time will force the FC to enter DFU mode, this is for firmware flashing when the FC gets bricked.
[B]. When the FC is powered on and in standby mode, the BOOT button can be used to controller the LED strips connected to LED1-LED4 connectors on the bottom side. By default, short-press the BOOT button to cycle the LED displaying mode. Long-press the BOOT button to switch between SpeedyBee-LED mode and BF-LED mode. Under BF-LED mode, all the LED1-LED4 strips will be controlled by Betaflight firmware.
Supported Flight Controller Firmware
BetaFlight(Default),
Firmware Target Name
STM32F405
Mounting
30.5 x 30.5mm( 4mm hole diameter)
Dimension
37(L) x 37(W) x 6.6(H)mm
Weight
7.5g
Product Name
FLASH HOBBY BLS 50A 30.5×30.5 4-in-1 ESC
Firmware
BLS 16.7
Continuous Current
50A * 4
Burst Current
60A(5seconds)
TVS Protective diode
Yes
External Capacitor
35V560uF Low ESR Capacitor(In the package)
ESC Protocol
DSHOT300/600
Power Input
3-6S LiPo
Power Output
VBAT
Current Sensor
Support (Scale=180 Offset=0)
ESC Telemetry
Not supported
Mounting
30.5 x 30.5mm( 4mm hole diameter)
Dimension
42.3(L) * 37(W) * 6.2mm(H)
Weight
12g

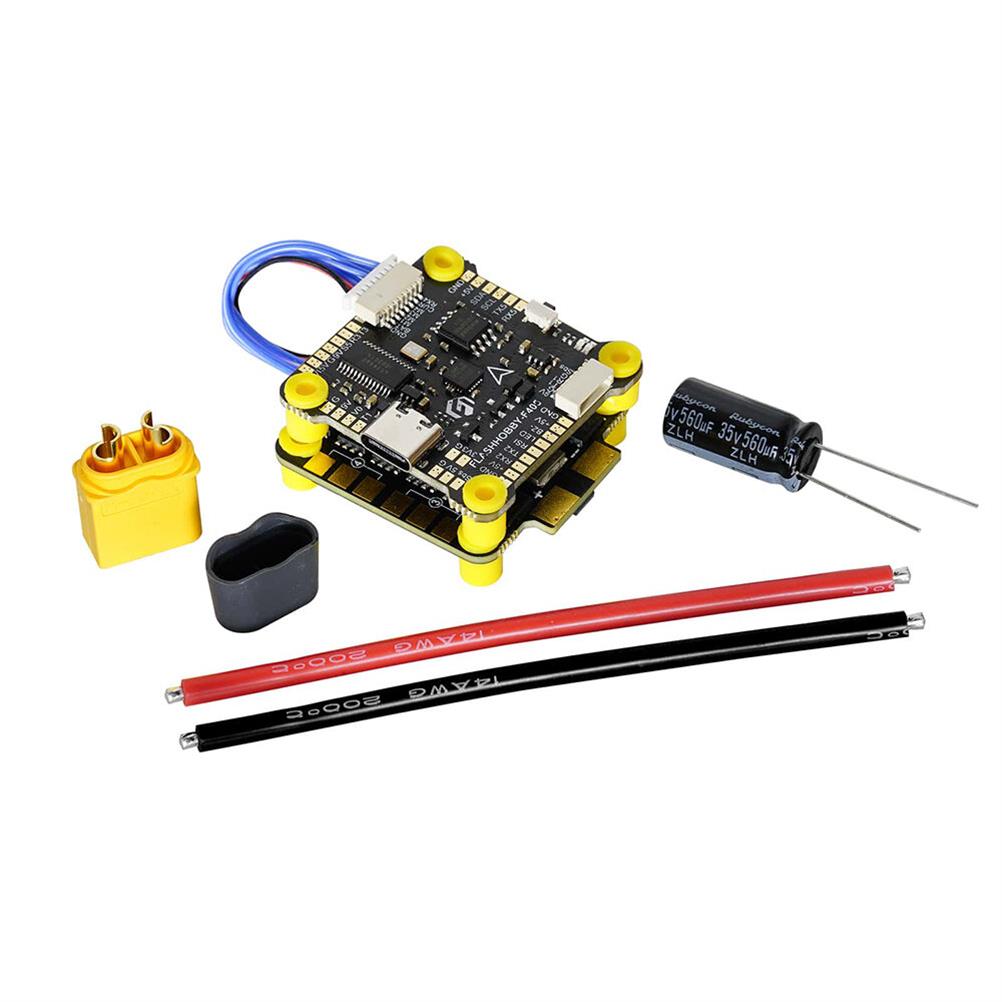

Package Included:
1x F4 Flight Controller
1x 50A 4in1 ESC
1x Capacitor
1x Connector Plug
1x Red Cable
1x Black Cable
