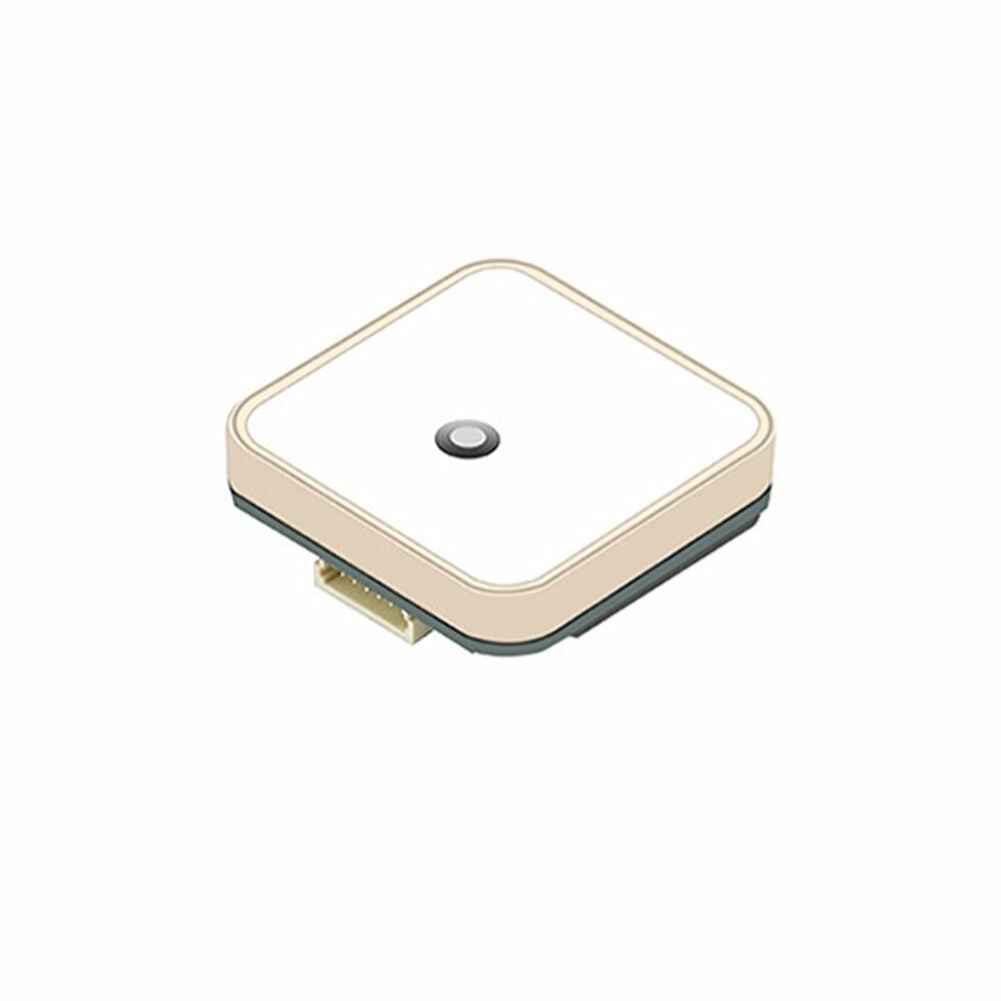

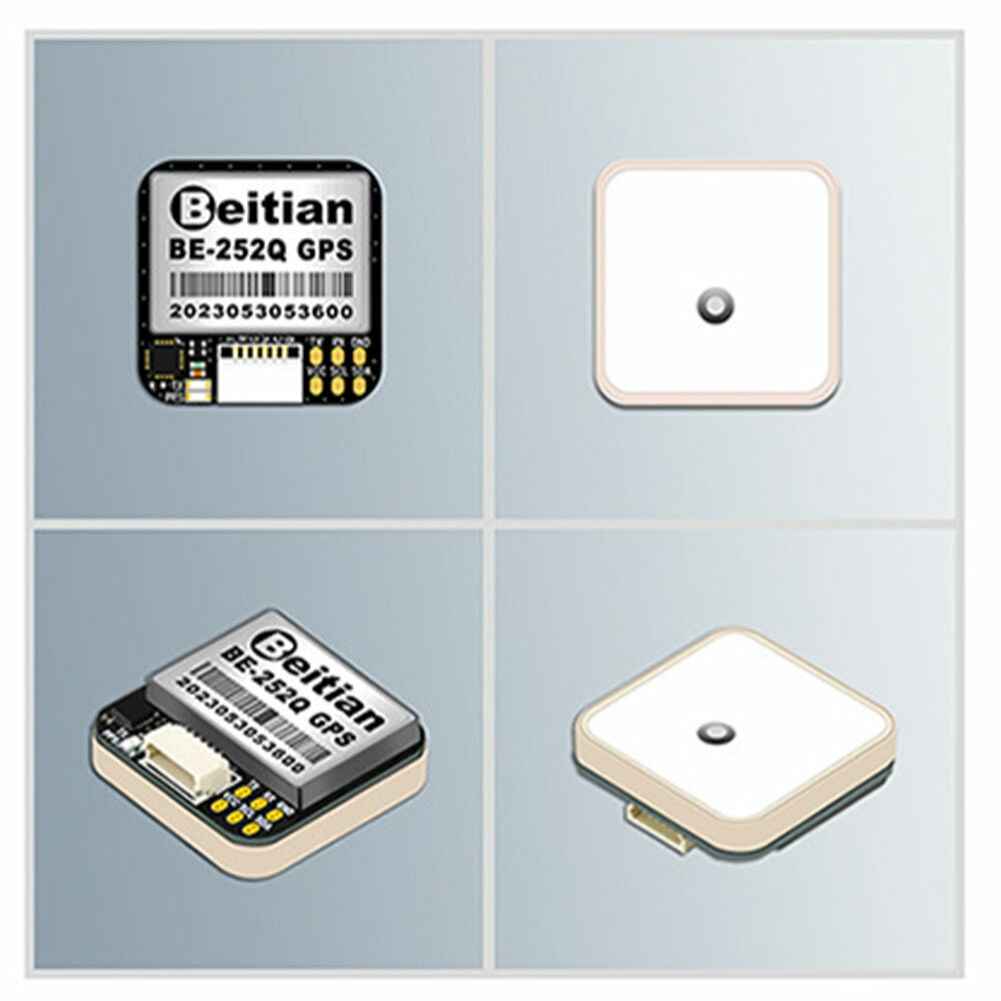

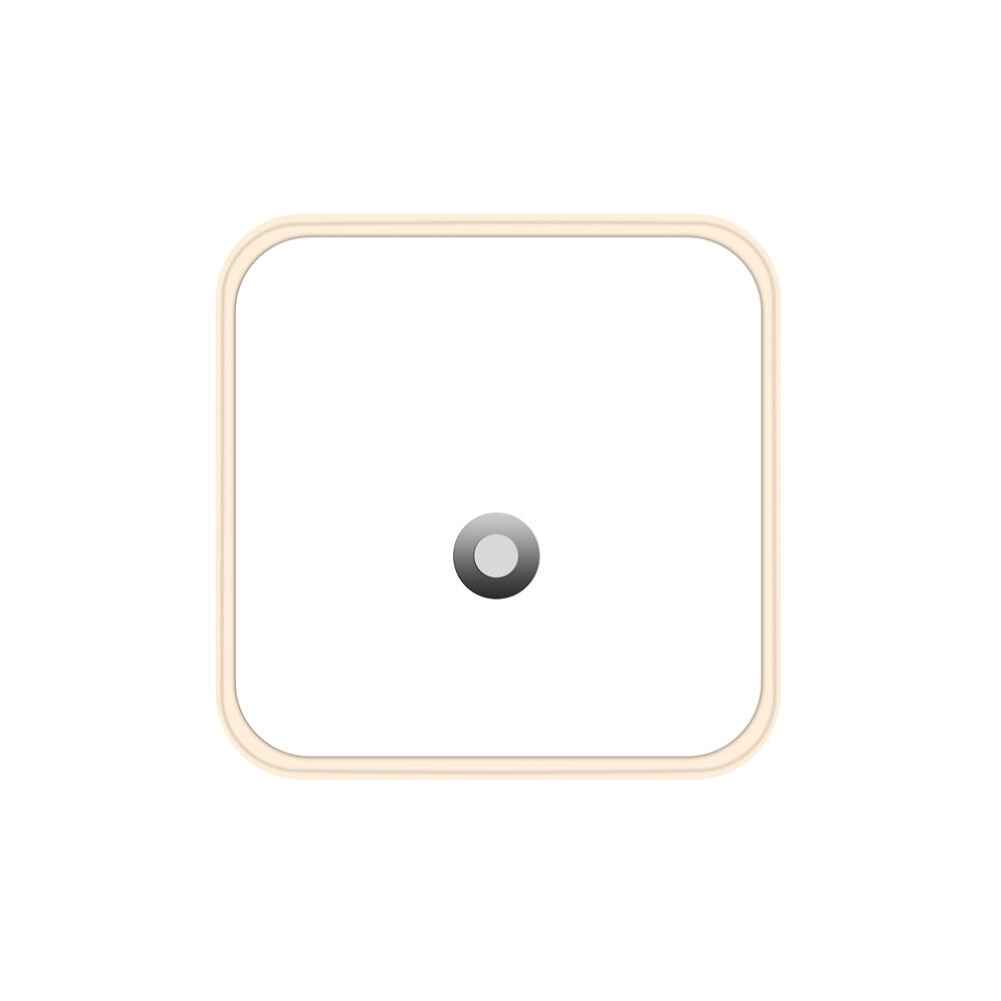

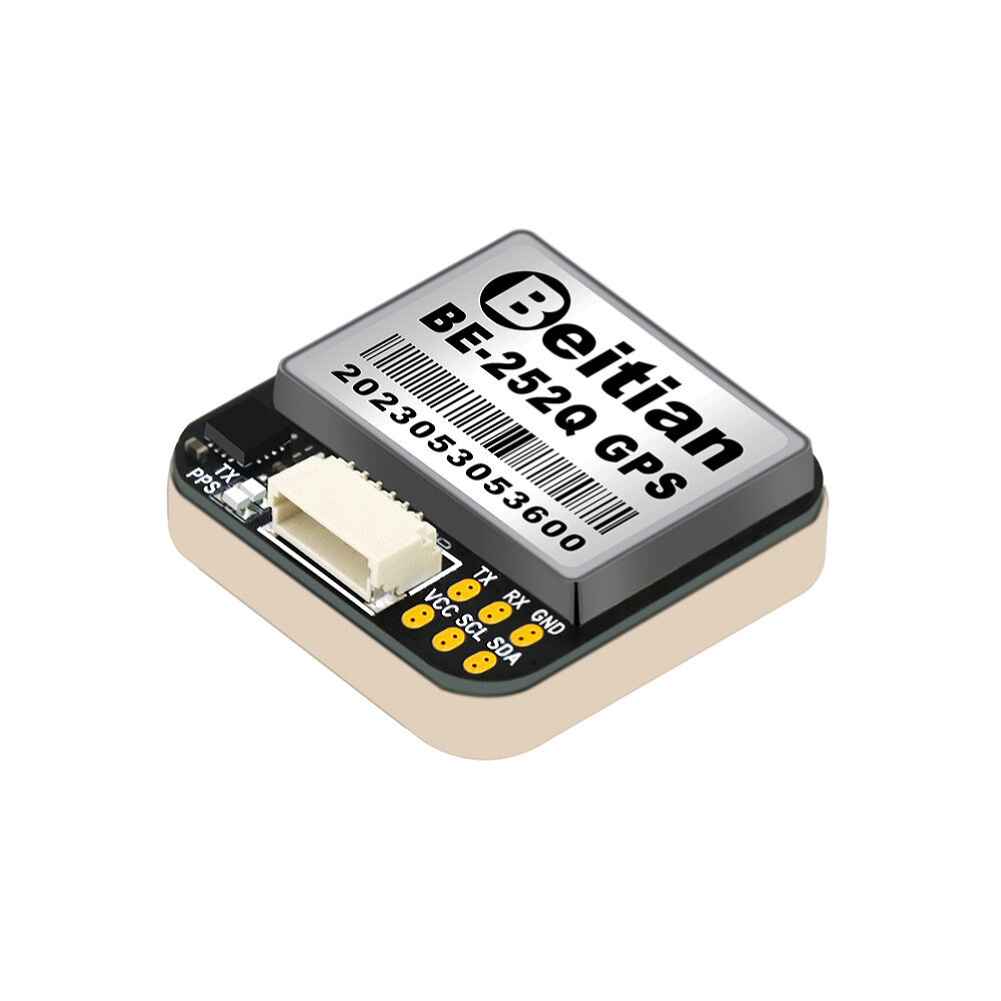

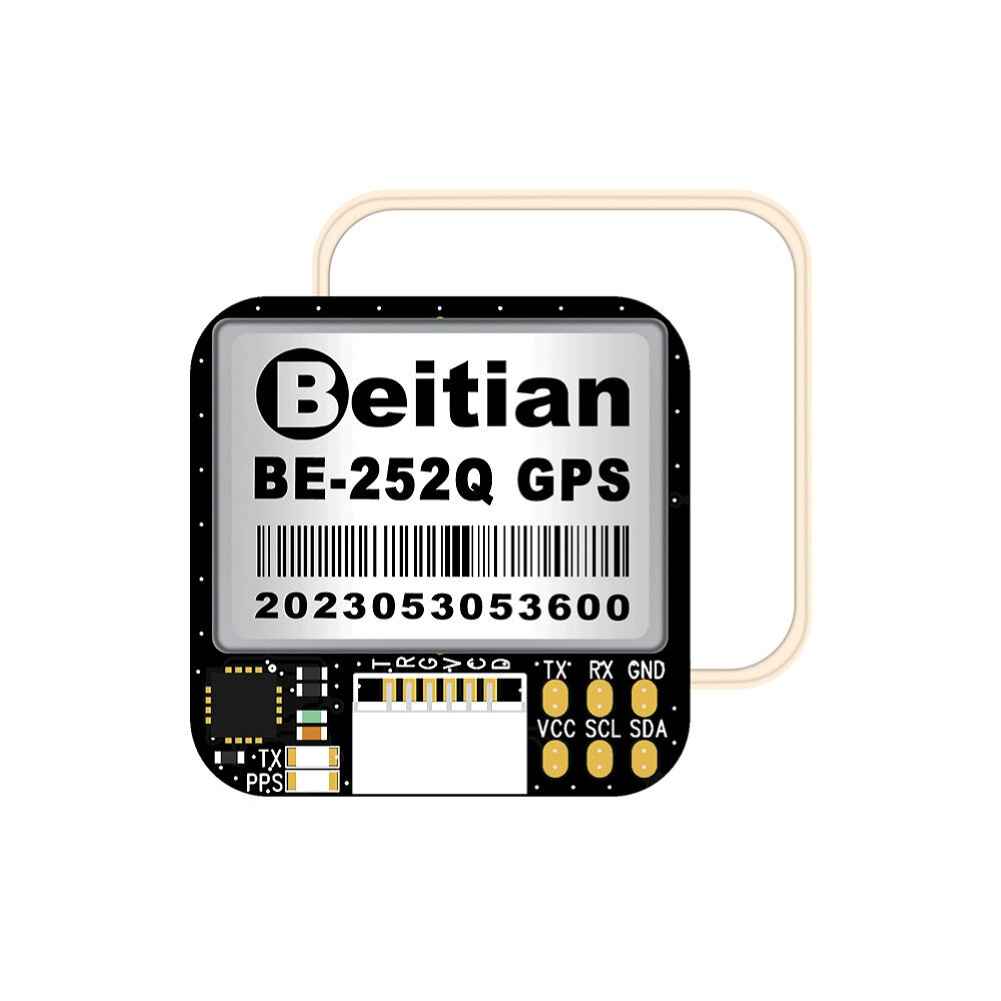

Beitian BE-252Q GPS Module with QMC5883 Compass, Dual Protocol M10050 Chip for FPV Racing Drone, Compatible with F4 F7 Flight Controller

Description

Beitian BE-252Q GPS Module With QMC5883 Compass NMEA UBX Dual Protocol M10050 Chip Drone UAV GNSS Receiver Module for FPV Return Rescue Racing Drone RC Airplane Compatible F4 F7 Flight Controller

The Beitian BE-252Q GPS Module features the advanced M10050 chip, providing dual protocol support with NMEA and UBX for accurate navigation. It is compatible with GPS, BDS, and GALILEO positioning systems and offers SBAS and QZSS augmentation. With a high tracking sensitivity of -166dBm and reacquisition sensitivity of -160dBm, it ensures reliable performance. The module boasts a horizontal position accuracy of 2.0m CEP and dynamic heading accuracy of 0.3 degrees. Ideal for FPV return rescue and racing drones, this GPS module is suitable for use with F4 and F7 flight controllers.

Specifications:

Description

Electrical Characteristic

Chip

M10050

Receiver type

GPS L1 C/A, QZSS L1 C/A/S,BDS B1I/B1C, Galileo
E1B/C,SBAS L1 C/A: WAAS, EGNOS, MSAS, GAGAN

Default position system

GPS, BDS, GALILEO

Augmentation system

SBAS, QZSS

Channel

N/A

Sensitivity

Tracking & Navigation

-166dBm

Reacquisition

-160dBm

Cold start

-148dBm

Hot Start

-160dBm

Accuracy

Horizontal position

2.0m CEP

Velocit

0.05m/s

Dynamic heading

0.3 deg

Time pulse

RMS 30ns

99% 60ns

Acquisition

Cold start

27s

Hot start

1s

Aided start

1s

Data Output

Baud rate
