Description

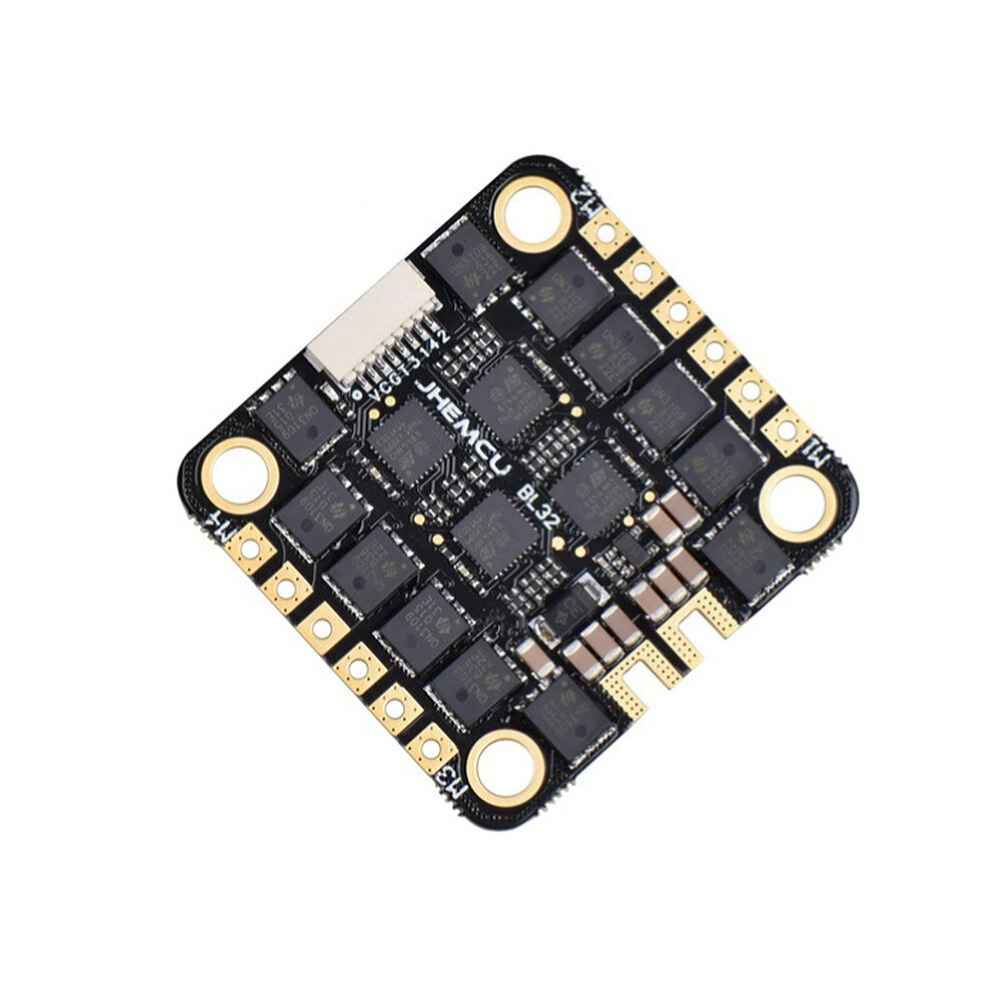

30.5×30.5mm JHEMCU BL32-55 55A 3-6S BLheli_32 32Bits DShot1200 4In1 Brushless ESC for RC Drone FPV Racing
The JHEMCU BL32-55 4In1 Brushless ESC is designed for RC drone FPV racing enthusiasts. It supports a 3-6S input voltage range (12-26V) and offers a continuous current of 55A with a burst current of 60A. This ESC is equipped with BLHeli_32 firmware and supports DShot1200, DShot600, DShot300, DShot150, Oneshot125, MultiShot, and PWM. It features a 32Bits ARM Cortex MCU STM32F051 48MHZ CPU for enhanced performance and a built-in current detection module for precise current value monitoring. The ESC’s PCB is crafted with a 6-layer design to ensure low inner resistance and strong anti-interference capabilities. The mounting hole measures 30.5×30.5mm, and the ESC weighs 10.9g.
Specification:
Brand Name: JHEMCU
Model: BL32-55
Item Name: 55A BLheli_32 4in1 Brushless ESC
Input Voltage: 3-6S (12-26V)
Con. Current: 55A
Burst Current: 60A
– NO BEC Output
Firmware: BLHeli_32
Size: 39x40mm
Mounting Hole: 30.5×30.5mm, M4
Weight: 10.9g
– Support DShot1200, DShot600, DShot300, DShot150, Oneshot125, MultiShot, PWM
Diagram Picture Instruction:
B+: Battery Positive
CURR: Current Sensor
GND: Negative
TX: Telemetry
1-4: Connect to Flight Contrller’s motor signal wire
Features:
– 32Bits ARM Cortex MCU STM32F051 48MHZ CPU
– Strong anti-interference ability
– PCB adopts 6-layer, low inner resistance
– Built-in Current detection module, which can cooperate with the flight control to detect the current value

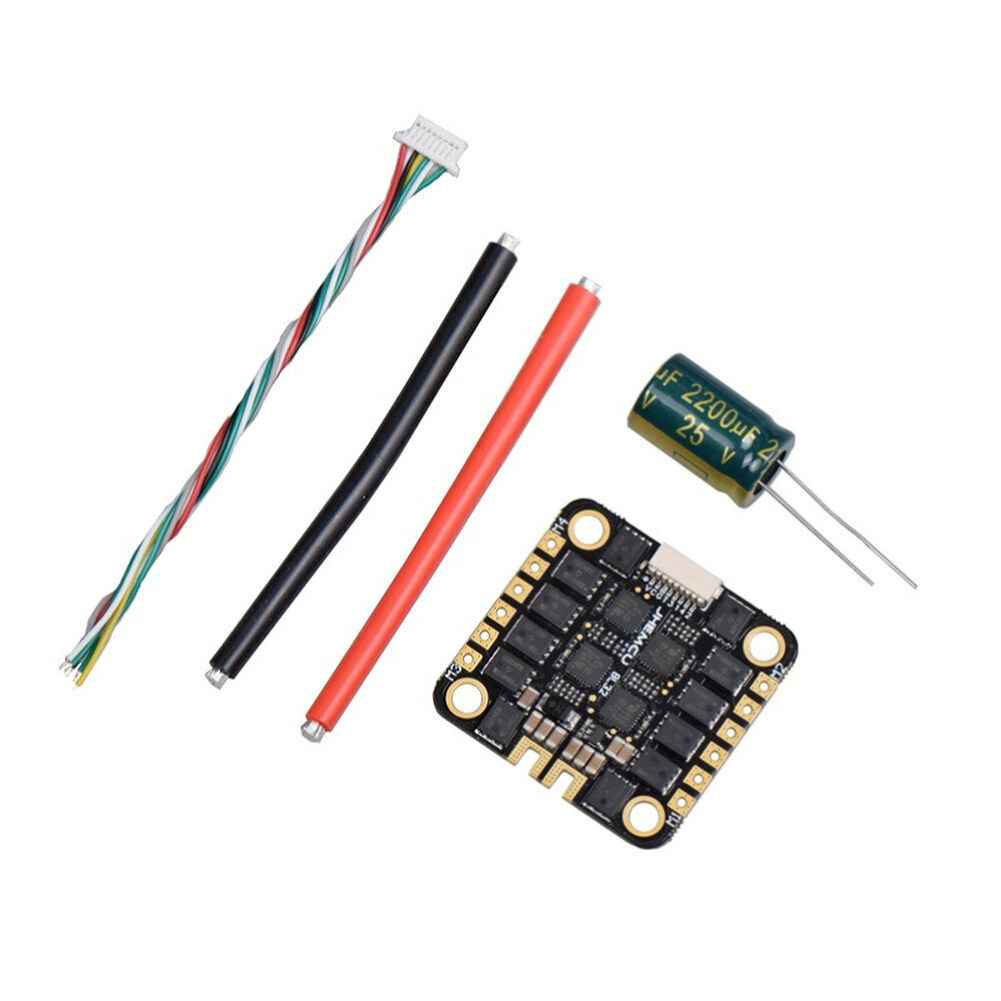

Package Included:
1 x JHEMCU 55A BLheli_32 4in1 ESC Board
1 x 8P 1.0mm Cable
2 x Power Cable (14AWG)
1 x Capacitor
