Description

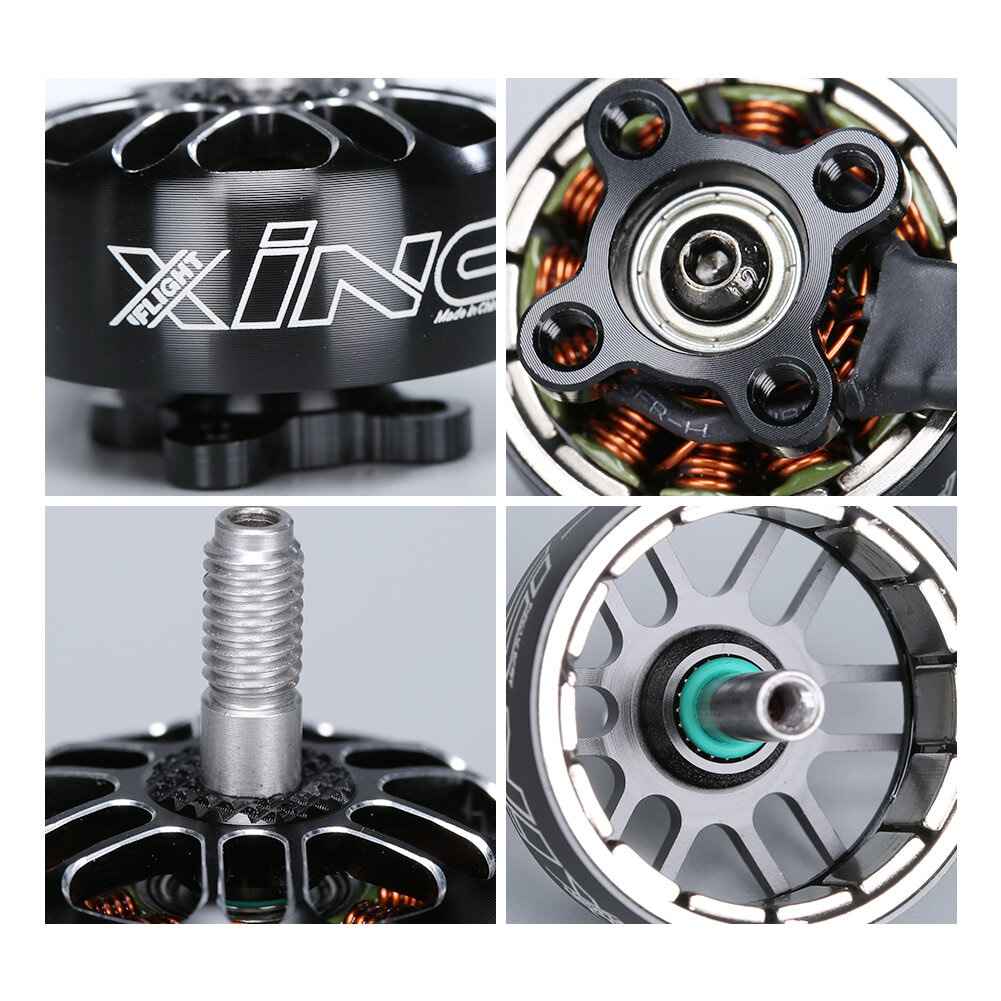

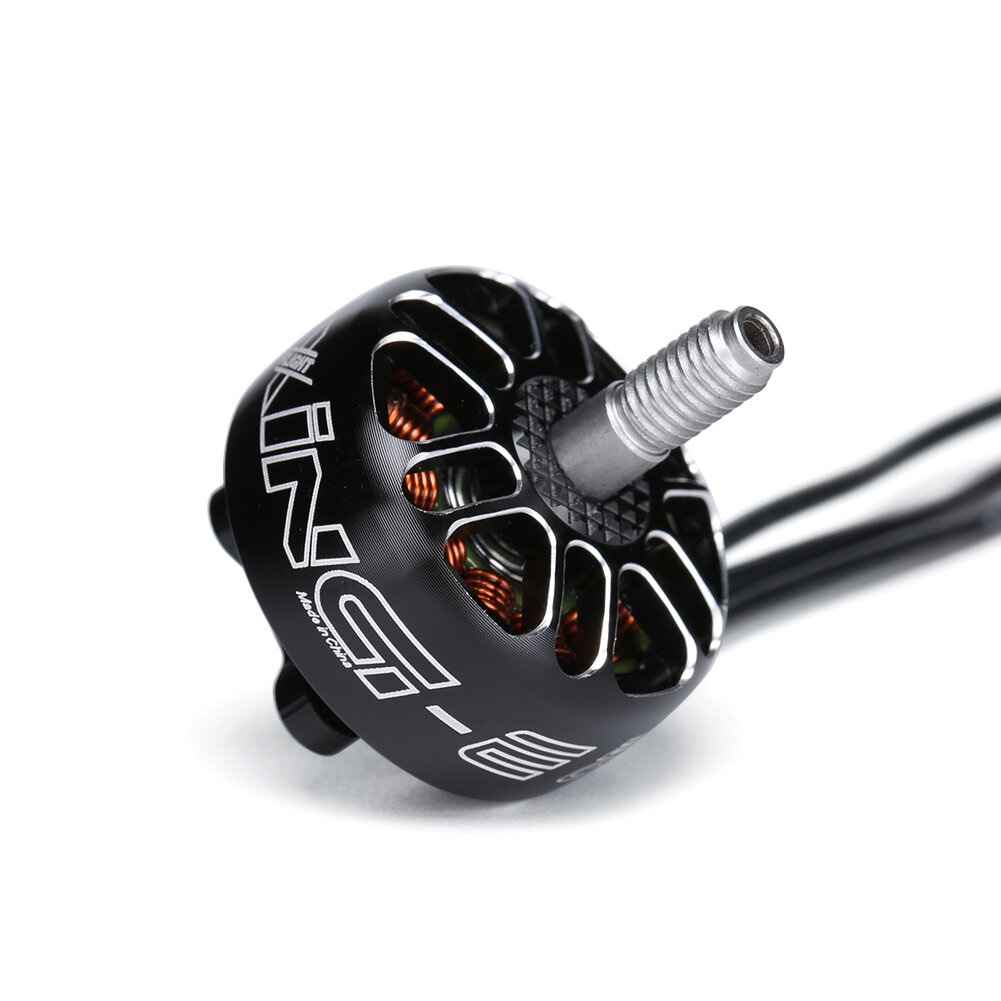

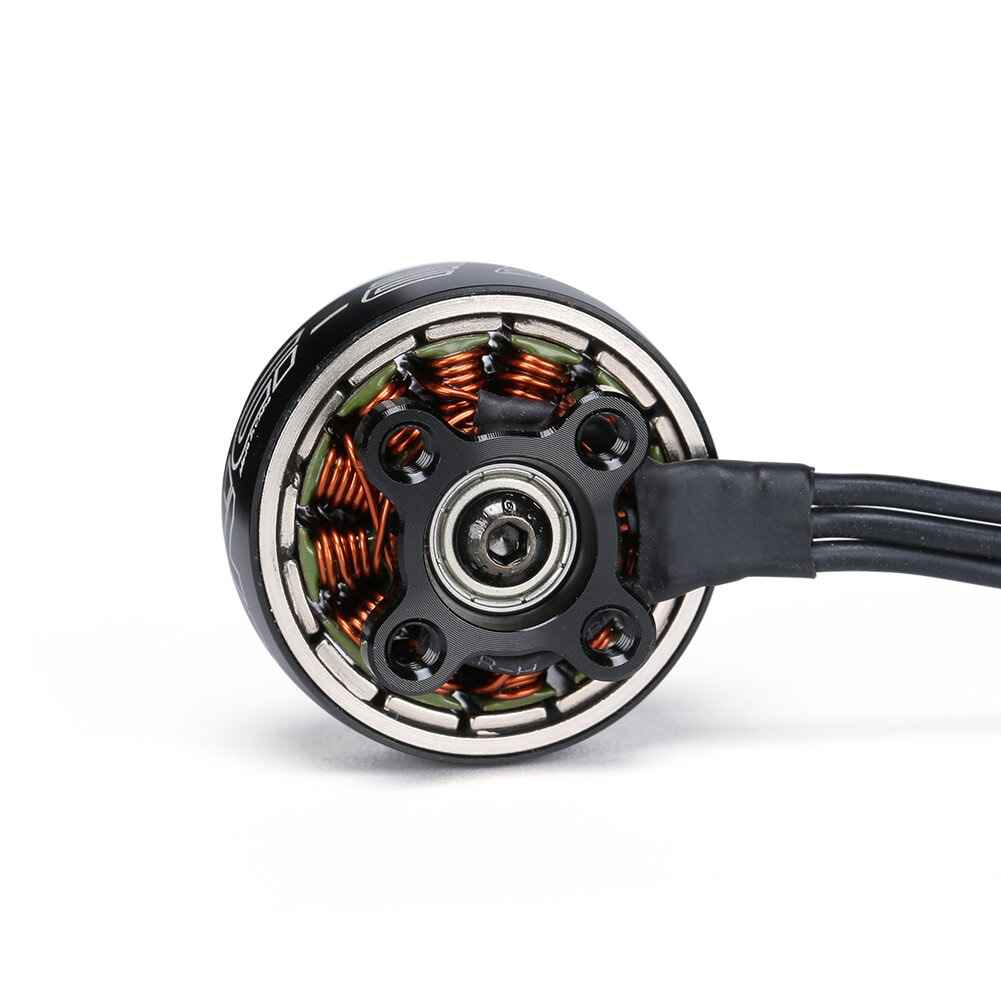

4 PCS iFlight XING-E Pro 2207 2450KV 2-4S Brushless Motor for RC FPV Racing Drone
The iFlight XING-E Pro 2207 2450KV Brushless Motor is designed for RC FPV racing drones, offering high performance with an input voltage of 2-4S. This motor features a 12N14P configuration, a stator diameter of 22mm, and a stator length of 7mm. With a shaft diameter of 5mm and motor dimensions of 28.5×19.7mm, it is compact yet powerful. It delivers a maximum continuous power of 682.1W and a maximum current of 42.63A. The motor’s idle current at 10V is less than 2.0A, and it has an internal resistance of 46.8m惟. The package includes four motors, each weighing 33.8g, along with motor nuts and screws for easy installation.
It is 2750KV Version, for 1800KV Version, clich here.
Specification:
Brand Name: iFlight
Model: XING-E Pro 2207
Item Name: 2450KV Brushless Motor
KV: 2450KV
Version: CW Screw Thread
Quantity: 4 PCS
Input Voltage: 2-4S
Configuration: 12N14P
Stator Diameter: 22mm
Stator Length: 7mm
Shaft Diameter: 5mm
Motor Dimension: 28.5×19.7mm (Dia*Len)
Weight: 33.8g
Idle Current(10) @10V: less than 2.0A(2450KV)
Max. Con. Power (180S): 682.1W@2450KV
Internal Resistance: 46.8m次@2450KV
Max. Current (180S): 42.63A@2450KV

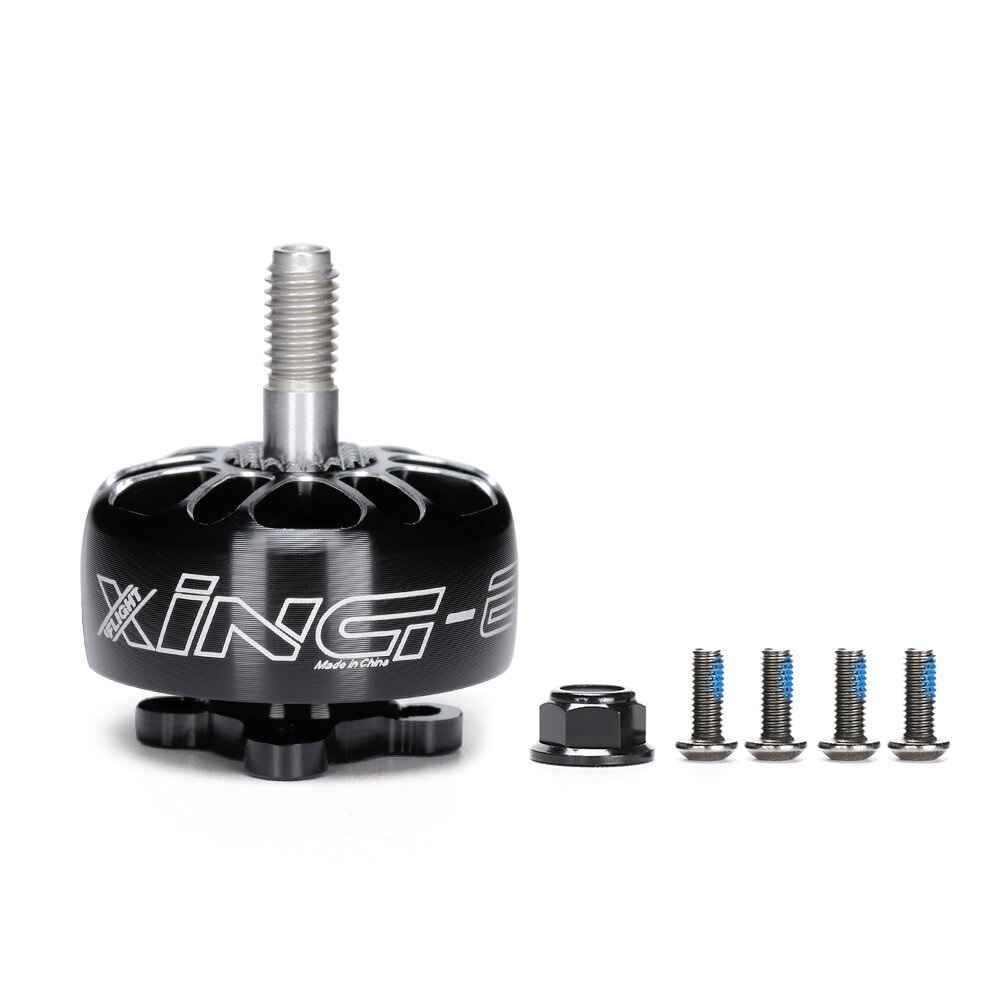

Package Included:
4X iFlight XING-E Pro 2207 Motor
4X Motor Nut
16X Screws
