HGLRC SPECTER F722AIO F7 Flight Controller with MPU6000, 5V BEC, 40A 4-6S ESC for RC Drone FPV Racing

-25%

HGLRC SPECTER F722AIO F7 Flight Controller with MPU6000, 5V BEC, 40A 4-6S ESC for RC Drone FPV Racing

Original price was: 171.98$.Current price is: 129.84$.

STM32 F722 main control and MPU6000 gyroscope for stable performance
HD/analog two-in-one camera and receiver interface
Supports GPS and default BL firmware with Bluebird option
Compatible with 2-4 inch ring machines and toothpick racks
Handles input voltage of 4-6S with 40A continuous current

SKU: RC2002454 Category: Multi Rotor Parts Tags: 4-6S ESC, 5V BEC AIO, F7 flight controller, FPV racing controller, GPS support drone, HD analog interface, HGLRC flight controller, MPU6000 gyroscope, RC drone racing, STM32 F722 MCU Brand: HGLRC

Description

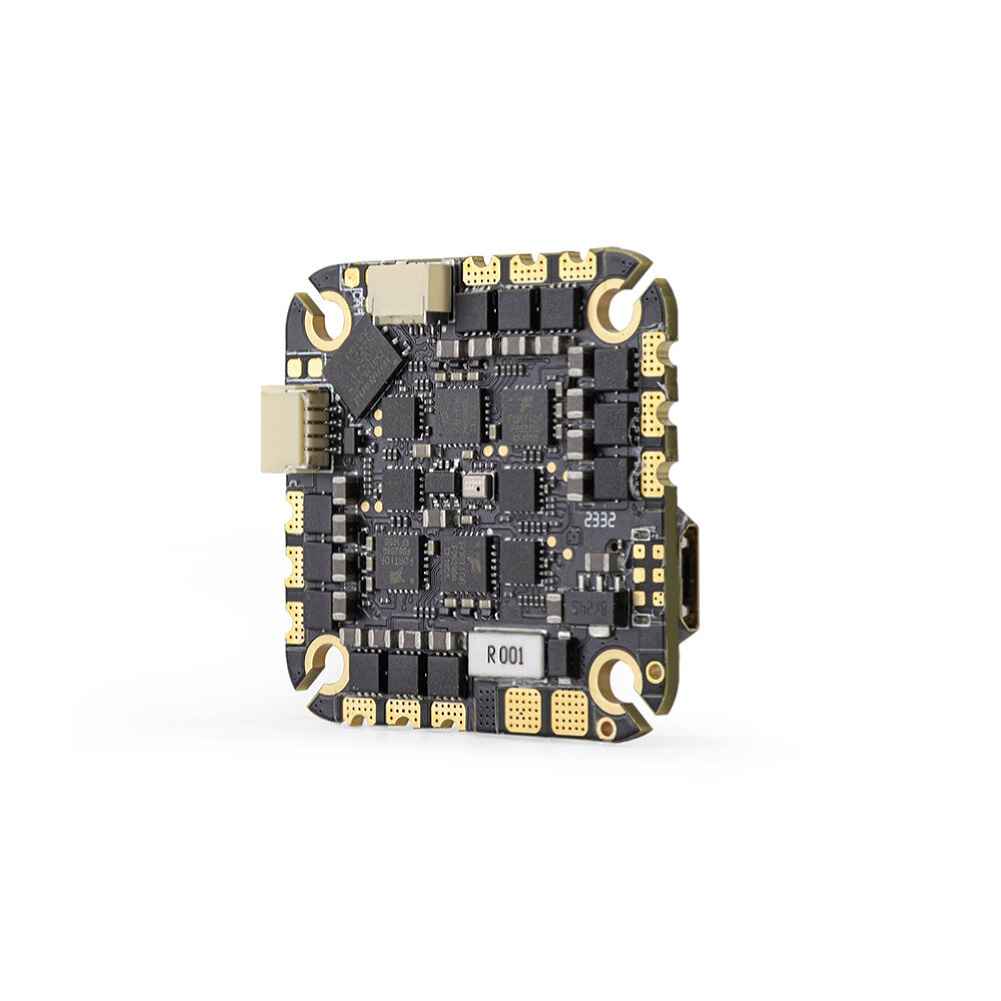

25.5×25.5mm HGLRC SPECTER F722AIO F7 Flight Controller MPU6000 5V BEC AIO 40A 4-6S Brushless ESC for RC Drone FPV Racing

The HGLRC SPECTER F722AIO F7 Flight Controller is designed for RC drone FPV racing enthusiasts. It features an STM32 F722 main control unit and an MPU6000 gyroscope, providing reliable performance. The controller includes a camera and receiver interface, supporting both HD and analog formats. With default BL firmware, users can flash Bluebird firmware for enhanced flight efficiency. Suitable for 2-4 inch ring machines and toothpick racks, it supports input voltage up to 4-6S. The controller offers continuous current of 40A and peak current of 50A. It is equipped with DSHOT600, Oneshot, and Multishot protocols, making it versatile for various racing setups.

Hglrc Specter 40A 4-6S AIO
The flight controller is equipped with STM32 F722 main control and MPU6000 gyroscope, camera, receiver, HD/analog two-in-one direct plug-in interface
Product Selling Points:
*Equipped with MPU6000 gyroscope
* Camera, receiver, HD/ analog two-in-one direct plug interface
*Support GPS
* Bl firmware is flashed by default, you can flash Bluebird by yourself to improve flight efficiency
* Suitable for mainstream 2-4 inch ring machines and toothpick racks
* Supports input voltage up to 4-6s
Specifications:
Product name: SPECTER 40A 4-6S AIO
MCU: STM32F722
MPU: MPU6000
BEC: 5V2A
OSD: Support
LED: Support
Bee Narrator: Support
Continuous current: 40A
Peak current: 50A (10S)
Electrochemical protocol: DSHOT600, Oneshot, Multishot
Flying control firmware: HGLRCF722AIO
Electrochemical firmware: BLS (brushing Bluejay 96K)
Electric: 8 -bit electrical
Input voltage: 4-6S 14.8V-22.2V (lipo)
Size: 34x34mm
Install holes: 25.5×25.5mm.m2
Weight: 9.8g

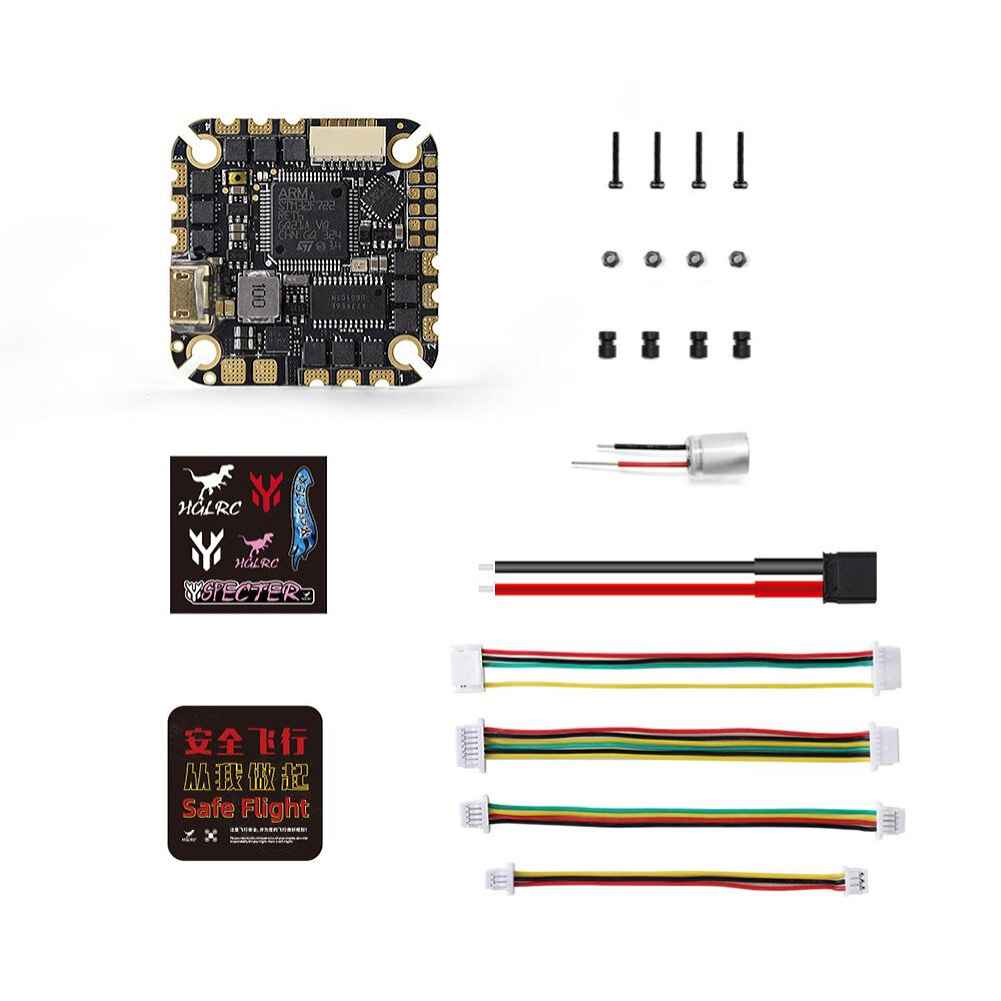

Package Included:
1 x Specter 40A 4-6S AIO
1 x XT60 16AWG 100MM Gongtou Power Cable
1 x #30AWG, line length 60mm, single head SH1.0-3P/single head SH1.25-3P camera head line
1 x 30AWG, line length 70mm, double head SH1.0-4P receiving machine line
1 x 30AWG line length 70mm, single head SH1.0-7P/single head SH1.0-6p HD map passing line
1 x 30AWG line length 70mm, single head GH1.25-6P/single SH1.0-7P simulation map passing line
4 x m2 6.6 shock reduction column
4 x m2 12 black nickel screws
4 x self-lock M2 nut
