EMAX ECOIII 2306 Brushless Motor, 1700KV/1900KV/2400KV, 3-6S, 4mm Shaft, for FPV Racing Drones

Sale!

2400KV, 3-6S, 4mm Shaft, for FPV Racing Drones

Price range: 31.52$ through 110.96$

Available in 1700KV, 1900KV, and 2400KV for flexible performance
Compatible with 3-6S batteries for varied power needs
Precision G1 level rolling element bearing for smooth operation
Durable steel shaft and Al 7075 anodized finish
Supports 5 to 5.5 inch propellers

Quantity

1 PC 4 PCS

1700KV 1900KV 2400KV

Motor

SKU: RC2030274 Category: Multi Rotor Parts Tags: 1700KV motor for drones, 1900KV drone motor, 2306 motor 4mm shaft, 2400KV racing motor, 3-6S drone motor, EMAX ECOIII brushless motor, FPV racing drone motor, high-performance FPV motor Brand: Emax

Description

1PC / 4PCS EMAX ECOIII 2306 1700KV 1900KV 3-6S / 2400KV 3-4S Brushless Motor 4mm Shaft for FPV Racing Drones

The EMAX ECOIII 2306 Brushless Motor is designed for FPV racing drones, offering versatile KV options of 1700KV, 1900KV, and 2400KV. Compatible with 3-6S batteries, these motors feature a precision G1 level rolling element bearing, a robust steel shaft, and an Al 7075 anodized finish. With a 4mm bearing shaft and a 12N14P framework, these motors deliver high performance and durability. The motor dimensions are 28.9mm by 31.8mm, with a peak power of up to 1160W. Ideal for propellers ranging from 5 to 5.5 inches, the motor includes single strand winding and 120mm 20 AWG silicone wire for reliable connectivity.

Specification:
Brand: EMAX
Model: ECOIII 2306
KV: 1700KV / 1900KV / 2400KV (Optional)

Model

Specification

ECOIII 2306 1700KV

KV: 1700KV
Idle Current(10V):1.1A
Motor Dimensions: 嫉28.9*31.8mm
Internal Resistance: 79m棒
Framework: 12N14P
No.of cells: 3-6S
Bearing Shaft: 4mm
Propeller: 5′-5.5′
Lead: 20#AWG 120mm
Peak Current(6S): 36A
Max.Power(6S): 970W
Weight: 29.4g(W/O Silicone Wire)

ECOIII 2306 1900KV

KV: 1900KV
Idle Current(10V): 1.3A
Motor Dimensions: 嫉28.9*31.8mm
Internal Resistance: 66m棒
Framework: 12N14P
No.of cells: 3-6S
Bearing Shaft: 4mm
Propeller: 5′
Lead: 20#AWG 120mm
Peak Current(6S):46A
Max.Power(6S): 1160W
Weight: 29.4g(W/O Silicone Wire)

ECOIII 2306 2400KV

KV: 2400KV
Idle Current(10V): 1.7A
Motor Dimensions: 嫉28.9*31.8mm
Internal Resistance: 47m棒
Framework: 12N14P
No.of cells: 3-4S
Bearing Shaft: 4mm
Propeller: 5′-5.5′
Lead: 20#AWG 120mm
Peak Current(4S): 43A
Max.Power(4S): 720W
Weight: 29.5g(W/O Silicone Wire)

Feature:
– G1 level rolling element Precision bearing
– Steel shaft
– Al 7075 Anodizing
– M3(16*16mm) hole pattern
– Single strand winding
– 120mm 20 AWG silicone wire

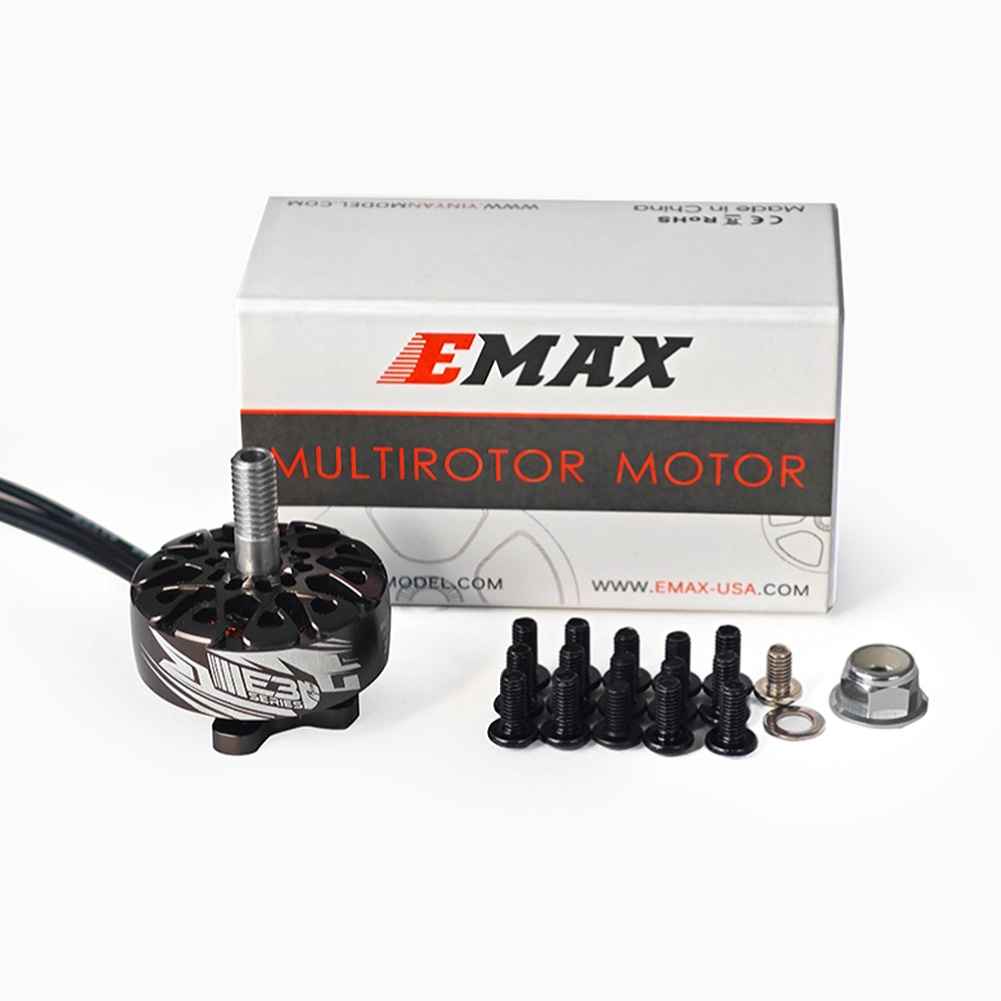

Package Included:
1x EMAX ECOIII 2306 FPV Brushless Motor
5x M3 8 Screw
5x M3 7 Screw
5x M3 6 Screw
1x Aluminum M5 Nylock Nut
1x Washer and Screw for Shaft
