Description
30.5×30.5mm DarwinFPV Betaflight F4 OSD Flight Controller with 10V 4.5V 3.3V BEC and 50A BL_S 2-6S 4IN1 ESC Stack for Darwin129 FPV Racing Drone

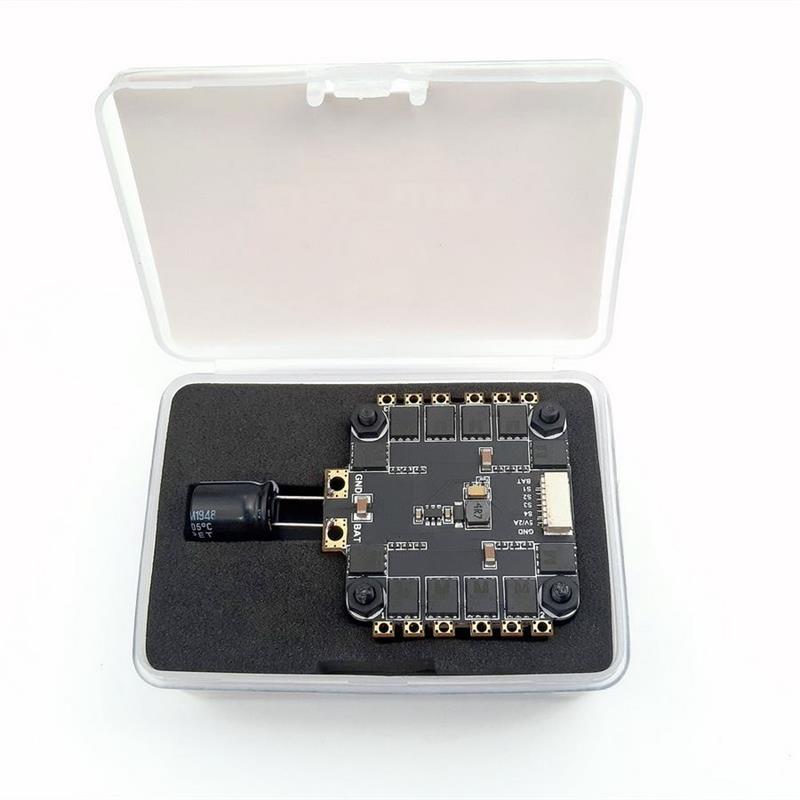

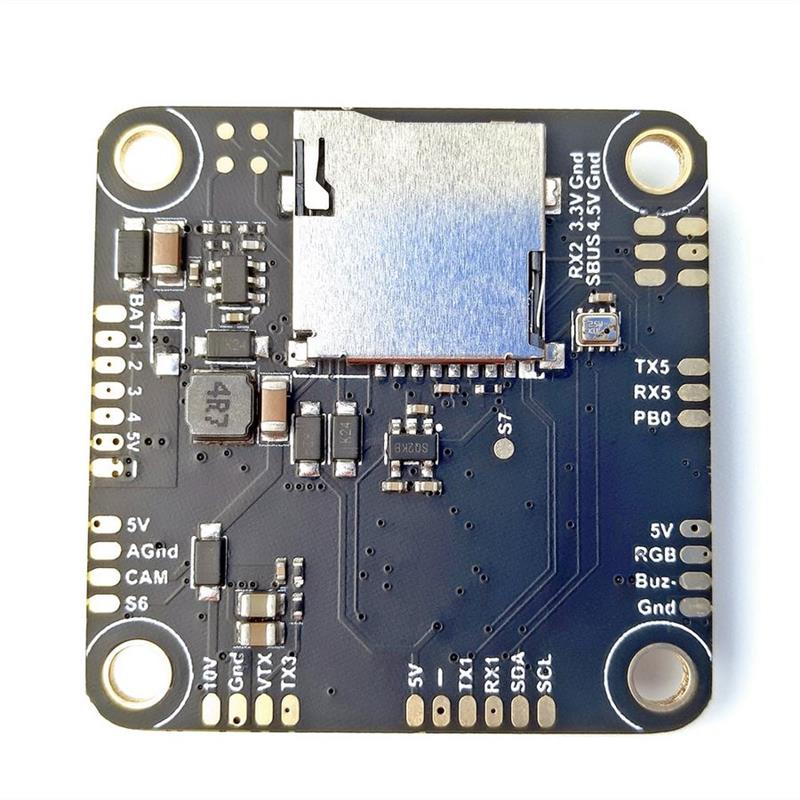

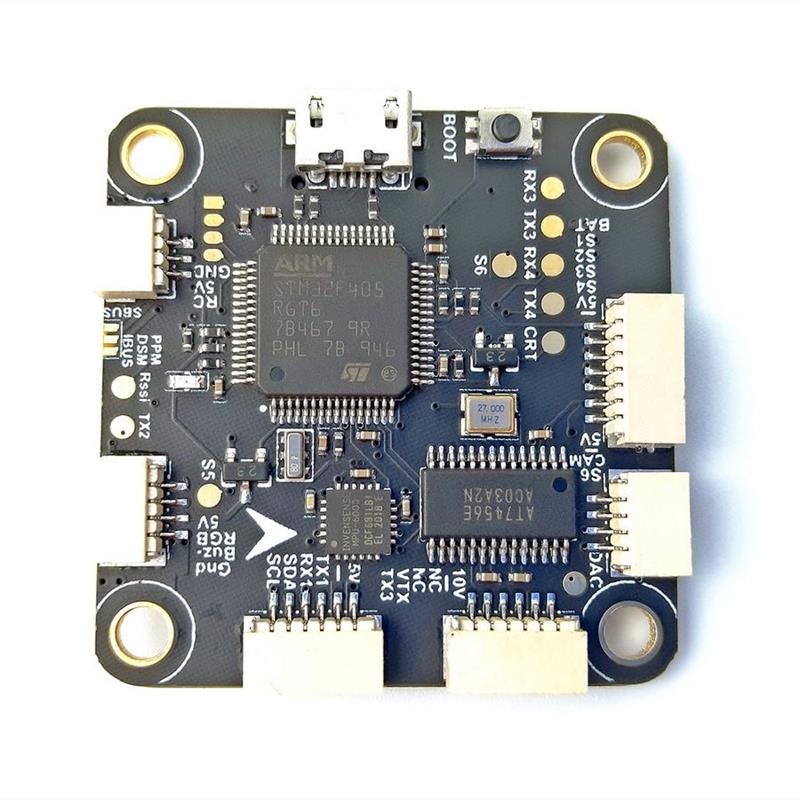

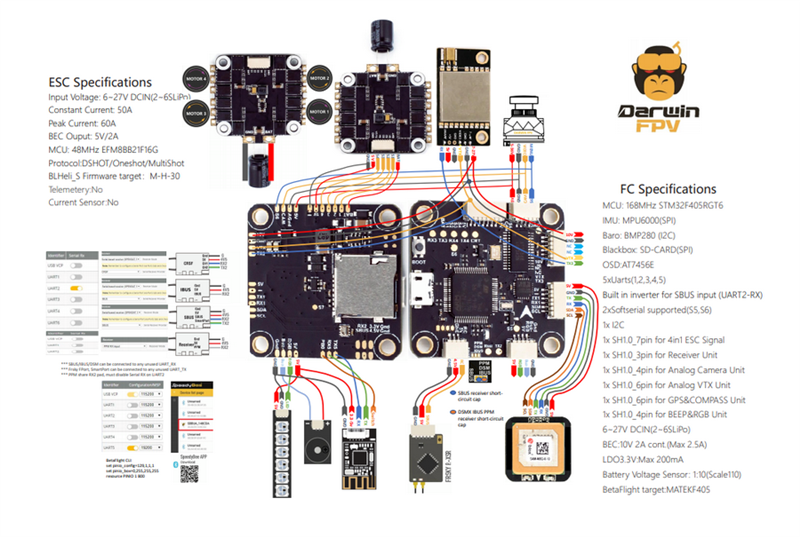

The DarwinFPV Betaflight F4 OSD Flight Controller and 50A 4IN1 ESC Stack is engineered for the Darwin129 7-inch FPV Racing Drone. This compact system features a 30.5×30.5mm mounting hole with M3 screws, ensuring easy installation. The F4 Flight Controller supports 3-6S input voltage and includes BEC outputs of 10V 1A, 4.5V, and 3.3V. It is equipped with an ML-405 MCU, MPU6500 gyroscope, and AT7456E OSD firmware. The 50A 4IN1 ESC supports 2-6S input voltage, with a continuous current of 50A and a peak of 60A for 10 seconds. It also includes a 5V2A BEC and supports DSHOT600 throttle signals. The total weight of the stack is 18g.
Notice: The color of anti-vibration ball will send randomly.
Specification:
Brand: Darwin
Item Name: 30.5×30.5mm F4 Flight Controller & 50A 4in1 ESC Stack
Application: for Darwin129 7 Inch FPV Racing Drone
Package Included:
1 x F4 Flight Controller
1 x 50A 4in1 ESC
