Description
DarwinFPV Darwin240 JOHNNY 5 240mm Wheelbase 5 Inch Freestyle RC FPV Racing Drone PNP with F4 FC 50A ESC 800mW VTX

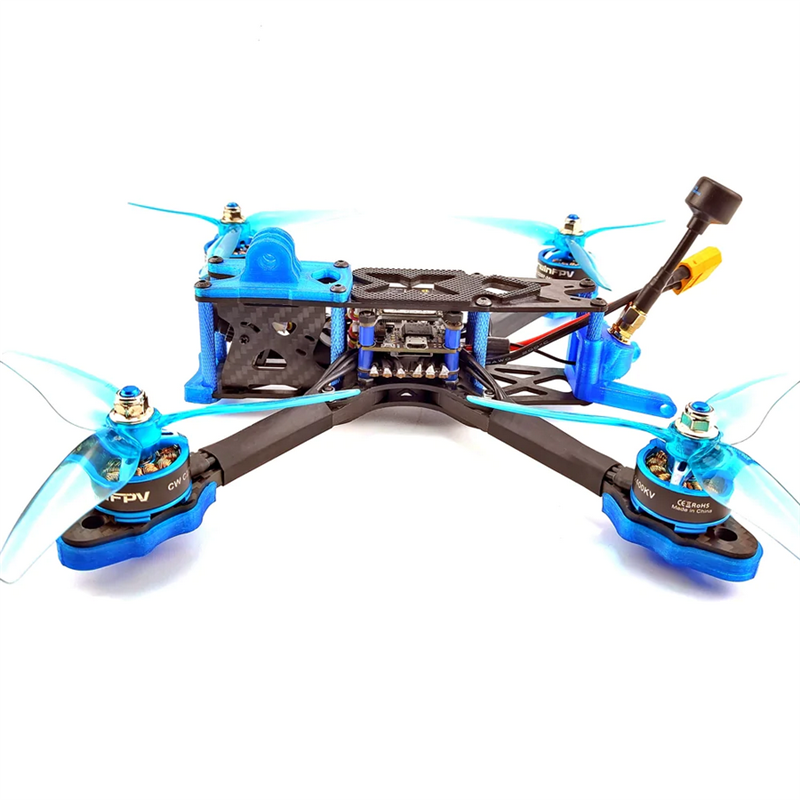

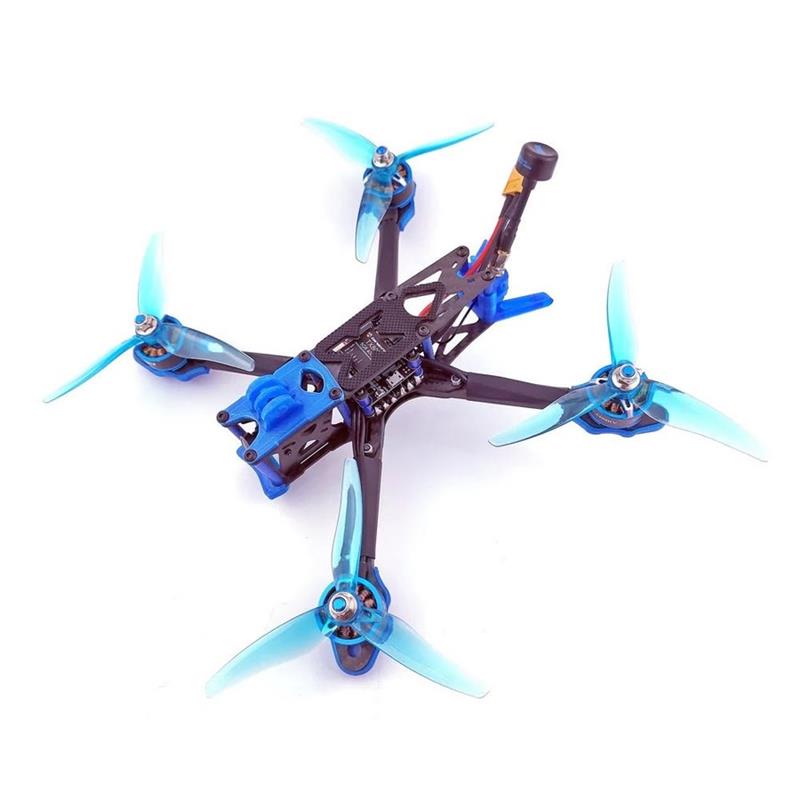

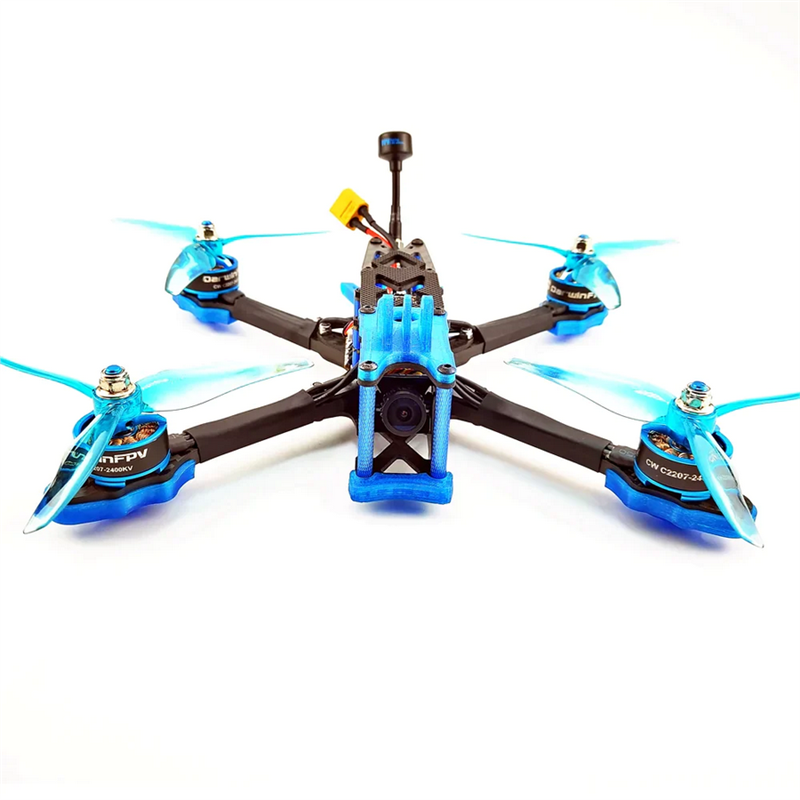

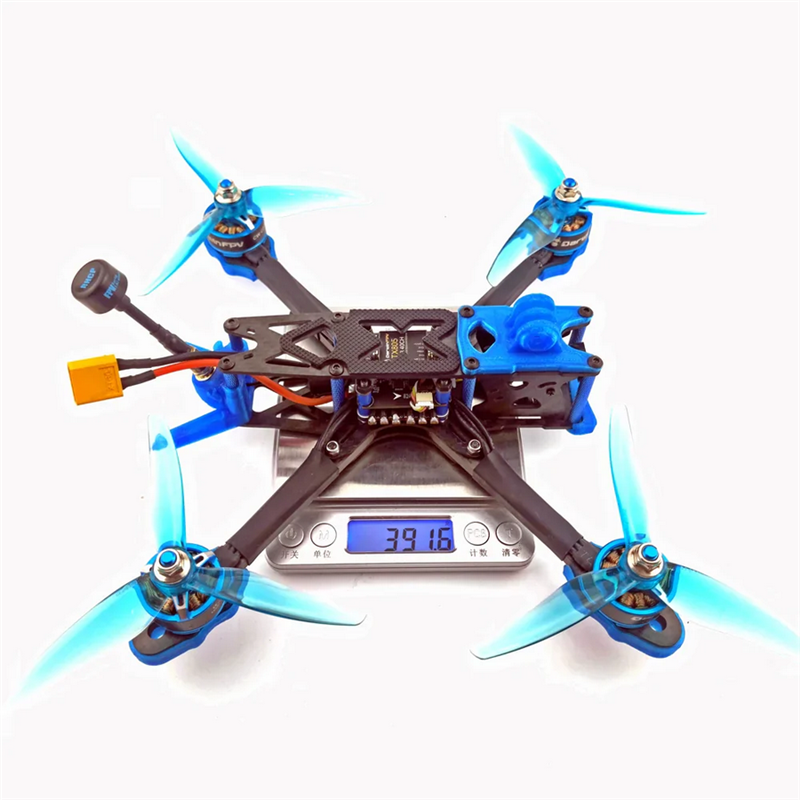

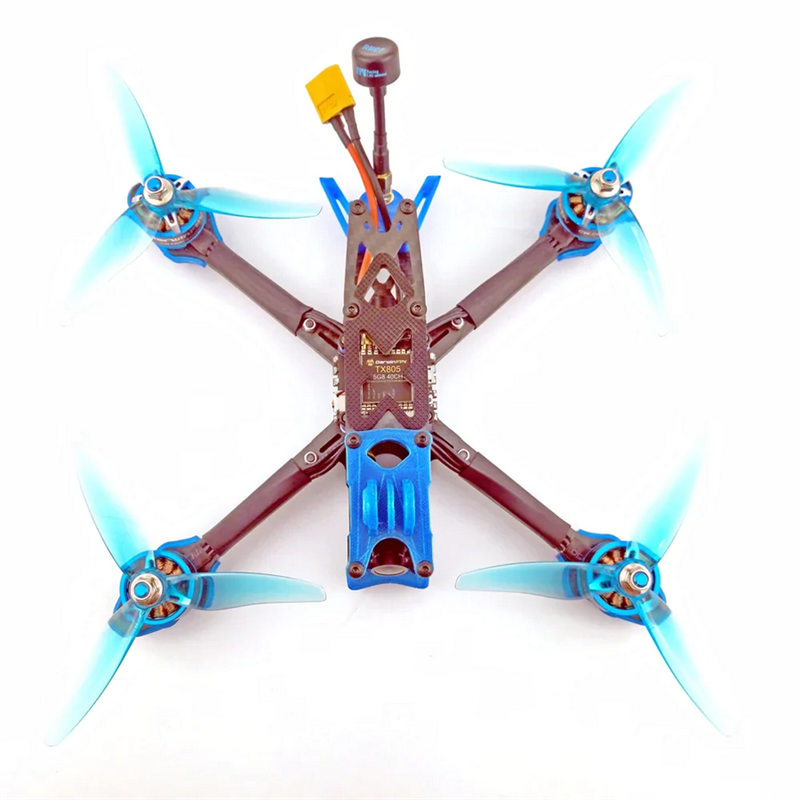

The DarwinFPV Darwin240 JOHNNY 5 is a 5-inch freestyle FPV racing drone designed for enthusiasts entering the hobby. With a 240mm wheelbase, this PNP (Plug-N-Play) drone requires only a receiver to get started. It features a robust 3K carbon fiber frame with 5.5mm thick arms and includes a TPU camera mount for the GoPro Hero 8. The drone is equipped with an F4 flight controller, 50A 4-in-1 brushless ESC, and a powerful 2207 2400KV brushless motor. Additionally, the TX805P VTX supports 5.8G frequency with switchable output power up to 800mW, ensuring reliable video transmission.
Introduction:
The Darwin240 Johnny5 Freestyle is the first 5 inch drone from DarwinFPV.
This is a great entry level drone to get you into the hobby. Just add a receiver of your choosing and your off in flying in no time!
It includes a TPU camera mount base for GoPro Hero 8, so you can get that juivy footage. Pick up yours today!
Specification:
Brand: DarwinFPV
Model: Darwin240 JOHNNY 5
Item Name: 240mm Wheelbase 5 Inch Freestyle FPV Racing Drone
Version: PNP ( Without Receiver)
|
DARWIN240
Wheelbase: 240mm
Frame Arm Thickness: 5.5mm
Material: 3K Carbon Fiber
|
F4 Flight Controller
Input Voltage: 3-6S
BEC: 10V 1A, 4.5V, 3.3V
MCU: STM32F405
Gyro: MPU6000
OSD: AT7456E
Firmware: MATEKF405
Weight: 7.2g
Mounting Hole: 30.5×30.5mm, M3
Support barometer, black box
Bluetooth
|
50A 4in1 Brushless ESC
Continuous Current: 50A
Peak Current: 60A (10S)
Input Voltage: 2-6S
BEC: 5V 2A
Weight: 10.8g
Firmware: BL_S
Maximum support throttle signal: DSHOT600
Mounting Hole: 30.5×30.5mm, M3
|

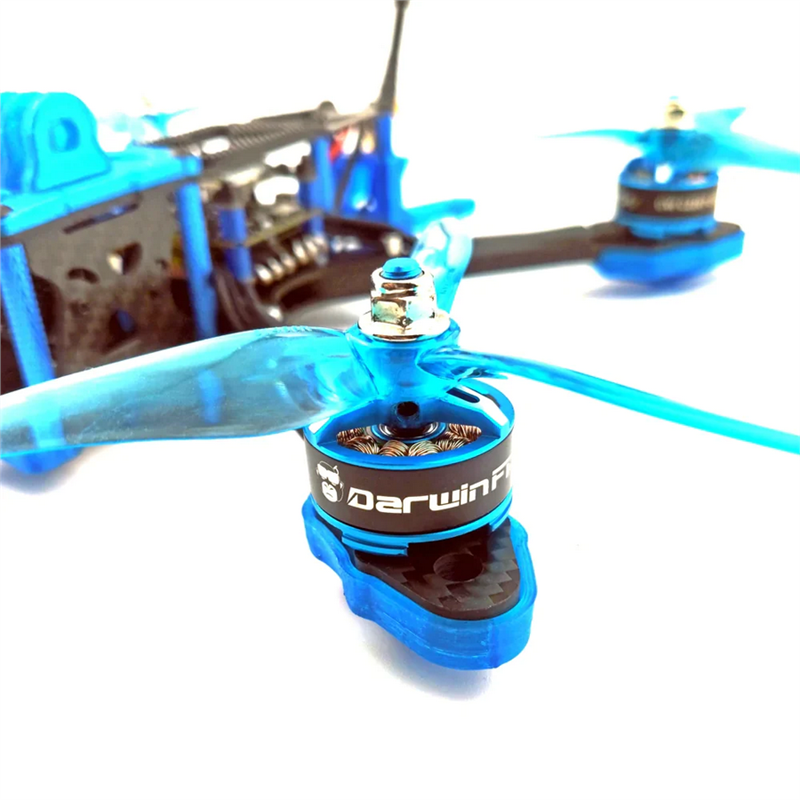

2207 2400KV Brushless Motor
Motor KV: 2400KV
Idle Current (Io/10V): 0.81A
Lipo Cell: 3-4S
Weight: 36.4g
Max Continuous Current: 32A
Max Continuous Power: 765W
Configu-ration: 12N/14P
Prop adapter shaft: M5
Bolt holes spacing: 16mm
Bolt thread: M3
|
TX805P 5.8G 37CH 800MW VTX
Frequency: 5.8G
Channels: 37CH
Input voltage: 7V~24V
5V camera supply: 120mA(MAX)—-25mW@12V 5V
camera supply: 200mA(MAX)—-200mW@12V 5V
camera supply: 300mA(MAX)—-600mW@12V 5V
camera supply: 350mA(MAX)—-800mW@12V Extra
features: Smart audio
Power supply: 5V output for Camera
Output power: 25mW/200mW/600mW/800mW
switchable Antenna connector: MMCX
Cable connector: Solder pads
Weight: 8g(excluding antenna)
|

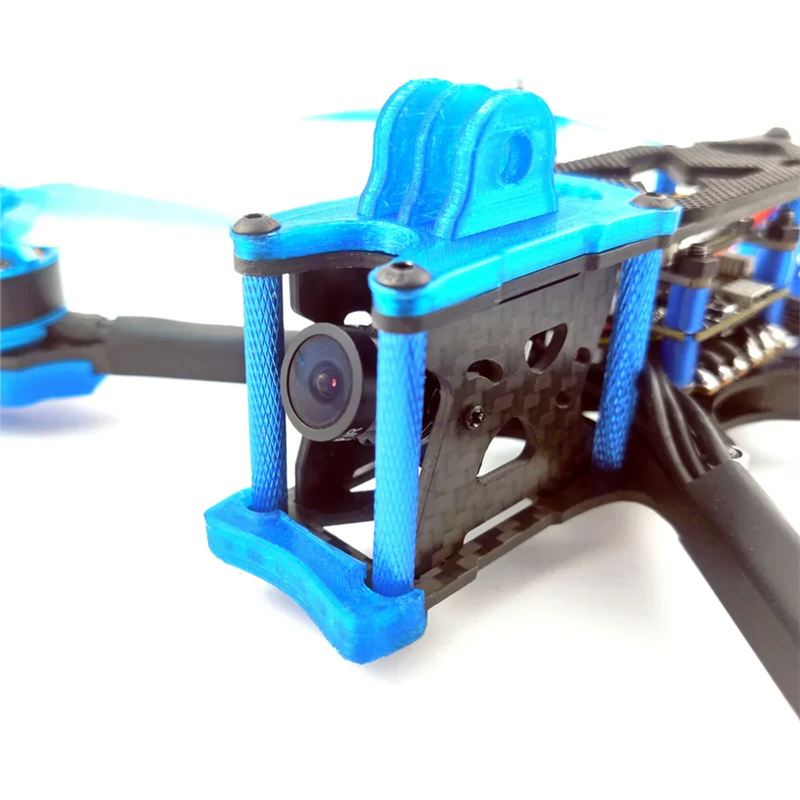

Customized Camera
Image Sensor:1/3′ CMOS D1960H
Horizotal Resolution: 1500TVL
Lens: 2.1mm/2.3mm
Signal System: PAL/NTSC (OSD Internal adjustable)
S/N Ration: 760Db (AGC OFF)
Electronic Shutter Speed: PAL/NTSC(OSD Internal adjustable)
S/N Ration: 760Db (AGC OFF)
Electronic shutter speed: PAL: 1/50-1000.000
NTSC:1/60-1000.000
Auto Gain Control(AGC): Low/MIDDLE/HIGH
Back light compensation(BLC) :YES
Min Illumination: 0.001 LUX/1.2F
WDR: D-WDR
DNR: 3DNR
Day/Night: Auto/Color /B*W
Power: DC 5V~30V
Net weight: 5.0g
Dimensions: 19mm*19mm*19mm
It is same as Darwin129 ‘s camera
Recommend Lipo Battery: ( NOT Included)
4S 14.8V 1500mAh 100C Lipo Battery
Package Included:
1 x Darwin240 Johnny 5 FPV Drone PNP
