Description
iFlight XING 2806.5 1300KV 1800KV 3-6S Cinelifiter Brushless Motor for AOS7 EVO Chimera7 Pro 7Inch to 8 Inch FPV Racing RC Drone
The iFlight XING 2806.5 Brushless Motor is expertly designed for larger quadcopter frames, specifically 7 to 8 inches. This motor boasts a uni-bell design, Japan NSK bearings, and N52H arc magnets, delivering impressive thrust and smooth flight performance. The 2806.5 stator size ensures rapid power delivery, ideal for adventurous mountain dives. Available in 1300KV and 1800KV options, this motor is perfect for building high-performance drones. Constructed with a high-strength 4mm titanium alloy shaft and 7075 aluminum bell and base, it promises durability and reliability. The motor wires are well-protected and feature a hex bolt shaft set screw for added security.
Introduction:
The Motor XING 2806.5 designed for bigger quads like 7-8 inch quad frames, which is with better efficiency in this range frames.The XING 2806.5 features uni-bell design and adopt Japan NSK bearing, N52H arc magnets. It offers incredible thrust number, highly responsive and extremely smooth flight characteristics. The bigger stator size 2806.5 allows it to provide instant power to save you from those crazy mountain dives last minute. It’s a great motor if you’re building bigger drones like 7 inch or 8 inch.
Specification:
Brand: iFlightModel: XING 2806.5
Item Name: 2806.5 1300KV 1800KV 3-6S Brushless Motor
Optional KV: 1300KV / 1800KV

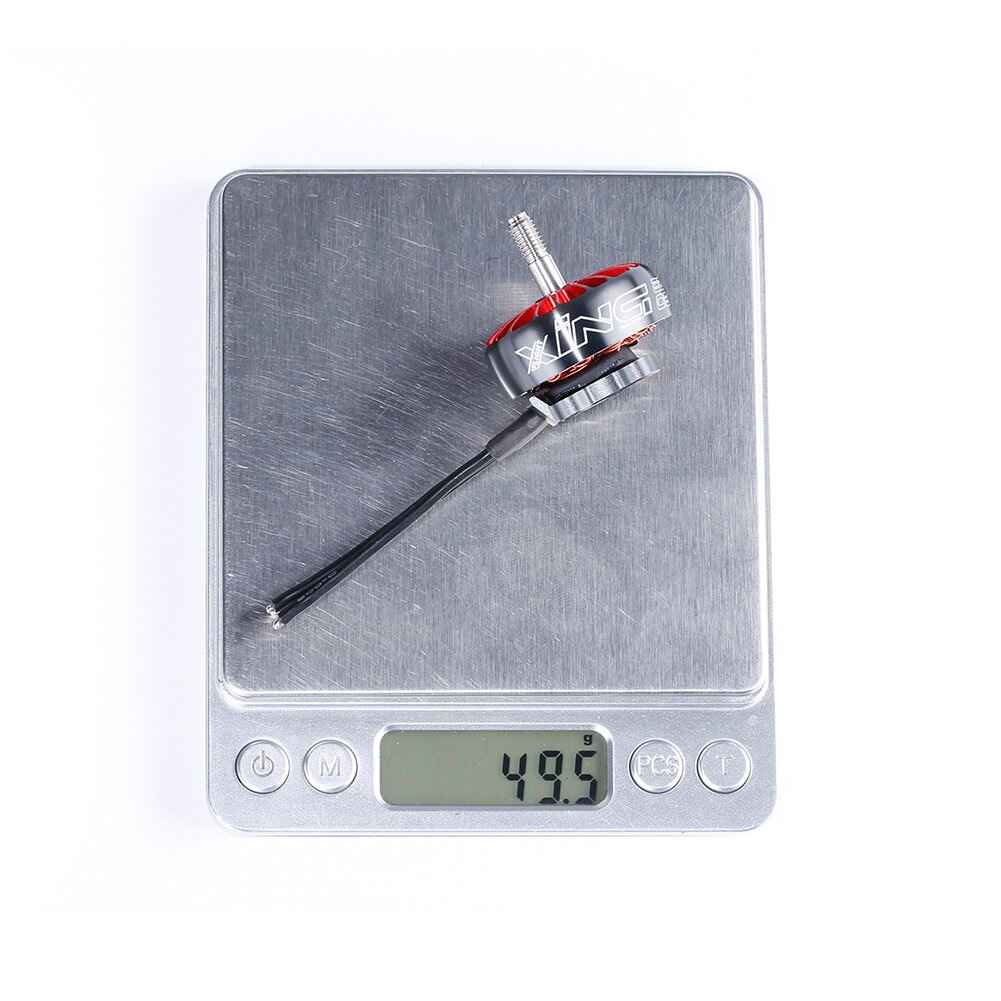

Weight(included wire):54.3g/53.3
Dimension: 嫉35.06*21.3mm
Interphase Resistance:72.29m棒/ 45.5m棒
Input Volts: 24V
Peak Current: 48.33A/72.3A
Max Watt: 1132.9W/1681.0W
Mounting Holes: 19*19 嫉3mm
Rotor Specifications: Unibell
Shaft Diameter: 5mm/4mm
Shaft Protruding Length: 15.5mm
Lead: 265mm/18AWG
Magnet: N52H Curved
Configuration: 12N14P
Bearing Type: NSK
Bearing Specification: 嫉11*嫉5*45
Winding: Single Strand copper winding
Test Table & Darwing Picture
1300KV Version / 1800KV Version
Features:
– High-strength 4mm Titanium alloy shaft
– Unibell design
– 7075 aluminum Bell and Base
– Electromagnetically matched magnets and stator
– Japanese NSK 11*5*5 bearings
– N52H Arc curve magnets
– Motor wires protected
– Hex bolt shaft set screw
– Dynamically balanced
Package Included:
1 x X2806.5 motor
1 x M5 Screw nut
4 x M3 8 screws
